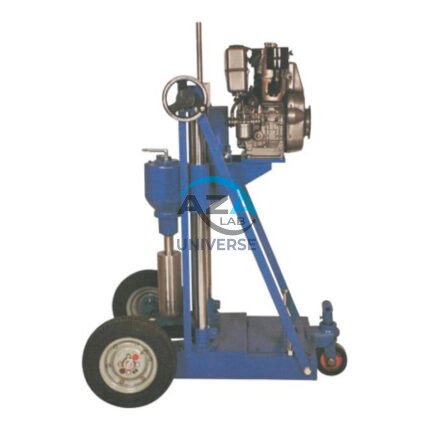

AZA 0994 CORE CUTTING/CORE DRILLING MACHINE (PETROL)

Specification: Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials. The machine is suitable for core samples of size upto 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable petrol engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation. Dimension approx, are as under: Height : 1300 mm Base : 625 x 900 mm Head travel on rack : 500mm Drill speeds : 900 R.P.M. for soft samples and 350 R.P.M. for hard Samples Water swivel : Built in the machines. Accessories : (1) Thin wall diamond bits. (2) Core barrel. (3) Petrol engine 190 cc

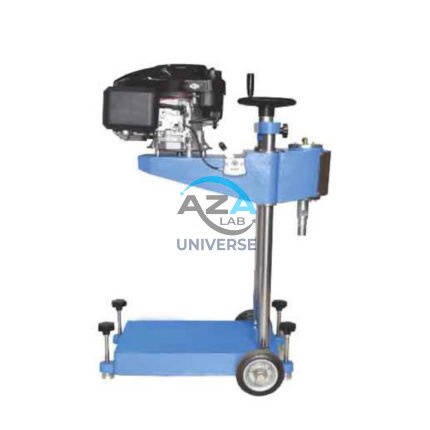

AZA 0995 PORTABLE CORE CUTTING DRILLING MACHINE PETROL DRIVEN

EN 12697-27 Compact and portable Accurate Business core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation. Weight (approx) : 100 Kg Power : Petrol Engine 6.5 HP Briggs & Stratton USA

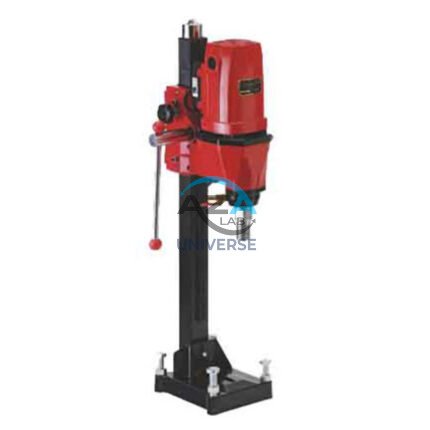

AZA 0996 CORE CUTTING/CORE DRILLING MACHINE (MOTORISED)

Specification: ! Rated Voltage: ~220 V / 50Hz ! Power Input: 2800W ! No-Load Speed: 840rpm ! Max. bit diameter: Ø50mm/100mm/150mm ! Shaft Male: 1 1/4"UNC Features: ! Compact size with light weight as well as safety in operation ! The drills are equipped with a friction clutch as well as over load current protection for protecting motor ! High-strength gear to keep the drill working long hours constantly ! Excellent speed, smooth and stability during drilling ! Out setting water swivel seal facilitate making replacement when the seal worn out ! Bits capacity: 25mm Dia - 150mm Dia Complete Combination: The core drill includes drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out setting water swivel seal, hydraulic system. Optional parts include water pump, rod for ceiling jack, water container, adapters. Application: The Core Drill is the industry standard, designed for concrete, Reinforced concrete, Asphalt and brick in construction.

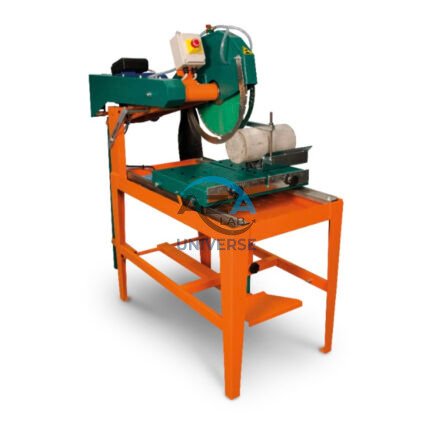

AZA 0997 ROCK/CONCRETE CUTTING MACHINE

  • Exceptional Power: Designed for cutting through tough rock and reinforced concrete.
  • Precision Control: Achieves accurate and clean cuts in challenging materials.
  • Built to Last: Heavy-duty construction ensures durability in extreme conditions.
  • Versatile Applications: Ideal for mining, quarrying, demolition, and infrastructure projects.
  • Operator Comfort: Ergonomic design for reduced fatigue during demanding tasks.

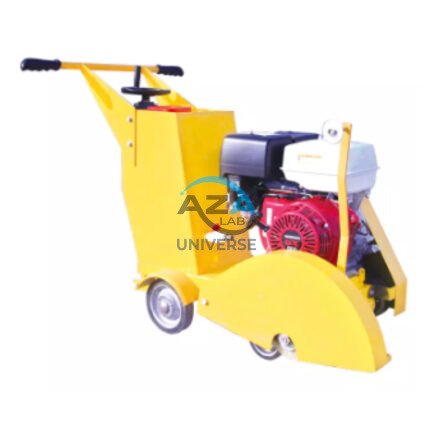

AZA 0998 ASPHALT & CONCRETE FLOOR SAW

  • Heavy-Duty Performance: Designed for demanding asphalt and concrete cutting tasks.
  • Precision Cutting: Achieve clean, straight cuts with advanced blade control.
  • Enhanced Durability: Robust construction for long-term reliability on job sites.
  • User-Friendly Design: Ergonomic features for comfortable operation and reduced fatigue.
  • Versatile Applications: Ideal for road repairs, demolition, trenching, and utility work.

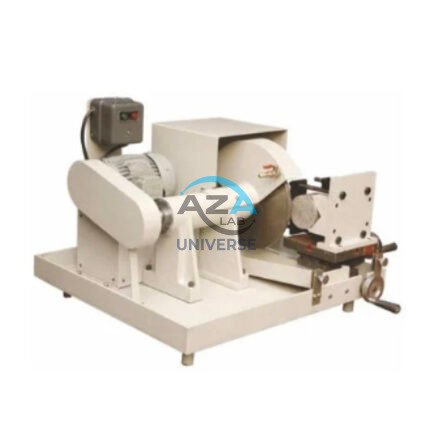

AZA 0999 CORE CUTTING GRINDING MACHINE

  • Dual function: cutting and grinding in one machine
  • Ideal for rock, concrete, and mineral core samples
  • Smooth, accurate face preparation for lab testing
  • Heavy-duty diamond blade and grinding wheel
  • Essential for geotechnical and civil labs

AZA 1000 POLISHING AND LAPPING MACHINE

  • Dual-purpose polishing and lapping machine
  • Ideal for rocks, minerals, and metallurgical samples
  • Precision flat surface finishing for lab testing
  • Adjustable speed and plate pressure

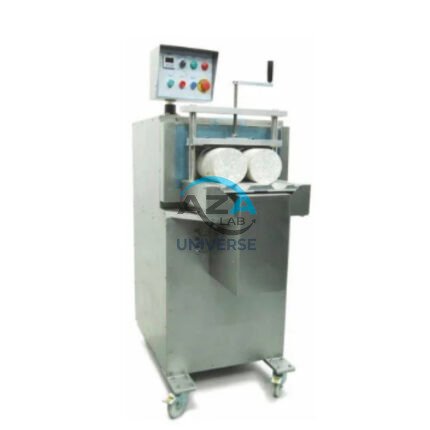

AZA 1001 AUTOMATIC GRINDING MACHINE

  • Precision grinding for rock and concrete cores
  • Fully automatic operation with adjustable parameters
  • Suitable for lab and geotechnical field use
  • Complies with ASTM/ISRM grinding standards
  • Enhances sample parallelism for strength tests

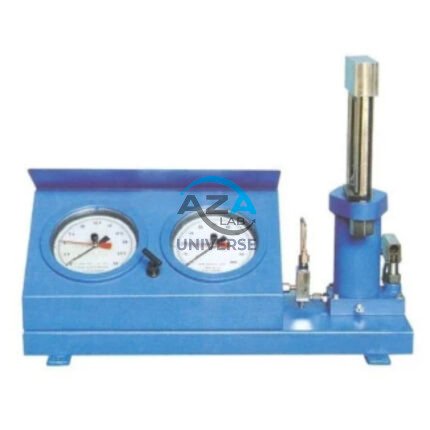

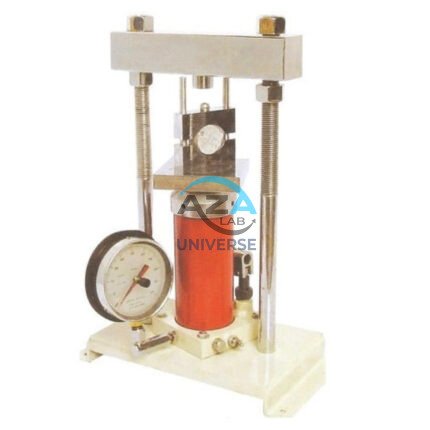

AZA 1002 POINT LOAD INDEX TESTER

  • Measures point load strength index of rocks
  • ISRM-compliant for core and irregular samples
  • Portable and easy-to-use field/lab apparatus
  • Manual screw jack for precise loading
  • Suitable for geological surveys & civil testing

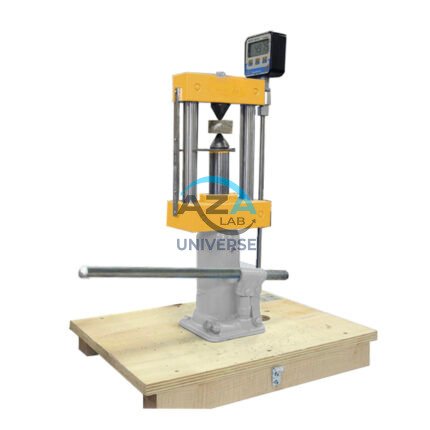

AZA 1003 DIGITAL POINT LOAD TEST APPARATUS

  • 60 kN capacity hydraulic load frame for rock specimen testing
  • Digital display with 2×16 characters for precise load readings
  • ±1% accuracy with 32,000 divisions resolution
  • Adjustable frame accommodates specimens up to 102 mm diameter
  • Load measurement in both kN and MPa units
  • Serial port for PC connectivity and data logging
  • Complies with ASTM D5731 standards for point load testing

AZA 1004 BRAZILIAN TEST APPARATUS

  • Determines indirect tensile strength of cylindrical rock samples
  • Complies with ASTM D3967 and ISRM standards
  • Strong steel frame with plated loading jaws
  • Precision loading and measurement system
  • Suitable for laboratory and on-site testing

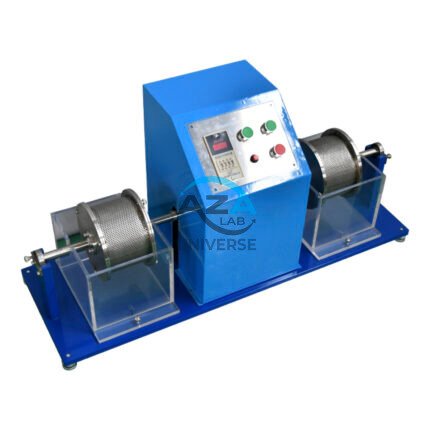

AZA 1005 SLAKE DURABILITY APPARATUS

  • Evaluates slake durability index of weak rocks
  • Twin drum configuration for high accuracy
  • Built per ISRM & ASTM D4644 standards
  • Ideal for geotechnical labs and universities
  • Stainless steel drums and drive motor included

Rock mechanics is the theoretical and applied science about the physical behavior of rock and rock masses as well as their reaction to the force fields of their physical environment. It also deals with the application of the principles of engineering mechanics to the design of the rock structures generated by mining, drilling, reservoir production or civil construction activity, such as slopes, tunnels, dam foundation mining shafts, underground excavations, open pit mines, oil and gas wells, road cuts, waste repositories and other structures built in or made of rock. It also includes the design of reinforcement systems such as rock bolting patterns. Testing of rocks mainly aims to simulate stress conditions that a rock sample is exposed in nature and to get necessary parameters such as stress, strain, elastic modulus, poisons ratio properties to evaluate specimen. When a rock sample is subjected to defined stress conditions in the laboratory, the stress-strain diagram can show non linear relations also for very small strains, hysteresis, anisotropy, etc. All these phenomena can be mathematically described and used for mechanical design simulations. Accurate Business manufactures Rock Testing Equipment & Machines as per International Quality Standards. Our products are ready to ship at shortest period of notice as we keep large inventory of all our products.
