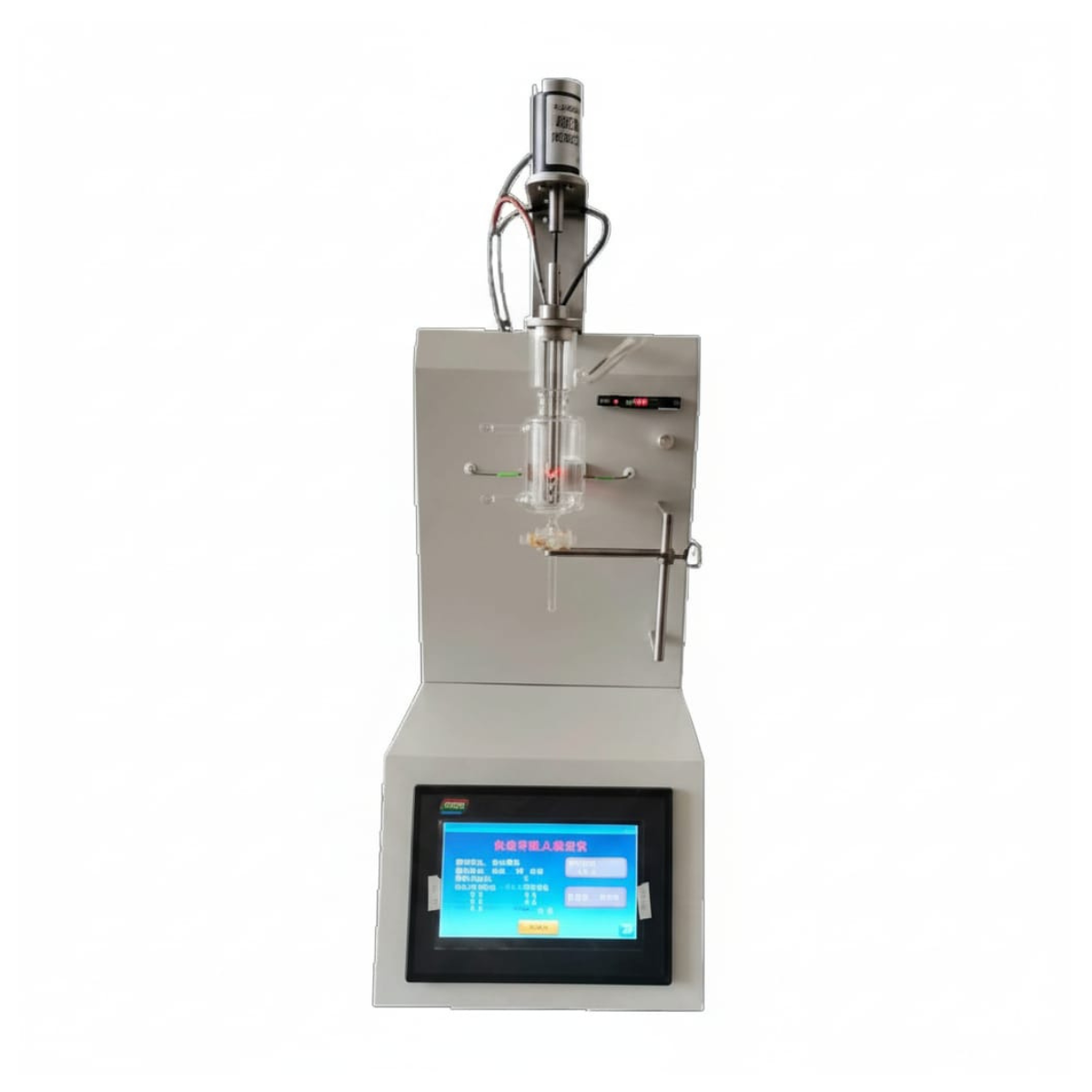

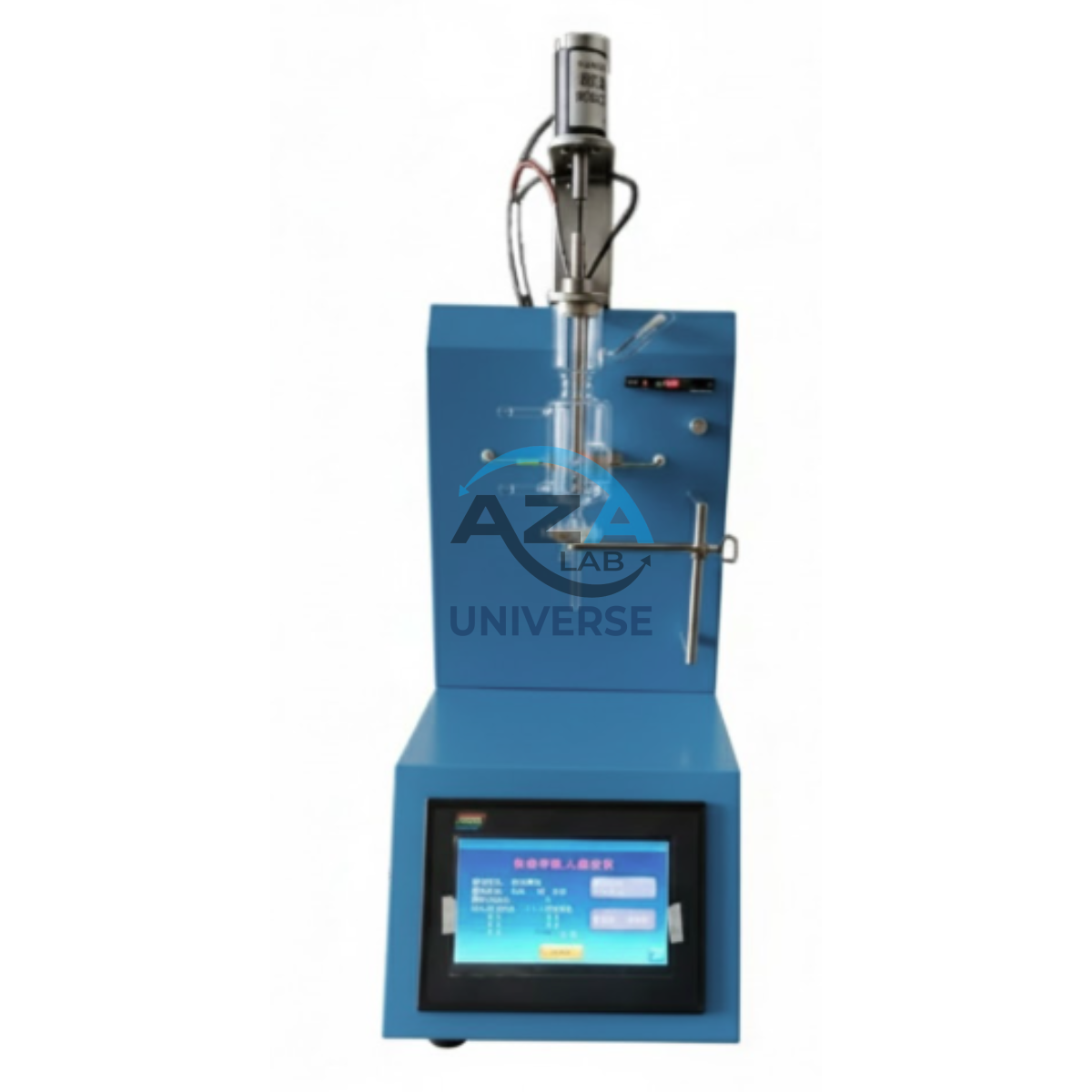

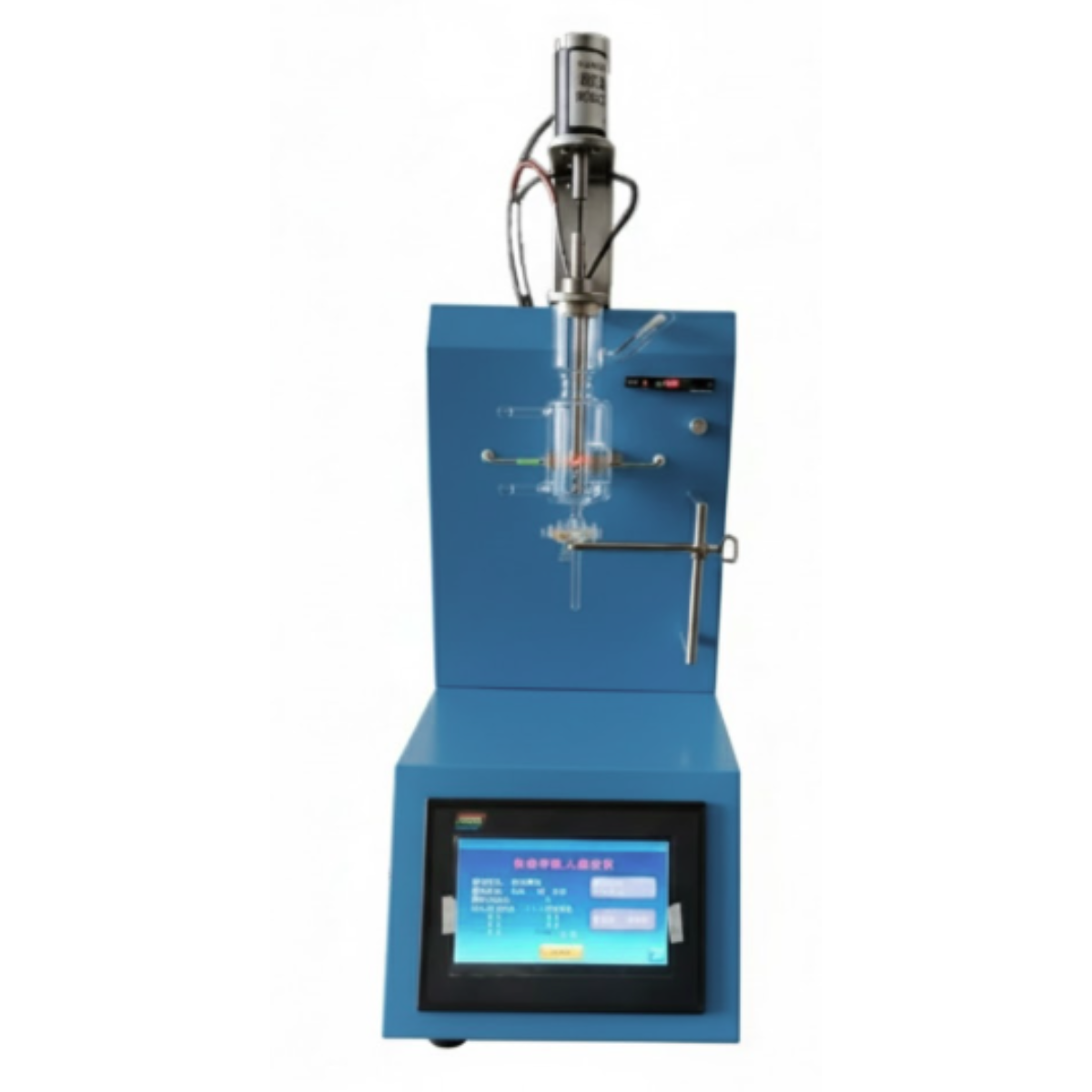

Aniline Point Tester AZA1328
The Aniline Point Tester (Model: AZA1328) from AZA Lab is a precision instrument designed for determining the aniline point and mixed aniline point of petroleum products and hydrocarbon solvents, in accordance with ASTM D611 Standard Test Methods. The aniline point is a critical parameter indicating the aromatic content and solvency properties of fuels and hydrocarbons. This instrument is widely used in laboratories, refineries, fuel quality control centers, and research facilities to ensure accurate characterization of product composition, compatibility, and performance.
The AZA1328 provides fully automated operation with integrated safety features, ensuring precise, reliable, and reproducible results while minimizing operator intervention.
Description
Key Applications & Features
-
High-Precision Measurement: Accurately determines the temperature at which aniline and the test sample are completely miscible, critical for evaluating aromatic content.
-
Mixed Aniline Point Testing: Can measure samples with aniline points below the crystallization temperature, providing enhanced analytical flexibility.
-
7-inch Color LCD Touch Screen: Modern, user-friendly interface displaying real-time data and operational status.
-
Imported Photoelectric Sensors: Ensures high repeatability and accuracy in detecting the miscibility endpoint.
-
Automatic One-Key Operation: Complete test cycle from heating, stirring, and detection to recording and printing is fully automated.
-
Over-Temperature Alarm: Stops the test and alerts the user if the sample temperature exceeds 170°C, enhancing safety.
-
Microprocessor-Controlled System: Handles heating, stirring, detection, data storage, printing, and shutdown for efficient workflow.
-
Data Management: Stores up to 200 records, allowing for historical data tracking and reporting.
-
Printing Capability: Built-in micro printer provides hard copies of test results for documentation and compliance.
-
Compact, Durable Design: Stainless steel body and high-quality components ensure long-term stability and minimal maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1328 |
| Temperature Control Range | Room temperature ~ 170°C |
| Temperature Accuracy | ±0.1°C |
| Heating Method | Electric heating rod |
| Heating Power | 60 W |
| Stirring Method | Motor-driven soft shaft |
| Detection Method | Photoelectric sensor |
| Storage Capacity | 200 records |
| Printing Method | Micro printer |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Optional Accessories | Stainless steel tray: 1 Glass test tube: 1 |
Applications in Industry
-
Fuel and Lubricant Quality Control: Evaluates aromatic content and compatibility.
-
Refineries: Assesses feedstock characteristics and process suitability.
-
Laboratories & Research: Supports analysis of hydrocarbon solvent properties and product formulation.
-
Regulatory Compliance: Ensures conformity with ASTM D611 and other industry standards.
The AZA1328 Aniline Point Tester is a highly reliable, fully automated, and user-friendly instrument that combines precision, safety, and efficiency, making it an essential tool for laboratories and industrial quality control operations.
Related products
Apparatus for Hydrogen Sulfide Tester – AZA1314
The Apparatus for Hydrogen Sulfide Tester AZA1314Â from AZA Lab conforms to the ASTM D7621 Standard Test Method for the determination of hydrogen sulfide in fuel oils by rapid liquid phase extraction.
In this method, a weighed test sample is placed into a heated vessel containing a diluent base oil, where air is bubbled through to extract hydrogen sulfide gas. The extracted gas is then directed, via a vapor phase processor (Procedure A), to an Hâ‚‚S-specific electrochemical detector, which measures its concentration in air and calculates the amount in the liquid phase in mg/kg. For Procedure B, the use of a filter cartridge is not required.
Automated Cleveland Open Cup Flash Point & Fire Point Analyzer AZA1276
The AutoFlash1276 (Model: AZA1276) from AZA Lab is a fully automated, microcontroller-based Cleveland Open Cup (COC) Flash and Fire Point Analyzer designed for high-temperature petroleum testing applications. Engineered for accuracy, safety, and regulatory compliance, the AZA1276 delivers reliable flash and fire point determination for materials with flash points above 79 °C up to 400 °C.
Complying with ASTM D92, ISO 2592, IS 1448 (Part 69), and IP 36, this advanced analyzer is ideal for laboratories and industrial environments where repeatability, operator safety, and international acceptance are critical.
AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1279
The Automated Cleveland Open Cup Flash Point Analyzer (Model: AZA1279) from AZA Lab is a fully automated, microprocessor-controlled flash point testing system designed for accurate determination of the flash point of petroleum products using the Cleveland Open Cup (COC) method. Engineered in strict compliance with ASTM D92, the AZA1279 delivers reliable, repeatable, and traceable results for laboratories where safety, regulatory compliance, and precision are essential.
Flash point determination plays a vital role in assessing the flammability, handling safety, storage conditions, and transportation classification of combustible liquids. The AZA1279 automates the entire test cycle—heating, ignition, detection, and result recording—minimizing human error while maximizing consistency and operator safety
Cleveland Open Cup (D92) Flash Point Tester AZA1291
The Cleveland Open Cup Flash Point Tester AZA1291 from AZA Lab is a precision-engineered analytical instrument designed for accurate determination of flash point and fire point of petroleum products in full compliance with ASTM D92 and GB/T 3536-2008 standards. Built for reliability, safety, and intelligent operation, the AZA1291 is ideal for petroleum laboratories, refineries, inspection agencies, and quality control departments requiring repeatable and standards-compliant results.
The analyzer is suitable for samples with flash points ranging from 79°C to 400°C, covering a broad spectrum of petroleum products such as lubricating oils, transformer oils, diesel, heating oils, base oils, waxes, and other high-flash-point materials.

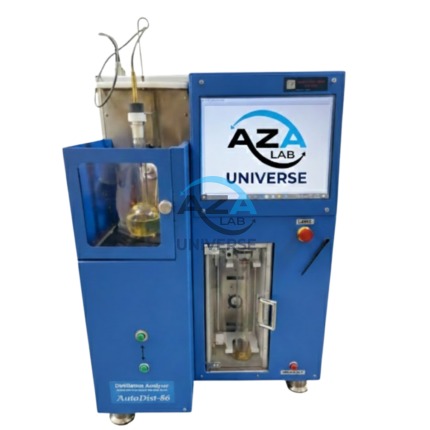

Fully Automated Atmospheric Distillation Analyzer AZA1287
