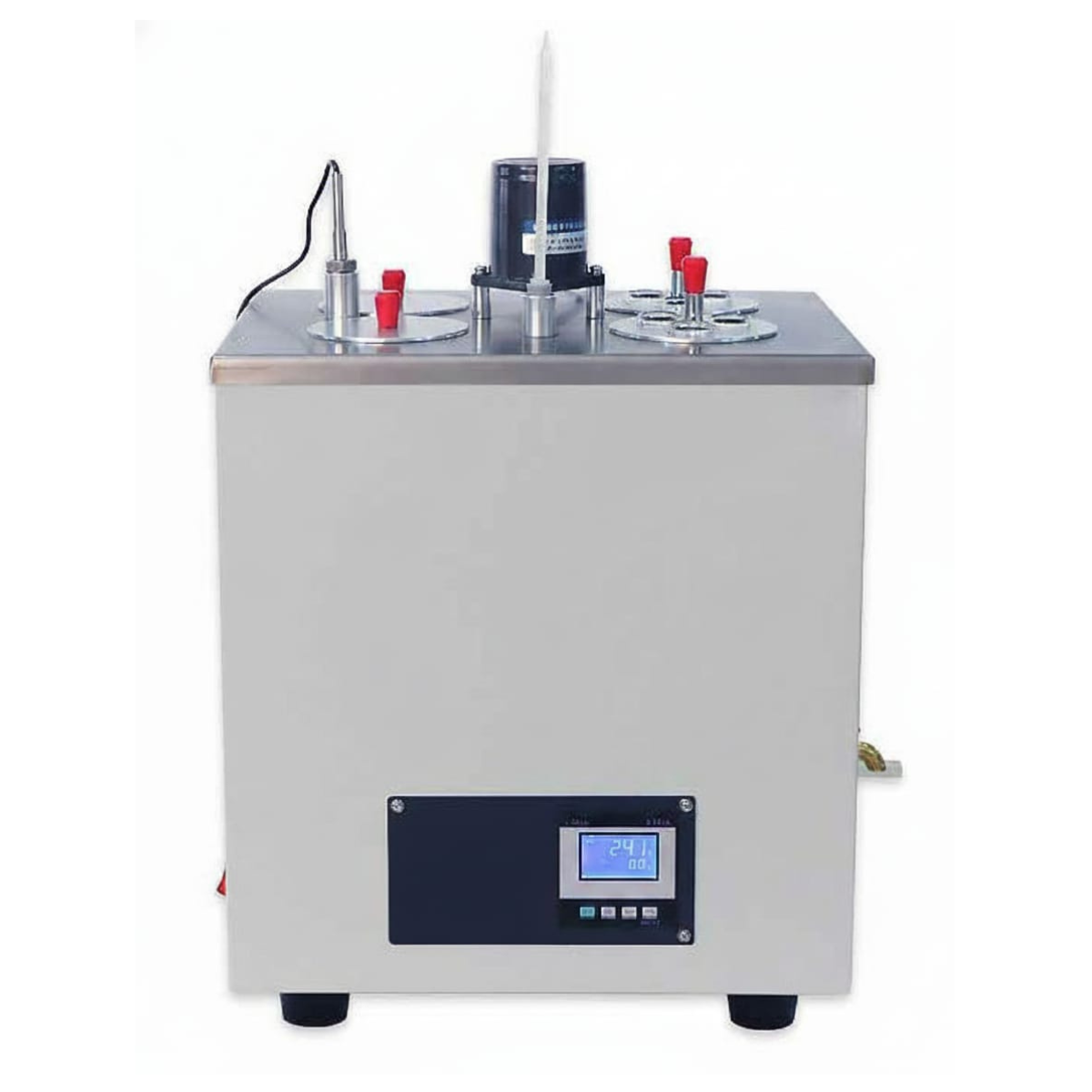

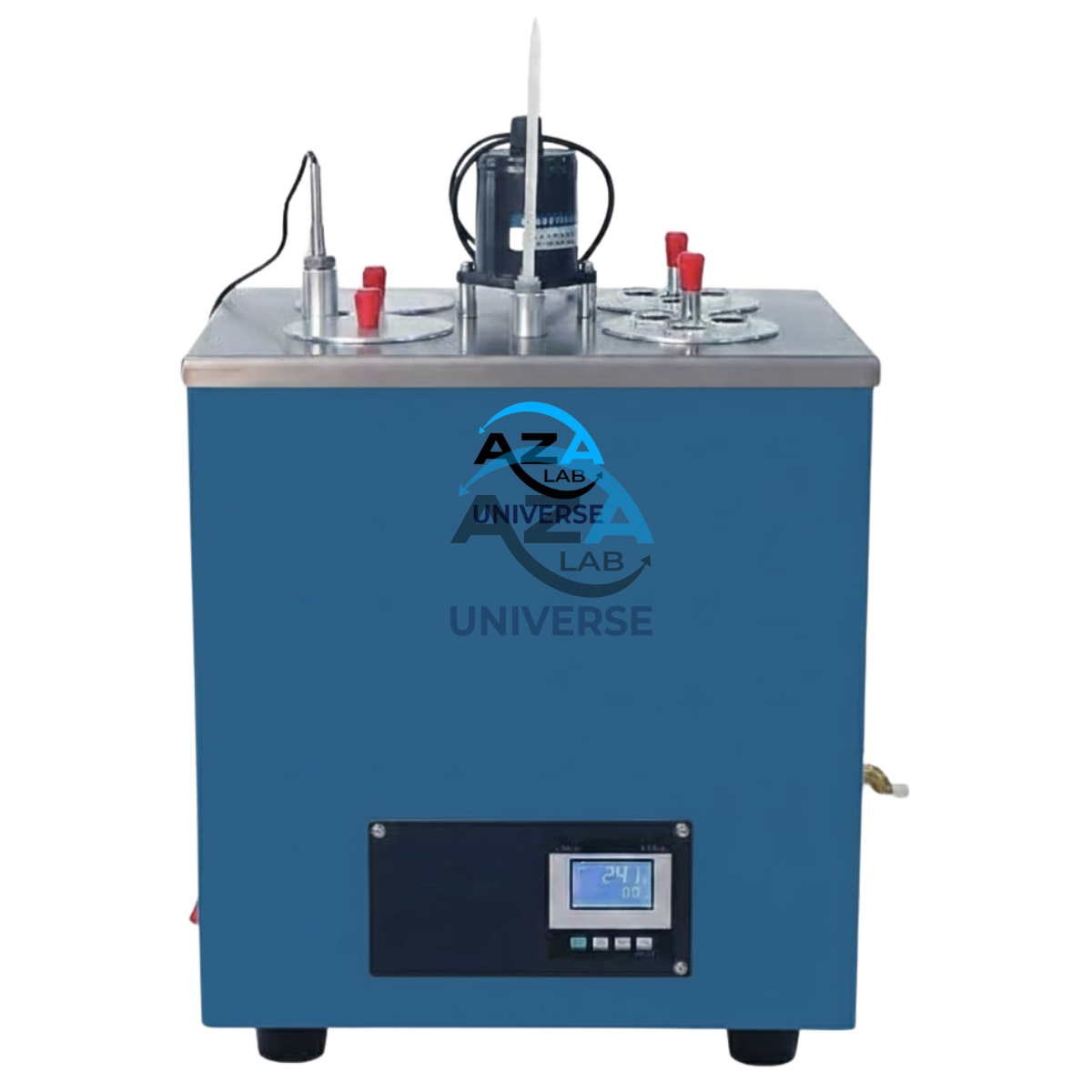

Copper Strip Corrosion Tester AZA1323
The AZA1323 Copper Strip Corrosion Tester from AZA Lab is a high-precision laboratory instrument designed to evaluate the corrosive effects of petroleum products on copper. This test is essential for determining the quality, stability, and suitability of fuels and oils used in engines, turbines, and fuel handling systems.
The instrument is widely used for testing aviation gasoline, turbine fuels, automotive and tractor fuels, kerosene, washing solvents, and lubricating oils, ensuring compliance with international standards such as ASTM D130, ISO 2160, and IP 154.
By accurately assessing copper corrosion tendency, the AZA1323 helps laboratories prevent fuel-related corrosion damage, ensure regulatory compliance, and maintain operational safety.
Description
Design & Performance
The AZA1323 incorporates advanced digital temperature control, precise timing, and uniform heating to deliver accurate, repeatable, and consistent test results. Its compact yet robust construction makes it ideal for continuous laboratory use in refineries, quality control laboratories, fuel testing centers, and research institutions.
The unit supports simultaneous multi-sample testing, significantly improving laboratory efficiency while maintaining strict compliance with testing standards.
Key Features
Advanced Temperature Control
-
Digital LCD temperature controller with electric heating
-
Uniform bath temperature for consistent corrosion results
-
Minimizes test variability and operator influence
Automatic Timing & Alarm
-
Adjustable test duration from 1 minute to 24 hours
-
Built-in timer with automatic alarm ensures standard-compliant testing
High-Throughput Testing
-
Four independent test positions
-
Each position accommodates one corrosion bomb or up to three test tubes
-
Enables testing of 4–12 samples simultaneously
Certified Comparison Standards
-
Supplied with a standard copper strip color comparison board
-
Imported and compliant with ASTM D130, ensuring accurate visual grading
User-Friendly Operation
-
Clear digital display and intuitive controls
-
Simple parameter adjustment and monitoring
-
Reduced training requirements and operator errors
Durable Construction
-
Built with high-quality, laboratory-grade materials
-
Designed for long-term stability and repeated use
Applications
-
Aviation gasoline and jet fuel testing
-
Automotive and diesel fuel quality control
-
Kerosene and industrial solvent evaluation
-
Lubricating oil corrosion assessment
-
Refinery, inspection, and regulatory laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1323 |
| Test Method | Copper Strip Corrosion Test |
| Standards Compliance | ASTM D130, ISO 2160, IP 154 |
| Power Supply | AC (220 ±10%) V, 50 Hz |
| Total Power Consumption | ≤ 1800 W |
| Temperature Range | Ambient to 100 °C, adjustable |
| Temperature Sensor | RTD, PT100 |
| Time Control Range | 1 minute to 24 hours |
| Sample Positions | 4 independent positions |
| Sample Capacity | 4–12 test tubes or corrosion bombs |
| Ambient Operating Temperature | 15 °C to 35 °C |
| Relative Humidity | ≤ 85% |
| Dimensions (L×W×H) | 440 × 330 × 560 mm |
| Net Weight | 16 kg |
Why Choose AZA1323?
-
Accurate and repeatable copper corrosion evaluation
-
High sample throughput with multi-position testing
-
Fully compliant with international testing standards
-
Digital control for precision and reliability
-
Compact, durable, and easy to operate
Model: AZA1323 – Copper Strip Corrosion Tester
Related products
ADVANCED TRIAXIAL TEST SYSTEM (UU–CU–CD CAPABLE) AZA1296
The AZA LAB Advanced Triaxial Test System AZA1296 is a fully automated geotechnical laboratory testing system designed for accurate determination of soil shear strength and deformation characteristics under controlled stress and drainage conditions.
The system supports all major triaxial compression testing modes including:
- Unconsolidated Undrained (UU)
- Consolidated Undrained (CU)
- Consolidated Drained (CD)
Engineered for high-precision geotechnical analysis, the AZA1296 replicates in-situ soil stress conditions to evaluate soil stability, strength behavior, pore pressure response, and failure mechanisms under axial loading.
The system integrates servo-controlled loading, automatic pressure regulation, real-time pore pressure monitoring, automated data acquisition, and advanced software analysis, making it ideal for geotechnical laboratories, civil engineering projects, infrastructure development, research institutions, and academic applications.
AUOTFLASH AUTOMATED ABEL FLASH POINT ANALYZER AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1279
Standards Compliance
- ASTM D92 (Cleveland Open Cup)
CLEVELAND OPEN-CUP FLASH & FIRE POINT TESTER AZA1292
The Cleveland Open Cup Flash Point Tester AZA1292 from AZA Lab is a reliable and precision-engineered laboratory instrument designed for determining the flash point and fire point of petroleum products in strict accordance with ASTM D92 and GB/T 3536-2008 standards. Engineered for accuracy, safety, and operational simplicity, the AZA1292 is an ideal solution for petroleum laboratories, refineries, inspection agencies, and quality control departments.
The instrument is suitable for testing petroleum products with flash points in the range of 79°C to 400°C, excluding fuel oils, and delivers consistent, repeatable, and standards-compliant results.

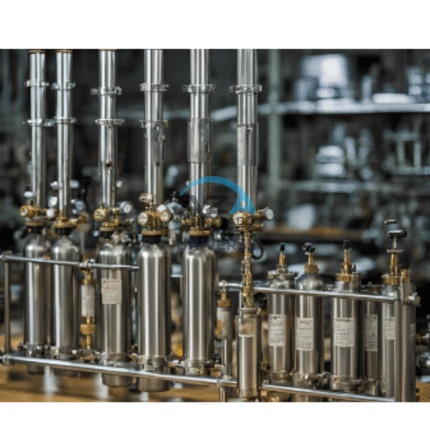

OIL & GAS SAMPLING CYLINDERS – SINGLE END WITH DIP LINE AZA1274
