WATER TESTING KIT AZA0888

SOIL TESTING KIT AZA0887

The AZA0887 Portable Soil Testing Kit from Azalab is a compact and reliable solution designed for on-site soil pH determination. It enables quick and effective soil analysis without the need for electricity, digital meters, or laboratory infrastructure, making it ideal for fieldwork, educational use, and preliminary soil assessments.

Soil pH is a critical parameter influencing nutrient availability, microbial activity, and plant growth. The AZA0887 allows users to assess soil conditions in real time, supporting informed decisions in agriculture, landscaping, and environmental studies.

View Specification PDF
Enquiry on WhatsApp
SKU: AZA 0887 Category:
Description

Description

Key Features & Benefits

  • Fully Portable & Field-Ready
    Lightweight kit supplied in a durable carrying case for easy transport.

  • No Power Required
    Operates entirely without electricity or batteries.

  • Simple Colorimetric Method
    Clear visual comparison using a calibrated color chart.

  • Wide pH Coverage
    Measures soil pH from 4.0 to 8.0 in 0.5 pH increments.

  • Reusable Components
    Thick-walled test tubes designed for repeated use.

  • User-Friendly
    Suitable for farmers, students, researchers, and field technicians.

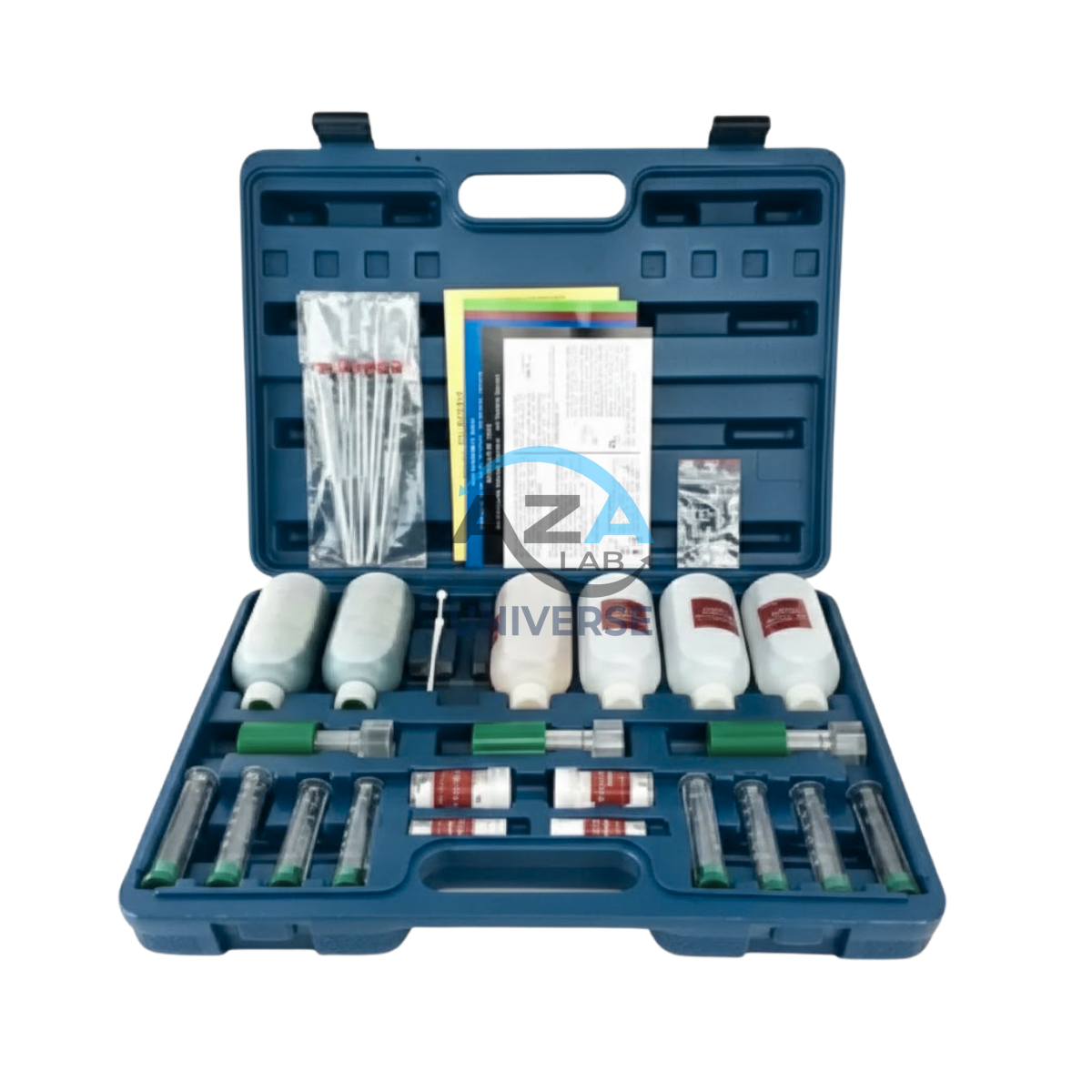

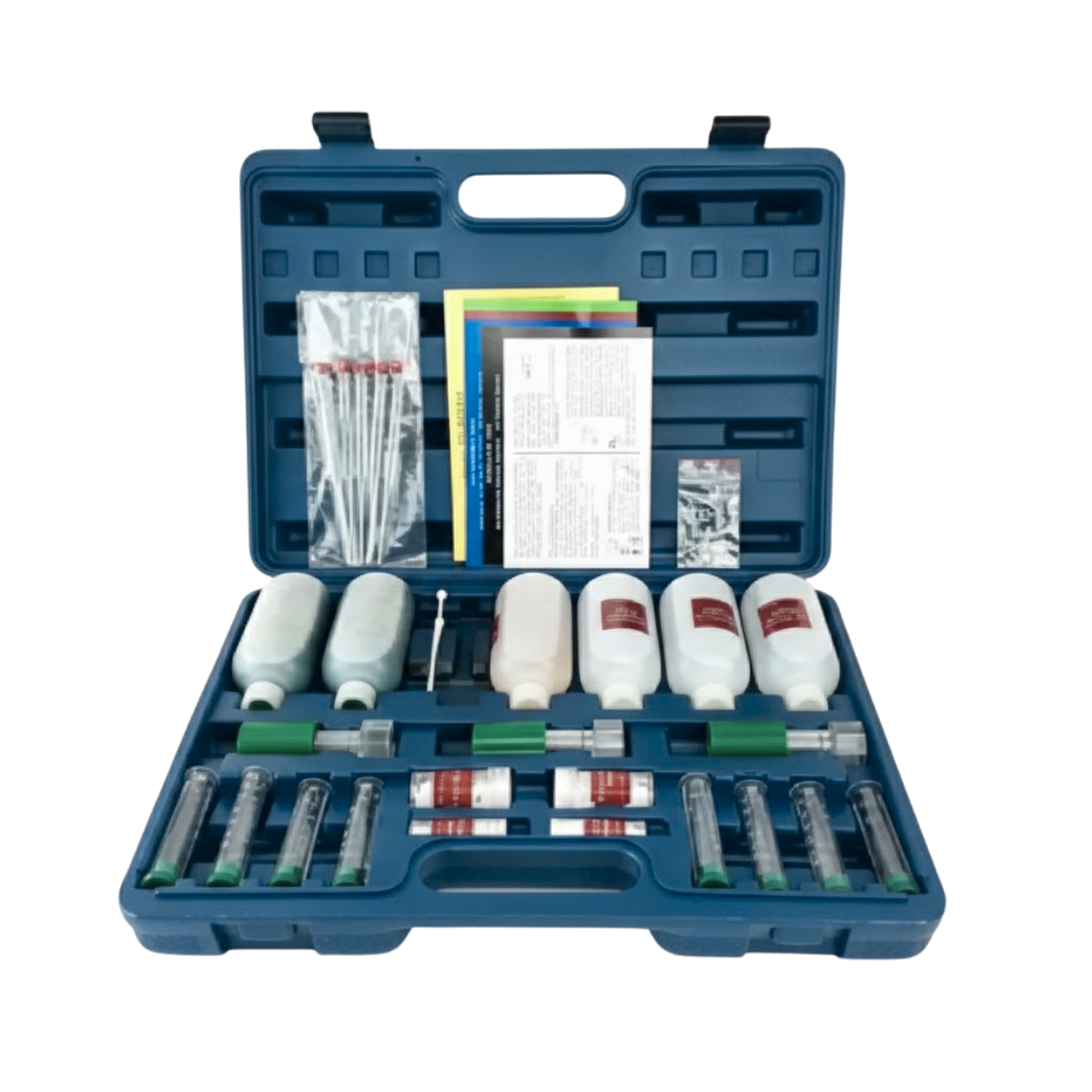

Kit Components (Standard Supply)

  • 12 × Thick-walled glass test tubes with rubber bungs

  • 1 × Test tube cleaning brush

  • 1 × Barium Sulphate bottle (100 g)

  • 1 × Soil Indicator Solution bottle (100 g)

  • 1 × Distilled Water bottle (500 g)

  • 1 × Spatula for soil handling

  • 1 × Color comparison chart (pH 4.0–8.0)

  • 1 × Portable carrying case

Test Principle (How It Works)

  1. Place a small soil sample into a test tube.

  2. Add barium sulphate and distilled water.

  3. Shake well and allow the mixture to settle.

  4. Add soil indicator solution.

  5. Compare the developed color with the chart to determine pH.

The method provides a clear and visible indication of soil pH, suitable for rapid field evaluation.

Technical Specifications

Feature Description
Model AZA0887
Test Parameter Soil pH
pH Range 4.0 to 8.0
Resolution 0.5 pH units
Test Method Colorimetric (visual indicator)
Reagents Included Barium Sulphate, Soil Indicator
Water Supplied Distilled Water – 500 g
Test Tubes 12 pcs with rubber stoppers
Accessories Spatula, cleaning brush
Power Requirement None
Packaging Sturdy portable carrying case

Applications

  • Agriculture and crop management

  • Soil survey and field research

  • Environmental and geological studies

  • Educational demonstrations (schools and colleges)

  • Landscaping and gardening

FAQs – AZA0887

Q1: What soil types can be tested?
Most cultivated and uncultivated soils, including clay, sand, and loam.

Q2: How long does one test take?
Approximately 5–10 minutes, depending on settling time.

Q3: Are the test tubes reusable?
Yes, they can be cleaned and reused using the supplied brush.

Q4: Is the kit suitable for students?
Yes, it is widely used in educational institutions; adult supervision is recommended.

Q5: Does the kit require calibration?
No calibration is required. Results are obtained by visual comparison with the color chart.

AZA0887 – Compact, Reliable, and Field-Ready Soil pH Testing

A practical solution from Azalab for rapid soil assessment anytime, anywhere.
