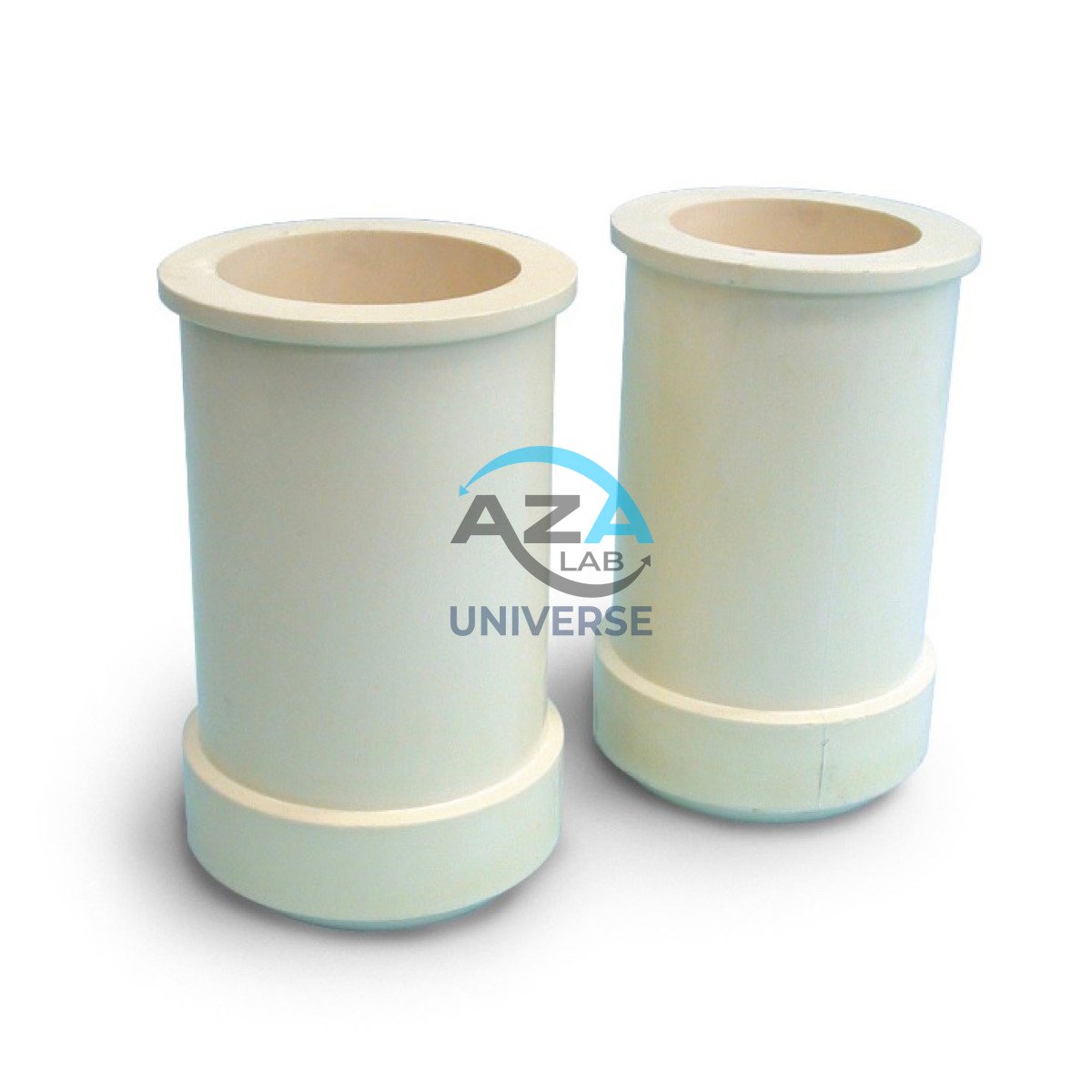

PLASTIC CYLINDERICAL MOULD AZA1127
The AZA1127 Polyurethane Cylinder Mould Series is engineered for high-precision casting of concrete cylinders used in compressive strength and durability testing. Manufactured from premium-grade polyurethane, these moulds provide exceptional rigidity, impact resistance, and long-term reusability—making them superior alternatives to traditional plastic and metal moulds.
Designed for both laboratory and field applications, the moulds feature a one-piece, seamless construction, eliminating assembly time and preventing leakage during casting. Their smooth, non-stick internal surfaces ensure easy demoulding and maintain the dimensional accuracy required for certified testing procedures.
These moulds fully comply with IS 10086, ASTM C470, and BS EN 12390-1, ensuring reliable, standard-compliant sample preparation for QC teams, academic institutions, and construction labs.
Models Available
| Model No. | Size | Material | Weight |
|---|---|---|---|
| AZA 1127 A | 150 mm × 300 mm | Polyurethane | 1.65 kg |
| AZA 1127 B | 100 mm × 200 mm | Polyurethane | 0.90 kg |
Description
Technical Features
| Feature | Details |
|---|---|
| Material | Premium-grade Polyurethane |
| Construction | One-piece seamless mould |
| Compliance | IS 10086, ASTM C470, BS EN 12390-1 |
| Demoulding Method | Manual release, compressed air, or water pressure |
| Surface Finish | Smooth, non-stick interior |
| Usage | Concrete cylinder strength testing |
| Reusability | Yes – long-life reusable mould |
| Vibration Resistance | Excellent – retains shape under compaction |
| Leak-Proofing | Yes – precision engineered |
Applications
-
Concrete compressive strength testing
-
Precast and RMC plant quality control
-
Construction material labs
-
On-site sampling and field investigations
-
Permeability and durability test specimen casting
-
Training and research institutes
Frequently Asked Questions (FAQ)
Q1: Are AZA1127 polyurethane moulds reusable?
Yes. With proper cleaning and light oiling, they can be reused for numerous testing cycles.
Q2: Do these moulds deform under vibration?
No. Polyurethane offers excellent shape retention and superior vibration resistance.
Q3: Are these moulds suitable for both lab and site work?
Absolutely. Their durability and lightweight design make them ideal for both settings.
Q4: How do I demould the specimen?
Use compressed air, water pressure, or gentle manual release.
Q5: Which standards do the moulds comply with?
IS 10086, ASTM C470, and BS EN 12390-1.
Additional information
| Material |
Polyurethane |
|---|---|
| Size |
100 mm × 200 mm ,150 mm × 300 mm |
| Weight |
1.65 kg ,0.90 kg |
