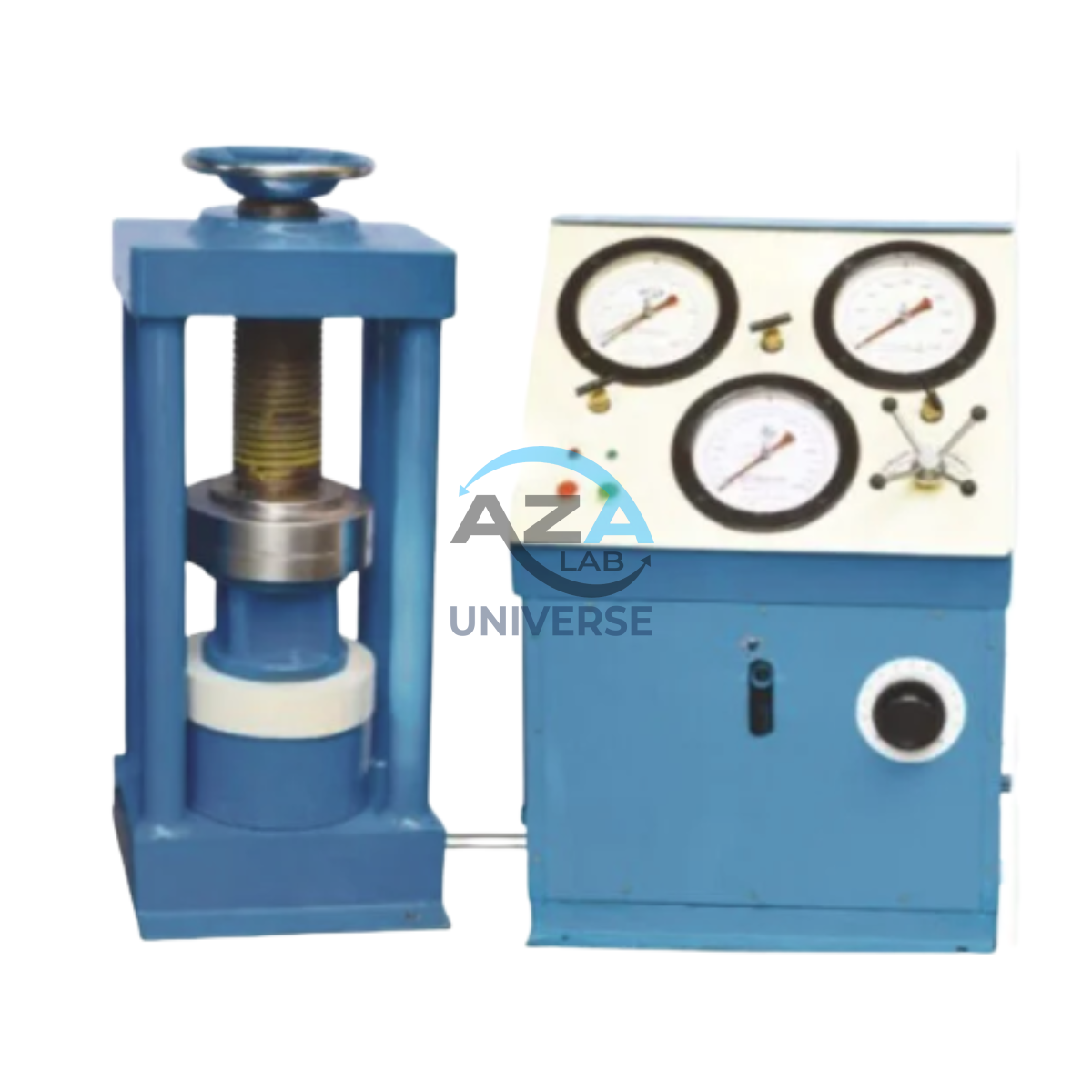

COMPRESSION TESTING MACHINE (FOUR PILLAR, ELECTRICAL OPERATED) AZA1134
The Azalab Four Pillar Compression Testing Machine – Hand Cum Electrical Operated (AZA1134) is engineered for high-precision compressive strength testing of concrete cubes, cylinders, tiles, paver blocks, and building materials.
Its four-pillar frame provides exceptional stability and minimal deflection under load, ensuring repeatable and accurate results. Designed for both manual and motorized operation, this system offers flexibility for laboratories requiring speed, consistency, and productivity.
Key Features
- Four-pillar heavy-duty steel load frame for maximum rigidity
- Dual-mode operation: hand pump + electric motor
- Fully compliant with IS 516 and BS 1881
- Fast/slow rate loading regulator for controlled test pace
- 20 cm analog dial gauge with maximum load pointer
- Optional Digital Load Indicator and up to 3 load gauges
- Supports cubes and cylinders; spacers included
Description
Structural Design
-
Constructed with heavy-duty steel for long-term performance.
-
Four rigid vertical pillars connect the base and upper head for maximum strength.
-
Ball-seated upper platen ensures perfect self-alignment during loading.
-
Rectangular lower platen mounted directly above the hydraulic ram.
-
Side-mounted head screws allow height adjustment for different specimen sizes.
Dual Operation Mode
-
Manual Mode: Hand-operated pump for controlled, step-by-step loading.
-
Motorized Mode: Electric motor-driven hydraulic pump for faster, consistent loading.
-
Right-hand console houses motor, pump, and hydraulic system.
-
Fast/Slow rate regulator ensures safe, precise load application.
Load Measurement
-
Equipped with a 20 cm diameter analog hydraulic gauge with max load pointer.
-
Connected via a steel-braided hydraulic hose for pressure stability.
-
Optional Digital Load Indicator with pressure transducer for electronic measurement.
-
Up to three gauges can be fitted as per requirement.
Specifications
| Feature | Details |
|---|---|
| Standards | IS:516 / BS:1881 |
| Operation | Hand + Electric (Dual Mode) |
| Frame Type | Four Pillar – Heavy-Duty Steel |
| Capacity Options | 1000 kN / 1500 kN / 2000 kN |
| Upper Platen | Ball-seated self-aligning |
| Lower Platen | Rectangular; above hydraulic ram |
| Load Gauge | 20 cm analog gauge with max pointer |
| Control Panel | Motor + pump + rate regulator in right console |
| Spacers | Included for 150 mm cubes & 150×300 mm cylinders |
| Calibration | Factory calibrated with dip-stick indicator |
| Power Supply | 230V (Single Phase) / 440V (Three Phase) |
| Optional Add-ons | Digital Load Indicator, extra gauges, custom platens |
Available Models
| Model No. | Capacity | Display | Power |
|---|---|---|---|
| AZA-CTM1000-HCE | 1000 kN | Analog / Digital (Opt.) | 1 Phase / 3 Phase |
| AZA-CTM1500-HCE | 1500 kN | Analog / Digital (Opt.) | 1 Phase / 3 Phase |
| AZA-CTM2000-HCE | 2000 kN | Analog / Digital (Opt.) | 1 Phase / 3 Phase |
Frequently Asked Questions (FAQ)
Q1: Is the machine calibrated before dispatch?
Yes. Each machine is factory calibrated and includes a compression level dip-stick indicator.
Q2: Can I upgrade to digital load measurement later?
Yes, you can add a Digital Load Indicator and additional gauges whenever needed.
Q3: What power supply is required?
Both 230V (single-phase) and 440V (three-phase) options are supported.
Q4: Can this machine test both cubes and cylinders?
Yes. Spacers are included for 150 mm cubes and 150×300 mm cylinders.
Q5: Is the machine compliant with IS and BS standards?
Yes. It meets IS 516 and BS 1881 requirements for compressive strength testing.
Additional information
| Operation Modes |
Hand-operated & electrically operated (Dual Mode) |
|---|---|
| Load Capacity |
1000kN, 1500kN, 2000kN (customizable) |
| Power Options |
230V AC (Single Phase) or 440V AC (Three Phase) |
