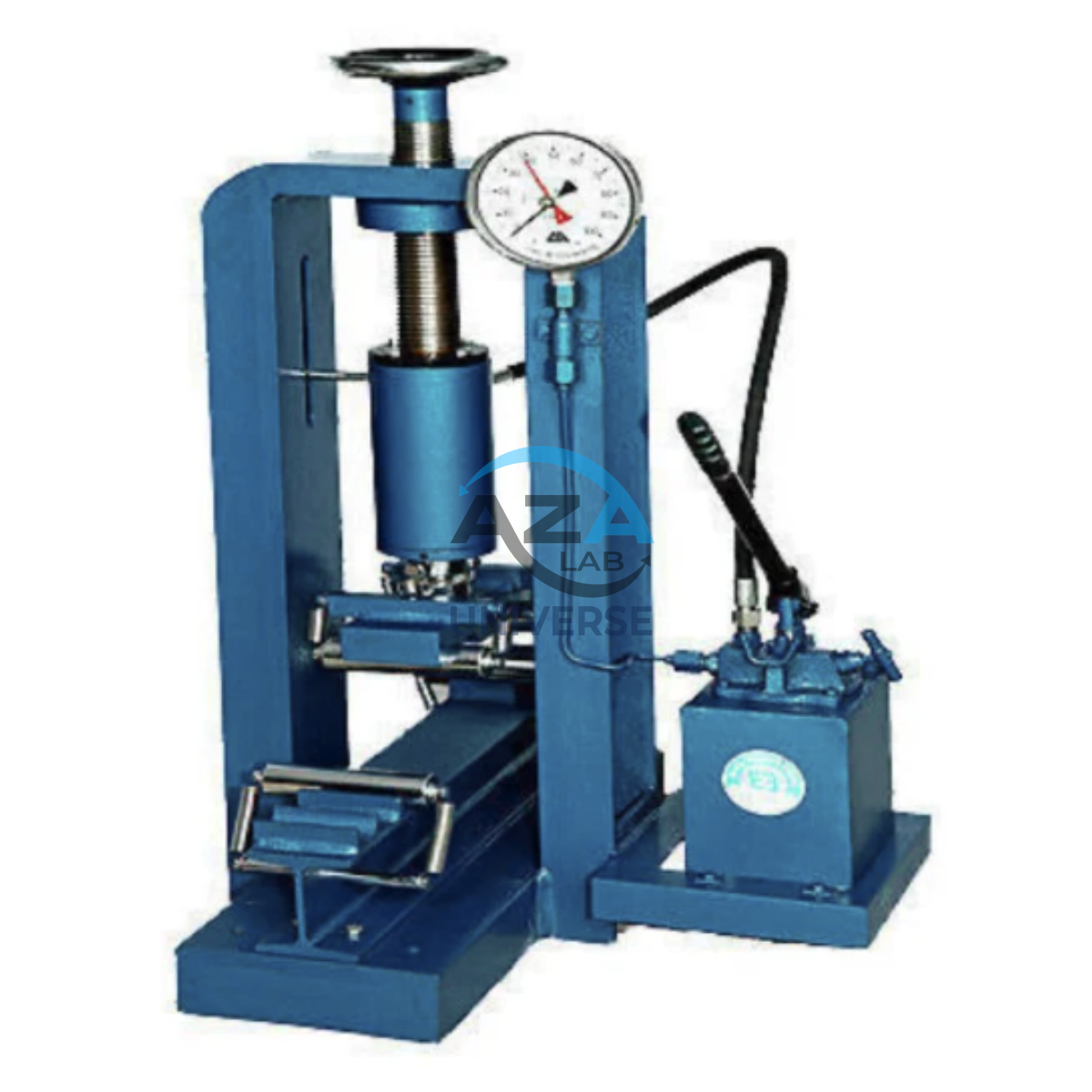

FLEXURE TESTING MACHINE AZA1135
The Azalab Flexure Testing Machine (AZA1135) is purpose-built to measure the flexural (bending) strength of concrete beams with high precision and structural stability.
Manufactured in accordance with IS:516, BS 1881, and ASTM C78, this machine offers accurate and repeatable results for construction laboratories, quality control units, R&D centers, and cement industry test facilities.
Its compact, rugged steel frame provides exceptional rigidity while remaining portable enough for site laboratories. The unit uses a double-acting hydraulic pump paired with a retraction spring to ensure smooth piston movement and automatic return after loading.
Load application occurs through the downward movement of the hydraulic piston, and measurements are read through a bourdon tube type fully calibrated dial gauge. Calibration is performed using an NCCBM-certified proving ring.
The machine features a self-aligning roller assembly with spacers that accommodate different beam sizes, ensuring precise and consistent placement before testing.
Key Features
- Designed for flexural strength testing of concrete beams
- Fully compliant with IS 516, BS 1881, and ASTM C78
- Bourdon tube load gauge, 0–100 kN, calibrated for high accuracy
- Heavy-duty, lightweight steel frame for easy handling
- Double-acting hydraulic pump with retraction spring
- Self-aligning roller assembly and spacers for multiple beam sizes
- Compatible with 100×100×500 mm & 150×150×700 mm specimens
Description
Specifications
| Feature | Details |
|---|---|
| Standards Complied | IS:516, BS:1881, ASTM C78 |
| Load Capacity | 100 kN (10,000 kgf) |
| Load Gauge | Bourdon tube 0–100 kN × 0.5 kN (or 0–10,000 kgf × 50 kgf) |
| Calibration | Proving Ring certified by NCCBM |
| Frame | High-rigidity, lightweight steel frame |
| Pump | Double-acting hydraulic with retraction spring |
| Loading Piston | Downward movement for load application |
| Roller Assembly | Self-aligning rollers with support spacers |
| Supported Beam Sizes | 100×100×500 mm and 150×150×700 mm |
| Operation | Manual hydraulic pump (motorized option available) |
| Display Options | Analog dial gauge / Digital display (optional) |
Available Models
| Model No. | Capacity | Operation | Beam Sizes | Display |
|---|---|---|---|---|
| AZA-FTM100-M | 100 kN | Manual Pump | 100×100×500 mm / 150×150×700 mm | Analog Dial |
| AZA-FTM100-D | 100 kN | Manual + Digital | 100×100×500 mm / 150×150×700 mm | Digital Indicator |
Frequently Asked Questions (FAQ)
Q1: What is this machine used for?
It measures the flexural (bending) strength of concrete beams, replicating load-bearing conditions in structural elements.
Q2: Is the machine certified?
Yes. Its load gauge is calibrated using an NCCBM-certified proving ring.
Q3: What beam sizes can be tested?
Beam sizes 100×100×500 mm and 150×150×700 mm, using included spacers.
Q4: Can this unit be upgraded to digital?
Yes, a digital load indicator with pressure transducer can be added.
Q5: Is it suitable for on-site testing?
It is compact and semi-portable, making it suitable for laboratory and on-site QC rooms.
Additional information
| Standards Complied |
IS:516, BS:1881, ASTM C78 |
|---|---|
| Load Capacity |
100 kN (equivalent to 10,000 kgf) |
| Load Gauge |
Bourdon tube dial gauge: 0–100 kN × 0.5 kN (or 0–10,000 kgf × 50 kgf) |
