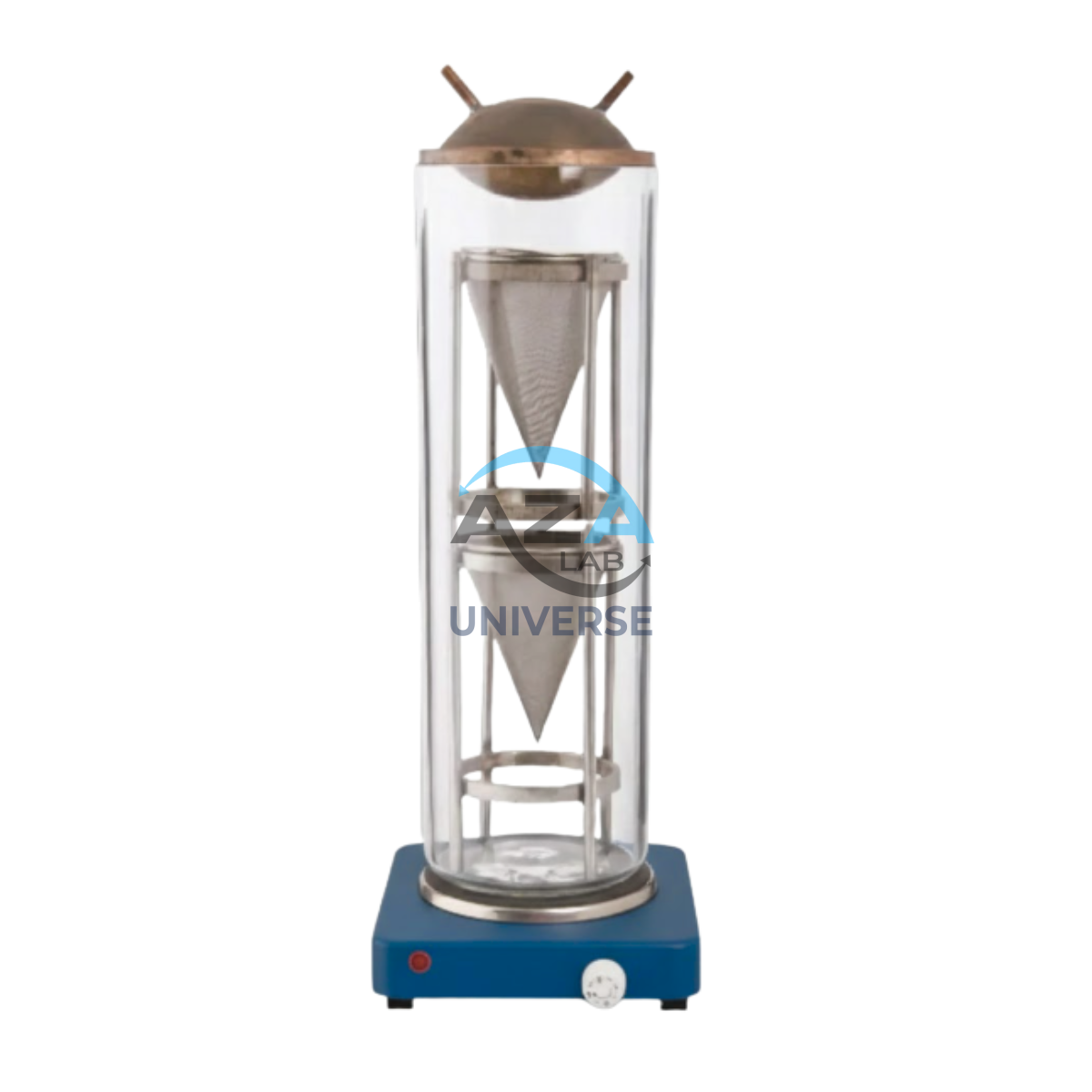

REFLUX EXTRACTOR 4000 GMS AZA0941
The AZA0941 Reflux Extractor 4000 GMS from Azalab is a high-efficiency laboratory apparatus designed for the quantitative determination of bitumen content in asphalt paving mixtures using the reflux extraction method. Engineered for large sample capacities up to 4000 grams, the AZA0941 is an essential instrument for civil engineering laboratories, road construction quality control, and materials testing facilities.
By ensuring accurate separation of bitumen binder from aggregates, the AZA0941 helps verify compliance with asphalt mix design specifications, directly contributing to durable, high-performance pavement construction.
Description
Reflux Extraction Principle – Accuracy You Can Trust
The reflux method is a proven and widely accepted technique for bitumen extraction. In the AZA0941:
-
The asphalt sample is continuously washed with a suitable solvent
-
The solvent is heated to vaporization
-
Vapors condense in the condenser and drip back onto the sample
-
A continuous washing cycle dissolves and removes bitumen efficiently
This process ensures complete extraction with minimal loss of fines, resulting in highly accurate bitumen content determination by mass difference and clean aggregates suitable for further analysis.
Designed for Efficiency, Safety, and Large Samples
Safety and operational reliability are core to the AZA0941 design:
-
Closed reflux system minimizes solvent loss and operator exposure
-
Efficient condenser cooling ensures maximum solvent recovery
-
Controlled heating system prevents overheating and ensures stable extraction
-
4000 GMS capacity allows testing of large, representative samples, reducing result variability
The robust construction and stable support frame make the AZA0941 suitable for continuous laboratory use in demanding environments.
Key Features & Benefits
-
Reflux extraction method for thorough bitumen removal
-
Large 4000 GMS (4 kg) sample capacity
-
High-efficiency condenser for solvent recovery
-
Controlled heating for safe and consistent operation
-
Easy assembly, disassembly, and cleaning
-
Clear visibility of extraction progress
-
Suitable for aggregate recovery and grading after extraction
Standards Compliance
The AZA0941 Reflux Extractor is manufactured to conform to internationally recognized standards, including:
-
ASTM D2172 – Quantitative Extraction of Bitumen from Bituminous Paving Mixtures
-
Equivalent national and international standards (as applicable)
This ensures that test results are accurate, repeatable, and globally accepted.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0941 |
| Method | Reflux Extraction |
| Sample Capacity | Up to 4000 grams |
| Heating System | Heating mantle / hot plate |
| Extraction Vessel | Heat-resistant glass or metal |
| Condenser | High-efficiency reflux condenser |
| Collection Vessel | Solvent / bitumen solution flask |
| Material | Borosilicate glass / stainless steel (model dependent) |
| Power Supply | 220–240 V, 50/60 Hz, single phase |
| Safety Design | Closed system, solvent recovery |
| Standards | ASTM D2172 |
| Dimensions | Approx. 400 × 300 × 700 mm |
| Weight | Approx. 15–25 kg |
Applications
-
Asphalt mix design verification
-
Road construction quality control
-
Bitumen content determination
-
Civil engineering material testing laboratories
-
Research and academic institutions
Why Choose AZA0941?
-
Accurate and repeatable bitumen content results
-
Handles large samples for higher reliability
-
Safe, closed reflux system
-
Durable construction for long-term laboratory use
-
Fully compliant with ASTM testing requirements
AZA0941 Reflux Extractor
For precise, reliable, and standards-compliant bitumen extraction in asphalt testing laboratories.
Additional information
| Model |
AZA 0941 |
|---|---|
| Method |
Reflux Extraction |
| Sample Capacity |
Up to 4000 grams (4 kg) of asphalt mixture |
| Weight |
Approx. [Insert Weight, e.g., 15-25] kg |
| Power Supply (for heating element) |
[e.g., 220-240V, 50/60 Hz, single phase] |
| Safety Features |
Closed system to minimize solvent evaporation, robust construction |
Related products

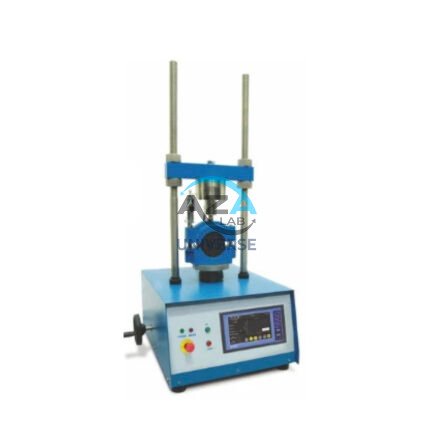

AUTOMATIC MARSHALL STABILITY TEST MACHINE AZA0954
The AZA0954 Automatic Marshall Stability Test Machine from AZALAB is a cornerstone instrument for modern civil engineering, highway material, and asphalt testing laboratories. Designed for fully automated determination of Marshall Stability and Marshall Flow, the AZA0954 plays a critical role in asphalt mix design, quality control, and performance evaluation of bituminous pavements.
Compared to conventional manual Marshall testers, the AZA0954 represents a significant technological advancement, offering superior accuracy, repeatability, operational efficiency, and digital data management. It is ideally suited for laboratories handling high sample volumes, regulatory testing, and advanced pavement research.
ELASTIC RECOVERY MOULD AZA0958
The AZA0958 Elastic Recovery Mould is a precision-engineered testing accessory used in bitumen ductility and elastic recovery tests, particularly for evaluating polymer-modified bitumen (PMB) and elastomer-modified binders. It plays a critical role in determining the elastic behavior of bituminous binders after elongation, which directly influences pavement performance under traffic loads and temperature variations.
Elastic recovery is a key parameter for modern road construction materials, especially where enhanced flexibility, crack resistance, and rutting resistance are required. The AZA0958 mould ensures the formation of standardized, dimensionally accurate specimens, enabling reliable and repeatable elastic recovery measurements in accordance with international standards.
FRAASS BREAKING POINT APPARATUS AZA0935
The AZA0935 Fraass Breaking Point Apparatus from Azalab is a specialized laboratory instrument designed for the accurate determination of the Fraass Breaking Point of bitumen and bituminous binders. This test is essential for evaluating the low-temperature behavior and brittleness of asphalt materials, particularly for pavements exposed to cold climatic conditions.
The Fraass Breaking Point represents the temperature at which a thin film of bitumen loses flexibility and cracks when subjected to controlled cooling and repeated flexing. Determining this temperature is critical for selecting suitable binder grades and preventing thermal cracking in asphalt pavements, thereby ensuring long-term durability and serviceability.

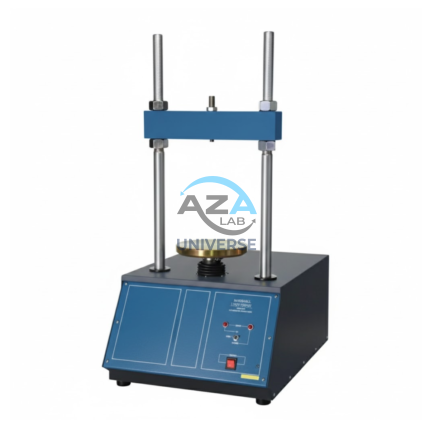

MARSHALL STABILITY TEST APPARATUS AZA0953
The AZA0953 Marshall Stability Test Apparatus from AZALAB is a fundamental and widely adopted instrument in civil engineering and highway material laboratories for evaluating the performance characteristics of compacted bituminous mixtures. It forms the core equipment of the Marshall Mix Design Method, a globally recognized and extensively used procedure for asphalt concrete pavement design and quality control.
The apparatus is designed to accurately determine two critical parameters of asphalt mixtures—Marshall Stability and Marshall Flow—which together indicate the mix’s load-bearing capacity, resistance to permanent deformation, and ability to accommodate traffic-induced stresses without cracking.

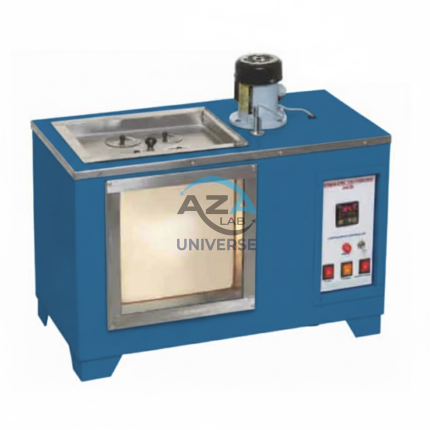

REFRIGERATED DUCTILITY TEST AZA0957
