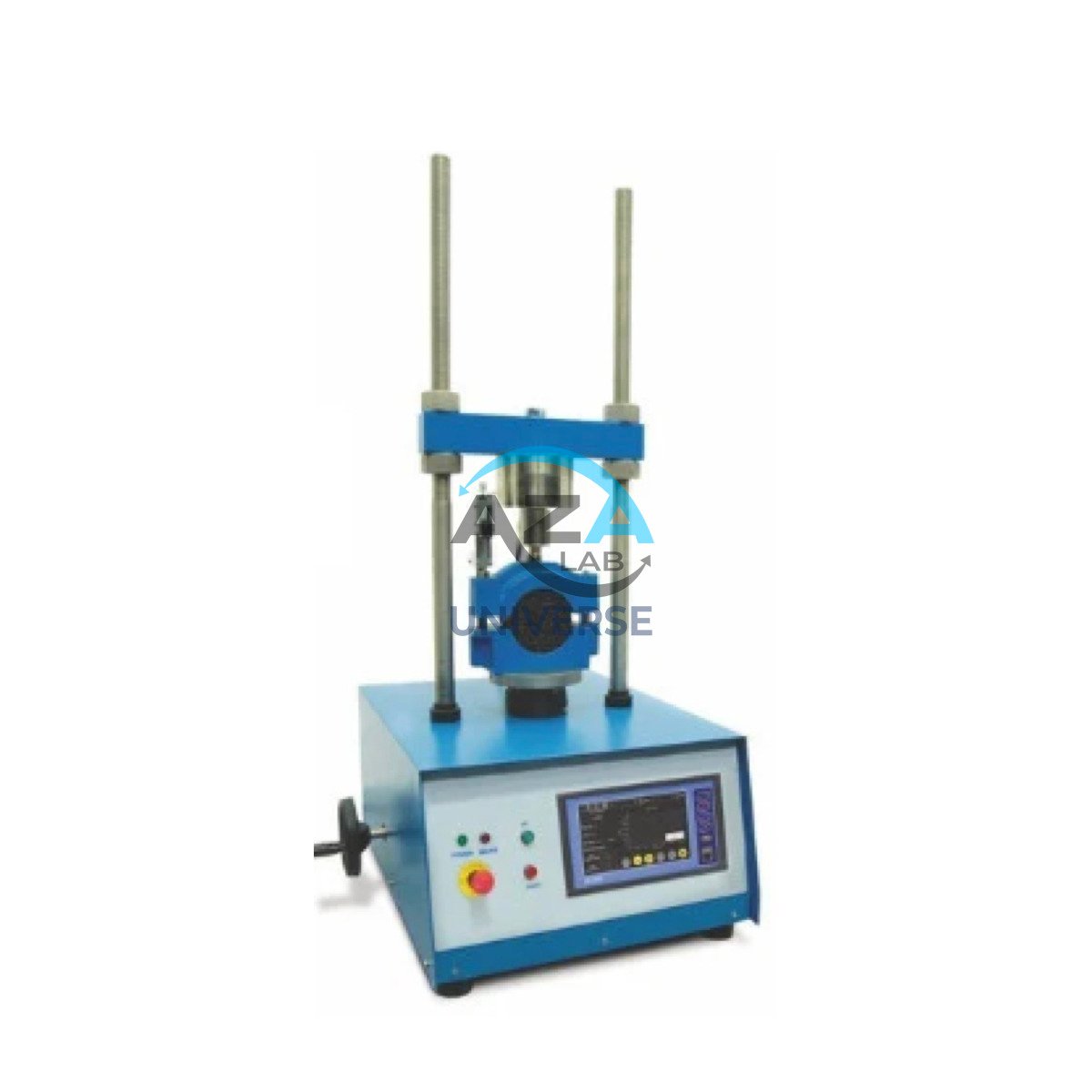

AUTOMATIC MARSHALL STABILITY TEST MACHINE AZA0954

Description

Principle of Operation

A standard cylindrical Marshall specimen, compacted according to relevant standards, is first conditioned to the specified test temperature—typically 60 °C—using an external water bath or air oven. The conditioned specimen is then placed centrally within a semi-circular steel Marshall breaking head mounted in the rigid test frame.

Upon initiation, the AZA0954 automatically applies a continuously increasing vertical compressive load at a constant and precisely controlled rate of 50.8 mm/min (2 inches/min) until specimen failure. During the test, the system simultaneously and continuously measures:

• Marshall Stability – the maximum load sustained by the specimen before failure, representing resistance to permanent deformation (rutting).

• Marshall Flow – the total vertical deformation of the specimen at the point of maximum load, representing flexibility and deformation tolerance.

All measurements are captured digitally, eliminating operator dependency and ensuring strict compliance with international testing standards.

Measurement & Automation System

Load Measurement (Stability):

• High-precision electronic load cell (typically 50 kN or 100 kN capacity)

• Provides accurate and repeatable load measurements throughout the test

Deformation Measurement (Flow):

• LVDT (Linear Variable Differential Transformer) or digital flow sensor

• Measures specimen deformation with high resolution

Automation & Control:

• Fully automatic load application

• Automatic data acquisition and test termination

• Real-time digital display of load and deformation

• Optional PC connectivity with software for graph plotting, result calculation, data storage, and report generation

Construction and Design Features

• Heavy-duty rigid load frame (two-column or four-column design) for minimal deflection

• Precision-engineered loading mechanism with geared motor

• High-quality steel Marshall breaking head for standard specimens

• User-friendly control panel with safety interlocks

• Emergency stop and overload protection for operator safety

• Designed for continuous laboratory operation and long service life

Engineering Importance & Applications

The data generated by the AZA0954 is fundamental to asphalt pavement engineering and infrastructure durability:

• Optimum Bitumen Content Determination:
  Stability and flow values are core parameters in Marshall mix design to achieve optimal balance between strength, flexibility, and durability.

• Rutting & Cracking Resistance:
  High stability values indicate resistance to plastic deformation, while controlled flow ensures resistance to fatigue and thermal cracking.

• Quality Control & Acceptance Testing:
  Widely used by highway authorities, consultants, and contractors to verify compliance of asphalt mixes with approved job mix formulas.

• Research & Development:
  Ideal for evaluating modified binders, additives, reclaimed asphalt pavement (RAP), and innovative asphalt mix designs.

For India, the AZA0954 aligns with MoRTH Specifications for Road and Bridge Works and Indian Roads Congress (IRC) recommendations.

Standards Compliance

The AZA0954 Automatic Marshall Stability Test Machine meets or exceeds the requirements of:

• ASTM D6927 – Marshall Stability and Flow of Asphalt Mixtures

• AASHTO T245 (related Marshall method principles)

• IS 2720 (Part 10) – Determination of Stability and Flow of Bituminous Mixes

• Applicable MoRTH and IRC testing practices

Technical Specifications

Model Number: AZA0954
Test Method: Marshall Stability and Flow Test (Automatic)

Loading Capacity:

• 50 kN or 100 kN (5000 kgf or 10000 kgf)

Loading Rate:

• 50.8 mm/min (2 inches/min), automatically controlled

Load Measurement:

• High-precision electronic load cell

Flow Measurement:

• LVDT or digital flow sensor

• Typical range: 0–25 mm

• Resolution: 0.01 mm

Specimen Size:

• Standard Marshall specimens

• 101.6 mm (4-inch) diameter

Data Acquisition:

• Digital display for load and flow

• Optional PC connectivity

• Software for data logging, graph plotting, and report generation

Temperature Conditioning:

• External water bath or air oven required

• Typical conditioning temperature: 60 °C

• Compatible with AZA0958 Marshall Water Bath

Load Frame:

• Heavy-duty steel construction

Drive System:

• Precision geared motor

Safety Features:

• Overload protection

• Emergency stop switch

Power Supply:

• 230 V AC, 50 Hz, Single Phase (or as per regional requirement)

Dimensions & Weight:

• Varies based on capacity and configuration

Key Features & Benefits

• Fully automated Marshall stability and flow testing

• High accuracy and excellent repeatability

• Digital data acquisition and analysis

• Eliminates operator-induced errors

• Compliant with major international and Indian standards

• Essential for professional asphalt mix design and QC laboratories

Frequently Asked Questions (FAQ)

Q1. What are Marshall Stability and Marshall Flow?
Marshall Stability is the maximum load an asphalt specimen can withstand before failure, indicating rutting resistance. Marshall Flow is the deformation at peak load, indicating flexibility.

Q2. Why choose an automatic system like AZA0954 over manual testers?
Automatic systems provide higher precision, consistent loading rates, digital data capture, and improved reproducibility by eliminating human error.

Q3. Which standards does the AZA0954 comply with?
It complies with ASTM D6927, IS 2720 (Part 10), and aligns with AASHTO and MoRTH requirements.

Q4. Is a water bath included?
No. Specimen conditioning is carried out using an external water bath or air oven, such as the AZA0958 Marshall Water Bath.

Q5. Can the machine generate load-deformation graphs?
Yes. With optional software, the AZA0954 can automatically plot load-deformation curves and generate test reports.

Q6. How does AZA0954 improve road quality in India?
It enables precise mix optimization suited to Indian traffic loads and climate, resulting in more durable, rut-resistant, and crack-resistant pavements.
