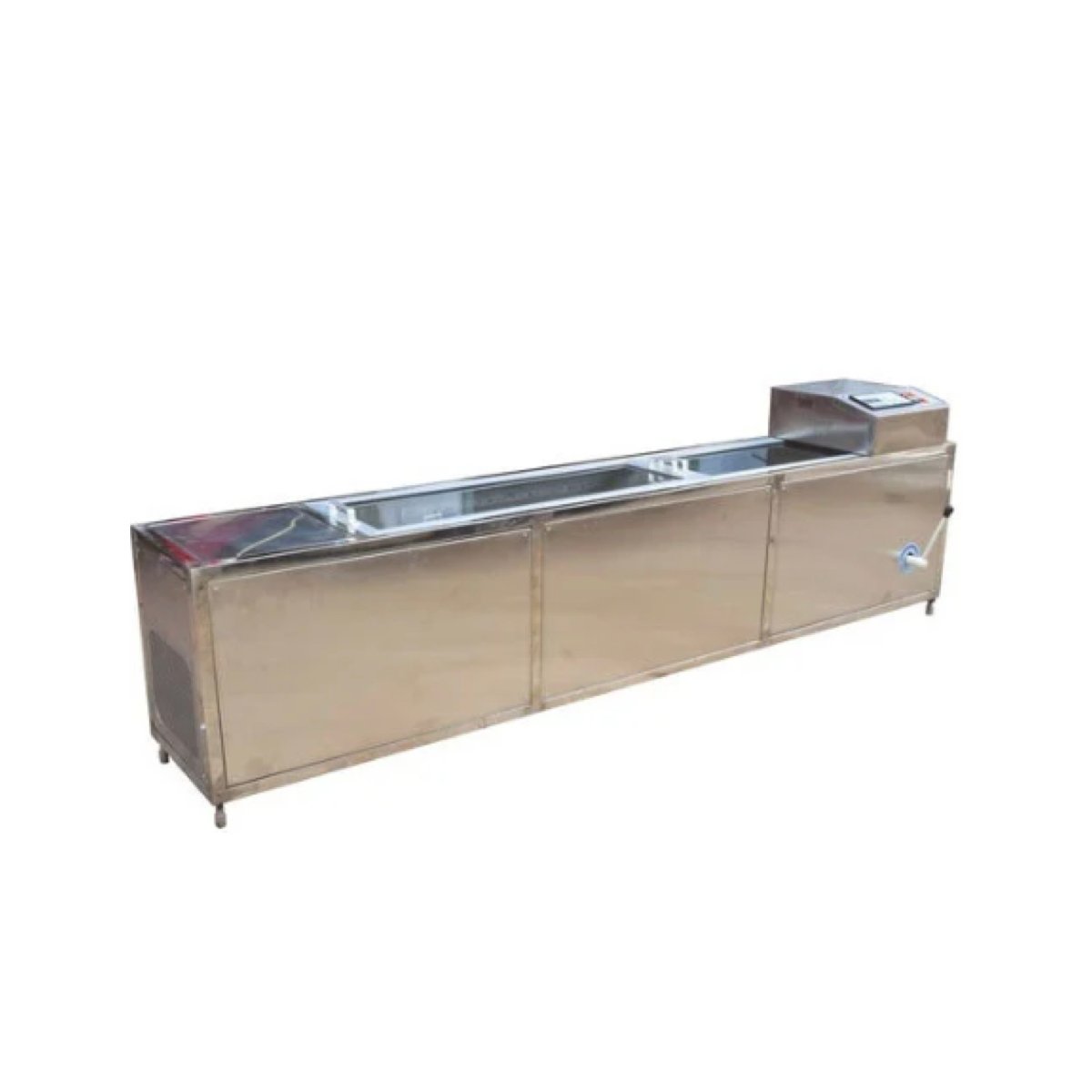

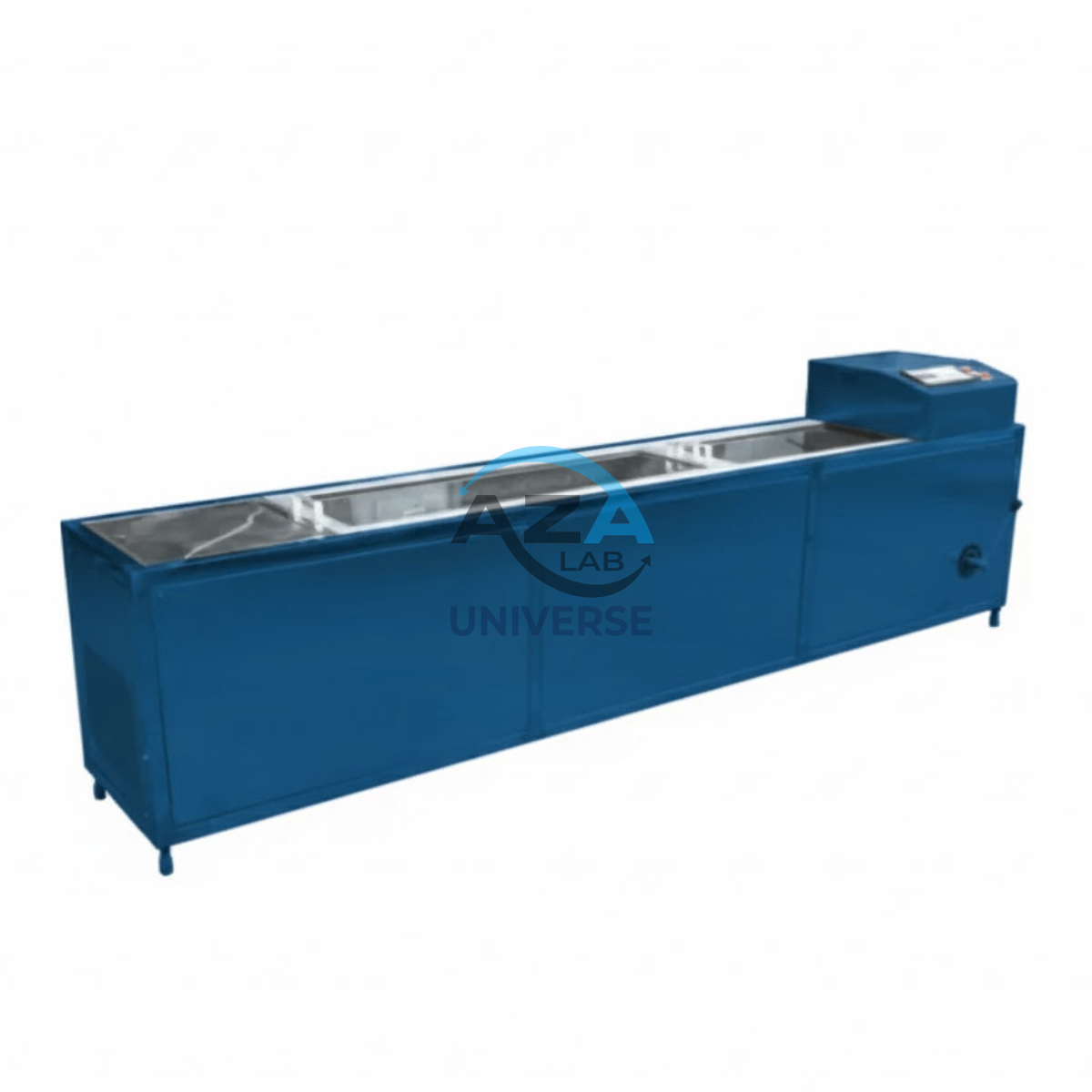

REFRIGERATED DUCTILITY TEST AZA0957

Description

Principle of Operation

The AZA0957 operates on the principle of controlled low-temperature tensile elongation. Standard asphalt binder samples are first molded into briquette specimens using approved ductility molds. These specimens are then conditioned in a refrigerated liquid bath maintained at a precisely controlled low temperature, typically down to –20 °C or lower, depending on test requirements.

Once thermal equilibrium is achieved, the briquette is mounted between two clips in the pulling carriage. One clip remains stationary while the other is pulled away at a constant, controlled speed by a motorized drive mechanism. The elongation continues until the specimen ruptures. The total distance stretched before breaking is measured digitally and reported as the low-temperature ductility value, usually expressed in centimeters.

This method follows internationally recognized procedures outlined in ASTM D113 and AASHTO T51, adapted for low-temperature performance evaluation.

Design and Construction Features

The AZA0957 Refrigerated Ductility Tester is engineered for accuracy, stability, and continuous laboratory use:

• Integrated Refrigeration System
  Capable of achieving and maintaining low test temperatures (typically down to –20 °C or below) with high stability.

• Thermostatically Controlled Bath
  Ensures uniform and consistent temperature distribution throughout the bath during specimen conditioning and testing.

• Digital Temperature Controller
  Allows precise temperature setting and real-time monitoring with high accuracy.

• Motorized Pulling Mechanism
  Provides smooth, jerk-free elongation at a constant rate, ensuring repeatable and reliable ductility measurements.

• Digital Elongation Measurement
  Displays elongation distance clearly, minimizing human error in result interpretation.

• Rigid Structural Frame
  Designed to maintain alignment and prevent vibration during testing.

Importance in Pavement Engineering

Low-temperature ductility testing using the AZA0957 is essential for modern asphalt pavement design, particularly in regions subject to cold climates or large temperature variations:

Cold Climate Performance Evaluation

Determines the ability of asphalt binders to withstand thermal stresses without cracking at low temperatures.

Binder Selection & Specification

Supports informed selection of paving-grade bitumen, polymer-modified binders (PMB), and specialty binders suitable for specific climatic zones.

Mix Design Optimization

Provides critical data for optimizing binder content and modifier selection to improve low-temperature performance of asphalt mixtures.

Pavement Life Prediction

Low-temperature ductility values are often used in pavement performance models to estimate crack resistance and long-term durability.

In India and internationally, guidelines published by the Indian Roads Congress (IRC) and other standards bodies emphasize the importance of evaluating binder behavior under temperature extremes.

Key Features & Benefits

• Accurate determination of ductility at low temperatures

• Stable and uniform refrigerated bath environment

• Smooth, automated pulling mechanism

• Digital temperature and elongation display

• High repeatability and reproducibility of results

• Suitable for research, quality control, and specification compliance

Technical Specifications

Model Number: AZA0957

Test Type:

• Refrigerated (Low-Temperature) Ductility Test

Temperature Range:

• Typically down to –20 °C or lower (model dependent)

Temperature Control:

• Integrated refrigeration system with digital controller

Temperature Accuracy:

• ±0.5 °C or better

Pulling Speed:

• Constant and adjustable (commonly around 5 cm/min, as per standards)

Maximum Elongation:

• Typically 100 cm or 150 cm

Elongation Measurement:

• Digital display (cm)

Specimen Type:

• Standard asphalt binder briquette molds

Standards Compliance:

• ASTM D113

• AASHTO T51

• Relevant Indian Standards (as applicable)

Power Supply:

• 230 V AC, 50 Hz, Single Phase

Dimensions & Weight:

• Varies depending on refrigeration capacity and configuration

Operating Procedure (Summary)

1. Prepare standard briquette specimens using approved molds.

2. Condition specimens in the refrigerated bath at the specified temperature.

3. Mount the specimen in the pulling clips.

4. Set the required pulling speed and temperature.

5. Initiate the test and allow elongation until rupture.

6. Record the elongation value displayed as the ductility result.

Routine maintenance includes cleaning the bath, checking refrigerant performance, and periodic calibration of temperature sensors and drive mechanisms.

Frequently Asked Questions (FAQ)

Q1. What is the main purpose of the AZA0957?
It measures the ductility of asphalt binders at low temperatures to assess their resistance to thermal cracking.

Q2. Why is low-temperature ductility important?
At low temperatures, binders become brittle. Adequate ductility ensures flexibility and reduces the risk of pavement cracking.

Q3. Which standards does the AZA0957 comply with?
The apparatus meets or exceeds ASTM D113, AASHTO T51, and applicable Indian standards.

Q4. How does the AZA0957 achieve low temperatures?
It uses an integrated refrigeration system to cool and maintain the bath at the required test temperature.

Q5. Is the pulling process manual or automatic?
The pulling mechanism is motorized and automated, ensuring consistent elongation speed and repeatable results.

Q6. Who typically uses the AZA0957?
Civil engineering laboratories, highway authorities, asphalt producers, research institutions, and quality control departments.
