AZA 0961 BENKELMAN BEAM

Description

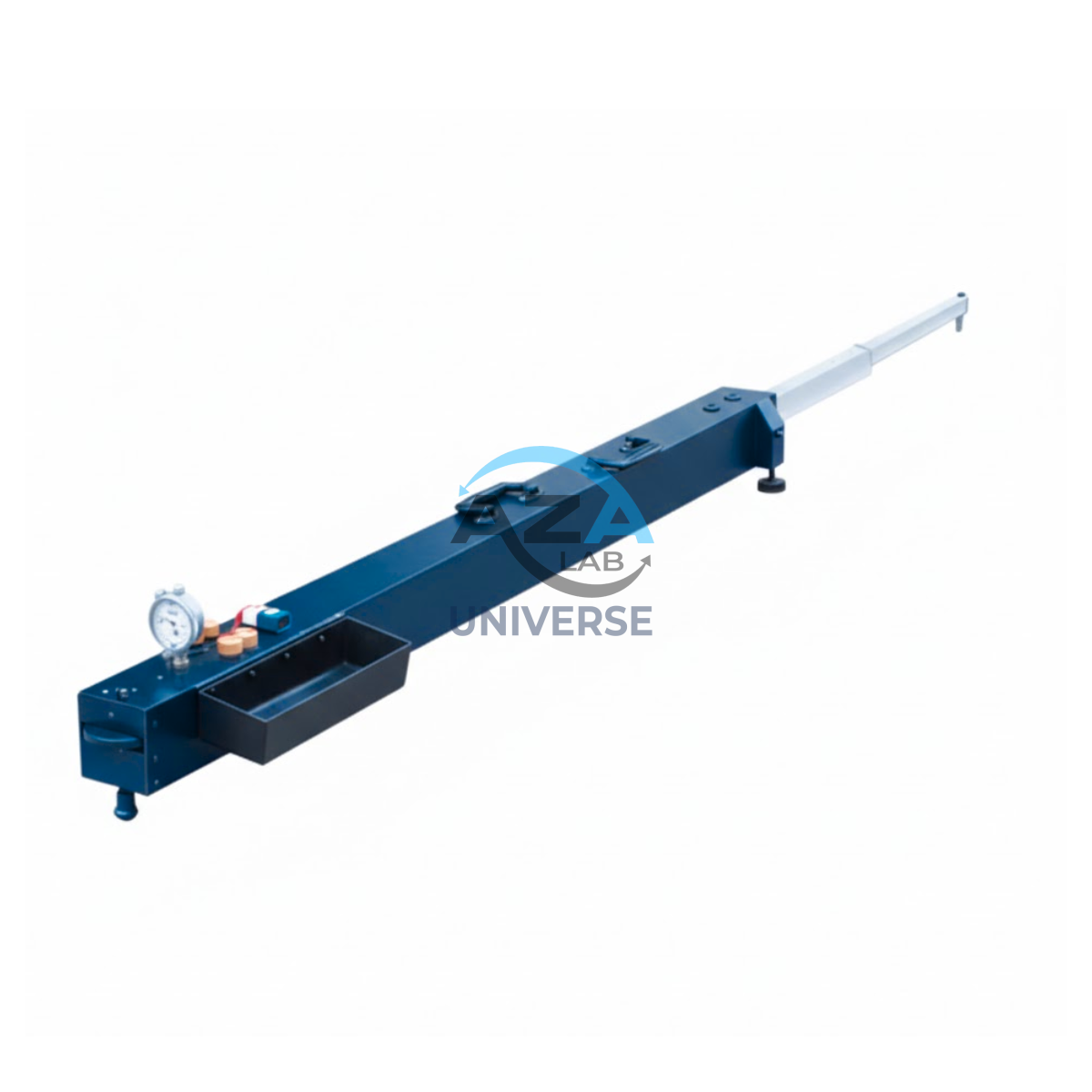

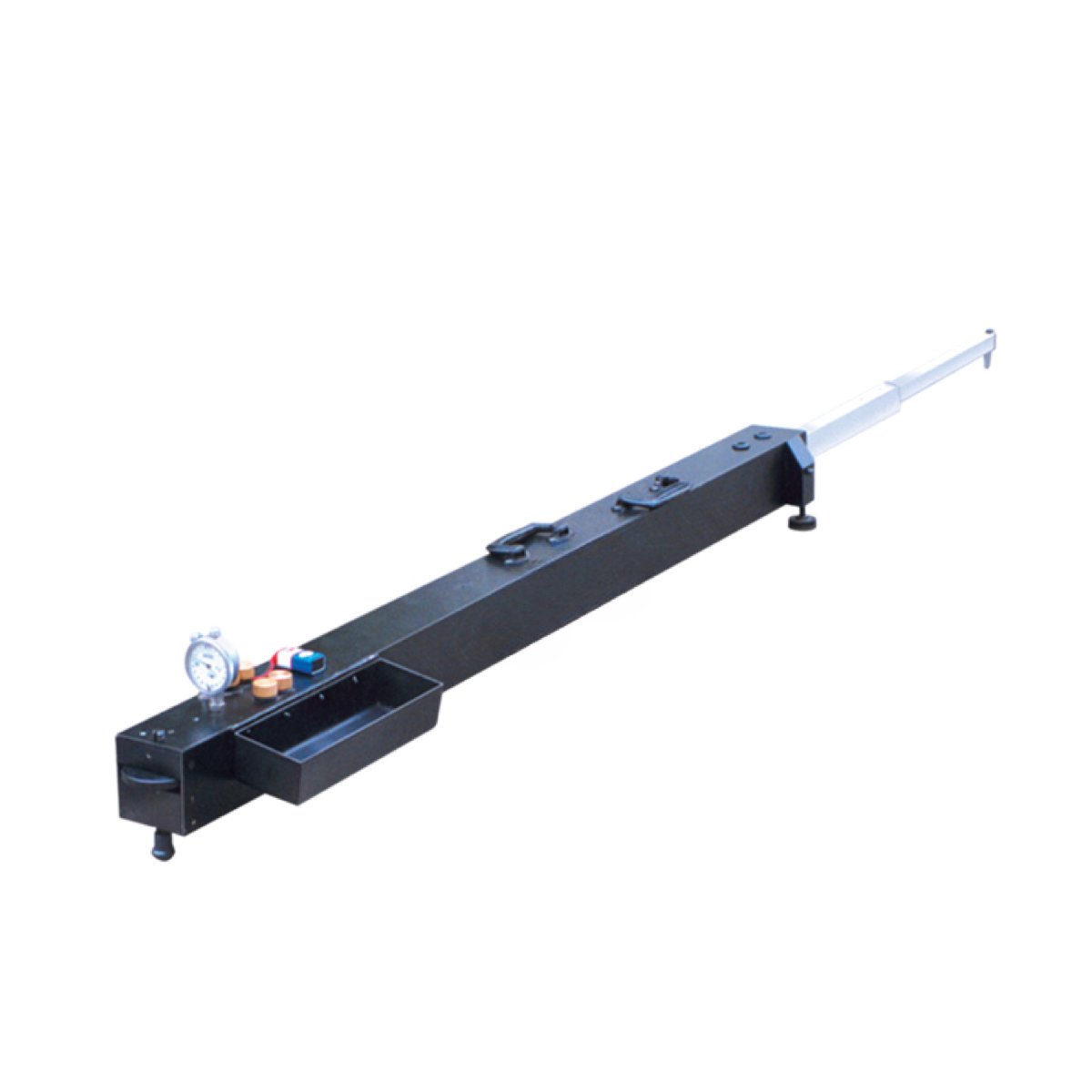

The AZA 0961 Benkelman Beam from AZALAB is a widely recognized and essential instrument for evaluating the structural capacity and remaining life of flexible pavements. It is a standard tool used by civil engineers, road construction agencies, and research institutions to measure the rebound deflection of a pavement surface under a standard wheel load. This measurement provides critical data for understanding the pavement’s load-bearing capacity, identifying weak areas, and designing appropriate overlays or rehabilitation strategies, thereby ensuring the longevity and serviceability of road networks.

At the core of the AZA 0961’s functionality is its simple yet ingenious lever-arm mechanism. The beam consists of a long, lightweight main beam pivoted at a fulcrum. One end of the beam (the sensing arm) is placed between the dual tires of a loaded truck, typically a standard axle load of 8170 kg (18,000 lbs). The other end of the beam is equipped with a sensitive dial gauge that rests on a stable reference point (often the pavement surface well away from the load influence or an independent support). As the loaded truck slowly moves past the sensing arm, the pavement deflects, causing the beam to pivot. The dial gauge records the maximum downward movement (initial deflection) and then the rebound (elastic recovery) as the load moves away. The maximum rebound deflection value is the primary measurement obtained, indicating the elastic response of the pavement structure. This test method is standardized globally and locally, as per guidelines such as IRC:81-1997: Guidelines for Strengthening of Flexible Road Pavements using Benkelman Beam Deflection Technique and ASTM D4694: Standard Test Method for Deflections with a Falling-Weight-Deflectometer (FWD) (though the Benkelman Beam is a static test, this ASTM provides context for deflection measurement).

Understanding Pavement Performance with the AZA 0961 Benkelman Beam

The AZA 0961 Benkelman Beam is constructed with meticulous attention to detail, ensuring both precision and durability for demanding field applications. The main beam is typically made from lightweight, high-strength aluminum alloy, minimizing its own deflection and ensuring ease of handling. The pivot mechanism is designed for smooth, frictionless movement, guaranteeing accurate transmission of pavement deflection to the dial gauge. The dial gauge itself is high-precision, often graduated to 0.01 mm, allowing for very fine measurements of deflection. The entire assembly is designed for quick setup and dismantling, making it efficient for extensive field surveys.

The data derived from the Benkelman Beam test is invaluable for:

• Pavement Evaluation: Provides direct insight into the structural condition of a flexible pavement layer by layer (subgrade, granular bases, asphalt layers).
• Overlay Design: Deflection measurements are a primary input for empirical and mechanistic-empirical methods used to design the thickness of asphalt overlays needed to strengthen existing pavements.
• Maintenance Prioritization: Helps highway agencies identify distressed pavement sections requiring immediate attention, optimizing maintenance budgets and preventing premature failure.
• Remaining Life Assessment: Allows engineers to estimate the remaining service life of a pavement under predicted traffic loads. For detailed methodology and interpretation, the Ministry of Road Transport & Highways (MoRTH) Specifications for Road and Bridge Works in India, particularly sections related to pavement investigations, are crucial references.

Operating the AZA 0961 is a standard procedure that involves trained personnel. The truck is positioned, the beam is set up, initial readings are taken, the truck moves, and final readings are recorded. The process is repeated at various test points along the road section. Environmental factors like temperature and moisture content of the pavement can influence deflection readings, so corrections are often applied as per relevant standards. Regular calibration of the dial gauge and verification of the beam’s dimensions and balance are essential for maintaining the accuracy of the instrument.

In conclusion, the AZA 0961 Benkelman Beam from AZALAB is a cost-effective, reliable, and widely accepted tool for assessing the structural integrity of flexible pavements. Its ability to accurately measure rebound deflection provides critical data for informed decision-making in pavement design, rehabilitation, and maintenance, contributing significantly to the construction and upkeep of robust and efficient road infrastructure.

Specifications

• Model Number: AZA 0961
• Type: Benkelman Beam Deflection Tester
• Application: Measurement of rebound deflection in flexible pavements.
• Beam Length: Standard beam length, typically around 3.66 meters (12 feet).
• Lever Ratio: Standard lever ratio, typically 2:1 (sensing arm to gauge arm).
• Dial Gauge:
  • Range: 0-10 mm or 0-25 mm
  • Accuracy/Least Count: 0.01 mm (0.001 inches)
• Construction Material: High-grade lightweight aluminum alloy for the main beam, robust steel for the fulcrum and base.
• Reference Points: Stable adjustable legs for setting up the beam.
• Portability: Designed for easy assembly, disassembly, and transport in the field.
• Standard Compliance: Conforms to relevant national and international standards including IRC:81, ASTM D4694 (principles applicable for deflection), and other equivalent standards.
• Weight: Approximately 10-15 kg (overall kit weight varies).
• Accessories (Typical): Complete with dial gauge, carrying case (optional), calibration block.

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What is the primary purpose of the AZA 0961 Benkelman Beam? A1: The AZA 0961 Benkelman Beam is primarily used to measure the rebound deflection of flexible pavements under a standard wheel load. This measurement helps assess the structural strength and overall load-bearing capacity of the pavement.

Q2: How does the Benkelman Beam work? A2: It uses a lever principle. A sensing arm is placed under a loaded truck’s wheel, and a dial gauge measures the vertical movement (deflection) of the pavement surface as the load is applied and removed. The rebound deflection indicates the pavement’s elastic response.

Q3: What types of pavements can be tested with the AZA 0961? A3: The AZA 0961 Benkelman Beam is specifically designed for testing flexible pavements, such as those constructed with asphalt concrete. It is not typically used for rigid pavements like plain cement concrete.

Q4: What standards does this Pavement Deflection Tester comply with? A4: The AZA 0961 is manufactured to comply with relevant national and international standards, including IRC:81 (Indian Roads Congress) and principles related to deflection measurement in standards like ASTM D4694.

Q5: Is the AZA 0961 easy to transport for field work? A5: Yes, the Benkelman Beam is designed to be lightweight and easily disassemblable, making it highly portable for efficient use across various field locations during pavement surveys.

Q6: How are the results from the Benkelman Beam test used in road construction? A6: The deflection values obtained are critical inputs for evaluating the structural condition of existing roads, identifying weak sections, and designing appropriate overlay thicknesses for pavement strengthening and rehabilitation, ensuring optimal utilization of resources and long-term pavement performance.
