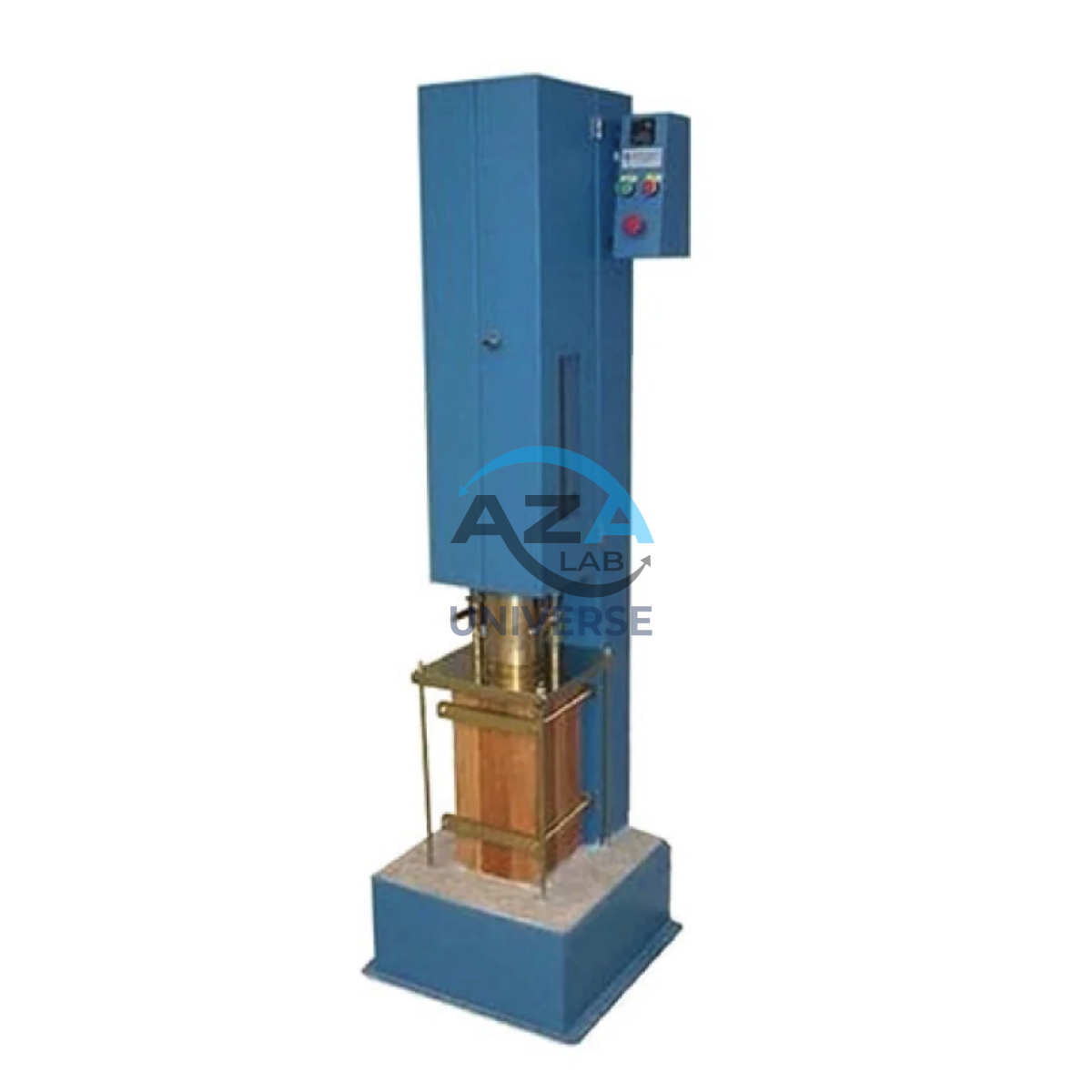

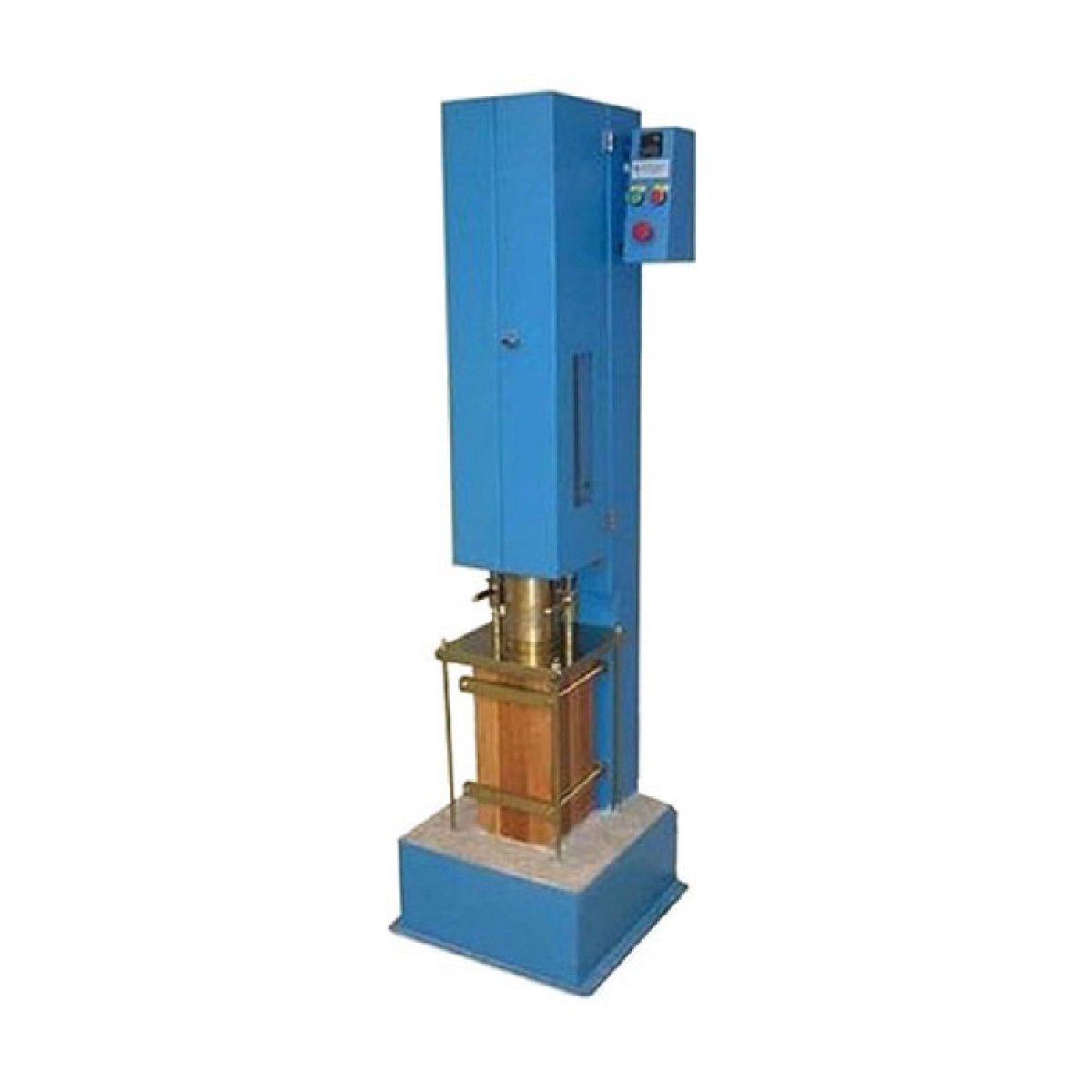

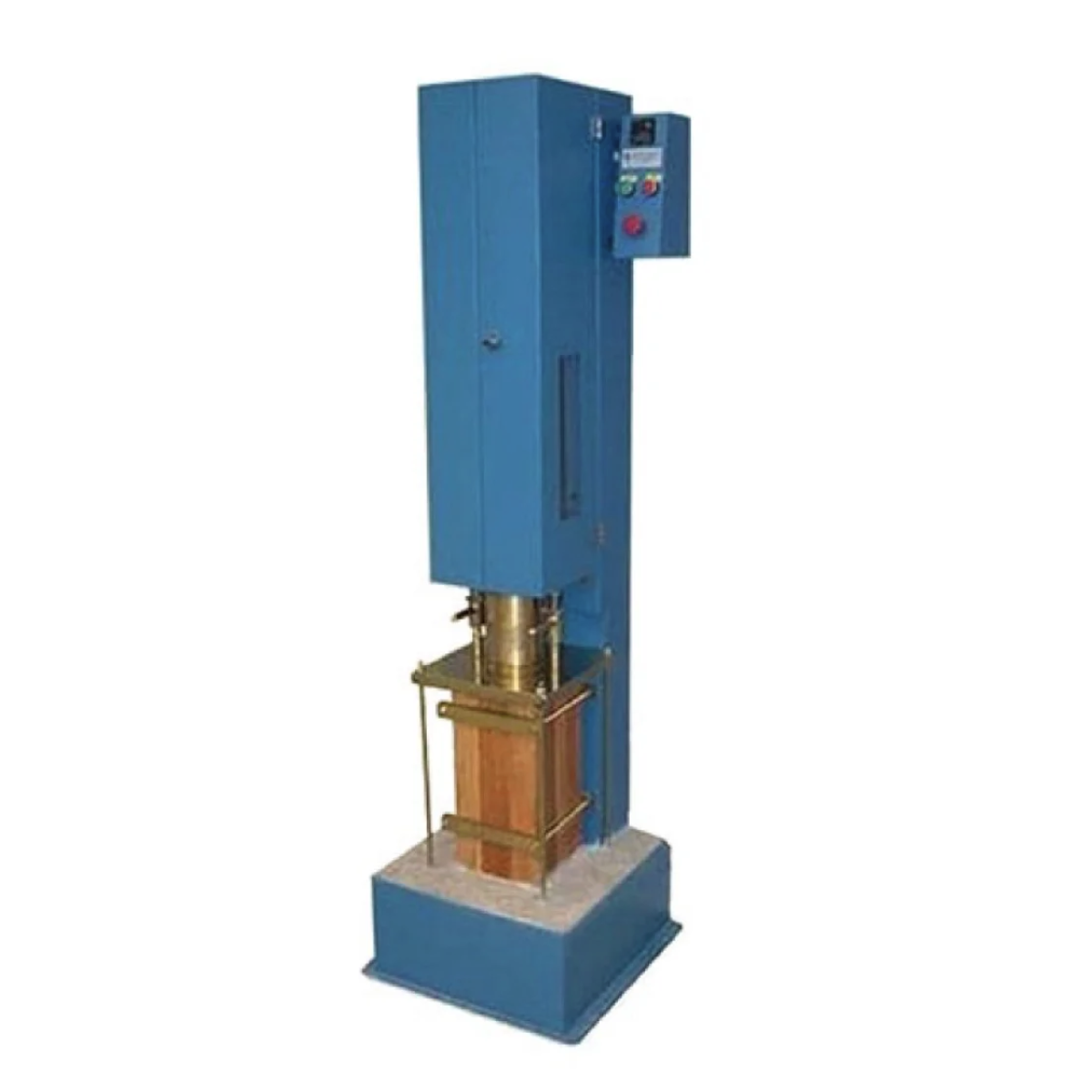

AZA 0963 AUTOMATIC COMPACTOR FOR BITUMINOUS MIXES

Description

The AZA 0963 Automatic Compactor for Bituminous Mixes from AZALAB is an indispensable piece of laboratory equipment designed for the consistent and precise compaction of asphalt mixture specimens. This compactor is a cornerstone in the Marshall Mix Design method, which is widely used in civil engineering to evaluate the volumetric and strength properties of asphalt concrete Automatic Compactor for Bituminous Mixes, Marshall Compactor, Asphalt Compactor. By simulating the compaction achieved under traffic, the AZA 0963 ensures that test specimens accurately represent field conditions, leading to reliable data for determining optimum asphalt content and designing durable pavements.

At the core of the AZA 0963’s functionality is its automated compaction process. It employs a heavy-duty motor-driven hammer, typically weighing 4.536 kg (10 lbs), which is automatically lifted and dropped from a precise height of 457.2 mm (18 inches). This consistent energy application is crucial for producing uniform asphalt specimens. The machine features an automatic counter that precisely tracks the number of blows applied to each side of the specimen. Once the pre-set number of blows is reached, the compactor automatically shuts off, ensuring standardized compaction every time Automatic Compactor for Bituminous Mixes, Marshall Compactor, Asphalt Compactor. This automation significantly reduces operator fatigue and eliminates the variability associated with manual compaction, thereby enhancing the reproducibility and reliability of Marshall test results. Adherence to standards like ASTM D6925: Standard Practice for Preparation of Bituminous Specimens Using Marshall Compactor and AASHTO T245: Resistance to Plastic Flow of Bituminous Mixtures Using Marshall Apparatus is fundamental to its design.

Key Features and Benefits of the AZA 0963 Marshall Compactor

The AZA 0963 Automatic Compactor for Bituminous Mixes is built for rugged durability and precise operation in the demanding environment of a materials testing laboratory. It features a robust, heavy-duty frame that provides exceptional stability during operation, minimizing vibrations and ensuring the hammer’s consistent drop height. The motor and lifting mechanism are designed for long-term, continuous use. Most units include a rotating base for the compaction mold, which ensures that the compaction energy is evenly distributed around the specimen as it receives blows on both sides, further contributing to specimen uniformity.

The significance of the AZA 0963 extends directly to the quality and longevity of asphalt pavements:

• Mix Design Accuracy: Provides uniformly compacted specimens critical for accurate determination of bulk specific gravity, stability, and flow values in the Marshall test. These values directly influence the optimum asphalt content and volumetric properties of the mix.
• Quality Control & Assurance: Ensures that asphalt mixtures produced in plants meet the specified compaction requirements, allowing for rapid feedback and adjustment of mix proportions.
• Reduced Variability: Automation eliminates human error and variability, leading to more consistent and reliable test results compared to manual compaction methods.
• Efficiency & Safety: Automating the compaction process frees up technician time and reduces the physical strain associated with repetitive manual hammering, enhancing laboratory efficiency and safety. For comprehensive information on asphalt mix design and testing, valuable resources can be found from organizations like the National Asphalt Pavement Association (NAPA) or the Indian Roads Congress (IRC), which provide extensive guidelines and standards for road construction in India.

Operating the AZA 0963 is user-friendly. After heating the asphalt mixture and preparing the compaction mold, it is placed in the compactor, the desired blow count is set on the digital counter, and the machine is started. The compactor handles the rest, automatically applying the specified compaction energy. Routine maintenance typically involves keeping the compactor clean, lubricating moving parts as per the manufacturer’s guidelines, and periodically verifying the hammer weight and drop height to ensure compliance with standards.

In conclusion, the AZA 0963 Automatic Compactor for Bituminous Mixes from AZALAB is an essential investment for any civil engineering laboratory, asphalt producer, or research institution involved in asphalt pavement design and quality control. Its ability to provide precise, consistent, and automated compaction is fundamental to producing high-quality asphalt specimens, thereby contributing significantly to the construction of durable and high-performing road infrastructure.

Specifications

• Model Number: AZA 0963
• Compaction Method: Marshall Compaction (Automatic)
• Hammer Weight: 4.536 kg $pm$ 9g (10 lbs $pm$ 0.02 lbs)
• Drop Height: 457.2 mm $pm$ 1.5 mm (18 inches $pm$ 0.06 inches)
• Hammer Face Diameter: 98.4 mm (3.875 inches)
• Mold Compatibility: Designed for standard Marshall compaction molds, typically 101.6 mm (4 inches) diameter (other sizes may require adapters).
• Blow Counter: Digital automatic counter, programmable for desired blow counts (e.g., 50, 75, 100 blows).
• Automatic Shut-off: Machine automatically stops upon reaching the pre-set blow count.
• Mould Rotation: Automatic mold rotation to ensure uniform compaction.
• Frame: Heavy-duty steel frame construction.
• Motor: Electric motor for lifting and dropping the hammer.

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What is the primary function of the AZA 0963 Automatic Compactor for Bituminous Mixes? A1: The AZA 0963 Automatic Compactor for Bituminous Mixes is used to prepare standardized asphalt mixture specimens for Marshall stability and flow testing. It applies a precise number of hammer blows to simulate traffic compaction, ensuring consistent specimen density.

Q2: What are the main advantages of an automatic compactor over a manual one? A2: Automatic compactors like the AZA 0963 provide superior consistency in compaction energy and blow counts, eliminating human variability and fatigue. This leads to more reproducible and reliable test results, which are critical for accurate mix design and quality control.

Q3: What international standards does this Marshall Compactor comply with? A3: The AZA 0963 is designed to meet or exceed the requirements of major international and national standards, including ASTM D6925, AASHTO T245, and often IS 2720 Part 8, ensuring its suitability for globally recognized testing protocols.

Q4: Can the AZA 0963 compact different sizes of Marshall molds? A4: The AZA 0963 is typically designed for standard 101.6 mm (4-inch) diameter Marshall molds. Adapters might be available for other mold sizes, but it’s best to confirm compatibility with AZALAB.

Q5: What kind of maintenance does the AZA 0963 require? A5: Routine maintenance includes keeping the compactor clean, lubricating moving parts (like the hammer guide and motor components) as per the manufacturer’s instructions, and periodically verifying the hammer weight and drop height to ensure continued compliance with standards.

Q6: How does the AZA 0963 contribute to the overall quality of asphalt pavements? A6: By consistently producing asphalt specimens with uniform density, the Asphalt Compactor enables accurate determination of volumetric properties and strength. This critical data allows engineers to optimize asphalt mix designs, ensure proper compaction during construction, and ultimately build more durable and long-lasting roads.
