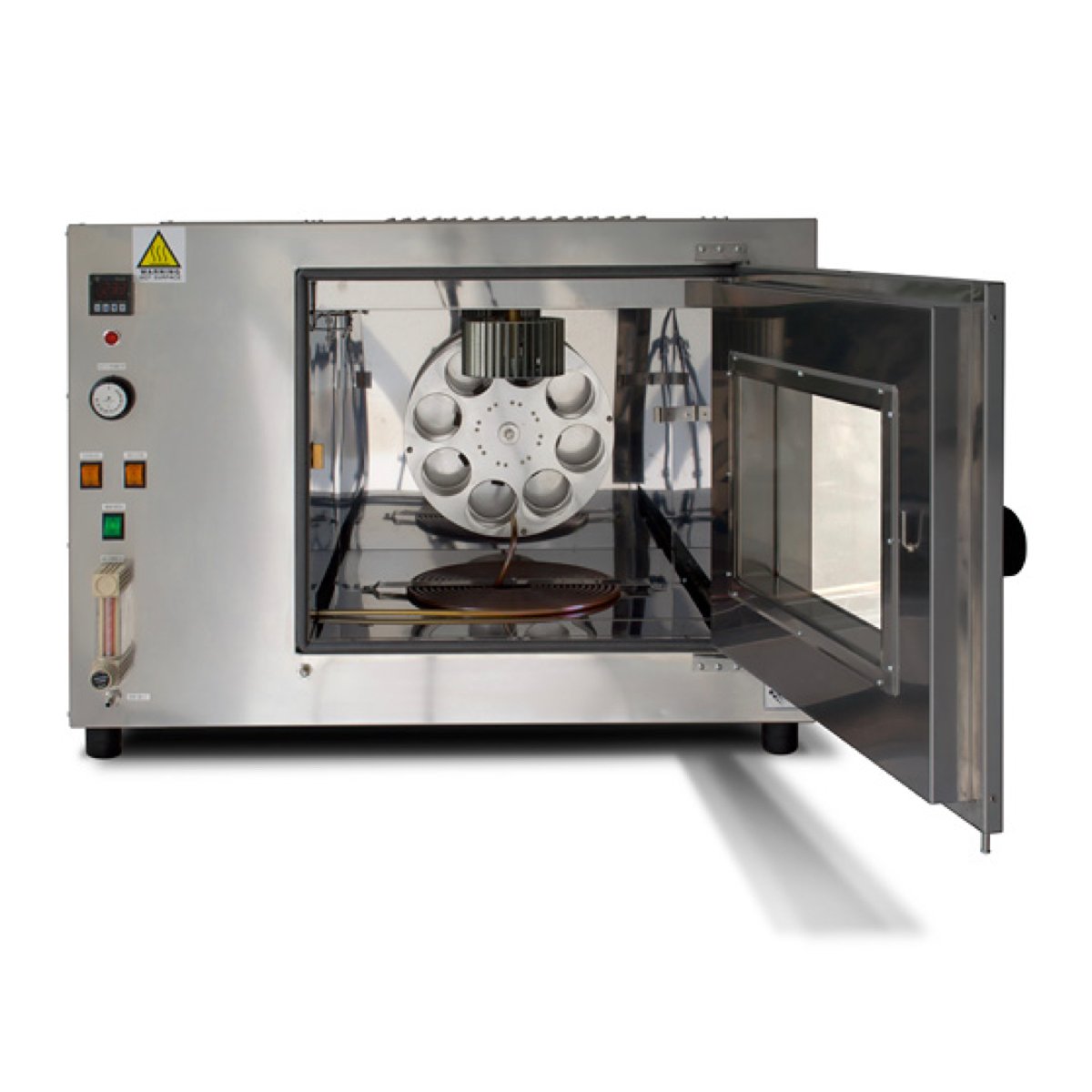

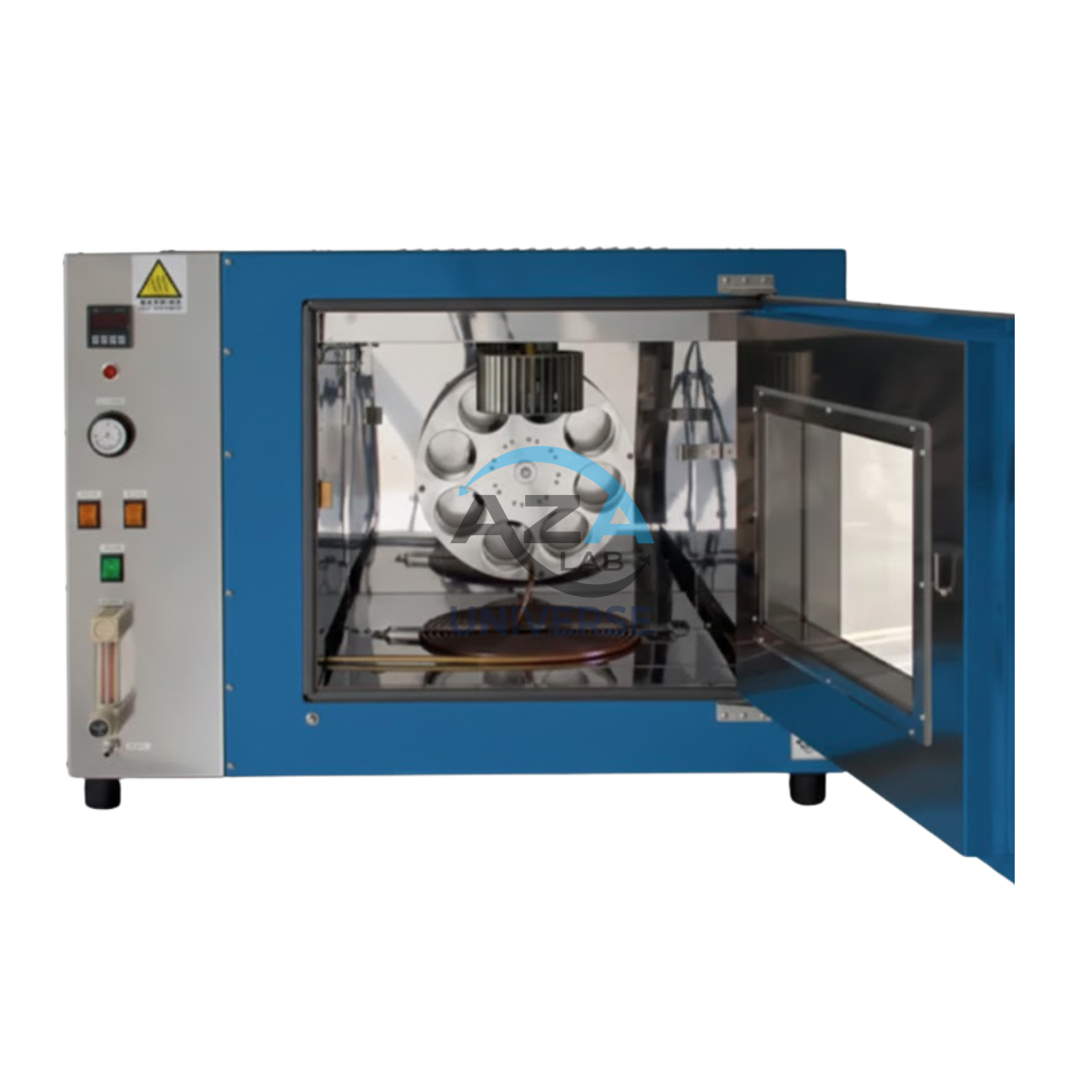

AZA 0968 ROLLING THIN FILM OVEN

The AZA 0968 Rolling Thin Film Oven (RTFO) from AZALAB is an indispensable piece of laboratory equipment designed to simulate the short-term aging of asphalt binders. This critical test procedure is fundamental in the evaluation of asphalt binder properties, as it mimics the aging that occurs during the mixing and laydown processes of asphalt pavement construction. By exposing a thin film of asphalt binder to elevated temperatures and air, the AZA 0968 RTFO Oven provides valuable insights into how the binder will perform and harden under real-world conditions, influencing pavement durability and resistance to cracking and rutting.

At the core of the AZA 0968’s functionality is its highly precise temperature control and specialized rotating carriage. The oven maintains a tightly controlled temperature, typically $163^\\circ\\text{C}$ ($\\pm 0.5^\\circ\\text{C}$), ensuring consistent and reproducible aging conditions. Inside the heated chamber, a rotating carriage holds eight glass sample bottles containing the asphalt binder. As the carriage rotates, heated air is precisely blown into each bottle, forming a “rolling thin film” that maximizes the surface area exposed to heat and oxygen. This continuous exposure accelerates the aging process, allowing engineers to assess changes in the binder’s viscosity, ductility, and other rheological properties. Adherence to standards like ASTM D2872: Standard Test Method for Effect of Heat and Air on a Moving Film of Asphalt (Rolling Thin-Film Oven Test) is crucial for obtaining comparable and reliable results globally.

Key Features and Applications of the AZA 0968 RTFO Oven

The AZA 0968 Rolling Thin Film Oven is constructed with meticulous attention to durability and operational precision, essential for the demanding environment of an asphalt testing laboratory. The inner chamber is typically made from high-grade stainless steel for excellent corrosion resistance and heat retention. The exterior is robustly built, often with a powder-coated finish, to withstand continuous laboratory use. High-efficiency insulation minimizes heat loss, contributing to energy efficiency and maintaining stable internal temperatures. The rotating carriage mechanism is engineered for smooth, consistent operation, ensuring uniform exposure of all samples. An integrated airflow system provides a precisely controlled flow of heated air into each sample bottle.

The significance of the AZA 0968 RTFO Oven extends directly to the quality and longevity of asphalt pavements. The data obtained from the RTFO test is vital for:

• Asphalt Binder Specification: Helps determine if an asphalt binder meets performance-grade (PG) specifications after short-term aging.
• Mix Design Optimization: Provides aged binder properties that are critical inputs for Superpave mix design, enabling engineers to predict pavement performance more accurately.
• Quality Control/Assurance: Allows producers and agencies to ensure that asphalt binders maintain their specified properties throughout the mixing and construction phases.
• Research & Development: Facilitates studies on the effects of various additives and modifications on asphalt binder aging characteristics. For comprehensive information on asphalt testing and pavement engineering, valuable resources can be found from organizations like the Transportation Research Board (TRB) or the Indian Roads Congress (IRC), which publish extensive guidelines and research on highway materials and construction practices.

Operating the AZA 0968 is straightforward, but adherence to standard test procedures is paramount for accurate results. The oven typically features a digital temperature controller for precise setpoint programming and monitoring. Safety features, such as over-temperature protection and proper ventilation, are integrated to ensure safe operation. Regular calibration of the temperature sensors and verification of the airflow rate are essential to maintain the accuracy and consistency of the RTFO test.

In conclusion, the AZA 0968 Rolling Thin Film Oven from AZALAB is an indispensable piece of equipment for civil engineers, asphalt producers, and material testing laboratories. Its ability to accurately simulate short-term aging of asphalt binders makes it a central component in ensuring the quality, performance, and long-term durability of roads and other paved surfaces, contributing significantly to robust infrastructure development.

Specifications:

• Model Number: AZA 0968
• Oven Type: Rolling Thin Film Oven (RTFO)
• Standard Compliance: Meets or exceeds requirements of ASTM D2872, AASHTO T240, and IS 9382 (where applicable).
• Temperature Range: Designed to operate at a standard testing temperature of $163^\\circ\\text{C}$ (adjustable within a limited range if needed).
• Temperature Control Accuracy: $\\pm 0.5^\\circ\\text{C}$ or better.
• Temperature Uniformity: Excellent uniformity throughout the test chamber.
• Chamber Material: High-grade Stainless Steel interior.
• Exterior Material: Powder-coated Mild Steel or Stainless Steel.
• Insulation: High-efficiency thermal insulation.
• Sample Capacity: Accommodates 8 standard RTFO glass sample bottles (bottles generally sold separately).
• Rotation Mechanism: Precision motorized rotating carriage, typically operating at 15 $pm$ 0.2 rpm.
• Airflow System: Controlled airflow system with a flow meter and air pump, delivering 4000 $pm$ 200 mL/min of heated air to each bottle.
• Digital Controller: Microprocessor-based PID temperature controller with digital display.
• Safety Features: Over-temperature protection, high-limit cut-off, door safety interlock.
• Power Supply: 230V AC, 50 Hz, Single Phase (confirm exact voltage/phase requirements for your region).
• Dimensions: Varies depending on model and features.

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What is the primary purpose of the AZA 0968 Rolling Thin Film Oven? A1: The AZA 0968 Rolling Thin Film Oven is used to simulate the short-term aging of asphalt binders, which occurs during the hot mixing and compaction processes of asphalt pavement construction. This helps assess how the binder’s properties will change during initial construction.

Q2: What international standards does this RTFO Oven comply with? A2: The AZA 0968 is designed to meet or exceed the requirements of major international standards, including ASTM D2872 and AASHTO T240, ensuring its suitability for globally recognized testing protocols.

Q3: Why is short-term aging simulation important for asphalt binders? A3: Short-term aging significantly alters the rheological properties of asphalt binders, making them stiffer. Simulating this aging is crucial for accurate asphalt mix design, predicting pavement performance, and ensuring the binder meets specifications under real-world construction conditions.

Q4: What temperature is typically maintained in the AZA 0968 during testing? A4: The standard test temperature for the Rolling Thin Film Oven test is $163^\\circ\\text{C}$, maintained with high precision by the AZA 0968’s control system.

Q5: What kind of maintenance does the RTFO Oven require? A5: Regular maintenance includes cleaning the oven chamber, checking the condition of the glass sample bottles, verifying the accuracy of the temperature controller, and ensuring the airflow system is clean and calibrated. Periodic professional calibration is recommended for optimal accuracy.

Q6: How does the AZA 0968 contribute to overall pavement quality? A6: By accurately predicting how asphalt binders will age and harden during construction, the AZA 0968 RTFO Oven allows engineers to select and design asphalt mixes that are better.
