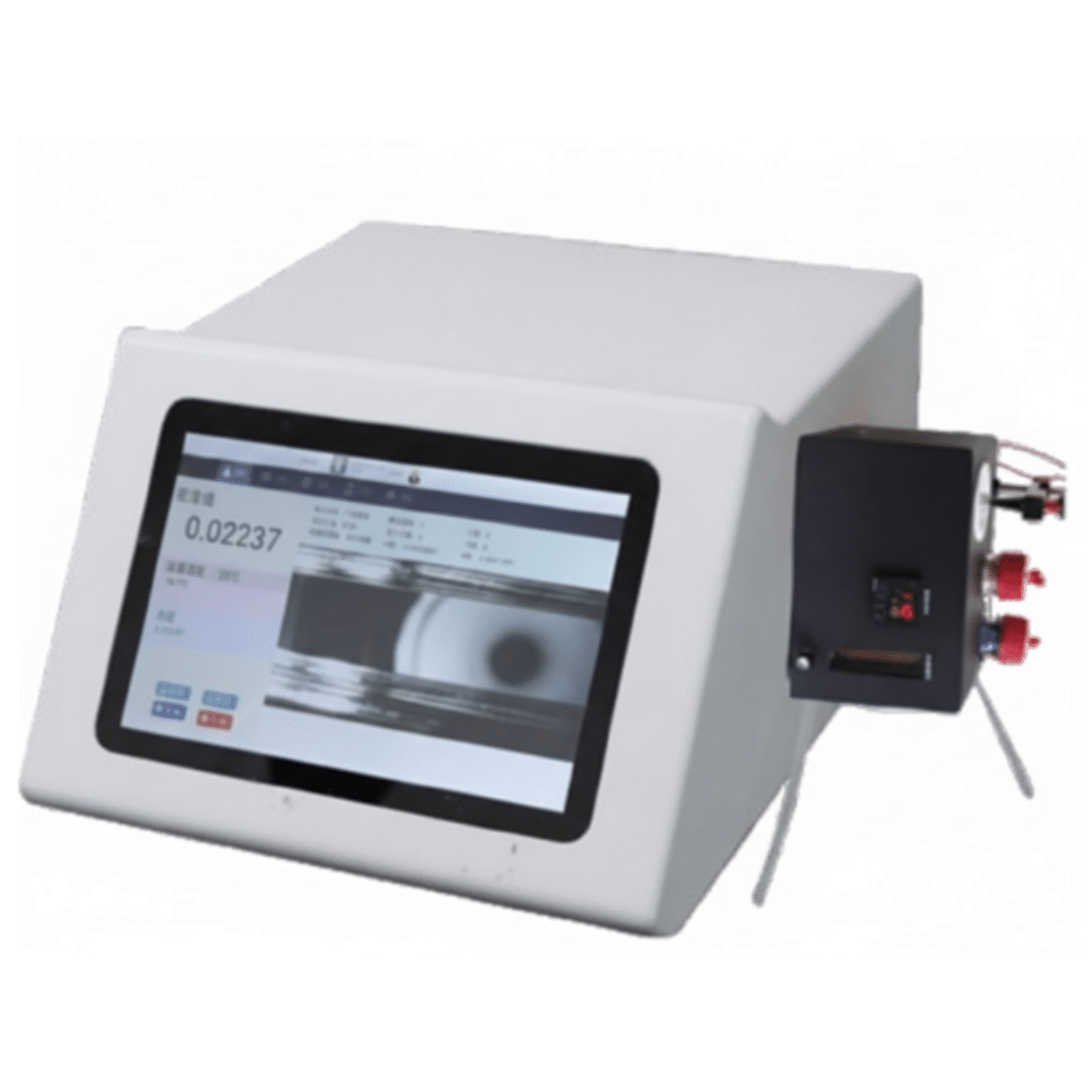

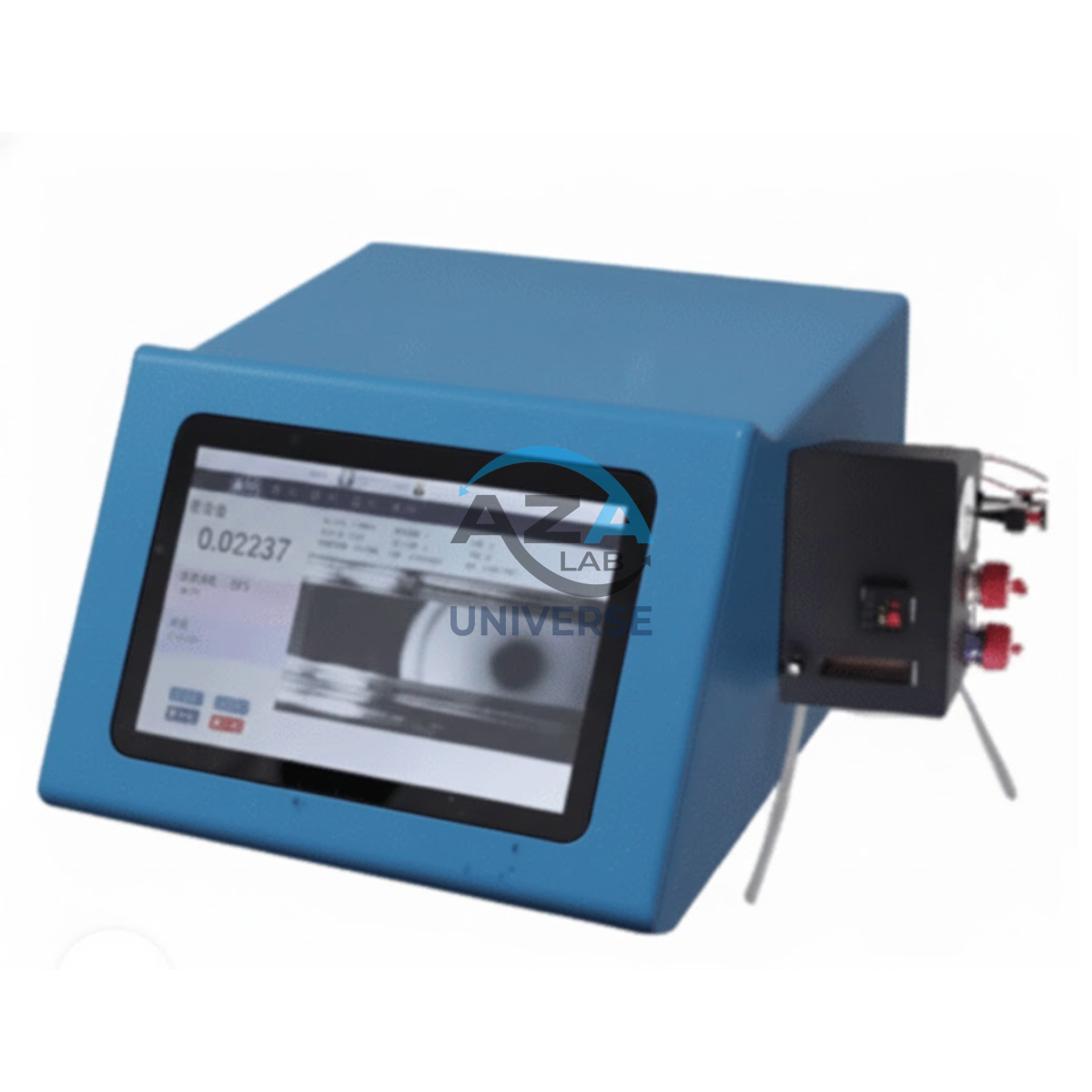

Density Meter AZA0969
The AZA0969 Digital Density Meter from AZA Lab is a high-precision analytical instrument designed for the accurate determination of density, relative density, and API gravity of liquids, petroleum products, and crude oils. The instrument is manufactured in accordance with ASTM D4052 and ASTM D5002, utilizing advanced digital oscillating U-tube technology to deliver fast, repeatable, and highly reliable results.
Density is a critical physical property for characterizing petroleum fractions, fuels, chemicals, and process fluids. The AZA0969 provides exceptional accuracy across a wide measuring range, making it an ideal solution for petroleum laboratories, refineries, inspection agencies, chemical plants, and quality control laboratories.
Description
Principle of Operation
The AZA0969 operates on the digital density analyzer principle, where the oscillation frequency of a precision glass U-tube changes as a function of the sample’s density. The system automatically injects the sample, stabilizes the temperature, and measures density with minimal operator intervention.
Integrated HD video monitoring allows real-time observation of the sample inside the measuring cell, reducing errors caused by air bubbles, contamination, or incomplete filling. The measured density values can be automatically converted to API gravity, relative density, or alcohol concentration using built-in calculation models or user-defined formulas.
Standards Compliance
The AZA0969 Density Meter is designed to meet or exceed the requirements of:
-
ASTM D4052 – Density, Relative Density, and API Gravity of Liquids by Digital Density Meter
-
ASTM D5002 – Density and Relative Density of Crude Oils by Digital Density Analyzer
This ensures global acceptance of results for regulatory, commercial, and research applications.
Key Features & Advantages
-
One-Button Fully Automatic Measurement – Simple, fast, and operator-independent testing
-
High-Precision Temperature Control – Ensures stable and repeatable density measurements
-
HD Video Monitoring System – Detects air bubbles and sample inconsistencies in real time
-
Built-In Printer – Direct printing of test results for immediate documentation
-
External Heating Function – Enables testing of samples with high melting or freezing points
-
Wide Measurement Range – Suitable for light hydrocarbons to heavy petroleum products
-
Advanced Data Management – Secure storage, electronic signatures, and audit tracking
-
Multi-User Access Control – Four-level authority management for regulated environments
Applications
-
Crude oil and petroleum product testing
-
API gravity determination
-
Refinery process control
-
Fuel quality inspection
-
Chemical and petrochemical laboratories
-
Alcohol concentration measurement
-
Research and regulatory compliance testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0969 |
| Test Modes | Density, alcohol concentration, custom formulas |
| Measuring Range | 0 – 3 g/cm³ |
| Resolution | 0.00001 g/cm³ |
| Repeatability | ±0.00008 g/cm³ |
| Accuracy | ±0.00005 g/cm³ |
| Injection Method | Fully automatic (manual compatible) |
| Observation Method | HD video monitoring |
| Air Pump | Integrated |
| Temperature Control Method | Internal Peltier control with external heater |
| Temperature Control Range | 5°C – 85°C |
| Temperature Stability | ±0.02°C |
| Display | 10.4-inch TFT color touch screen |
| Data Storage | 64 GB internal memory |
| Output Interfaces | USB, RS232, RJ45, SD card, U-disk |
| User Management | Four-level authority system |
| Audit Trail | Yes |
| Electronic Signature | Yes |
| Custom Method Library | Yes |
| Data Security | MD5 file verification |
| Printing Options | Wi-Fi printing, serial port printing |
| Export Formats | PDF, Excel |
| Dimensions (L × W × H) | 480 × 320 × 200 mm |
| Power Supply | 110–230V AC, 50/60 Hz |
| Weight | 8 kg |
Why Choose AZA0969?
-
High Accuracy & Repeatability for density and API gravity measurements
-
Fully Automated Operation reduces human error and testing time
-
Versatile Sample Handling, including high-melting and viscous liquids
-
Regulatory-Grade Data Integrity with audit trails and electronic signatures
-
Compact & Robust Design suitable for laboratory and field use
The AZA0969 Digital Density Meter is a reliable, precise, and user-friendly solution for modern petroleum and chemical laboratories. Its advanced automation, superior accuracy, and comprehensive data management capabilities make it an essential instrument for process control, quality assurance, research, and regulatory compliance.
AZA0969 – Precision Digital Density & API Gravity Measurement Made Simple
Additional information
| Model Number |
AZA 0969 |
|---|---|
| Apparatus Type |
Vacuum Pycnometer Method (Rice Test) |
| Pycnometer Capacity |
Typically 4.8 Liters (4800 ml) or 6 Liters (6000 ml) |
| Pycnometer Material |
Transparent Acrylic or Stainless Steel |
| Power Supply |
230V AC, 50 Hz, Single Phase (for pump and vibrating table). |
| Dimensions |
Varies based on individual components. |
| Weight |
Varies depending on pump size and pycnometer material. |
