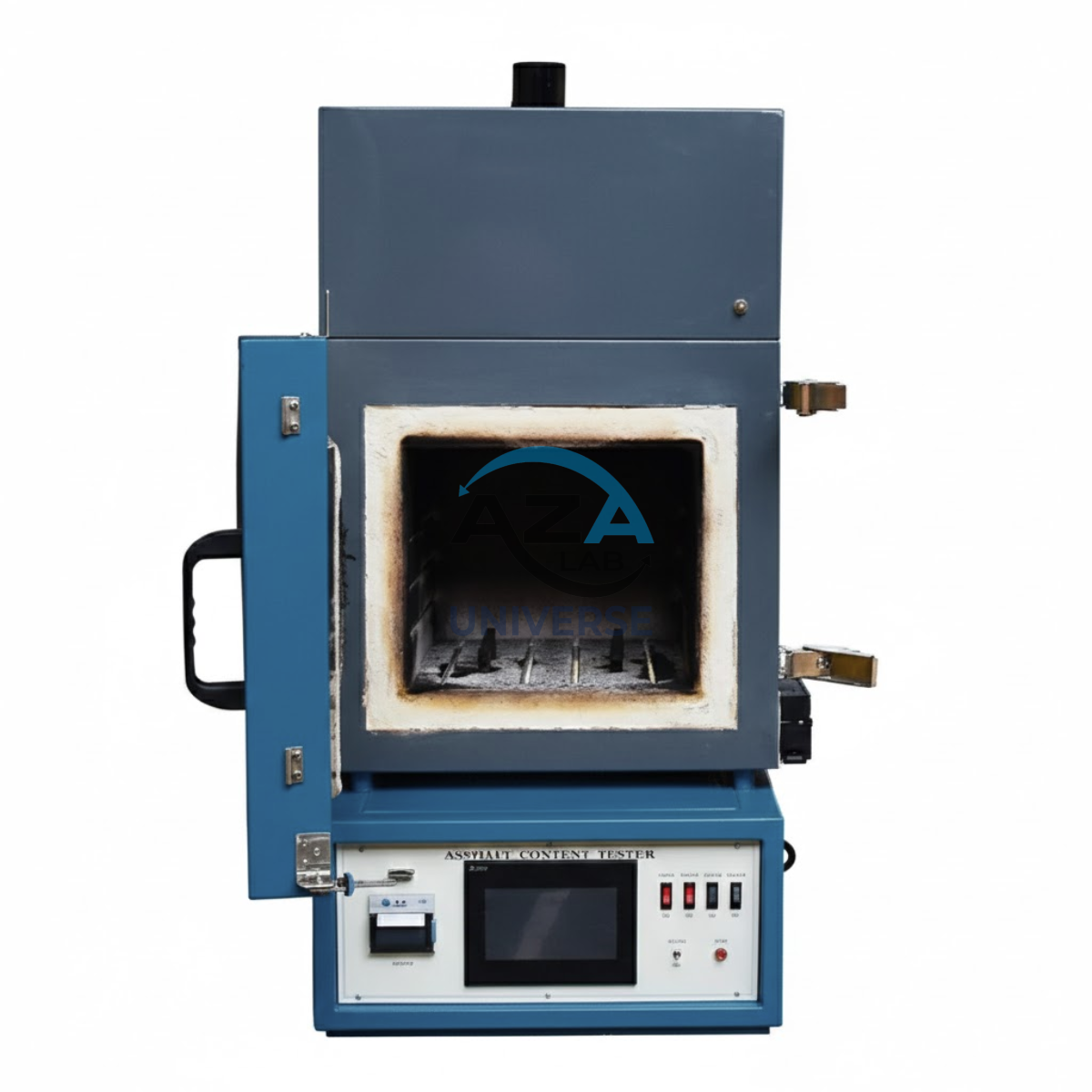

ASPHALT CONTENT TESTER AZA0967
The AZA0967 Asphalt Content Tester from AZALAB is an advanced laboratory instrument engineered for the rapid, accurate, and environmentally responsible determination of asphalt (bitumen) content in Hot Mix Asphalt (HMA) and other asphalt paving mixtures. The system operates on the Ignition Method (Loss on Ignition), representing a significant technological improvement over conventional solvent extraction techniques.
By eliminating hazardous solvents and utilizing controlled high-temperature combustion, the AZA0967 ensures fast turnaround, high repeatability, improved laboratory safety, and regulatory compliance, making it an essential tool for modern road construction quality control laboratories.
Description
Principle of Operation
The AZA0967 determines asphalt binder content by burning off the bituminous material from a prepared asphalt mixture sample under controlled conditions.
Operating Process:
-
The asphalt mixture sample is placed in a perforated stainless steel basket.
-
The basket is introduced into a high-temperature electric furnace.
-
The furnace heats the sample to a controlled temperature (typically 538°C or 650°C, depending on aggregate type).
-
The asphalt binder combusts completely, leaving only the aggregate.
-
An integrated high-precision balance continuously measures weight loss.
-
Once mass stabilization is achieved, the system automatically calculates the asphalt content based on pre- and post-ignition weights.
This automated cycle provides rapid, accurate, and repeatable results, significantly reducing testing time compared to solvent extraction methods.
Standards Compliance
The AZA0967 is designed to meet or exceed internationally recognized testing standards, ensuring universal acceptance:
-
ASTM D6307 – Asphalt Content of Hot-Mix Asphalt by Ignition Method
-
AASHTO T308 – Determining Asphalt Binder Content by the Ignition Method
-
Compatible with relevant IS / IRC specifications used in road construction laboratories
Key Features & Advantages
-
Ignition Method Technology – Solvent-free, safe, and eco-friendly testing
-
High-Temperature Precision Furnace – Uniform and stable heating
-
Integrated High-Accuracy Weighing System – Continuous real-time mass monitoring
-
PID Digital Temperature Controller – Precise temperature regulation
-
Automated Test Cycle – Minimal operator intervention
-
Digital Display Interface – Clear monitoring of temperature, weight, and test progress
-
Exhaust System with Safety Controls – Reduced emissions and operator exposure
-
Robust Laboratory Construction – Designed for heavy-duty, continuous use
Applications
-
Asphalt mix design verification
-
Hot Mix Asphalt (HMA) production quality control
-
Compliance testing for road and highway projects
-
Bitumen content determination for WMA and RAP mixes (with calibration factors)
-
Research, academic, and government laboratories
Correct asphalt binder content is critical to pavement durability, workability, and resistance to rutting, cracking, and moisture damage. The AZA0967 enables fast corrective action during production, preventing costly material failures.
Environmental & Safety Benefits
-
Eliminates hazardous solvents such as trichloroethylene and methylene chloride
-
Reduces chemical waste disposal requirements
-
Improves laboratory safety and air quality
-
Supports compliance with environmental regulations and sustainability goals
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AZA0967 |
| Test Method | Ignition Method (Loss on Ignition) |
| Furnace Type | High-temperature electric furnace |
| Temperature Range | Up to 538°C or 650°C (adjustable) |
| Temperature Control | PID digital controller |
| Sample Capacity | Typically 1200 g / 1800 g (model dependent) |
| Weighing Accuracy | ±0.1 g or better |
| Test Duration | Approx. 20–45 minutes per cycle |
| Display | Digital (temperature, weight, time, asphalt content) |
| Data Storage | Internal memory |
| Reporting | Printer / USB / serial output (model dependent) |
| Safety Features | Over-temperature protection, exhaust fan, safety interlocks |
| Power Supply | 230V AC, 50 Hz, Single Phase (higher capacity models may require 3-phase) |
| Construction | Heat-resistant chamber with heavy-duty insulation |
| Accessories Supplied | Sample baskets, catch pans, spatulas, calibration weights |
Why Choose AZA0967?
-
Fast & Accurate Results – Ideal for production-level quality control
-
Globally Accepted Method – ASTM & AASHTO compliant
-
Environmentally Responsible – No solvents, reduced emissions
-
User-Friendly Operation – Automated and intuitive interface
-
Reliable & Durable – Built for demanding laboratory conditions
Frequently Asked Questions (FAQ)
Q1: What is the primary function of AZA0967?
To determine the percentage of asphalt (bitumen) binder in asphalt mixtures using the ignition method.
Q2: How does it differ from solvent extraction?
It uses controlled combustion instead of hazardous solvents, making it faster, safer, and more environmentally friendly.
Q3: Which asphalt mixes can be tested?
HMA, WMA, and RAP mixes (with appropriate correction factors).
Q4: How are emissions handled?
The system includes an exhaust mechanism, and selected configurations support afterburner integration for emission control.
Q5: How does AZA0967 improve pavement quality?
By enabling rapid feedback during production, ensuring correct binder content and preventing premature pavement failure.
AZA0967 – Advanced Ignition Method Asphalt Content Tester for Reliable Pavement Quality Control
A critical instrument for modern asphalt laboratories committed to accuracy, safety, compliance, and sustainable infrastructure development.
Additional information
| Model Number |
AZA 0967 |
|---|---|
| Method |
Ignition Method (Loss on Ignition) |
| Furnace Type |
High-temperature electric furnace with precision heating elements. |
| Power Supply |
230V AC, 50 Hz, Single Phase |
| Accessories |
Includes sample baskets, catch pans, spatulas, and calibration weights. |
