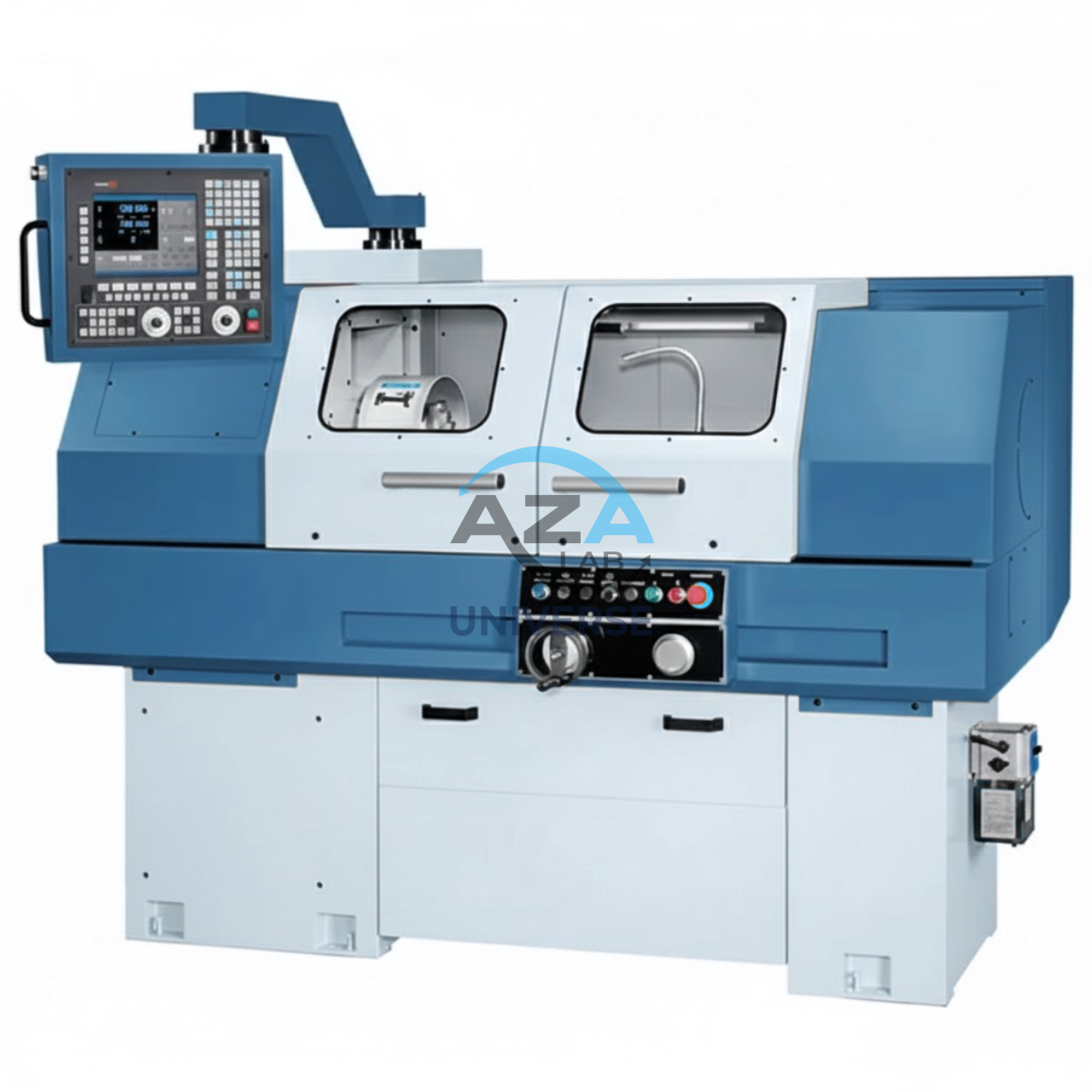

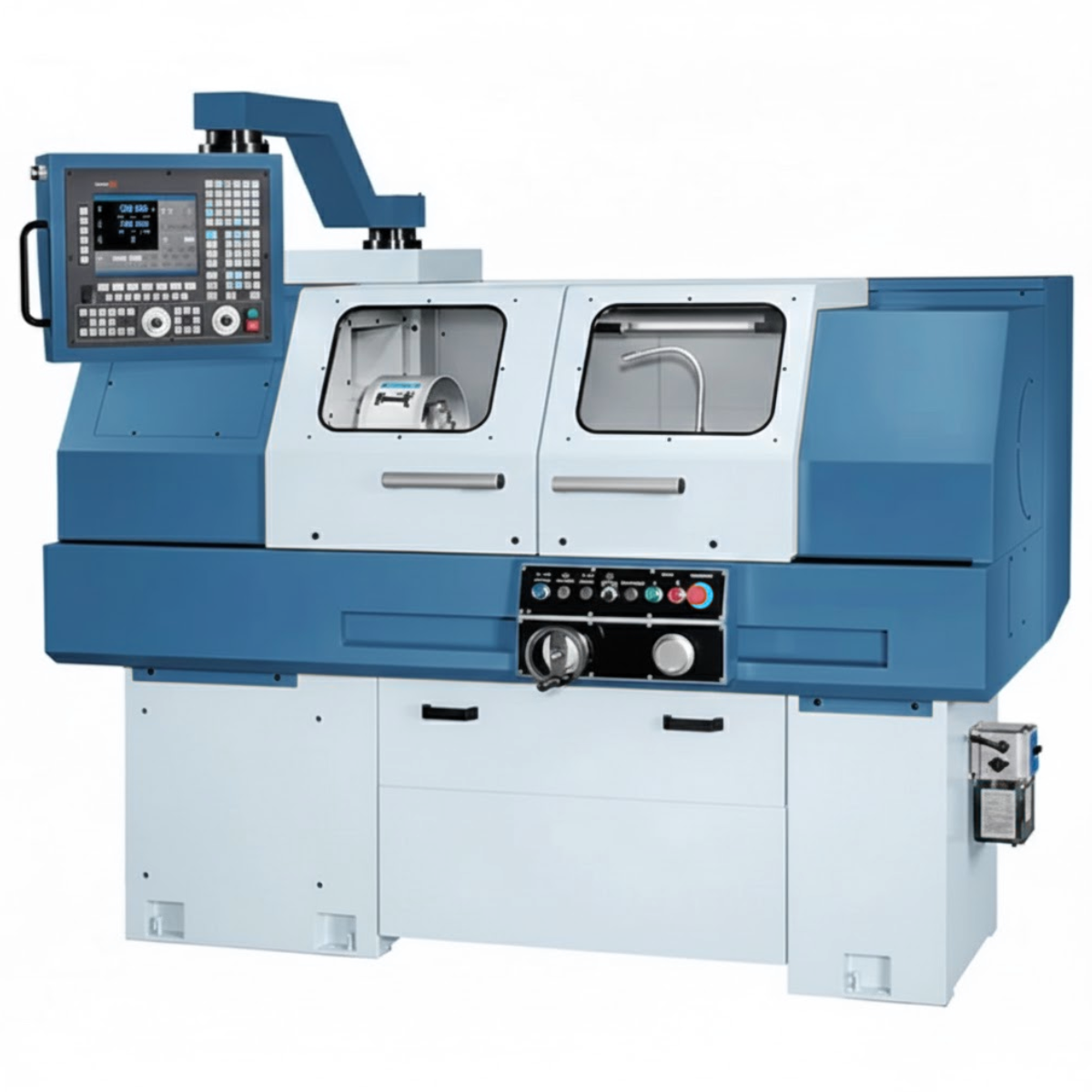

Rover CNC Lathe Machine AZA1173
The AZA LAB Rover CNC Lathe Machine – Model AZA1173 is a compact, precision-engineered industrial CNC lathe designed for automated, high-accuracy turning operations. Equipped with an 8-station programmable turret and compatible with leading CNC controllers such as FANUC, Siemens, Mitsubishi, and MTAB, this machine is ideal for modern manufacturing environments, including automation lines and smart factories.
With a rigid cast-iron structure, precision ball screws, and LM guideways, AZA1173 Rover delivers consistent accuracy, smooth operation, and long-term reliability in both automatic and manual modes.
Description
Key Advantages
-
Compact CNC lathe for high-precision components
-
8-station turret for fast and efficient tool changes
-
Supports industry-leading CNC control systems
-
Excellent positioning accuracy for intricate machining
-
Ideal for automation and smart manufacturing setups
Features
Advanced CNC Control Options
-
Compatible with FANUC / Siemens / Mitsubishi / MTAB controllers
-
Easy integration into automated and CNC production systems
8-Station Programmable Turret
-
Enables rapid tool indexing
-
Reduces cycle time and improves productivity
High Precision Machining
-
Positioning accuracy of 0.01 mm
-
Suitable for precision components and tight tolerances
Robust Mechanical Construction
-
Heavy-duty cast iron bed for vibration damping
-
Precision-ground ball screws and LM guideways for smooth motion
Flexible Operation
-
Supports automatic and manual modes
-
Suitable for batch production as well as job-work applications
Wide Speed & Feed Range
-
High spindle speed for fine finishing
-
Rapid traverse for reduced non-cutting time
Applications
-
Precision turned components
-
Automotive and engineering parts
-
Small to medium batch production
-
Automated CNC machining lines
Technical Specifications
| Specification | Details |
|---|---|
| Model | AZA1173 |
| Automatic Grade | Automatic / Manual |
| Chuck Capacity | 100 mm |
| Maximum Turning Diameter | 80 mm |
| Maximum Turning Length | 190 mm |
| Positioning Accuracy | 0.01 mm |
| Spindle Nose Taper | A2-3 / MT3 |
| Hole Through Spindle | 20 mm |
| Spindle Speed Range | 150 – 4000 RPM |
| Spindle Motor Power | 3.7 kW |
| Number of Tool Stations | 8 |
| X / Z Axis Travel | 95 / 210 mm |
| Rapid Traverse (X/Z) | 5000 mm/min |
| Feed Rate | 0 – 5000 mm/min |
| Tailstock Base Stroke | 170 mm |
| Quill Stroke | 40 mm |
| Quill Diameter | 35 mm |
| Tailstock Taper | MT-2 |
Optional Accessories
-
Automatic bar feeder
-
Hydraulic chuck
-
Chip conveyor
-
Tool presetting system
-
Automation and smart factory integration options
Why Choose AZA1173 Rover CNC Lathe?
-
Compact yet industrial-grade CNC lathe
-
High accuracy with advanced control compatibility
-
Ideal balance of performance, automation, and cost efficiency
-
Trusted AZA LAB engineering and build quality
- Automatic Grade: Automatic, Manual
- Chuck Capacity: 100 mm
- Maximum Turning Diameter: 80 mm
- Maximum Turning Length: 190 mm
- Positioning Accuracy: 0.01 mm
- Spindle Nose Taper: A2-3/MT3
- Hole Through Spindle: 20 mm
- Spindle Speed Range: 150-4000 RPM
- Spindle Motor: 3.7 KW
- No. of Stations: 8
- X/Z Axis Travel: 95/210 mm
- Rapid X/Z: 5000 mm/min
- Feed Rate: 0-5000 mm/min
- Tailstock Base Stroke: 170 mm
- Quill Stroke: 40 mm
- Quill Diameter: 35 mm
- Tail Stroke Taper: MT 2
- Automatic and Manual Operation: Offers flexibility for different machining requirements.
- High Precision: Achieves 0.01 mm positioning accuracy for detailed work.
- Versatile Chuck Capacity: Accommodates up to 100 mm chuck size.
- Wide Spindle Speed Range: Operates from 150 to 4000 RPM for various cutting speeds.
- Multiple Stations: Equipped with 8 stations for efficient tool changes.
- Robust Construction: Includes a solid cast iron bed, precision ball screws, and LM guide ways.
- Enhanced Travel and Feed Rates: X/Z axis travel of 95/210 mm with rapid movement up to 5000 mm/min.
- Flexible Taper Options: Spindle nose taper A2-3/MT3 and tailstock taper MT 2 for diverse tooling needs.
Related products

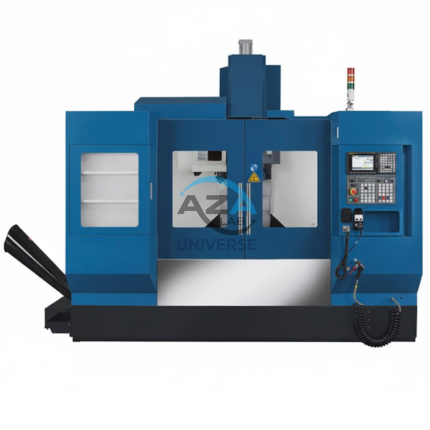

CNC Milling Machine AZA1174
