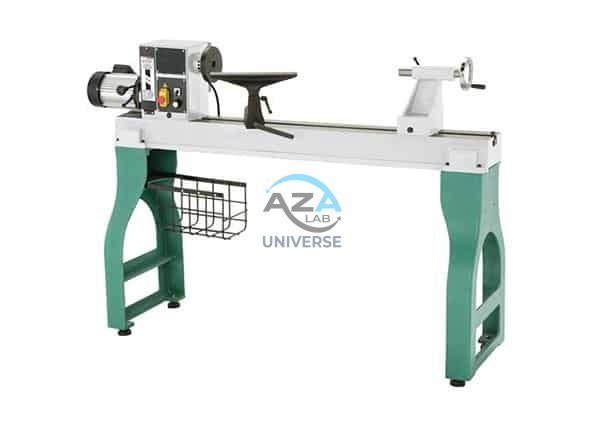

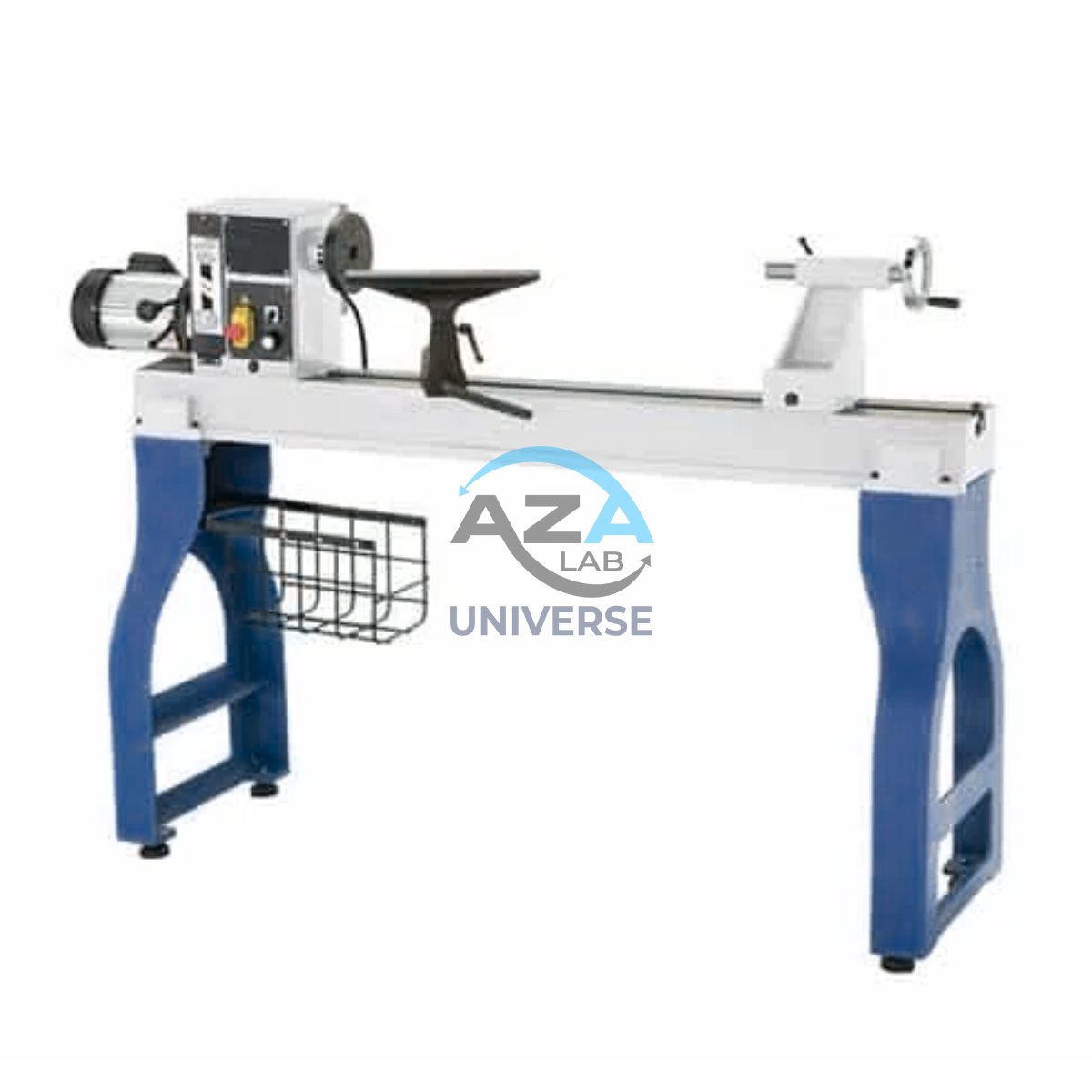

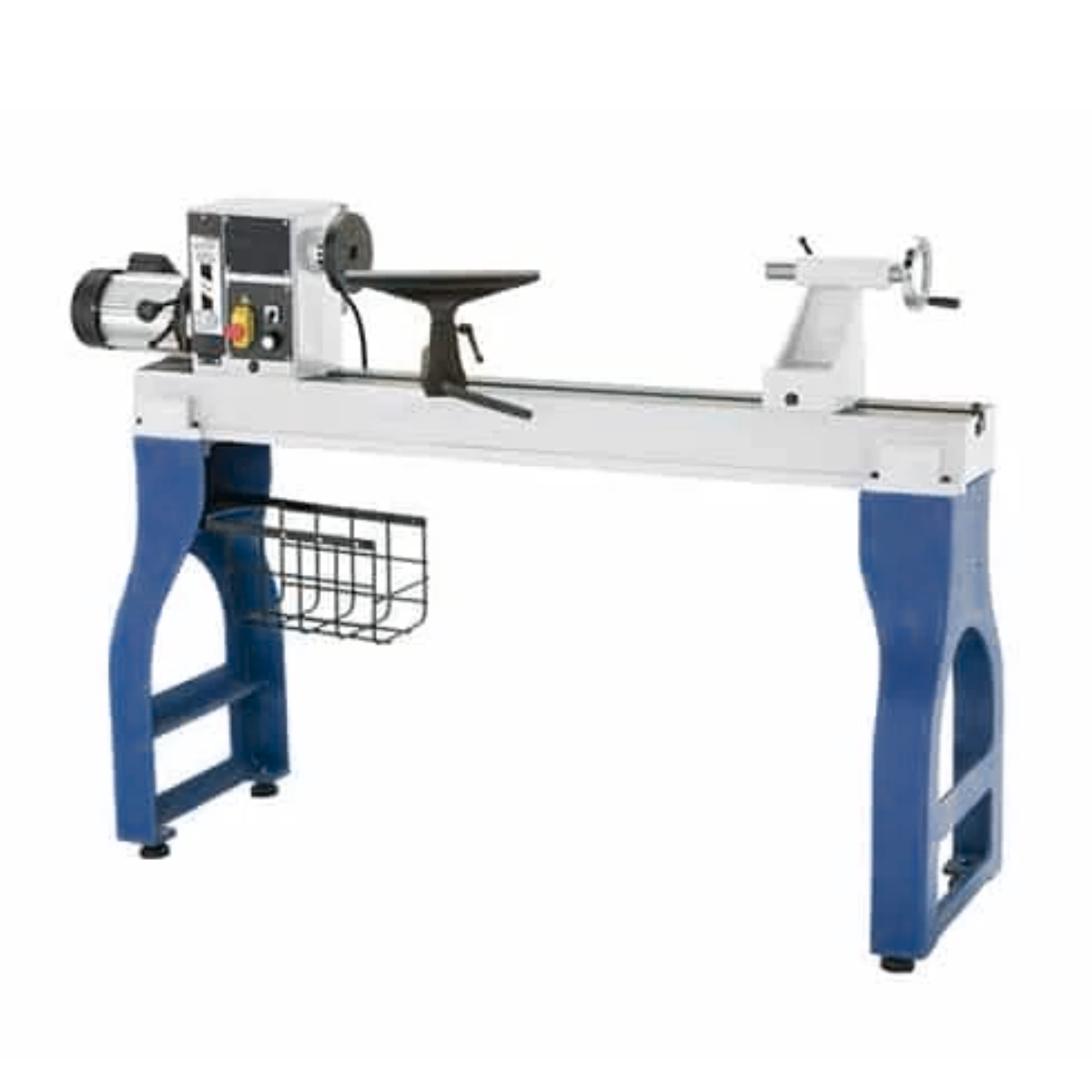

Wood Working Basic Spiral Lathe (AZA 1217)
A Z A Lab’s Wood Working Basic Spiral Lathe AZA 1217 is a high-precision lathe, offering robust performance with advanced accessories, perfect for woodturning and spiral operations.
Description
The Wood Working Basic Spiral Lathe – AZA 1217 from A Z A Lab is designed for high-precision woodturning and spiral operations. Featuring a powerful motor and durable construction, it ensures reliability and stability during demanding woodworking tasks. The lathe comes equipped with a comprehensive set of accessories and supports a variety of speeds to cater to different types of woodworking projects, making it a must-have for professional woodworkers.
- High-precision spindle speeds for diverse woodworking needs
- Durable build to handle heavy-duty operations
- Transparent safety guard for safety and visibility
- Comprehensive accessory set including router, collets, and more
- Easy setup with a single-phase power requirement
Standard Accessories:
- 3 HP/1440 RPM motor (single-phase)
- R/F switch
- Transparent safety guard
- Tool rest
- HSS turning cutter face plate
- 4 pin centre V belt
- Power head router
- Big collet - 12 mm hole
- Standard collet - 12 mm hole with 8 mm hole sleeve
- Revolving centre and 3 pin centre
- Toolkit & machine manual
| Feature | AZA 1217 |
|---|---|
| Length of Bed | 2100 mm / 82.7″ |
| Height of Centres | 245 mm / 9.6″ |
| Admit Between Centres | 1300 mm / 51.2″ |
| Max. Work Diameter | 280 mm / 11″ |
| Min. Work Diameter | 70 mm / 2.8″ |
| Max. Working Length | 1250 mm / 49.2″ |
| Face Plate Diameter | 350 mm / 13.8″ |
| Spindle Speed (RPM) | 700, 1400, 2100, 2800 |
| Power Required - HP/RPM | 3 HP / 1440 RPM |
