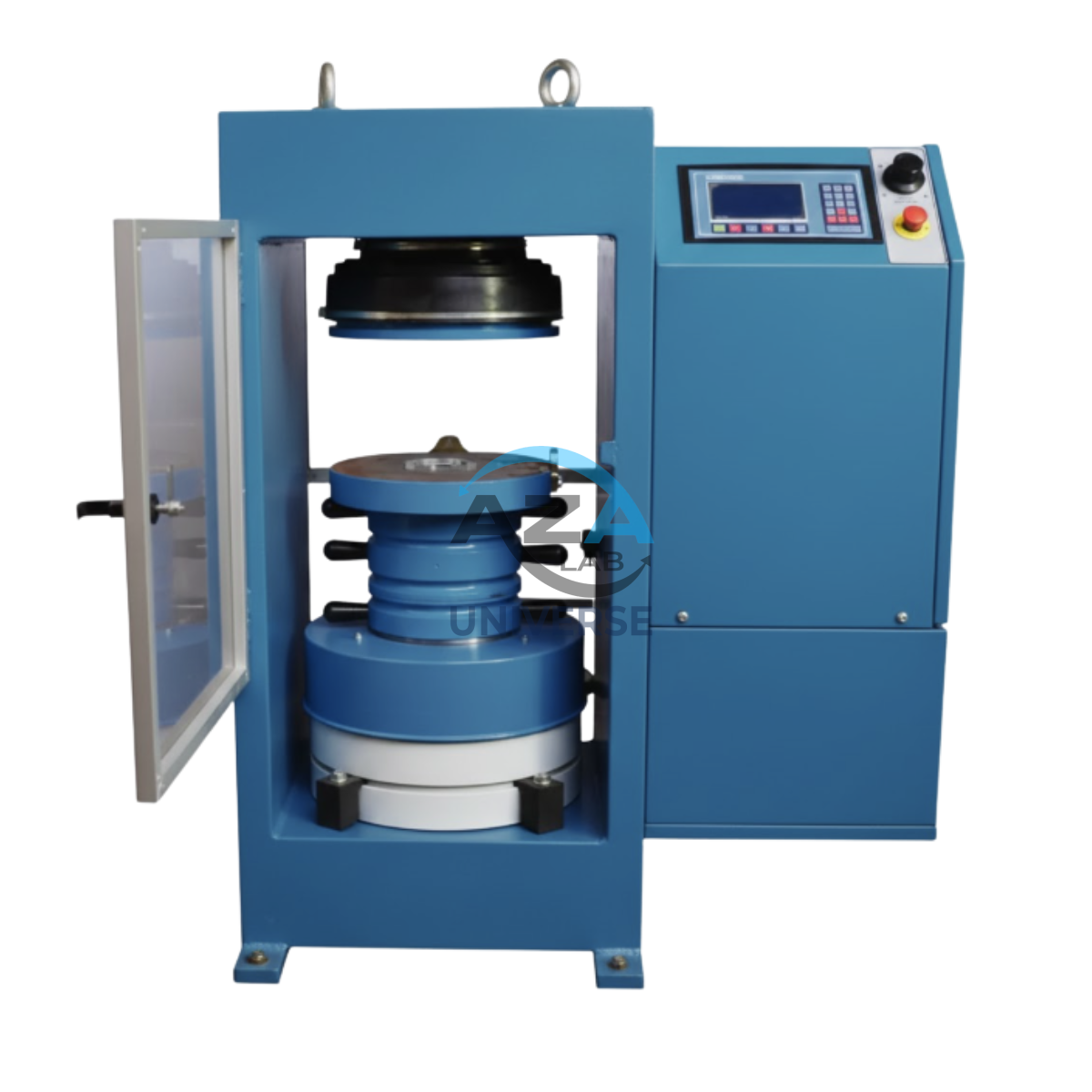

FULLY AUTOMATIC COMPRESSION TESTING MACHINE AZA1140
The Azalab AZA1140 Fully Automatic Compression Testing Machine is an advanced, high-capacity system engineered for precise compressive strength testing of concrete cubes, cylinders, cement mortar cubes, and construction blocks. Designed for modern laboratories, construction quality control centers, and R&D institutions, the AZA1140 delivers complete automation, exceptional accuracy, and global standard compliance.
Powered by a microprocessor-based hydraulic control system, the AZA1140 eliminates manual intervention, ensuring consistent test execution and superior repeatability. With its intuitive touchscreen interface, automatic pace-rate control, and integrated data management, this machine is ideal for high-throughput, accuracy-driven testing environments.
Key Features
- Fully Automatic Operation – automatic load application, control, and test termination
- High Capacity – models available in 1000 kN, 2000 kN, and 3000 kN
- Touchscreen Digital Interface – real-time graphs, test setup, and automated reporting
- IS, ASTM & EN Compliant – meets IS 516, ASTM C39, EN 12390-4
- Accurate Load Control – microprocessor-driven hydraulic system ensures precision
- Seamless Data Management – USB, RS232, printer, and PC connectivity
- Heavy-Duty Frame – rigid steel structure with precision alignment and long life
- Advanced Safety Mechanisms – overload protection, emergency stop, oil monitoring
Description
The AZA1140 brings next-generation automation to compression testing. Its touchscreen controller regulates loading rate automatically as per international testing standards, ensuring consistent stress application without operator dependence.
Touchscreen Control System
- Automatic pace rate control
- Load–time graphical display
- Parameter setting and specimen selection
- Peak load capture and failure detection
- Built-in data logging
- USB/PC export for reports and analysis
This system enhances test repeatability, productivity, and reduces human error dramatically.
High-Strength Structural Design
The AZA1140 is built using a rigid steel or four-column frame configuration designed to minimize deflection under high loads. A precision-machined piston-cylinder assembly ensures excellent alignment and long-term stability. The load is measured using a high-accuracy load cell or pressure transducer, offering ±1% system accuracy.
Applications
- Concrete cube testing (150 mm × 150 mm × 150 mm)
- Concrete cylinder testing (150 mm × 300 mm)
- Cement mortar cube testing (as per IS:4031)
- Concrete blocks and paving units
- Structural quality control for infrastructure projects
- Educational institutions and R&D laboratories
Interchangeable platens and spacers enable versatile testing across specimen types.
Specifications – AZA1140
| Feature | Description |
|---|---|
| Model | AZA1140 |
| Capacity | 1000 kN / 2000 kN / 3000 kN |
| Operation | Fully Automatic |
| Control System | Touchscreen Digital Controller |
| Load Accuracy | ±1% |
| Data Output | USB, RS232, Printer, PC Interface |
| Standards Compliance | IS 516, ASTM C39, EN 12390-4 |
| Specimen Types | Cubes, Cylinders, Blocks |
| Power Supply | 220V, 50Hz |
| Frame Construction | Rigid steel frame, hydraulic power system |
Frequently Asked Questions (FAQ)
Q1: What materials can be tested on the AZA1140?
A1: Concrete cubes, cylinders, cement cubes, and construction blocks.
Q2: Is the machine compliant with international standards?
A2: Yes, it complies with IS 516, ASTM C39, EN 12390-4, and related testing norms.
Q3: Can test data be exported?
A3: Yes, via USB, RS232, printer, or directly to PC software.
Q4: How user-friendly is the machine?
A4: Very user-friendly; the touchscreen simplifies setup and operation, requiring minimal training.
Q5: What is the load accuracy of AZA1140?
A5: ±1%, meeting international laboratory and certification requirements.
