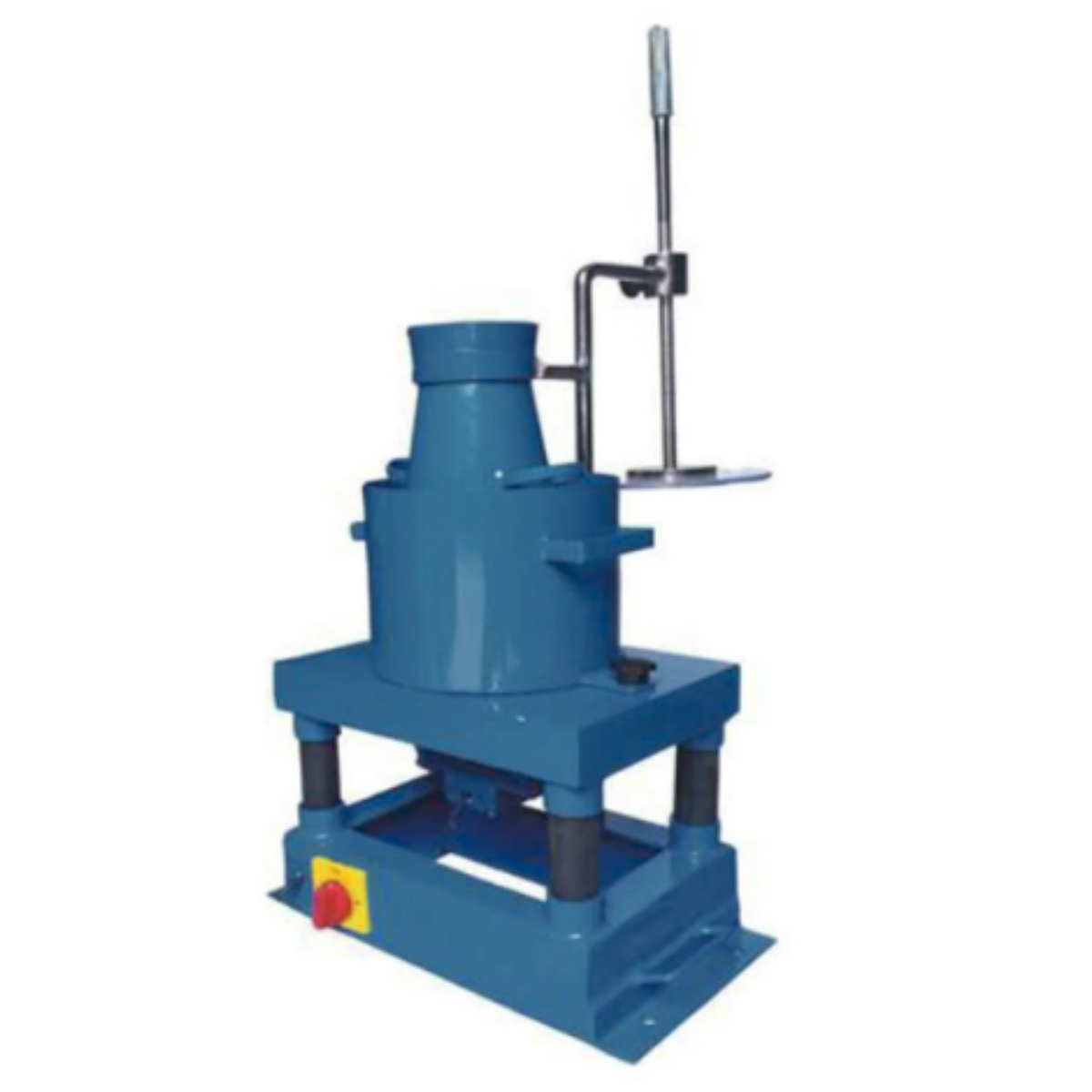

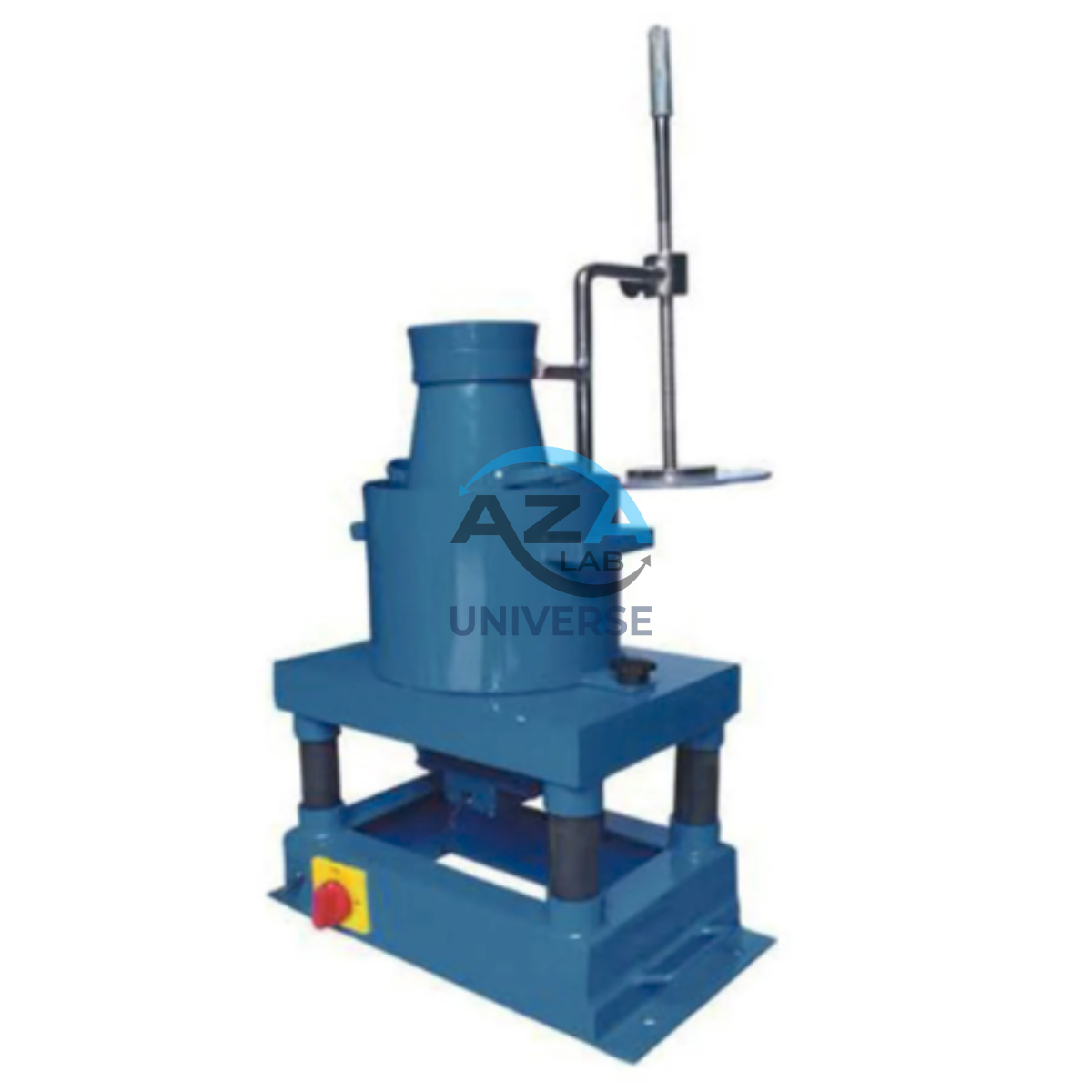

VEE BEE CONSISTOMETER AZA1101
AZA1101 Vee Bee Consistometer is a laboratory-grade concrete testing instrument designed for measuring the workability of stiff and low-slump concrete mixes with high accuracy. It is widely used in construction material testing laboratories, civil engineering institutes, infrastructure projects, and quality control departments.
This equipment performs both slump test and Vee Bee time test, providing dual accuracy in concrete consistency evaluation. It is especially ideal for testing dry, roller-compacted concrete and pavement concrete mixes, where traditional slump tests alone are not sufficient.
The unit is equipped with a precision vibrating table that ensures uniform vibration and repeatable testing results. It comes as a complete set including a standard slump cone, transparent cylindrical container, graduated rod with metal disc, and a powerful vibration unit.
Manufactured from heavy-duty, powder-coated steel, the AZA1101 offers excellent durability and stable performance even under continuous laboratory use. The apparatus is designed and built in compliance with IS 1199 and ASTM C1170 standards, ensuring reliable, repeatable, and internationally accepted test results.
Its easy-to-use design, low maintenance requirement, and robust construction make the AZA1101 a dependable solution for professionals involved in construction material testing and concrete quality control.
Description
Product Details
| Parameter | Specification |
|---|---|
| Model No. | AZA1101 |
| Type | Concrete Workability Testing Instrument |
| Material | Mild Steel Frame with Acrylic Cylinder |
| Colour | Grey / Blue |
| Test Method | Vee-Bee Time & Slump Test |
| Power Operation | Electric Motor Driven |
| Compatibility | Laboratory & Field Use |
Additional information
| Model |
AZA 1101 |
|---|---|
| Vibrating Table Size |
380 mm x 260 mm |
| Slump Cone Dimensions |
100 mm top, 200 mm bottom, 300 mm height |
| Standards Met |
IS 1199, ASTM C1170 |
| Power Supply |
230V AC, 50Hz, Single Phase |
| Weight |
Approx. 45 kg |
| Parameter | Specification |
|---|---|
| Vibrating Table Size | 380 mm × 260 mm |
| Slump Cone Size | 100 mm (Top), 200 mm (Bottom), 300 mm (Height) |
| Overall Height | Approx. 950 mm |
| Weight | Approx. 45 kg |
| Parameter | Specification |
|---|---|
| Vibration Frequency | 3600 ± 200 vibrations per minute |
| Timer Type | Digital / Manual (Standard) |
| Power Supply | 230 V, 50 Hz, Single Phase |
Heavy-duty vibrating table mounted on shock absorbers
• Transparent acrylic cylinder for clear sample observation
• Accurate measurement of Vee-Bee time in seconds
• Dual-purpose function – Slump & Vee Bee test
• Powder-coated corrosion-resistant steel body
• Reliable motor with consistent vibration speed
• Easy to operate and maintain
Ideal for use in:
• Civil engineering laboratories
• Construction quality control labs
• Cement and concrete R&D centers
• Educational institutions
• Infrastructure and highway projects
Q1: What is the AZA1101 used for?
It is used to measure the workability and consistency of stiff concrete mixes.
Q2: Which standards does it follow?
It conforms to IS 1199 and ASTM C1170.
Q3: Can it perform slump test also?
Yes, it can perform both slump and Vee Bee consistency tests.
Q4: Is it suitable for field use?
Primarily designed for laboratory use but can be transported for field testing.
Q5: What power supply is required?
230V, 50Hz single phase.
