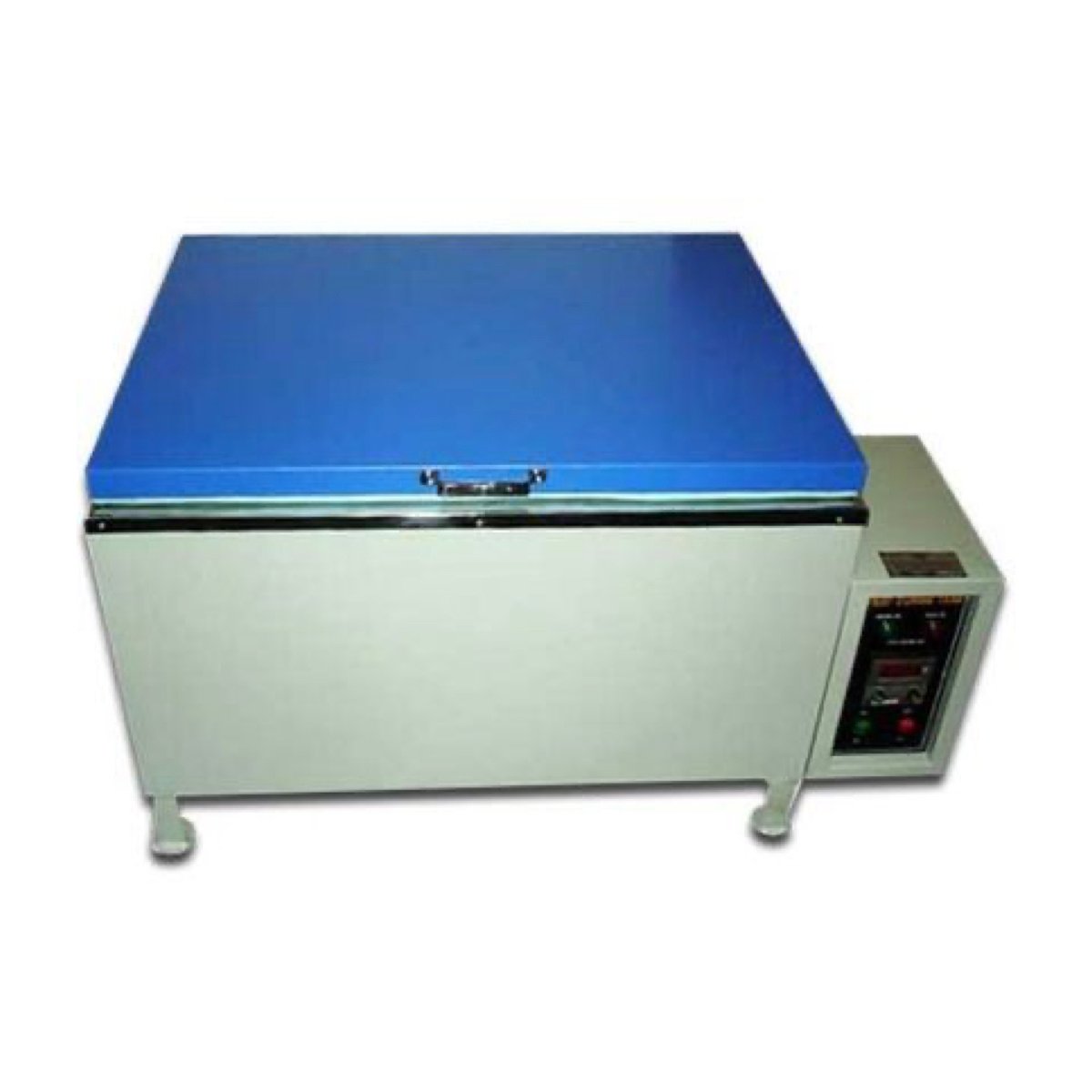

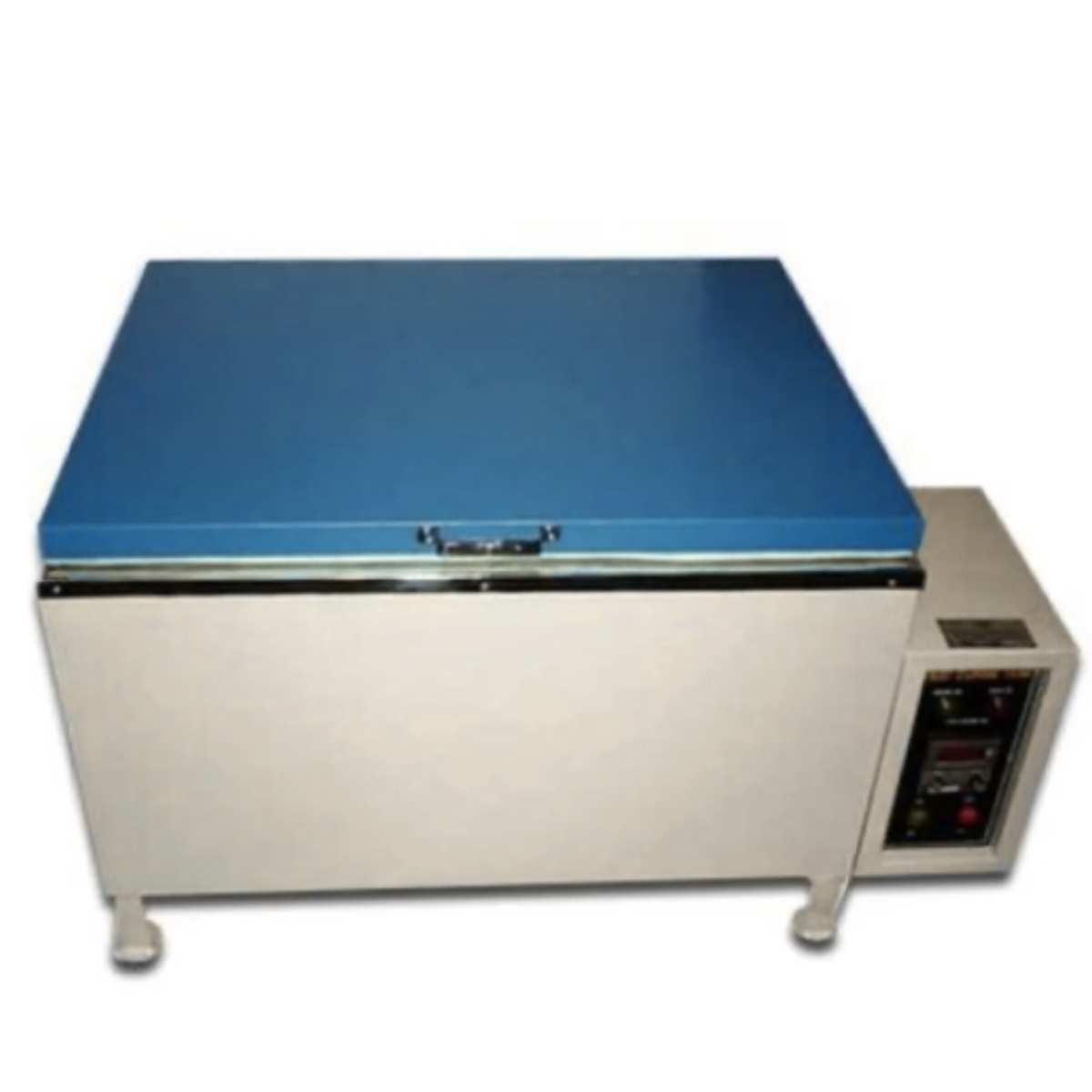

CURING TANK AZA1166
The AZA1166 Concrete Curing Tank is a critical conditioning system for concrete cube and cylinder testing laboratories. Purpose-built for civil engineering, construction QC, and material testing environments, this curing tank maintains controlled water temperatures to ensure accurate, reliable, and standard-compliant compressive strength results. It adheres to IS: 516, ASTM C511, and BS 1881 curing requirements.
Developed with durability, precision, and operational efficiency in mind, the AZA1166 is available in both manual and automated configurations, including optional digital PID controllers for enhanced temperature stability. This makes the unit suitable for laboratories, field testing units, and institutions managing high workloads or requiring strict adherence to international testing protocols.
Description
The AZA1166 Curing Tank stores and cures concrete specimens in water maintained at 27 ±2°C (or user-defined) to simulate standard curing conditions. The inner chamber is constructed from high-grade stainless steel or epoxy-coated steel, providing corrosion resistance and extended service life. An insulated outer body minimizes heat loss and enhances energy efficiency.
Optional features include a circulation pump for improved temperature uniformity and digital control for real-time monitoring and automatic cut-off.
Key Features & Benefits
1. Accurate Temperature Regulation
• Adjustable thermostat from ambient to 100°C
• Maintains curing temperature at 27 ±2°C per IS/ASTM standards
• Optional digital PID controller for precise, stable regulation
2. Durable Construction
• Stainless steel inner tank for corrosion resistance
• Powder-coated or insulated outer body
• Long-life heating system for continuous lab operation
3. Uniform Water Temperature
• Optional submersible circulation pump
• Ensures consistent temperature distribution across all specimens
4. High Capacity & Flexibility
• Models available for 12, 24, and 36 concrete cubes (150 mm)
• Custom sizes available for cylinders or larger batches
• Suitable for fixed labs, mobile labs, and research facilities
5. Standards-Compliant Design
• Complies with IS: 516, ASTM C511, and BS 1881
• Suitable for testing laboratories approved by consultants and government bodies
Specifications
| Feature | Description |
|---|---|
| Model | AZA1166 |
| Capacity Options | 12, 24, 36 cubes (custom configurations available) |
| Tank Material | Stainless steel inner chamber; insulated outer body |
| Temperature Range | Ambient to 100°C |
| Temperature Accuracy | ±2°C |
| Controller Type | Analog thermostat / Digital PID controller |
| Circulation Pump | Optional |
| Standards | IS: 516, ASTM C511, BS 1881 |
| Power Supply | 230V AC, 50 Hz |
| Drain Valve | Included |
Applications
• Concrete and material testing laboratories
• Construction site laboratories and mobile testing units
• QA/QC departments in infrastructure projects
• Universities and technical institutes
Ensuring proper curing with AZA1166 provides consistent compressive strength values, reduces variability in test results, and supports quality assurance for structural concrete applications.
Frequently Asked Questions (FAQ)
Q1: What is the main function of the AZA1166 Curing Tank?
It cures concrete cubes and cylinders in controlled water temperature to ensure standardized and accurate strength testing.
Q2: Can it accommodate cylinders?
Yes. The tank can be customized to store concrete cylinders based on user requirements.
Q3: How is temperature maintained?
Through an analog thermostat or an optional digital PID controller, with an optional circulation pump for uniform distribution.
Q4: Is customization available?
Yes. Capacity, control system, tank material, and circulation options can be tailored for laboratory specifications.
Q5: Which standards does this curing tank meet?
IS: 516, ASTM C511, and BS 1881.
