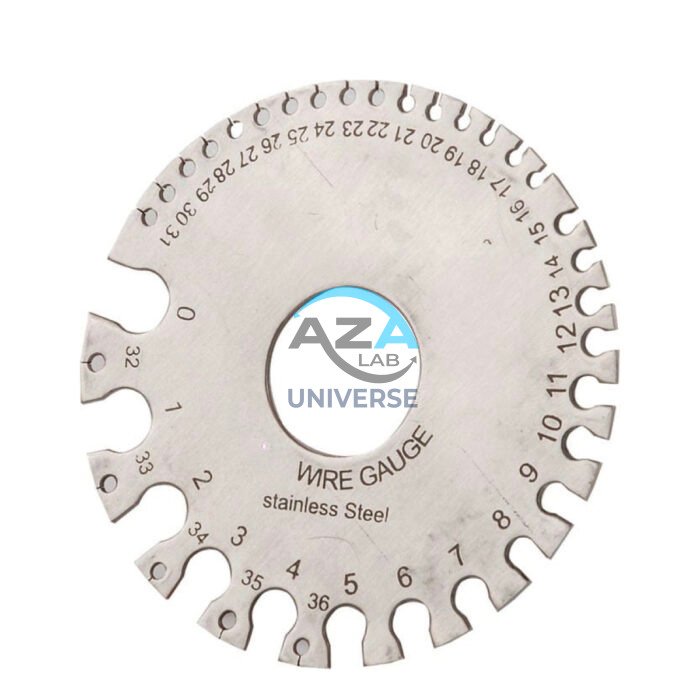

DISC TYPE WIRE GAUGE AZA1078
The Disc Type Wire Gauge is a compact, precision-engineered measuring tool designed for accurately determining the thickness of metal wires, sheets, and plates. Featuring a circular disc design with multiple calibrated slots, this gauge enables fast and reliable size verification without the need for power, batteries, or digital interpretation.
The AZA1078 Disc Type Wire Gauge by AZALAB is widely used by welders, metal fabricators, electricians, quality inspectors, and workshop professionals who require instant confirmation of wire gauge or sheet thickness to maintain process accuracy and compliance with industry standards.
Description
AZA1078 is manufactured from hardened stainless steel or solid brass, ensuring durability, corrosion resistance, and long-term dimensional stability. The disc-shaped body houses a series of precisely machined slots arranged in a logical sequence, each clearly marked with gauge numbers or metric equivalents.
Its simple mechanical operation allows quick thickness checks in field, shop-floor, or laboratory environments, making it a dependable tool for both professional and industrial use.
Key Features
Circular Disc Design
- Ergonomic round shape fits comfortably in the hand
- Slots arranged around the disc for quick and intuitive selection
- Enables fast comparison across multiple gauge sizes
Clearly Etched Permanent Markings
- Laser-etched or stamped gauge markings
- Resistant to wear, corrosion, and fading
- Easy identification of gauge numbers or millimeter values
Multiple Measurement Standards
- Available in SWG (Standard Wire Gauge)
- AWG (American Wire Gauge) options
- Metric (mm) variants available depending on model
- Suitable for global and industrial applications
Durable, Rust-Resistant Construction
- Manufactured from hardened stainless steel or brass
- Maintains accuracy even under rough workshop conditions
- Resistant to rust, oil, and common industrial contaminants
Portable and Lightweight
- Pocket-sized design for easy carrying
- Ideal for on-site inspection and quick checks
- Can be attached with a lanyard for workshop use
Applications
The AZA1078 Disc Type Wire Gauge is commonly used in:
- Welding & Fabrication – Verifying MIG/TIG wire size and sheet thickness
- Electrical Installations – Checking copper or aluminum wire gauges
- Metal Sheet Cutting & Bending – Selecting correct material thickness
- Quality Control & Inspection – Thickness compliance verification
- Jewelry Making & Craft Work – Measuring wire and sheet for precision designs
- Workshops & Tool Rooms – General-purpose thickness checking
How to Use
- Insert the wire or metal sheet into the slot marked with the desired gauge or size.
- A snug, proper fit indicates the correct thickness.
- Use across various materials such as steel, aluminum, copper, and brass.
- Keep the gauge clean and free from debris to ensure accurate readings.
Advantages
- No batteries or electronics required
- Instant thickness verification in the field
- Long service life with minimal maintenance
- Cost-effective and easy to replace
- Widely recognized and accepted in industry standards
Technical Specifications
| Attribute | Details |
|---|---|
| Model | AZA1078 |
| Gauge Type | Disc-type wire thickness gauge |
| Material | Hardened stainless steel / Brass |
| Standards Supported | SWG / AWG / mm (model dependent) |
| Number of Slots | 20 – 30 (depending on variant) |
| Measurement Range | Typically 0.2 mm to 10 mm (varies by model) |
| Markings | Laser-etched or stamped |
| Diameter | Approx. 7 – 9 cm |
| Weight | Approx. 100 g |
| Finish | Polished, anti-rust |
| Ideal For | Welding, fabrication, electrical, QA |
Frequently Asked Questions (FAQ)
Q1: What materials can be measured with AZA1078?
It is suitable for measuring steel, copper, aluminum, brass, and other common metal wires and sheets.
Q2: Is this accurate for welding applications?
Yes. It is widely used in welding workshops to verify wire and sheet thickness for MIG, TIG, and fabrication work.
Q3: Does it measure only gauge numbers or also millimeters?
Some variants include dual markings with gauge numbers and equivalent millimeter values. Please confirm the model while ordering.
Q4: Will the gauge rust over time?
No. The stainless steel and brass construction ensures excellent corrosion resistance and long service life.
Q5: Is this suitable for jewelry and fine craft work?
Yes. Many jewelers and hobbyists use it for accurate sizing of wire and metal sheets in custom designs.
Product Highlights
- Precision wire and sheet metal thickness measuring tool
- Circular disc with clearly marked slots
- Measures steel, copper, aluminum, brass, and more
- Durable stainless steel or brass construction
- Pocket-sized, lightweight, and rust-resistant
- Ideal for welders, fabricators, electricians, and QC professionals
Model: AZA1078
Additional information
| Gauge Type |
Disc-type wire thickness gauge |
|---|---|
| Material |
Hardened stainless steel / Brass |
| Standards Supported |
SWG, AWG, mm (model dependent) |
| Number of Slots |
20–30 depending on model |
