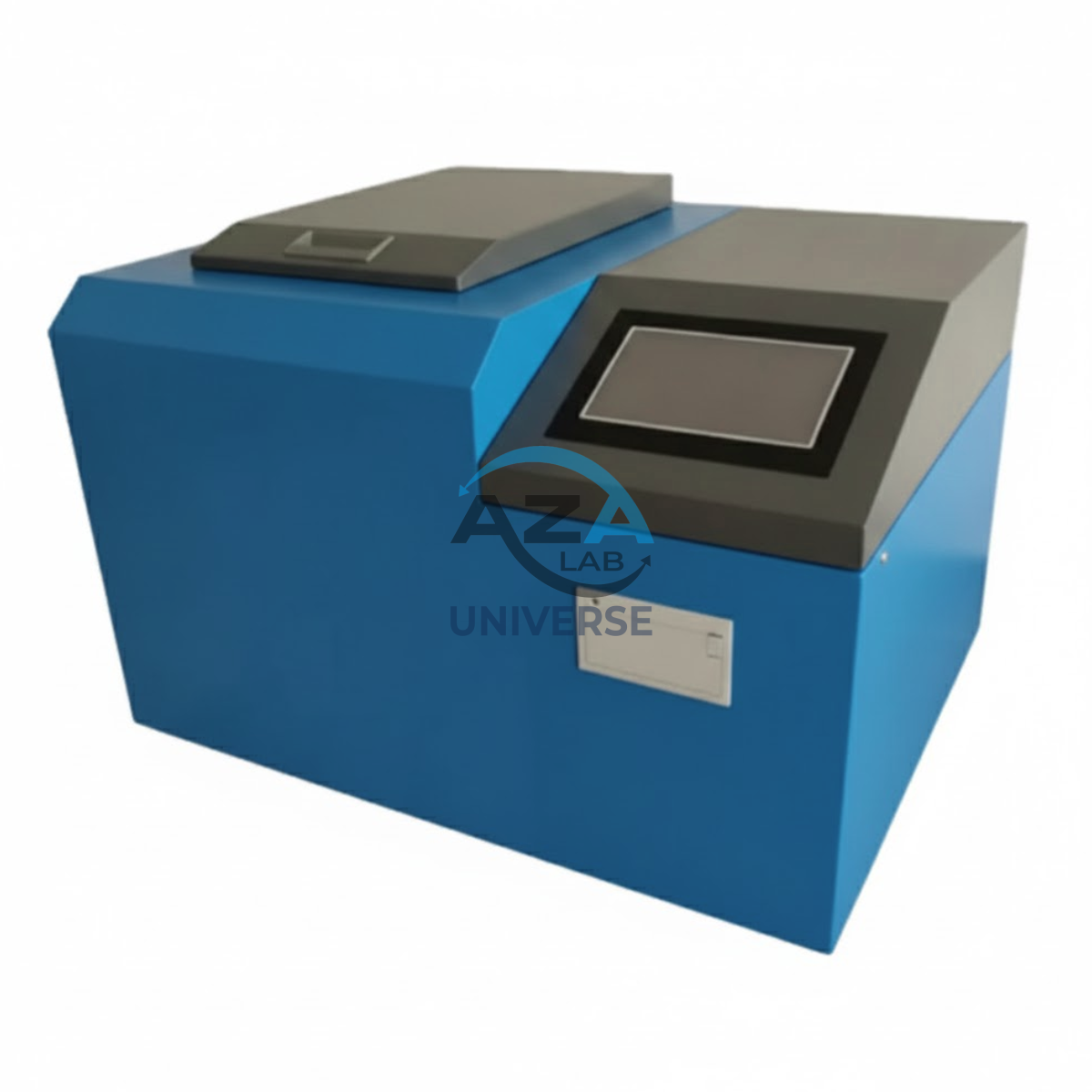

Heat of Combustion Bomb Calorimeter AZA1326

The AZA1326 Bomb Calorimeter from AZA Lab is a high-precision laboratory instrument engineered to accurately determine the heat of combustion (calorific value) of solid and liquid fuels. Designed and manufactured in compliance with ASTM D240 – Standard Test Method for Heat of Combustion of Liquid Hydrocarbon Fuels by Bomb Calorimeter, this advanced system delivers reliable, repeatable, and highly accurate results for a wide range of industrial and research applications.

The AZA1326 is capable of measuring both gross calorific value (GCV) and net calorific value (NCV), making it an essential tool for laboratories involved in fuel quality control, energy evaluation, research, and regulatory compliance.

Enquiry on WhatsApp
Category:
Description

Description

High-Accuracy Calorific Value Measurement

The AZA1326 is suitable for testing all solid materials and liquid fuels, including gasoline, diesel, jet fuel, kerosene, heavy oil, coal, coke, biomass, and similar combustible materials. With an ultra-high temperature precision of ±0.0001°C, the instrument ensures exceptional measurement accuracy, even for samples with closely similar energy content.

Its automatic testing cycle, combined with advanced temperature sensing and stable water bath control, allows each test to be completed within 15–18 minutes, significantly improving laboratory efficiency while maintaining strict adherence to international standards.

Key Features

  • ASTM D240 Compliant Design
    Fully meets the requirements of ASTM D240 for accurate heat of combustion testing of liquid hydrocarbon fuels.

  • High Measurement Precision
    Temperature resolution up to ±0.0001°C ensures highly reliable calorific value results.

  • Wide Sample Compatibility
    Suitable for all solid fuels and liquid fuels used across industrial and research sectors.

  • Automated Operation
    Automatic test execution and return to menu after completion reduce operator workload and error.

  • Stable Water Bath System
    Dual water tank configuration ensures uniform heat absorption and excellent test repeatability.

  • Robust & Durable Construction
    Designed for continuous laboratory and industrial use with long service life.

  • User-Friendly Interface
    Simple operation suitable for routine quality control and advanced research laboratories.

Technical Specifications

Parameter Specification
Model AZA1326
Test Materials All solid materials and liquid fuels
Temperature Precision ±0.0001°C
Calorific Capacity Approx. 10,500 J
Outer Water Tank Capacity 40 L
Inner Water Tank Capacity 2.5 L
Test Duration 15–18 minutes (automatic)
Sample Weight 0.9 – 1.1 g
Maximum Power 120 W
Rated Voltage AC 220V ±10%
Ambient Temperature 0°C – 40°C
Relative Humidity ≤80% RH
Instrument Weight 45 kg

Industry Applications

Petrochemical Industry

Accurate determination of calorific values of gasoline, diesel, kerosene, jet fuel, and heavy oils for quality control and refining efficiency.

Power & Energy Sector

Evaluation of solid and liquid fuel energy content for power generation calculations and efficiency optimization.

Metallurgy & Cement Industry

Measurement of coal, coke, and alternative fuel calorific values used in furnaces and kilns.

Food & Feed Industry

Analysis of energy content in solid and liquid feedstock materials.

Research & Development

High-precision calorific testing for chemical, material, and fuel research studies.

Environmental & Quality Compliance

Supports monitoring of fuel combustion efficiency and emissions-related performance.

Standard Accessories Supplied

  • Main Calorimeter Unit – 1 Set

  • Oxygen Bomb – 1 Piece

  • Oxygen Charging Device – 1 Piece

  • Oxygen Charging Tube – 1 Piece

  • Oxygen Pressure Gauge – 1 Piece

  • Oxygen Bomb Stand – 1 Piece

  • Bomb Towel – 1 Piece

  • Ignition Wire – 2 Boxes

  • Crucibles – 3 Pieces

  • Water Injector – 1 Piece

  • Scissors – 1 Piece

  • Ignition Cotton Thread – 1 Piece

  • Benzoic Acid Standard – 1 Bottle

  • Calibration Certificate – 1 Set

  • User Manual – 1 Set

Why Choose AZA1326

  • Fully compliant with ASTM D240

  • High-precision calorific value measurement

  • Fast and automated testing cycle

  • Suitable for solid and liquid fuels

  • Ideal for laboratories, industries, and research institutions

Model: AZA1326 – Bomb Calorimeter

Related products

Apparatus for Hydrogen Sulfide Tester – AZA1314

The Apparatus for Hydrogen Sulfide Tester AZA1314 from AZA Lab conforms to the ASTM D7621 Standard Test Method for the determination of hydrogen sulfide in fuel oils by rapid liquid phase extraction.

In this method, a weighed test sample is placed into a heated vessel containing a diluent base oil, where air is bubbled through to extract hydrogen sulfide gas. The extracted gas is then directed, via a vapor phase processor (Procedure A), to an H₂S-specific electrochemical detector, which measures its concentration in air and calculates the amount in the liquid phase in mg/kg. For Procedure B, the use of a filter cartridge is not required.

Read more
Quick view

AutoFlash – Automated Abel Flash Point Analyzer AZA1277

The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.

Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.

Read more
Quick view

Automated Cleveland Open Cup Flash Point & Fire Point Analyzer AZA1276

The AutoFlash1276 (Model: AZA1276) from AZA Lab is a fully automated, microcontroller-based Cleveland Open Cup (COC) Flash and Fire Point Analyzer designed for high-temperature petroleum testing applications. Engineered for accuracy, safety, and regulatory compliance, the AZA1276 delivers reliable flash and fire point determination for materials with flash points above 79 °C up to 400 °C.

Complying with ASTM D92, ISO 2592, IS 1448 (Part 69), and IP 36, this advanced analyzer is ideal for laboratories and industrial environments where repeatability, operator safety, and international acceptance are critical.

Read more
Quick view

AZA LAB Classic Open Cup Flash Point Apparatus AZA1294

The AZA1294 Classic Open Cup Flash Point Apparatus from AZA LAB is a reliable and cost-effective laboratory instrument designed for the determination of flash point temperature of petroleum products and flammable liquids using the Cleveland Open Cup (COC) method, in full compliance with ASTM D92 and ISO 2592 standards.

This apparatus is widely used in petroleum testing laboratories, quality control facilities, educational institutions, and fuel safety assessment centers, where accurate flammability classification is essential.

Read more
Quick view

Fully Automated Atmospheric Distillation Analyzer AZA1287

The AZA1287 Atmospheric Distillation Analyzer from AZA Lab is a fully automated, high-precision distillation testing system designed for petroleum laboratories that require ASTM D86-compliant determination of boiling range characteristics. Engineered for accuracy, repeatability, and high-throughput operation, the AZA1287 is ideal for testing gasoline, diesel, kerosene, jet fuel, light hydrocarbons, and other petroleum fractions.

Atmospheric distillation testing plays a critical role in evaluating fuel volatility, composition, and performance, directly influencing fuel quality, emissions compliance, and operational safety. The AZA1287 automates the complete distillation process—eliminating manual intervention, reducing operator error, and ensuring consistent, regulation-compliant results.

Read more
Quick view

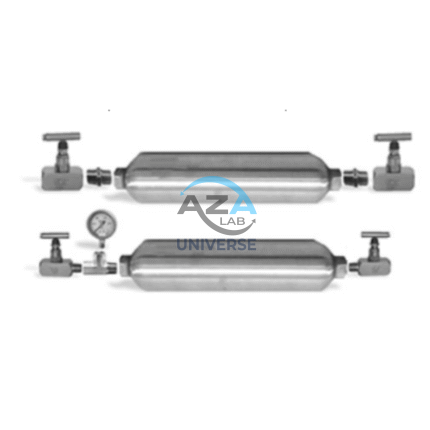

Oil and Gas Sampling Cylinders
