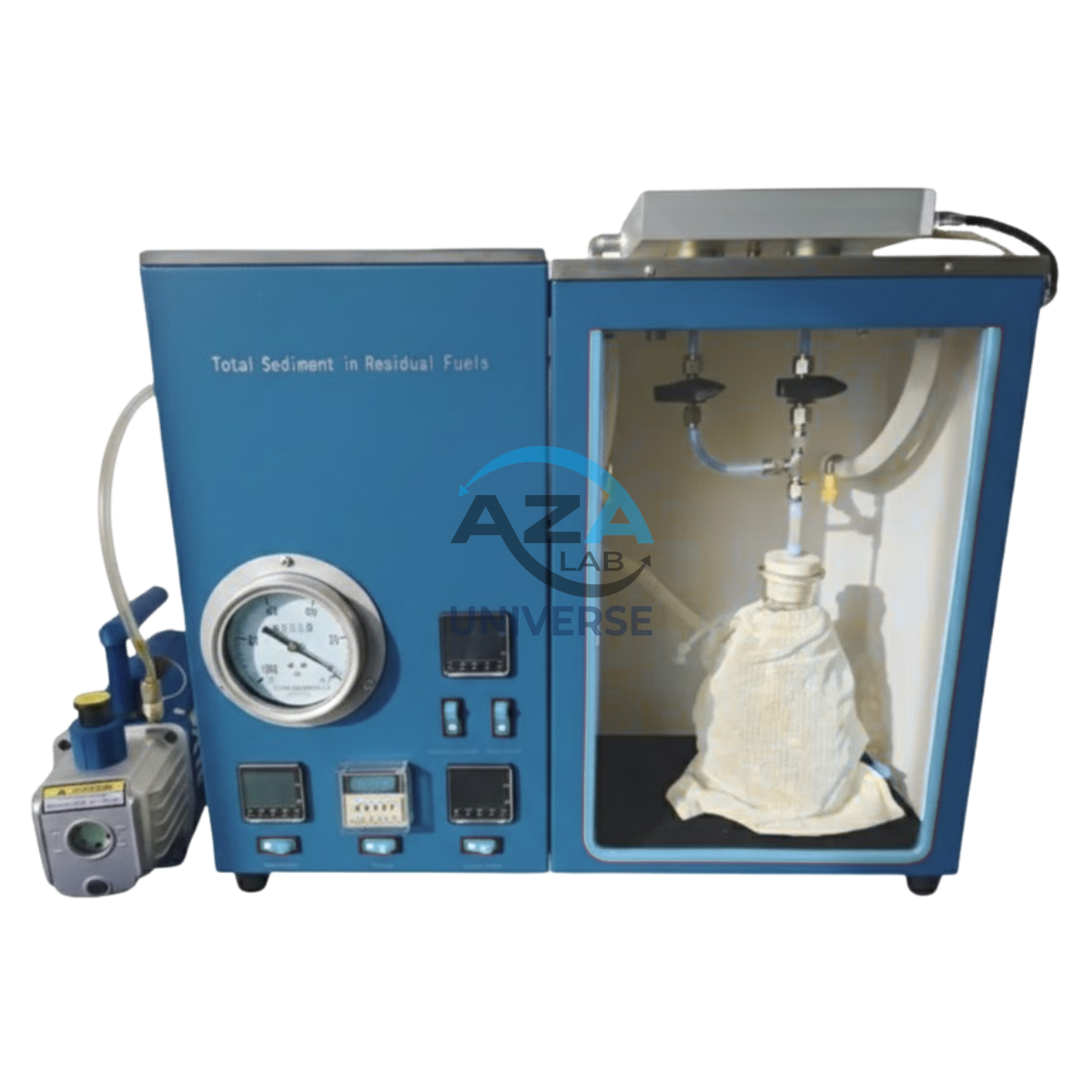

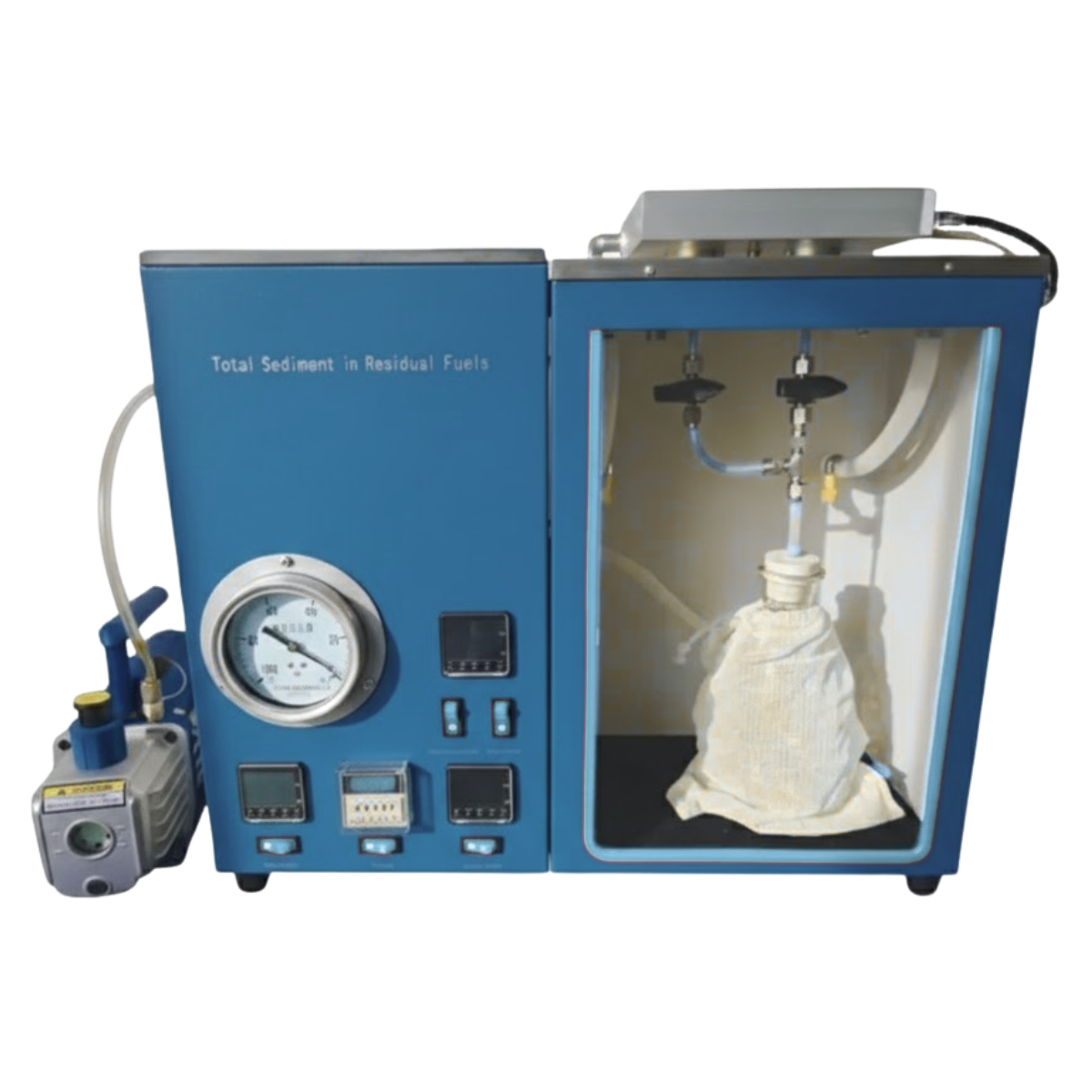

TOTAL SEDIMENT IN RESIDUAL FUELS APPARATUS AZA1327
ASTM D4870
THERMAL AGEING • CHEMICAL AGEING • DUAL TEST STATIONS PRODUCT
The AZA1327 Total Sediment in Residual Fuels Apparatus is designed for determination of total sediment in fuel oils in accordance with ASTM D4870. The stated application covers total sediment up to 0.40% m/m in distillate fuel oils containing residual components and up to 0.50% m/m in residual fuel oils with a maximum viscosity of 55 mm²/s (cSt) at 100°C.
KEY CAPABILITIES
• Supports both thermal ageing and chemical ageing procedures
• LCD display with push-button operation and integrated timing system
• Two test stations for simultaneous or parallel testing
• Vacuum system with pressure gauge and valve control
• Metal-bath design for chemical ageing, replacing a steam generator
Description
TECHNICAL SPECIFICATIONS
01 / OPERATING PARAMETERS
| PARAMETER | SPECIFICATION |
| Model | AZA1327 |
| Product | Total Sediment in Residual Fuels Apparatus |
| Applicable standard | ASTM D4870 |
| Ambient temperature | 0–45°C |
| Relative humidity | ≤ 80% |
| Display / operation | LCD / push-button |
| Temperature range | Ambient to 100°C |
| Temperature control accuracy | ±0.5°C |
| Vacuum indication | Precision pressure gauge |
| Vacuum degree | 40 kPa ± 2 kPa |
| Test stations | 2 (double station) |
| Timing range | Up to 99 h 99 min 99 s |
| Rated power | 2000 W |
02 / TESTING FUNCTIONS
The apparatus accommodates thermal ageing and chemical ageing procedures. Its double-station arrangement permits two tests to be carried out simultaneously or in parallel. The metal bath is used for chemical ageing and replaces a conventional steam-generator arrangement.
03 / CONTROLS & OPERATION
LCD-based controls provide time setting and test monitoring. Vacuum is indicated by a precision pressure gauge and adjusted by valve control. The stated vacuum degree is 40 kPa ± 2 kPa.
Related products

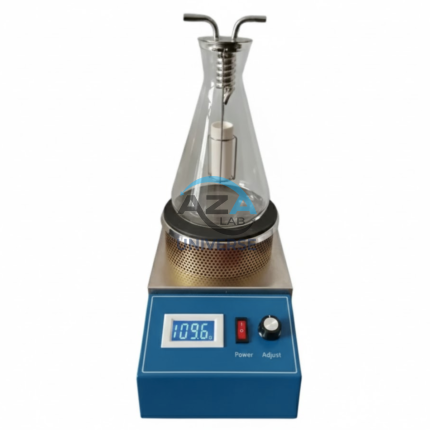

APPARATUS FOR HYDROGEN SULFIDE TESTER AZA1314
The Apparatus for Hydrogen Sulfide Tester AZA1314 from AZA Lab conforms to the ASTM D7621 Standard Test Method for the determination of hydrogen sulfide in fuel oils by rapid liquid phase extraction.
In this method, a weighed test sample is placed into a heated vessel containing a diluent base oil, where air is bubbled through to extract hydrogen sulfide gas. The extracted gas is then directed, via a vapor phase processor (Procedure A), to an H₂S-specific electrochemical detector, which measures its concentration in air and calculates the amount in the liquid phase in mg/kg. For Procedure B, the use of a filter cartridge is not required.
AUOTFLASH AUTOMATED ABEL FLASH POINT ANALYZER AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
DIST-86S SEMI-AUTOMATED DISTILLATION TESTER AZA1288
The AZA Lab Dist-86S Semi-Automated Distillation Tester AZA1288 is a precision-engineered petroleum testing instrument designed for accurate determination of the distillation characteristics of petroleum products and volatile organic liquids in full accordance with ASTM D86 standards.
Built for laboratories requiring dependable performance, repeatability, and operational safety, the AZA1288 combines intelligent semi-automation with operator flexibility. The system is ideally suited for petroleum refineries, fuel inspection laboratories, aviation fuel testing facilities, research institutions, petrochemical plants, and educational laboratories.
The instrument utilizes PID-controlled heating technology, precision temperature monitoring, and an integrated condenser cooling system to ensure highly stable distillation conditions and accurate boiling point determination across a wide range of petroleum fractions.
FULLY AUTOMATED ATMOSPHERIC DISTILLATION ANALYZER AZA1287
The AZA1287 Atmospheric Distillation Analyzer from AZA Lab is a fully automated, high-precision distillation testing system designed for petroleum laboratories that require ASTM D86-compliant determination of boiling range characteristics. Engineered for accuracy, repeatability, and high-throughput operation, the AZA1287 is ideal for testing gasoline, diesel, kerosene, jet fuel, light hydrocarbons, and other petroleum fractions.
Atmospheric distillation testing plays a critical role in evaluating fuel volatility, composition, and performance, directly influencing fuel quality, emissions compliance, and operational safety. The AZA1287 automates the complete distillation process—eliminating manual intervention, reducing operator error, and ensuring consistent, regulation-compliant results.
OIL & GAS SAMPLING CYLINDERS – DOUBLE & TRIPLE ENDED AZA1274A
AZA LAB’s Oil & Gas Sampling Cylinders and Gas Sampling Bombs (AZA1274A) are precision-engineered, high-pressure vessels designed for the safe, accurate collection and transport of liquid or gas samples in the oil, gas, and petrochemical sectors.Azalab
Crafted from premium stainless steel (SS 304/316) or corrosion-resistant Monel, these cylinders are available in single-, double-, and triple-ended configurations to support a wide range of sampling operations—from wellhead and refinery extraction to lab-based chromatographic analysis.aza
Each unit is subjected to rigorous hydrostatic and burst testing and complies with international certifications including TPED, CE, DOT, and ISO. Standard fittings include ¼″ or ½″ NPT ports, with options for dip tubes, safety relief valves, and custom end fittings.aza
Whether used offshore, in-process lines, or in research labs, the AZA1274A offers maximum safety, chemical compatibility, and sample integrity.
SEMI-AUTOMATED ATMOSPHERIC DISTILLATION ANALYZER AZA1285
The AZA1285 Semi-Automated Atmospheric Distillation Analyzer is a precision-engineered laboratory instrument designed for determining the distillation characteristics of petroleum products, fuels, solvents, and volatile organic liquids under atmospheric conditions. Developed for accurate boiling-range profiling and dependable laboratory performance, the AZA1285 combines manual operational flexibility with intelligent thermal regulation for highly repeatable and standards-compliant testing.
The system features a low-voltage manually adjustable heater integrated with PID-controlled condenser and receiver sections, ensuring stable distillation rates and accurate thermal management throughout the test cycle. A closed-loop, CFC-free refrigeration system provides efficient condensation without requiring external cooling water, while an integrated inert gas purge system enhances operator safety and minimizes oxidation risks during testing.

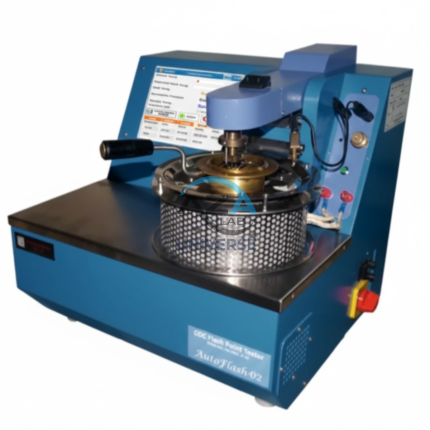

STAINLESS STEEL COC CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1293
