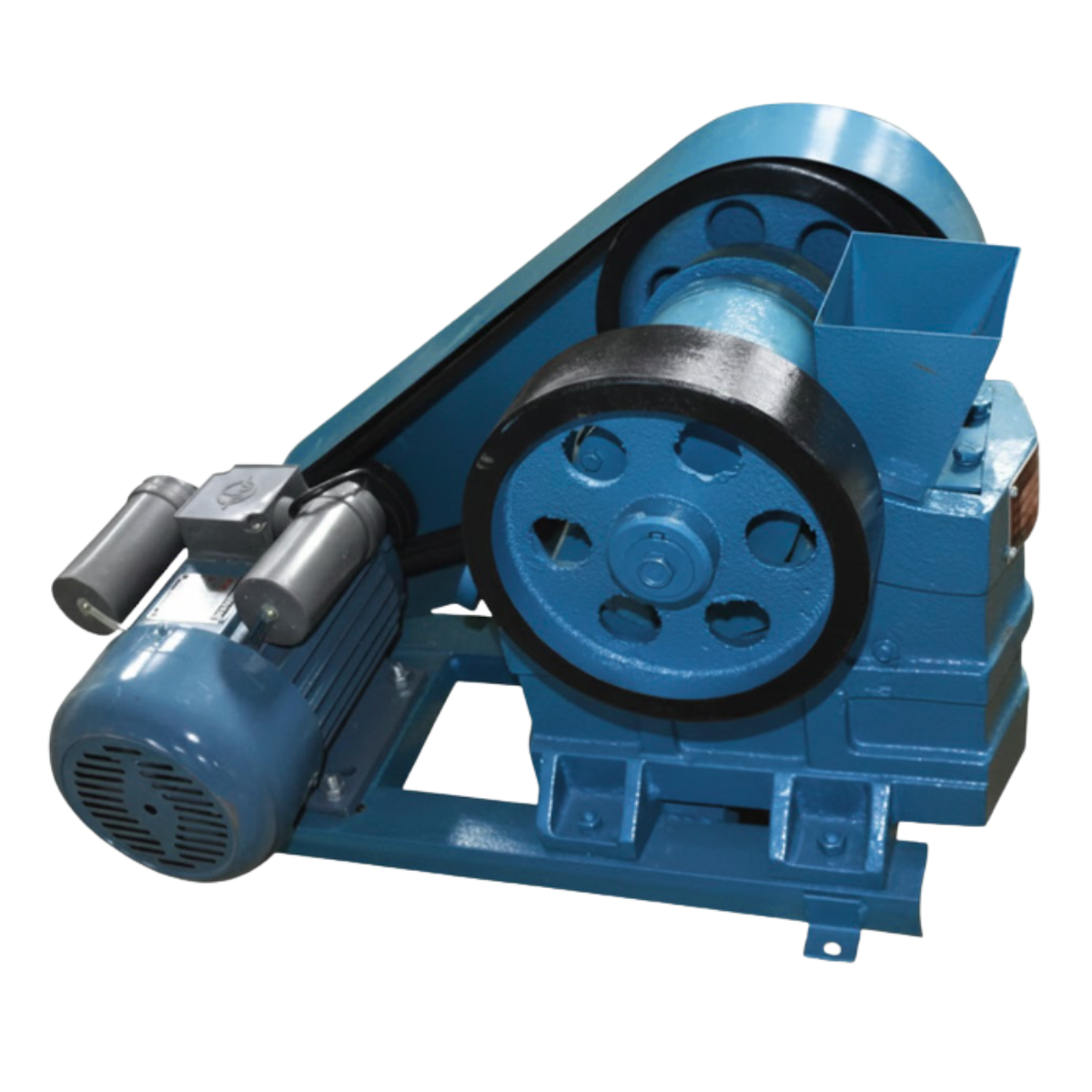

JAW CRUSHER AZA0990
The AZA0990 Laboratory Jaw Crusher by Azalab is a heavy-duty, precision-engineered crusher used for the rapid size reduction of hard materials such as rocks, ores, minerals, and aggregates. It is designed for use in civil engineering laboratories, mining operations, cement plants, and construction material testing facilities.
This model is built in compliance with IS and ASTM standards, ensuring safe, accurate, and repeatable crushing performance.
Key Applications
- Crushing of rocks, minerals & hard aggregates
- Soil and geotechnical laboratories
- Cement plants and construction R&D labs
- Pre-processing for pulverisers and sieve shakers
- Mining and metallurgical laboratories
Description
Working Principle
Material is fed through the hopper into the crushing chamber.
The moving jaw exerts high compressive force against the fixed jaw, crushing the material.
Crushed particles exit through the adjustable discharge gap, allowing control of the final size.
Main Features
-
Heavy-duty cast iron body
-
Manganese steel jaw plates for long life
-
Adjustable jaw gap for variable output size
-
Fully enclosed motor with overload protection
-
Dust guard and protective safety housing
-
Easy-clean crushing chamber to avoid cross-contamination
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0990 |
| Feed Size Capacity | Up to 50 mm |
| Output Size Range | 6 mm – 20 mm (Adjustable) |
| Throughput Capacity | 200 – 500 kg/hour |
| Jaw Plate Material | Manganese Steel / Hardened Alloy |
| Motor Power | 3 – 5 HP, 3 Phase |
| Operating Voltage | 440V / 50 Hz |
| Body Construction | Heavy-duty Cast Iron |
| Safety Features | Overload Protector, Enclosed Drive |
| Standards | IS Standards, ASTM Methods |
Advantages
-
Uniform and consistent crushing results
-
High productivity with low maintenance
-
Suitable for continuous laboratory and field use
-
Rugged design for long service life
Frequently Asked Questions (FAQ)
Q1: What materials can AZA0990 crush?
Rocks, ores, minerals, concrete waste, and hard aggregates.
Q2: Can I adjust the crushed output size?
Yes, via the easily adjustable jaw gap.
Q3: Is it suitable for industrial environments?
Yes, it is built for continuous heavy-duty usage.
Q4: Does it meet testing standards?
Yes, it complies with IS and ASTM standards.
Q5: Is operator training required?
It is simple to operate and comes with a user manual.
