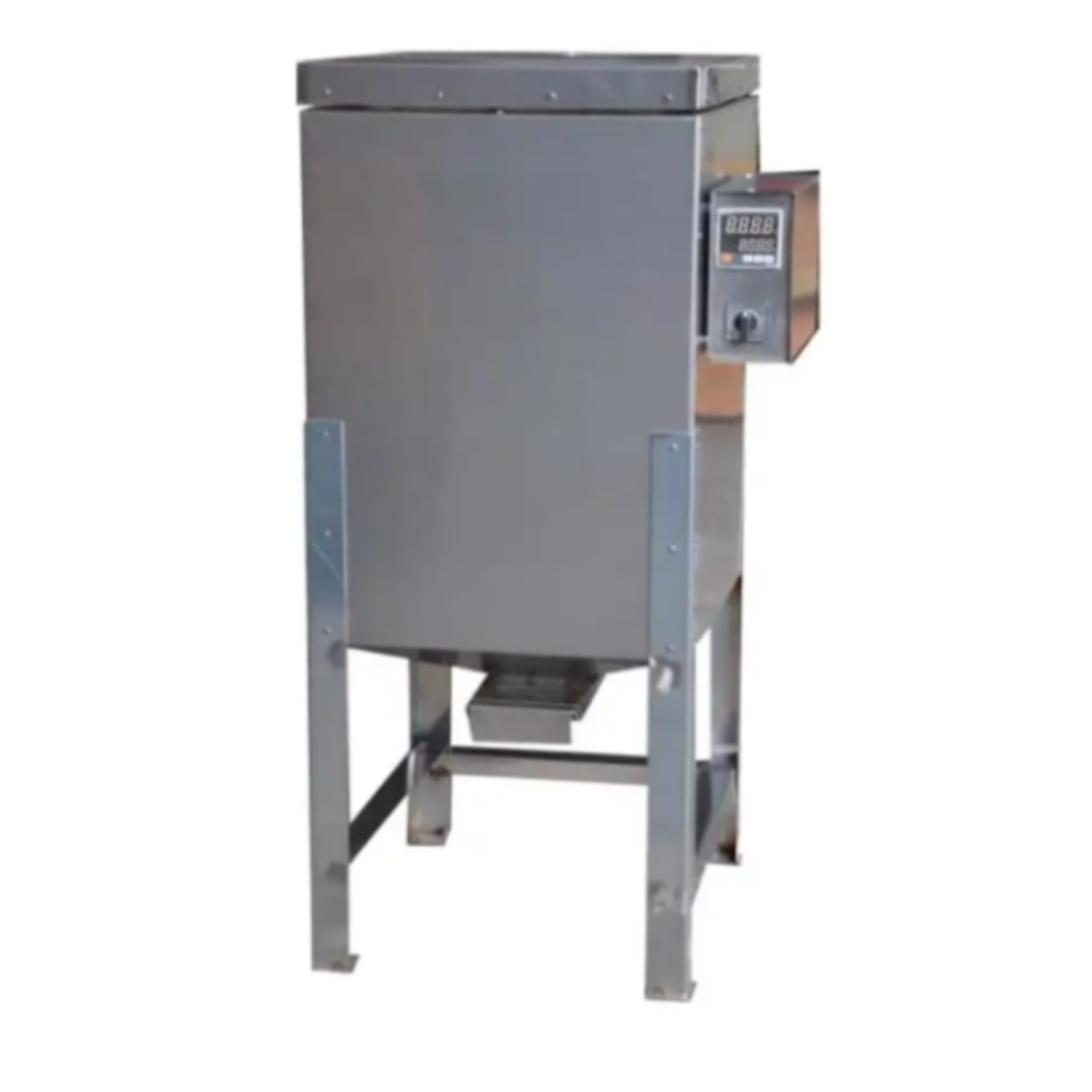

FLUX OVEN – 50 KG – STAINLESS STEEL AZA1273
The AZA LAB Flux Oven (Model AZA1273) is a high-performance drying and heating oven engineered for precise, uniform thermal processing of flux materials in laboratory and industrial environments. Designed with a robust double-walled construction and high-efficiency insulation, the oven delivers excellent thermal stability, energy efficiency, and long-term durability.
With a temperature range of 50°C to 400°C, forced air circulation, and a digital PID temperature controller with auto-tune, the AZA1273 ensures accurate temperature control and even heat distribution throughout the chamber. It is ideally suited for demanding applications in ceramics, metallurgy, materials testing, and quality control laboratories.
Description
Key Features
-
Digital Dual-Display PID Controller for precise temperature regulation
-
Auto-Tune Function for optimal and stable thermal performance
-
Forced Air Circulation System for fast and uniform drying
-
Side-Mounted Air Heaters for even heat distribution
-
Double-Walled Construction with high-efficiency insulation
-
Over-Temperature Protection with audio alarm
-
Optional Digital Soak Timer for controlled heating cycles
-
Validation Ready – compatible with multi-point data loggers for thermal mapping
Applications
-
Flux drying in ceramic and tile testing laboratories
-
Metallurgical sample preparation
-
Powder pre-heating and dehydration
-
Controlled thermal processing in R&D and QA/QC labs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1273 |
| Capacity | 50 kg |
| Inner Chamber | Mild Steel (MS) |
| Outer Chamber | CRC sheet, powder-coated finish |
| Insulation | 100 mm high-density glass wool |
| Heating Elements | 6 high-efficiency heaters |
| Temperature Range | 50°C to 400°C |
| Temperature Control | Digital PID controller with auto-tune |
| Control Accuracy | ±1°C |
| Heating Load | 3 kW, 15 A |
| Power Supply | 440 V AC, Three Phase |
| Forced Air Circulation | Yes |
| Inner Dimensions (W×D×H) | 480 × 500 × 480 mm |
| Outer Dimensions (W×D×H) | 680 × 670 × 920 mm |
| Weight | Approx. 105 kg |
Optional Accessories & Upgrades
-
Blind multi-point data logger with PC software
-
Digital soak timer module
-
Validation kit for hot air / flux oven
-
Enhanced over-temperature protection with audio alarm
-
Calibration certificate for digital temperature controller
Why Choose AZA1273
-
Uniform, stable heating for critical flux and powder applications
-
High accuracy with PID-controlled temperature regulation
-
Robust construction for continuous industrial and laboratory use
-
Validation-ready design suitable for ISO, NABL, and QA environments
