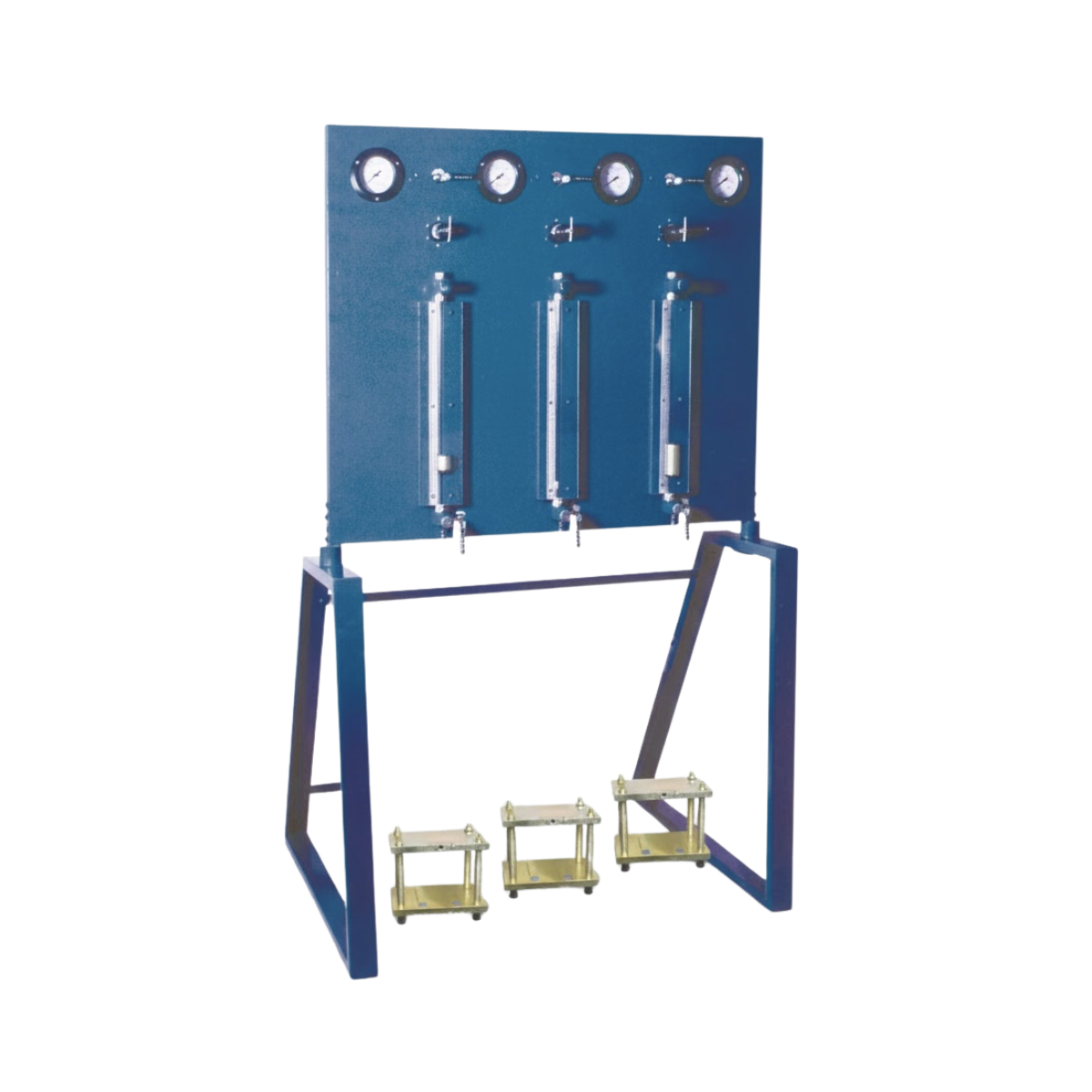

PERMEABILITY APPARTUS (THREE CELL MODEL) AZA1143 - Image 1
Click to enlarge
HYDRAULIC JACKS AZA1142
HYDRAULIC JACKS AZA1142
Back to products
RAPID CHLORIDE PERMEABILITY TESTER AZA1144
RAPID CHLORIDE PERMEABILITY TESTER AZA1144

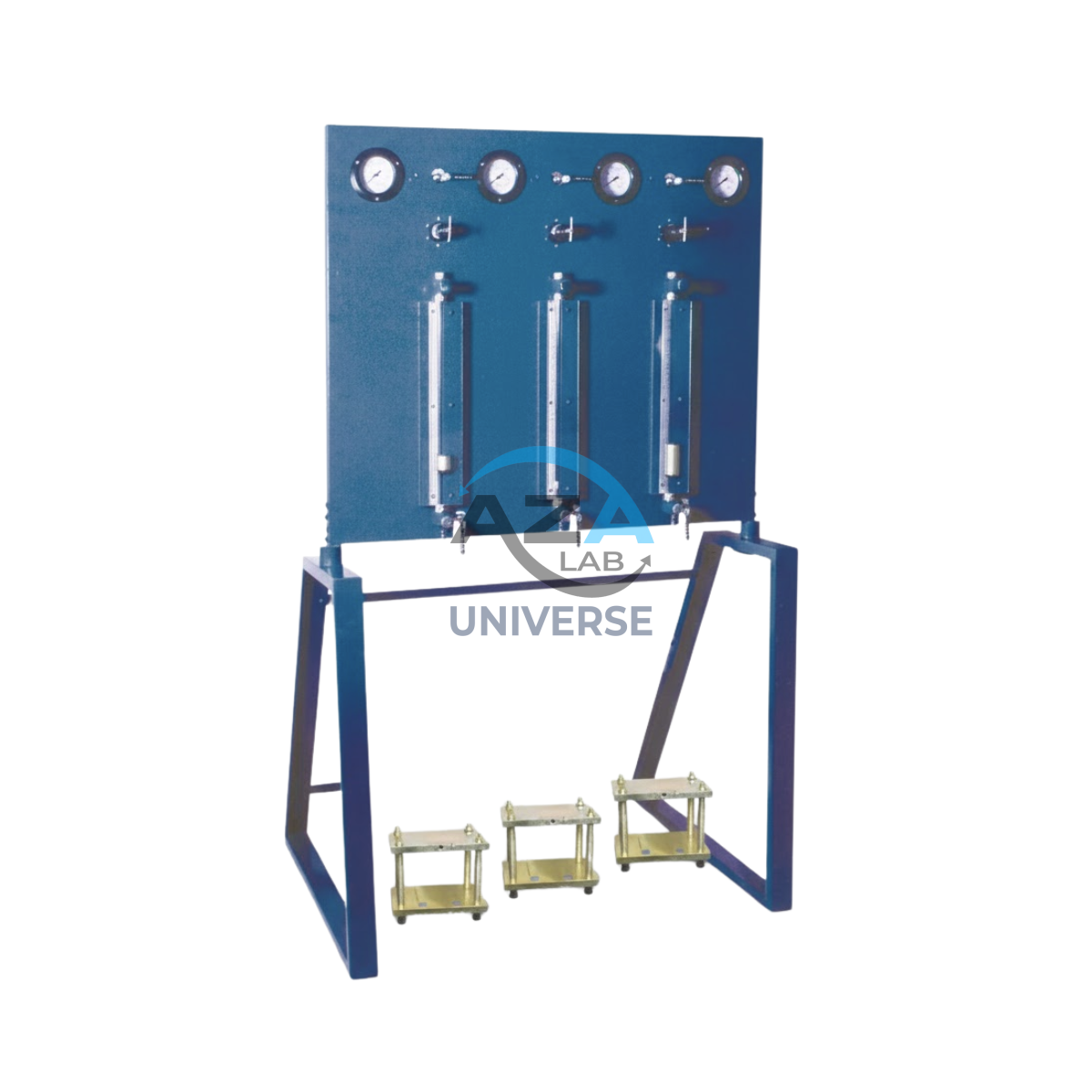

PERMEABILITY APPARTUS (THREE CELL MODEL) AZA1143

  • The AZA1143 Permeability Apparatus is a laboratory-grade soil testing system designed to determine the coefficient of permeability of various soil types with high accuracy. Built for geotechnical engineers, soil laboratories, academic institutions, and construction quality control centers, this three-cell unit supports simultaneous testing of three samples, significantly improving efficiency and comparative analysis.Engineered for both constant head (coarse soils) and falling head (fine soils) test methods, the AZA1143 ensures reliable results aligned with IS 2720 (Part 17). Its corrosion-resistant construction and precision acrylic permeability cells deliver stable performance, visual clarity, and long-term durability.

    Key Features

    • Three-Cell Design: Conducts three independent tests simultaneously, ideal for comparative soil studies.
    • Dual Test Capability: Supports both constant head and falling head permeability tests.
    • Transparent Acrylic Cells: Clear visibility of soil specimens and water flow during testing.
    • Rigid Frame Construction: Corrosion-resistant and durable body ensures structural stability.
    • Accurate Water Head Control: High-quality manometers, valves, and tubing ensure precise readings.
    • User-Friendly Setup: Quick assembly and minimal maintenance.
    • IS-Compliant: Fully meets IS 2720 (Part 17) for laboratory soil permeability testing.
Enquiry on WhatsApp
Category:
Description

Description

Technical Specifications

Feature Details
Model AZA1143
Type Three-Cell Permeability Apparatus
Test Methods Constant Head / Falling Head
Number of Cells 3
Cell Material Transparent Acrylic
Manometers 3 sets (one for each cell)
Standards IS 2720 (Part 17)
Accessories Rubber tubing, clamps, valves, filter papers
Application Soil permeability measurement
Weight Approx. 25–30 kg
Dimensions Lab-bench compatible

Applications

  • Geotechnical site investigation

  • Laboratory soil permeability evaluation

  • Foundation and slope stability assessment

  • Earth dam seepage analysis

  • Pavement subgrade water flow characterization

  • Academic and research laboratories

Product Summary

AZA1143: Three-Cell Permeability Apparatus

  • Simultaneous testing of three soil samples

  • Designed for constant and falling head permeability testing

  • Rigid frame with durable, corrosion-resistant materials

  • Transparent acrylic cells for clear test observation

  • Compliant with IS 2720 (Part XVII)

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of AZA1143?
To determine the soil’s coefficient of permeability using constant and falling head methods.

Q2: How many samples can it test at the same time?
Up to three samples can be tested simultaneously.

Q3: Is the apparatus standard-compliant?
Yes, it complies with IS 2720 (Part 17).

Q4: Can it test both coarse and fine soils?
Yes. Constant head is used for coarse soils, falling head for fine soils.

Q5: What accessories are included?
Manometers, valves, clamps, filter papers, and connecting rubber tubing.
