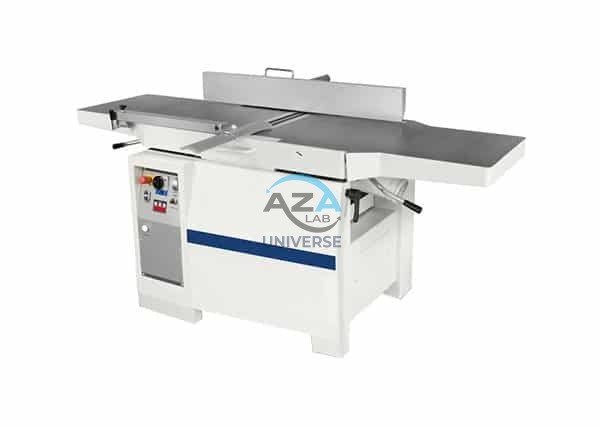

Wood Working Surface Planers (AZA 1213)
High-quality Wood Working Surface Planers from A Z A Lab, ideal for precision planing, beveling, and chamfering. Robust design and various models to meet diverse woodworking needs.
Description
A Z A Lab offers a range of high-quality Surface Planers, expertly manufactured in our state-of-the-art facilities. These planers are essential for planing the face and side of wood to ensure they are straight and square. They enhance the efficiency of woodworking operations by ensuring flatness and squareness. Additionally, these planers can perform beveling and chamfering operations. The robust construction of our surface planers ensures they can handle high loads during operation, making them a valuable tool in any woodworking workshop.
- Precision planing for flatness and squareness
- Versatile for beveling and chamfering
- Sturdy construction handles high loads
- Reliable cutter block speed of 4000 RPM
- Various models to fit different capacity needs
| Feature | AZA 1211 | AZA 1212 | AZA 1213 | AZA 1214 | AZA 1215 |
|---|---|---|---|---|---|
| Surfacing Capacity | 254 mm / 10″ | 330 mm / 13″ | 330 mm / 13″ | 228 mm / 9″ | 305 mm / 12″ |
| Length of Surface Table | 1220 mm / 48″ | 1295 mm / 51″ | 1550 mm / 61″ | 1220 mm / 48″ | 1220 mm / 48″ |
| Rebating Capacity | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ |
| Cutter Block Diameter | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ |
| Cutter Block Speed (rpm) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Standard Cutter Block-Code No | 2B | 2B | 2B | 2B | 2B |
| Circular Saw Table Size | 610×355 mm / 24″×14″ | 610×355 mm / 24″×14″ | 610×355 mm / 24″×14″ | 560×280 mm / 22″×11″ | 560×280 mm / 22″×11″ |
| Up/Down Movement of Circular Saw Table | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ |
| Max. Circular Saw Diameter | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ |
| Power Required - hp/rpm | 2 hp / 1440 rpm | 2 hp / 1440 rpm | 3 hp / 1440 rpm | 2 hp / 1440 rpm | 2 hp / 1440 rpm |
