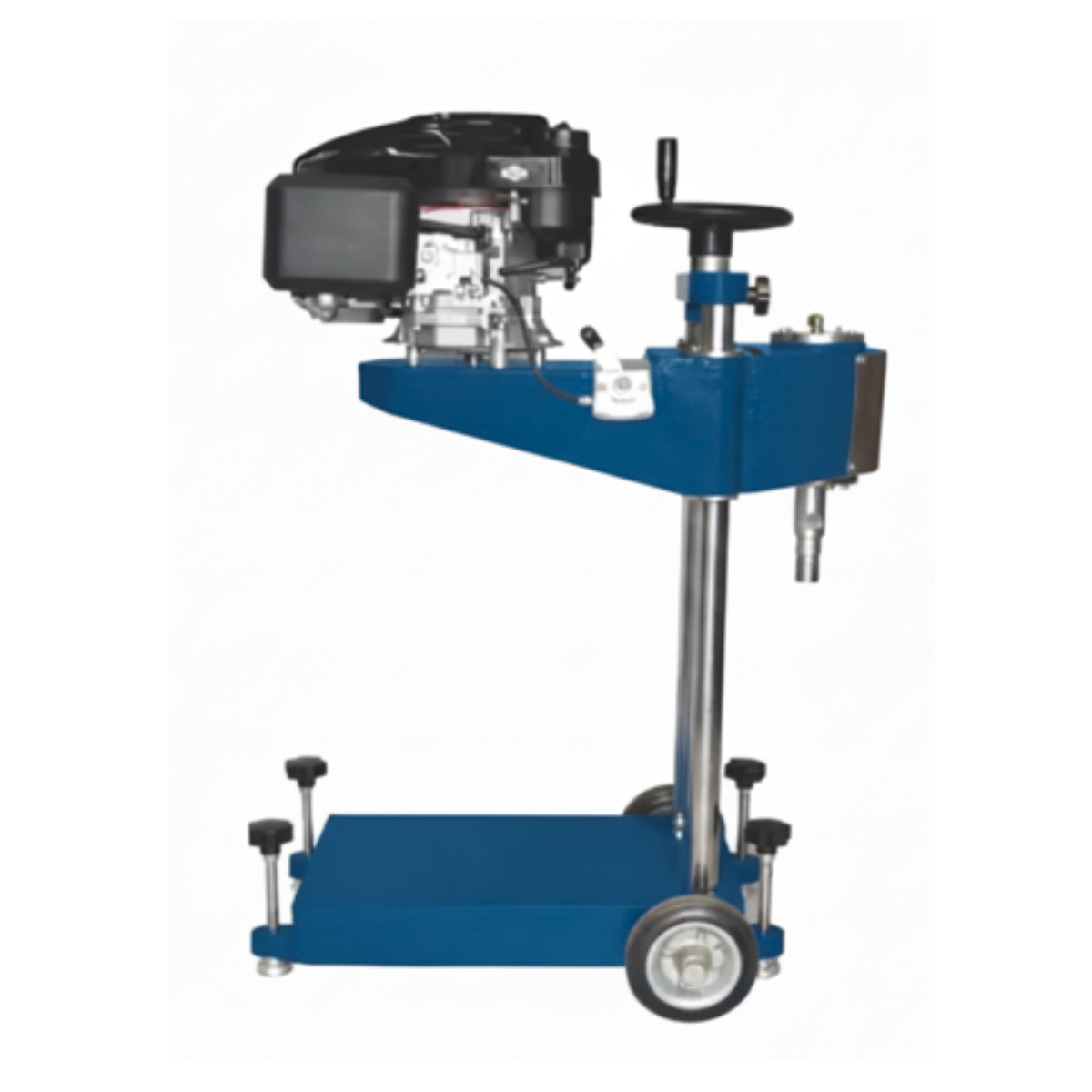

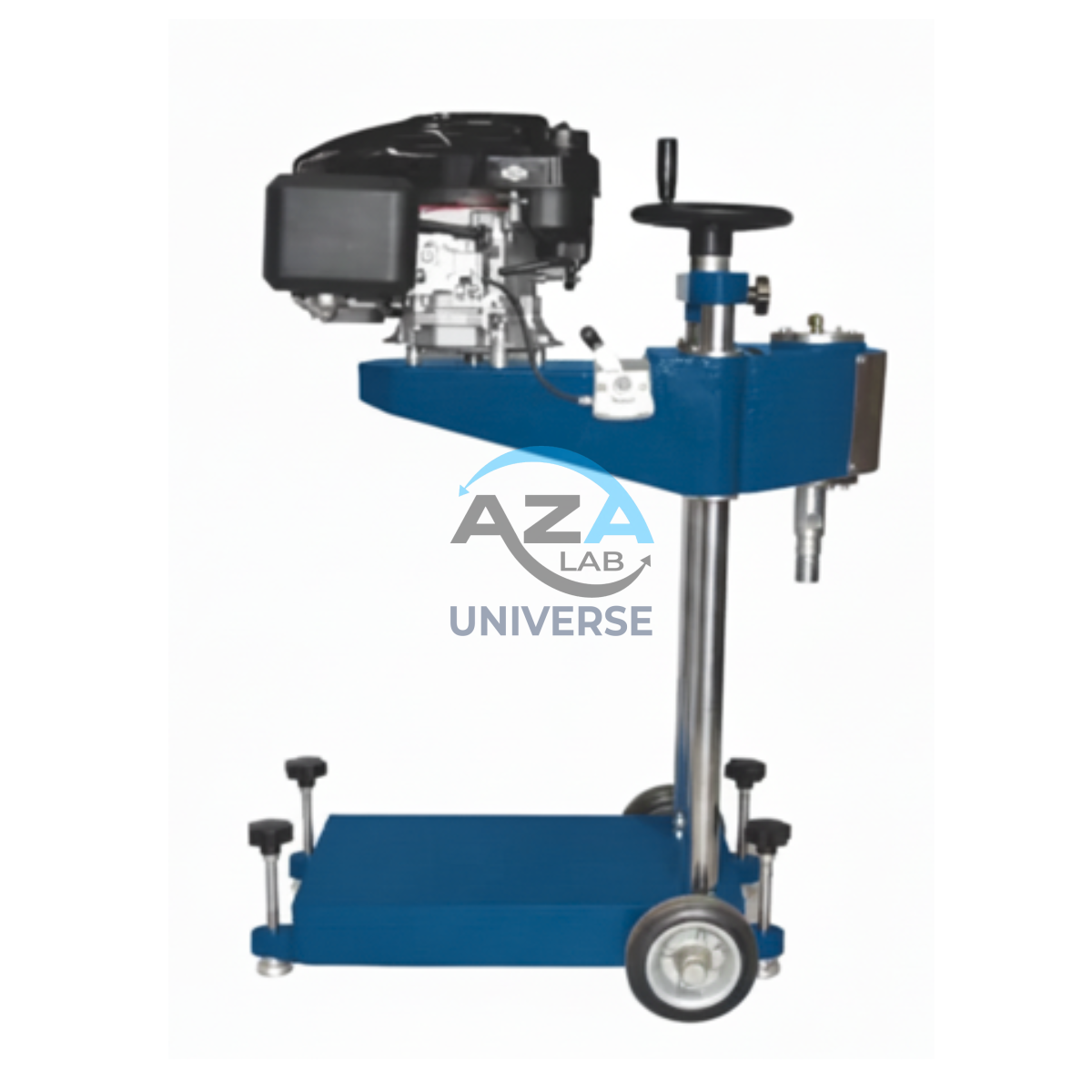

PORTABLE CORE CUTTING DRILLING MACHINE PETROL DRIVEN AZA0995
AZA0995 Petrol-Driven Core Cutting & Drilling Machine is a high-performance, portable coring system designed for on-site sampling of concrete, asphalt (bitumen), and rock surfaces. Built for demanding field conditions, this machine combines power, mobility, and cutting precision, making it ideal for civil engineers, geotechnical teams, road authorities, and construction quality control laboratories.
The petrol-powered 4-stroke engine ensures complete independence from electrical power, allowing reliable operation in remote and off-grid locations. Mounted on a trolley-type heavy-duty steel frame, the unit is easy to transport across rough or uneven terrain while providing excellent stability during drilling.
This machine supports core barrel sizes from 25 mm to 150 mm, making it suitable for a wide range of sampling requirements—from pavement layer checks to structural concrete strength investigations. The adjustable vertical drill column allows accurate alignment, ensuring clean, straight, and damage-free cores.
An integrated water feed system enables wet drilling, which keeps the diamond core bit cool, minimizes dust, and improves core quality. The vibration-dampened spindle system ensures smooth cutting, reduced operator fatigue, and longer machine life.
Designed with operator safety and durability in mind, AZA0995 features ergonomic handles, emergency cut-off, corrosion-resistant components, and a robust engine mount to prevent unwanted movement during operation.
Description
Key Features
-
Petrol-driven, power-independent operation
-
Trolley-mounted design for easy mobility
-
Supports 25 mm to 150 mm core diameters
-
Suitable for concrete, asphalt, and rock
-
Integrated wet drilling water system
-
Adjustable vertical drill column
-
Vibration-dampened spindle system
-
Compatible with diamond-tipped core bits
-
Rugged, corrosion-resistant steel construction
Applications
-
Road and highway core sampling
-
Airport runway testing
-
Structural concrete evaluation
-
Geological and rock sampling
-
Pavement and bitumen layer inspection
-
Construction site quality control
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA0995 |
| Power Source | Petrol engine (air-cooled) |
| Engine Type | 4-stroke, ~5–7 HP |
| Core Diameter Range | 25 mm to 150 mm |
| Max Drilling Depth | Up to 500 mm (depends on barrel) |
| Drilling Type | Wet coring |
| Frame | Trolley-mounted, powder-coated steel |
| Water Feed System | Integrated with hose connection |
| Cooling | Air-cooled engine + water-cooled bit |
| Feed Mechanism | Manual feed with adjustable column |
| Weight | Approx. 80–100 kg |
| Accessories | Tool kit, core coupling, water tank |
AZA0995 Petrol Core Cutting & Drilling Machine is a rugged, trolley-mounted, field-ready coring system for concrete, asphalt, and rock sampling, supporting 25–150 mm core diameters with wet drilling and petrol-powered portability.
Additional information
| Power Source |
Petrol engine (air-cooled) |
|---|---|
| Core Diameter Range |
25 mm to 150 mm |
| Drilling Depth |
Up to 500 mm (varies with barrel) |
| Drilling Type |
Wet coring |
