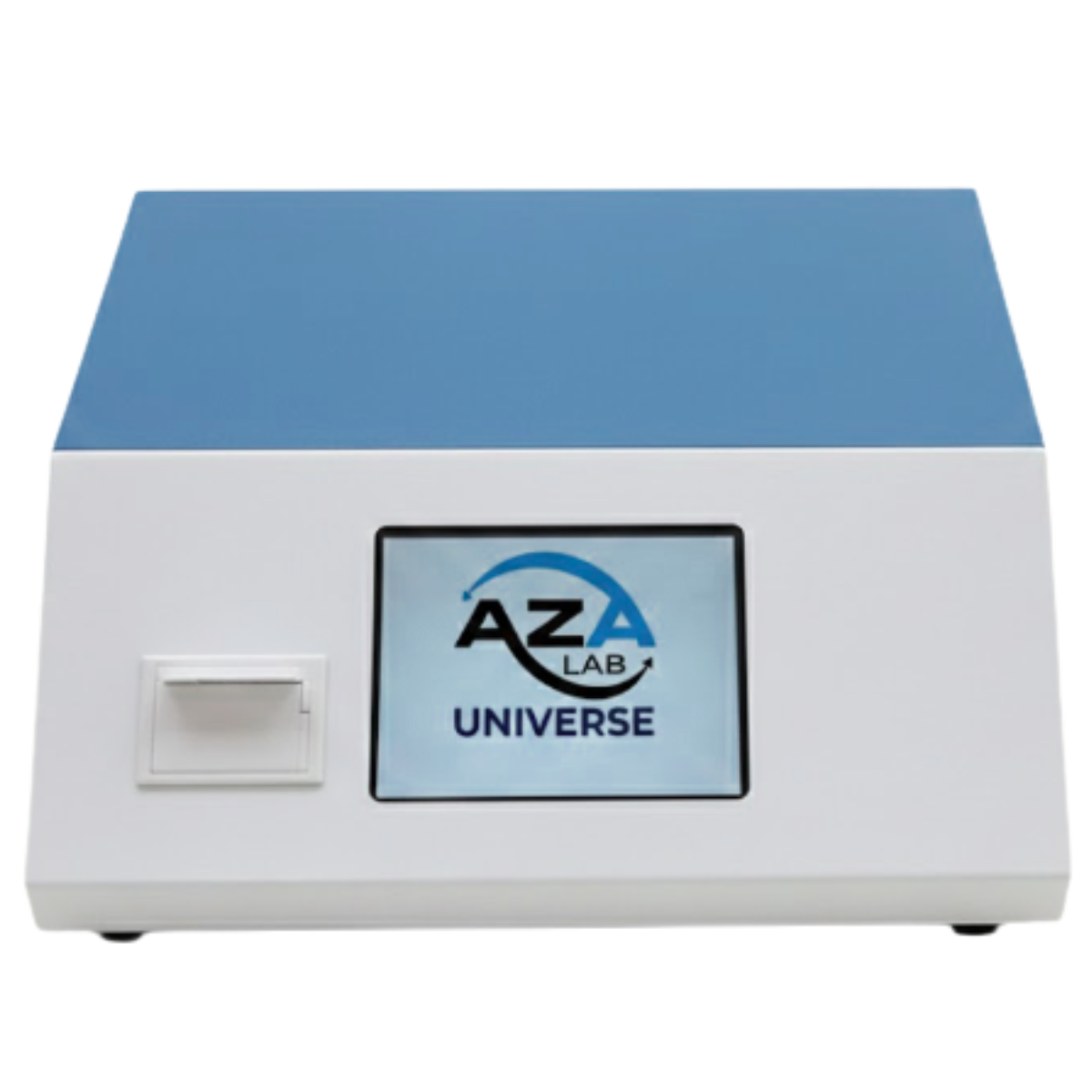

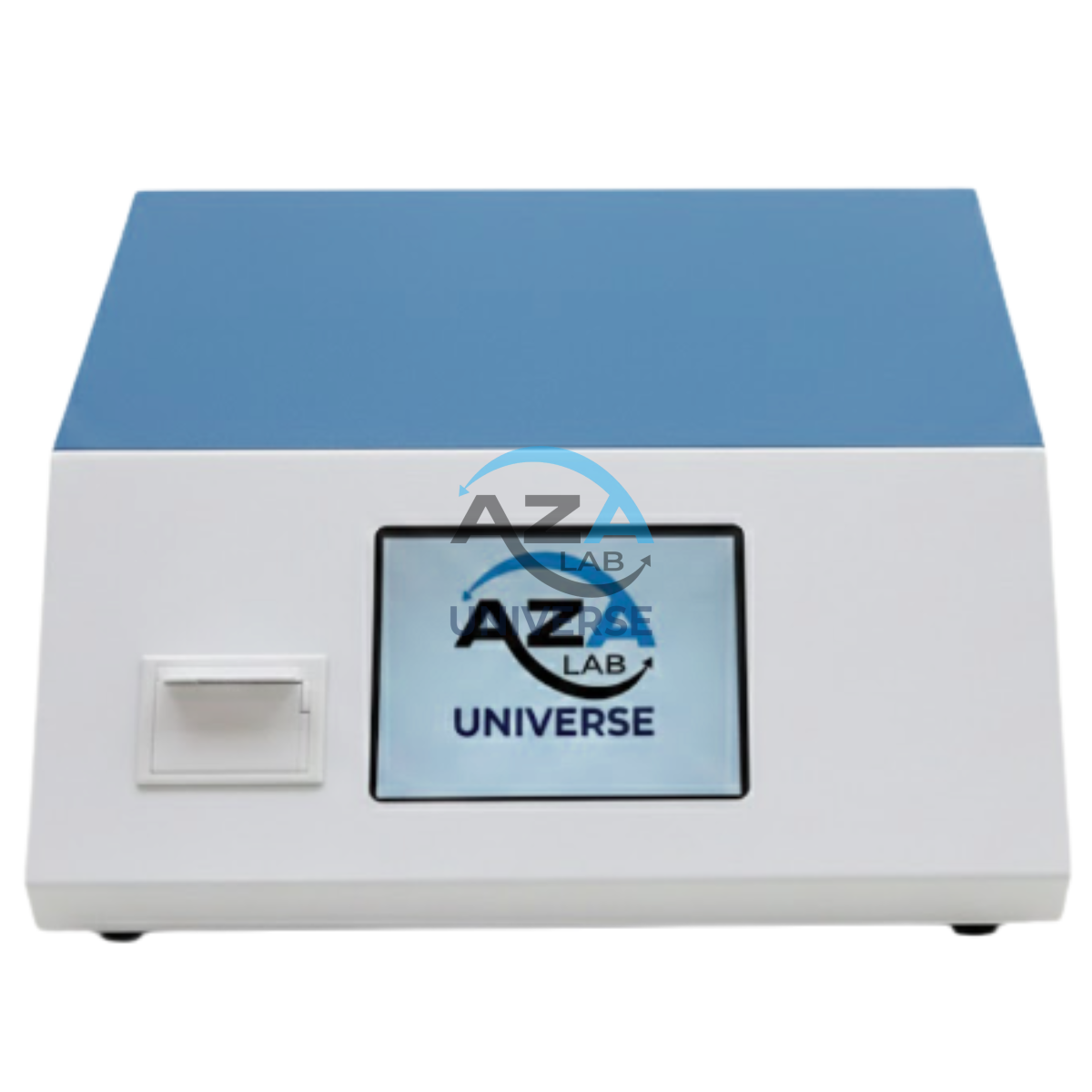

X-Ray Sulfur Meter Tester AZA1300B
The X-Ray Sulfur Meter (Model: AZA1300B) from AZA Lab is a highly efficient and precise instrument designed to measure sulfur content in petroleum and petrochemical products during production. It enables fast, non-destructive analysis, making it an essential tool for quality control, process optimization, and regulatory compliance.
Ideal for use in refineries, laboratories, and production sites, this instrument provides accurate, reliable results with minimal sample preparation, ensuring consistent performance and repeatability.
Description
Key Features & Applications
-
High Accuracy: Detects very low sulfur concentrations — as low as 0.0017%.
-
Wide Applicability: Suitable for analyzing oil products with sulfur levels above the detection limit.
-
Minimal Sample Volume: Requires only 3–5 ml of sample per test.
-
Rapid Analysis: Provides precise test results within 1–5 minutes.
-
Reliable Performance: Delivers stable, repeatable measurements even under varying conditions.
-
User-Friendly Interface: Equipped with a built-in computer and 8-inch color touch screen for easy control and real-time data display.
-
Smart Auto-Correction: Automatically compensates for temperature, air pressure, and carbon/hydrogen ratio using fluorescence analysis technology.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1300B |
| Measurement Range | 0.005% – 5% |
| Detection Limit | 50 ppm |
| Sample Volume | 3 ml – 5 ml |
| Measurement Duration Options | 30, 60, 90, 120, 150 seconds (repeated 1, 2, 3, 5, or 10 times) |
| Temperature Control Method | Automatic measurement with average value and standard deviation calculation |
| Calibration Curves | Can store up to 10 calibration curves |
| Operating Temperature Range | 10°C – 30°C |
| Working Pressure of Reducing Valve | ≤85% (at 30°C) |
| Air Flow Rate (Jet Outlet) | 13 kg |
| Dimensions (L × W × H) | 480 mm × 380 mm × 140 mm |
| Net Weight | 13 kg |
Why Choose AZA1300B?
-
Complies with ASTM and international analytical standards.
-
Delivers fast, accurate, and repeatable sulfur content measurements.
-
Compact, durable, and intuitive—ideal for lab and field environments.
-
Minimizes operator effort while maximizing test precision and productivity.
