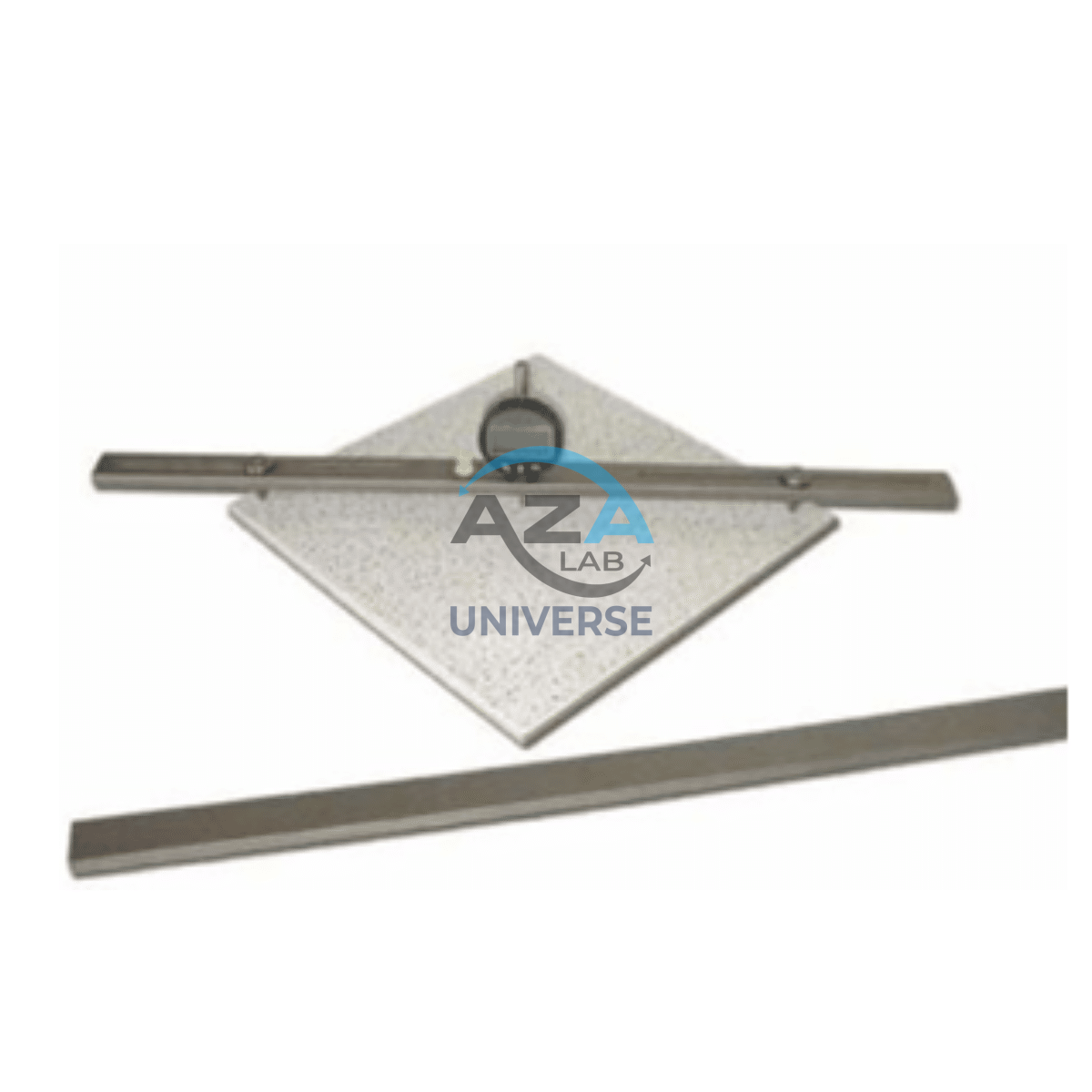

PORTABLE GAUGE / PLUCOMETER – WITH DIGITAL GAUGES AZA1271
The AZA LAB Portable Gauge – Model AZA1271 is a precision instrument designed for the measurement of surface flatness and warpage in ceramic tiles and related materials. Compliant with BIS 13630 (Part 1), this advanced Plucometer features a digital dial gauge system for highly accurate and user-friendly measurement.
Ideal for use in quality control laboratories and tile manufacturing environments, the system allows direct assessment of surface irregularities across various tile sizes.
Description
The AZA LAB AZA1271 Digital Gauge (Plucometer) is designed for quick and precise determination of flatness and diagonal linearity of ceramic tiles. Each unit ensures reliable, repeatable measurement performance, ideal for laboratory or on-site quality control.
Applications:
Suitable for the measurement of diagonal linearity for tiles of the following standard sizes:
- 450 × 450 mm
- 600 × 600 mm
- 600 × 1200 mm
- 1000 × 1000 mm
(Custom sizes available on request — specify required tile size at time of order.)
Standard Compliance:
BIS 13630 (Part-1) / EN ISO 10545-2
Key Features:
- Each unit supplied with a ground calibration plate.
- Suitable for fast and accurate determination of flatness or diagonal difference of ceramic tiles.
- Consists of a precision steel bar with two calibrated stainless-steel feet, adjustable to varying distances.
- Integrated spherical bubble level for alignment.
- Equipped with a 60 mm diameter dial gauge, marked in 0.01 mm increments (digital display for selected models).
- Delivered in a protective wooden storage box.
Standard Accessories:
1. Digital Gauge
- Make: Reputed Make
- Range: 0 – 10 mm
- Accuracy: 0.001 mm
- Quantity: 1 No.
2. Locating Studs (Pins)
- Two stainless steel calibrated feet
Model Variants:
| Model Code | Tile Size (cm) | Accuracy | Remarks |
|---|---|---|---|
| AZA1271A | 45 × 45 | 0.01 mm | Supplied with calibration plate in wooden box |
| AZA1271B | 60 × 60 | 0.001 mm | Digital gauge version |
| AZA 1271C | 60 × 120 | 0.001 mm | Extended range model |
| AZA1271D | 100 × 100 | 0.001 mm | Heavy-duty version |
Ordering Information:
Please specify the required tile size and measurement range at the time of order.
