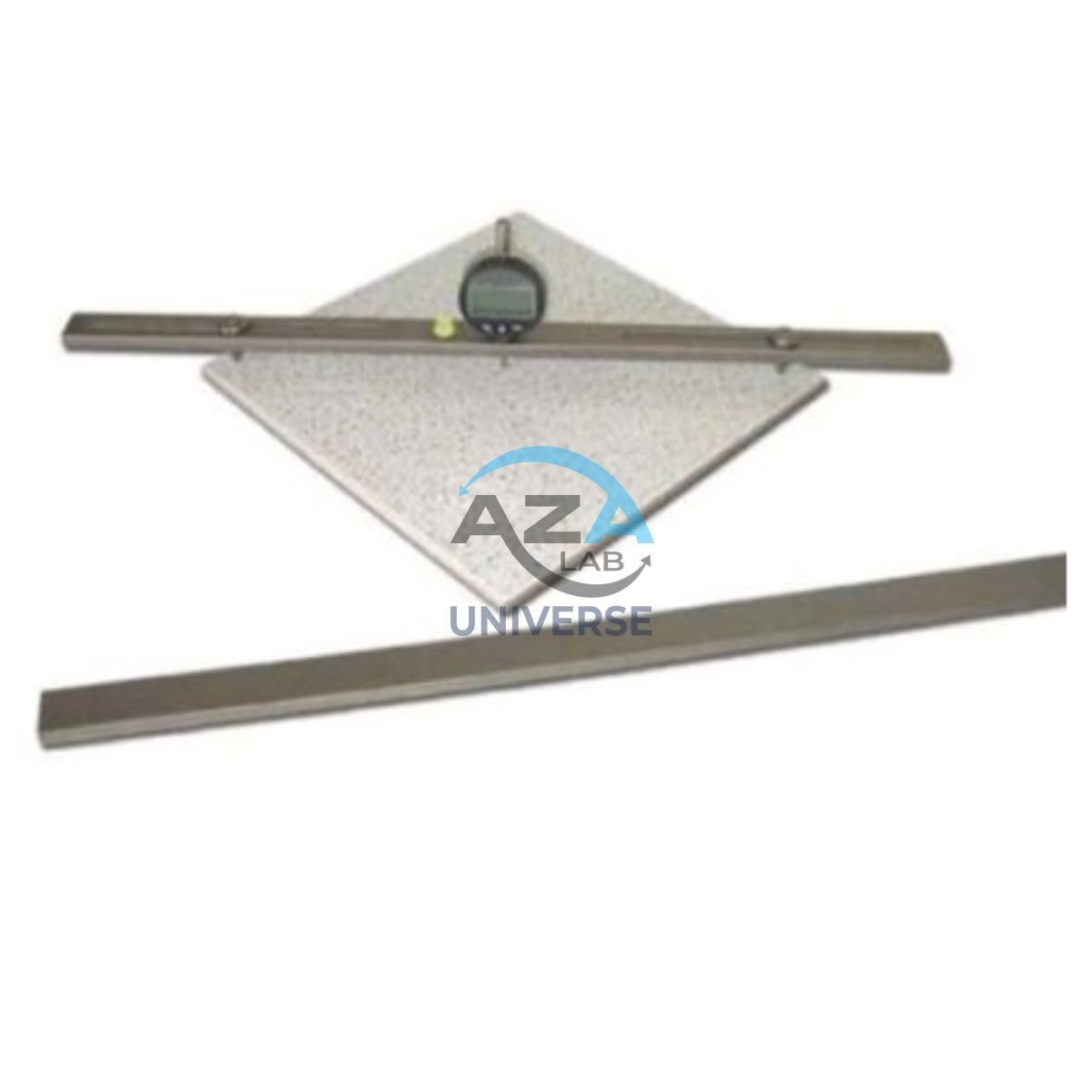

UNIVERSAL DIGITAL GAUGE – DIAGONAL LINEARITY PLUCOMETER AZA1272
The AZA LAB Universal Digital Gauge – AZA1272 is a compact and highly accurate plucometer designed for evaluating diagonal linearity and flatness of ceramic tiles. It complies fully with IS 13630 (Part-1) and EN ISO 10545 (Part-2), making it an essential tool in laboratories and tile manufacturing quality control.
Engineered for portability and precision, the device allows fast and direct measurement of dimensional deviations across the diagonal of the tile.
AVAILABLE PLUCOMETER SIZES
-
450 × 450 mm
-
600 × 600 mm
APPLICATIONS
-
Measurement of diagonal linearity
-
Evaluation of tile flatness
-
In-process and final quality control in ceramic tile production
-
Conformance testing as per national and international standards
Description
AVAILABLE PLUCOMETER SIZES
-
450 × 450 mm
-
600 × 600 mm
APPLICATIONS
-
Measurement of diagonal linearity
-
Evaluation of tile flatness
-
In-process and final quality control in ceramic tile production
-
Conformance testing as per national and international standards
-
Precision digital dial gauge with 0.001 mm accuracy
-
Two adjustable, calibrated stainless-steel locating feet
-
High-stability steel bar with integrated spherical level
-
Includes ground reference calibration plate
-
Fast setup and measurement in both lab and field environments
-
Lightweight, durable construction for portability
| Component | Specification |
|---|---|
| Digital Gauge | Reputed Make, Range: 0–25 mm, Accuracy: 0.001 mm |
| Locating Studs (Feet) | 2 × Stainless Steel, Calibrated |
| Spherical Bubble Level | Integrated in the main bar for leveling |
| Calibration Plate | Precision-ground reference plate |
Related products
BALL RELEASE FOR IMPACT RESISTANCE TESTER AZA1295
The AZA LAB Ball Release for Impact Resistance Tester (AZA1295) is a precision-engineered laboratory accessory designed to deliver accurate, repeatable, and standardized ball drop impact testing for a wide range of materials. It is an essential component of drop weight impact testing systems used in research & development, quality control, compliance testing, and academic laboratories.
This device ensures controlled release of a weighted ball from a defined height, eliminating operator variability and guaranteeing consistent impact energy in every test. The AZA1295 is widely used to evaluate impact strength, puncture resistance, and breakage behavior of materials under sudden mechanical stress.
DEEP ABRASION MACHINE FOR UNGLAZED TILES AZA1260
The AZA LAB Deep Abrasion Testing Machine – Model AZA1260 is a high-performance laboratory instrument specifically designed to measure the deep abrasion resistance of unglazed ceramic tiles in strict accordance with ISO 10545-6 and IS 13630 (Part 12) standards. This machine is an essential quality assurance tool for tile manufacturers, certification bodies, and research laboratories focused on durability and wear performance.
Deep abrasion resistance is a critical parameter for unglazed tiles used in high-traffic commercial, industrial, and public spaces, where surface wear directly impacts service life and safety. The AZA1260 delivers accurate, repeatable, and standardized results that reflect real-world abrasion conditions.
ELECTRONIC WEIGHING BALANCE AZA1267
The AZA LAB Electronic Weighing Balance – Model AZA1267 is a high-precision laboratory instrument engineered for accurate and reliable mass measurement across a wide range of analytical and quality control applications. With a readability of 0.001 g (1 mg) and external calibration, this balance delivers consistent results where precision is critical.
Designed for durability and ease of use, the AZA1267 features a stainless-steel weighing pan, anti-shock protection, and a clear LED digital display, all housed in a compact and robust body. Its dual power supply (AC adapter with in-built rechargeable battery) ensures uninterrupted operation in both laboratory and field environments

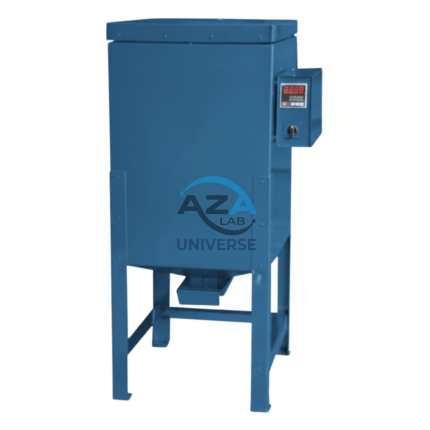

FLUX OVEN – 50 KG – STAINLESS STEEL AZA1273
The AZA LAB Flux Oven (Model AZA1273) is a high-performance drying and heating oven engineered for precise, uniform thermal processing of flux materials in laboratory and industrial environments. Designed with a robust double-walled construction and high-efficiency insulation, the oven delivers excellent thermal stability, energy efficiency, and long-term durability.
With a temperature range of 50°C to 400°C, forced air circulation, and a digital PID temperature controller with auto-tune, the AZA1273 ensures accurate temperature control and even heat distribution throughout the chamber. It is ideally suited for demanding applications in ceramics, metallurgy, materials testing, and quality control laboratories.

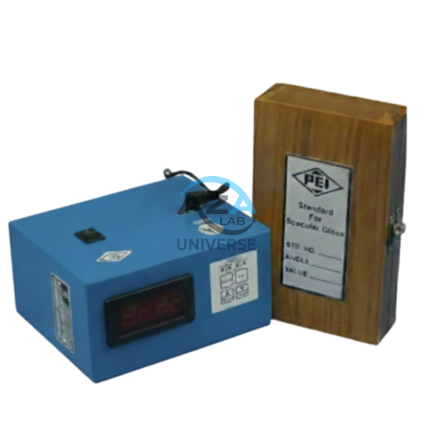

GLOSS METER – SINGLE ANGLE MODELS AZA1298
