VISUAL ASSESSMENT CABINET / VIEWING CABINET- BIS 13630 AZA1263

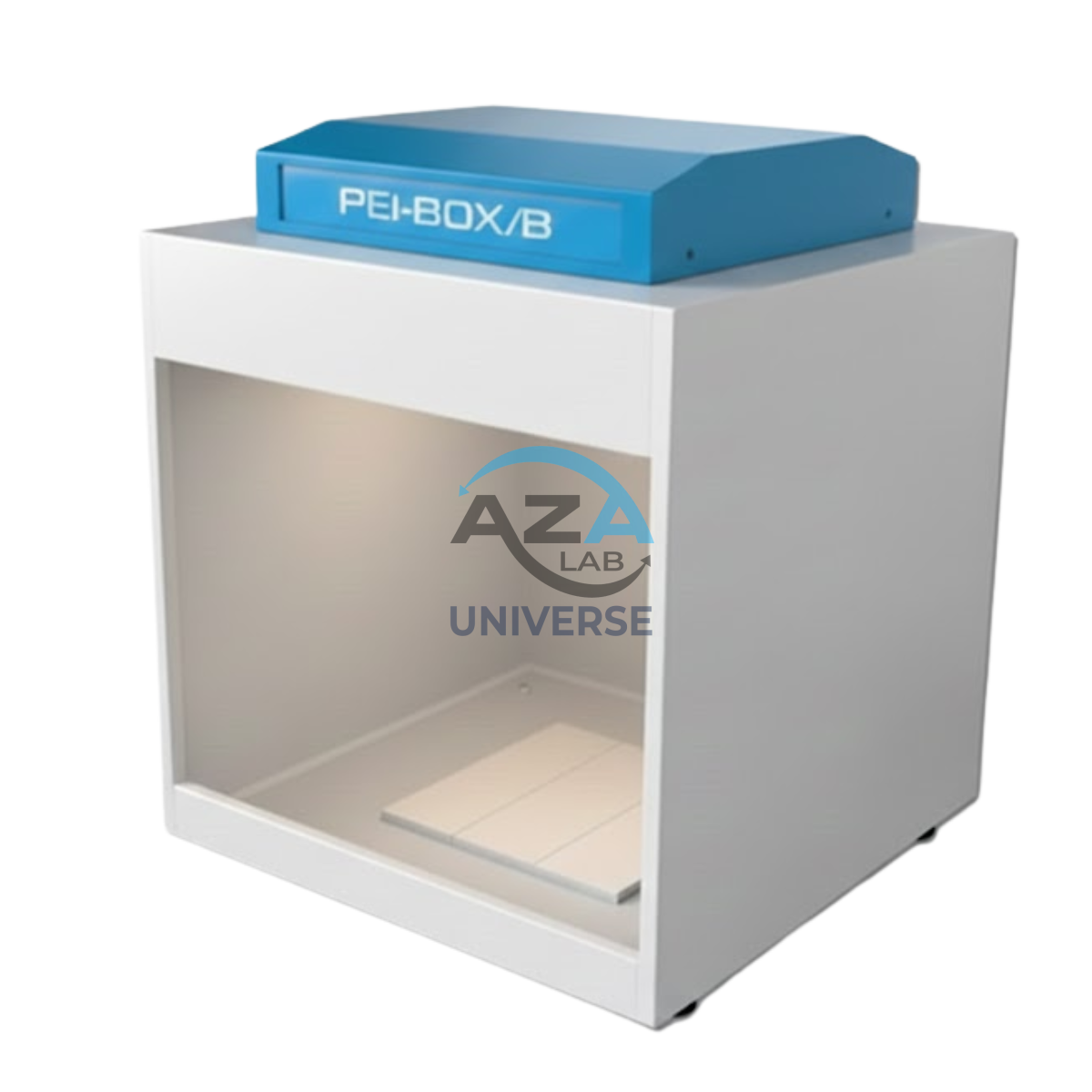

The AZA1263 Visual Assessment Cabinet is a precision-engineered viewing enclosure designed for accurate and standardized visual inspection of ceramic tiles in accordance with ISO 10545-7 and BIS 13630 (Part-XI). It provides a controlled lighting and observation environment, ensuring objective, repeatable, and distortion-free visual evaluations of tile surface quality, color uniformity, glaze defects, and overall appearance.
This cabinet is widely used in ceramic tile manufacturing plants, quality control laboratories, certification bodies, research institutes, and testing agencies, where compliance with international and national standards is mandatory.
Description
Purpose & Function
Visual assessment of ceramic tiles must be carried out under strictly controlled illumination and background conditions to avoid subjective interpretation and color distortion. The AZA1263 ensures that each tile is examined under standardized lighting geometry, intensity, and color temperature, as defined by relevant testing standards.
The cabinet features a vertically positioned fluorescent light source, carefully screened to avoid direct glare, and delivers a uniform illuminance of 300 lux across the inspection surface. The interior surfaces are finished in neutral grey, eliminating reflections and ensuring accurate perception of color and surface defects.
Applications
-
Visual inspection of ceramic tiles for surface defects
-
Assessment of color uniformity and shade variation
-
Glaze quality and appearance evaluation
-
Quality control and batch approval in tile manufacturing
-
Compliance testing for certification and audit purposes
-
R&D and reference inspections in ceramic laboratories
Standards Compliance
The AZA1263 Visual Assessment Cabinet is designed and manufactured to comply with:
-
ISO 10545-7 – Ceramic tiles: Determination of surface quality
-
BIS 13630 (Part-XI) – Indian Standard for visual inspection of ceramic tiles
Compliance ensures consistent, internationally accepted test conditions and results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1263 |
| Compliance Standards | ISO 10545-7, BIS 13630 (Part-XI) |
| Cabinet Type | Visual assessment / viewing cabinet |
| Lighting Type | Fluorescent |
| Color Temperature | 6000 K – 6500 K |
| Illuminance | 300 lux |
| Light Position | Vertical, screened |
| Interior Finish | Neutral grey |
| Dimensions (L × W × H) | 61 × 61 × 61 cm |
| Dimensions (inches) | 24 × 24 × 30 inches |
| Weight (Approx.) | 50 kg |
| Power Supply | Standard AC mains |
| Optional Accessories | Lux meter (extra cost) |
What’s Included
-
1 × AZA1263 Visual Assessment Cabinet
-
1 × Integrated fluorescent lighting system
-
1 × Screened light assembly
-
1 × User operation & maintenance manual
-
1 × Compliance documentation
Optional:
-
Lux meter for illumination verification (available at additional cost)
Frequently Asked Questions (FAQ)
Q1: Why is controlled lighting required for tile inspection?
Controlled lighting ensures consistent viewing conditions, eliminating errors caused by shadows, glare, or color distortion.
Q2: What is the significance of 6000–6500 K color temperature?
This range simulates standardized daylight conditions, ensuring accurate color perception.
Q3: Can illumination be verified periodically?
Yes. A lux meter (optional) can be used to verify and maintain the required 300 lux illumination level.
Q4: Is the cabinet suitable for routine production QC?
Yes. The AZA1263 is designed for continuous use in manufacturing and testing laboratories.
Q5: Does it meet both Indian and international standards?
Yes. It complies with BIS 13630 (Part-XI) and ISO 10545-7.
Why Choose AZA1263 from AZA LAB / Azalab?
-
Designed specifically for ceramic tile inspection standards
-
Reliable, repeatable, and objective visual assessment
-
Proven acceptance in QC labs and certification bodies
-
Robust construction with long service life
-
Supported by technical expertise and after-sales service
