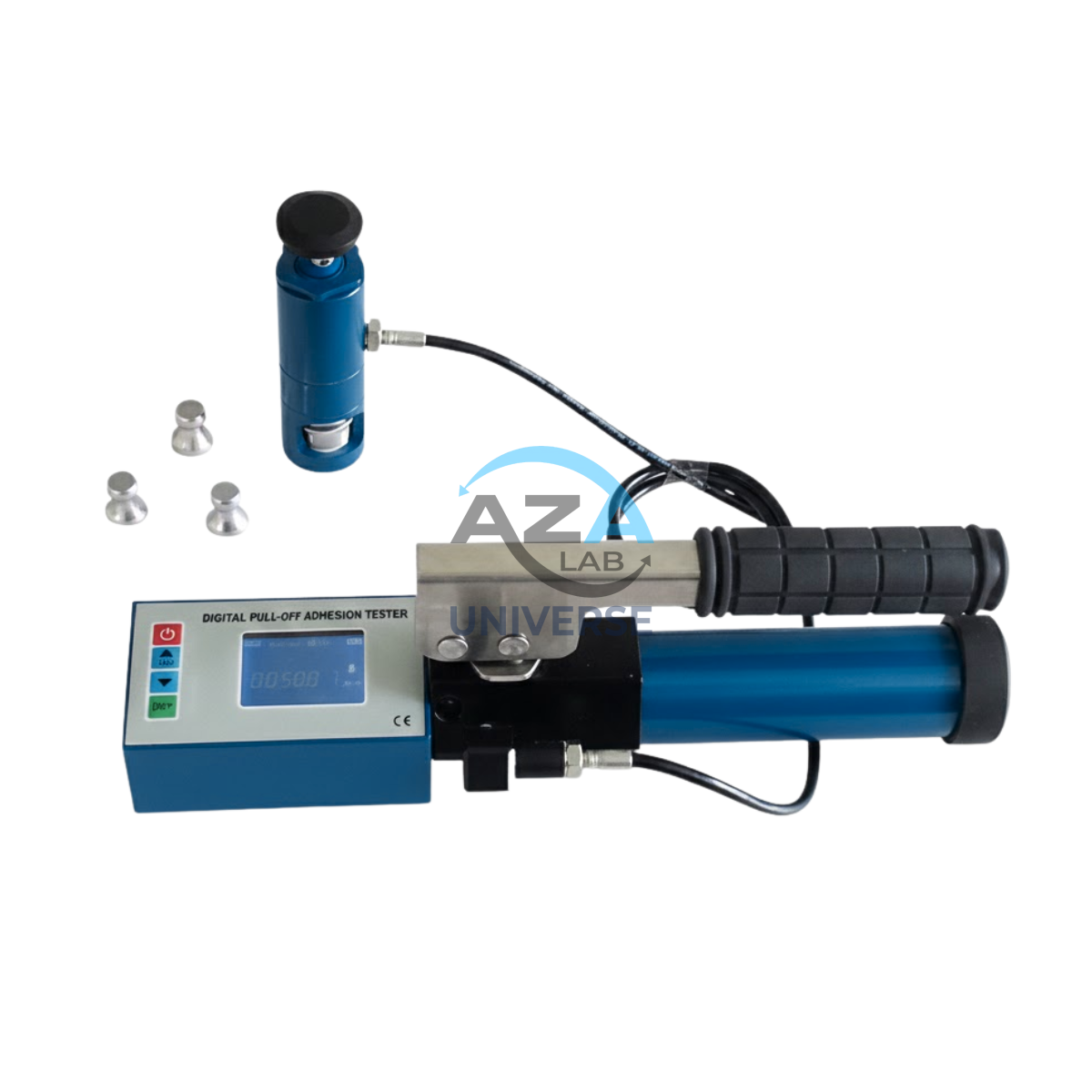

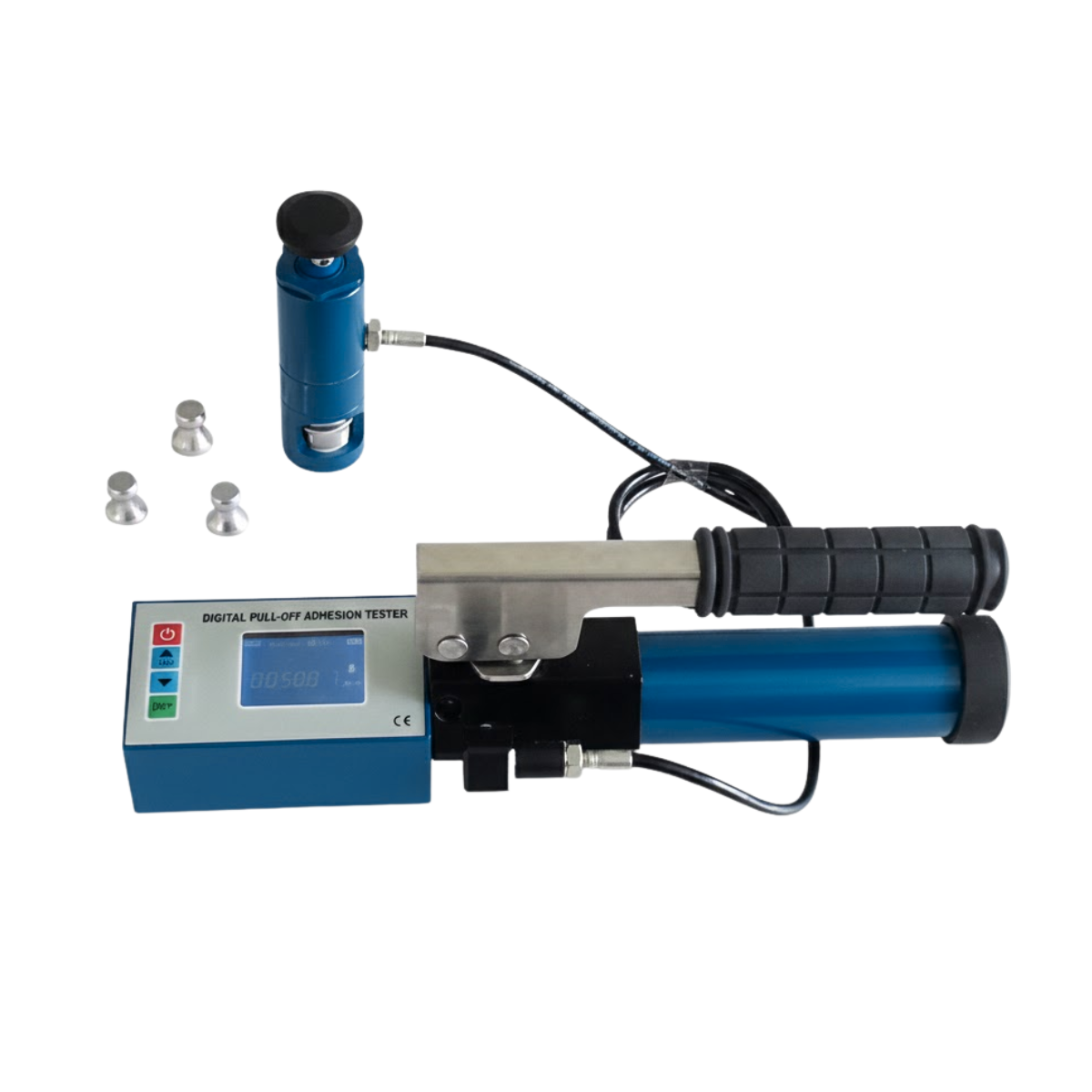

DIGITAL PULL-OFF ADHESION TESTER AZA1152
The AZA1152 Digital Pull-Off Adhesion Tester is a professional, high-accuracy instrument engineered to evaluate the bond strength of coatings, paints, sealants, and adhesives applied to various substrates including concrete, metal, wood, plastic, stone, and composites. Designed for field and laboratory environments, it delivers reliable, repeatable, and standards-compliant adhesion measurements across construction, marine, automotive, industrial coating, and civil engineering sectors.
This device utilizes the pull-off testing principle, where a precision-machined dolly is bonded to the coating surface and a controlled tensile force is applied until failure. The tester records the exact force required for detachment, providing a direct measure of adhesion strength and enabling analysis of failure modes (adhesive, cohesive, or substrate failure).
Description
Key Features & Benefits
Digital Force Display
-
Real-time load measurement with peak hold
-
Unit conversion (MPa, psi, N)
-
High accuracy and stable readings
Interchangeable Dolly Sizes
-
Supports 20 mm and 50 mm dollies
-
Suitable for thin films, thick coatings, and textured surfaces
Manual or Hydraulic Loading
-
Smooth and uniform load application
-
Model options for both hand-operated and hydraulic pump systems
Compact & Rugged Design
-
Durable construction suitable for tough site conditions
-
Supplied in a protective hard carrying case
Data Logging (Model Dependent)
-
Internal memory for storing test results
-
Optional USB interface for data export and reporting
Standards Compliant
-
Meets ASTM D4541, ISO 4624, and relevant IS codes
Applications
-
Evaluation of paint, coating, epoxy, sealant, and adhesive bond strength
-
Surface preparation quality control in construction
-
Waterproofing validation on concrete substrates
-
Industrial coating inspection in marine and petrochemical sectors
-
Failure analysis and forensic engineering
-
Factory QA/QC for coating manufacturers
Specifications
| Feature | Description |
|---|---|
| Model | AZA1152 |
| Type | Digital Pull-Off Adhesion Tester |
| Load Range | 0–20 MPa (custom options available) |
| Display | Digital (peak hold, unit conversion) |
| Test Surfaces | Concrete, metal, wood, plastic, composites |
| Supported Dolly Sizes | 20 mm, 50 mm |
| Compliance | ASTM D4541, ISO 4624, IS standards |
| Operation | Manual or hydraulic (variant dependent) |
| Data Output | USB (optional), internal storage (optional) |
| Carrying Case | Included |
| Weight | Approx. 5–8 kg depending on configuration |
Frequently Asked Questions (FAQ)
Q1: What does the AZA1152 measure?
A1: It measures the pull-off adhesion strength of coatings, paints, sealants, and adhesives across various substrates.
Q2: Can it be used on-site?
A2: Yes. Its portable, rugged design makes it ideal for both field and laboratory use.
Q3: What standards does it comply with?
A3: ASTM D4541, ISO 4624, and relevant Indian Standards (IS) for coating adhesion testing.
Q4: Are multiple dolly sizes supported?
A4: Yes, it supports 20 mm and 50 mm diameter dollies for versatile testing requirements.
Q5: Does it include data storage?
A5: Yes, optional models offer internal memory and USB output for exporting results.
