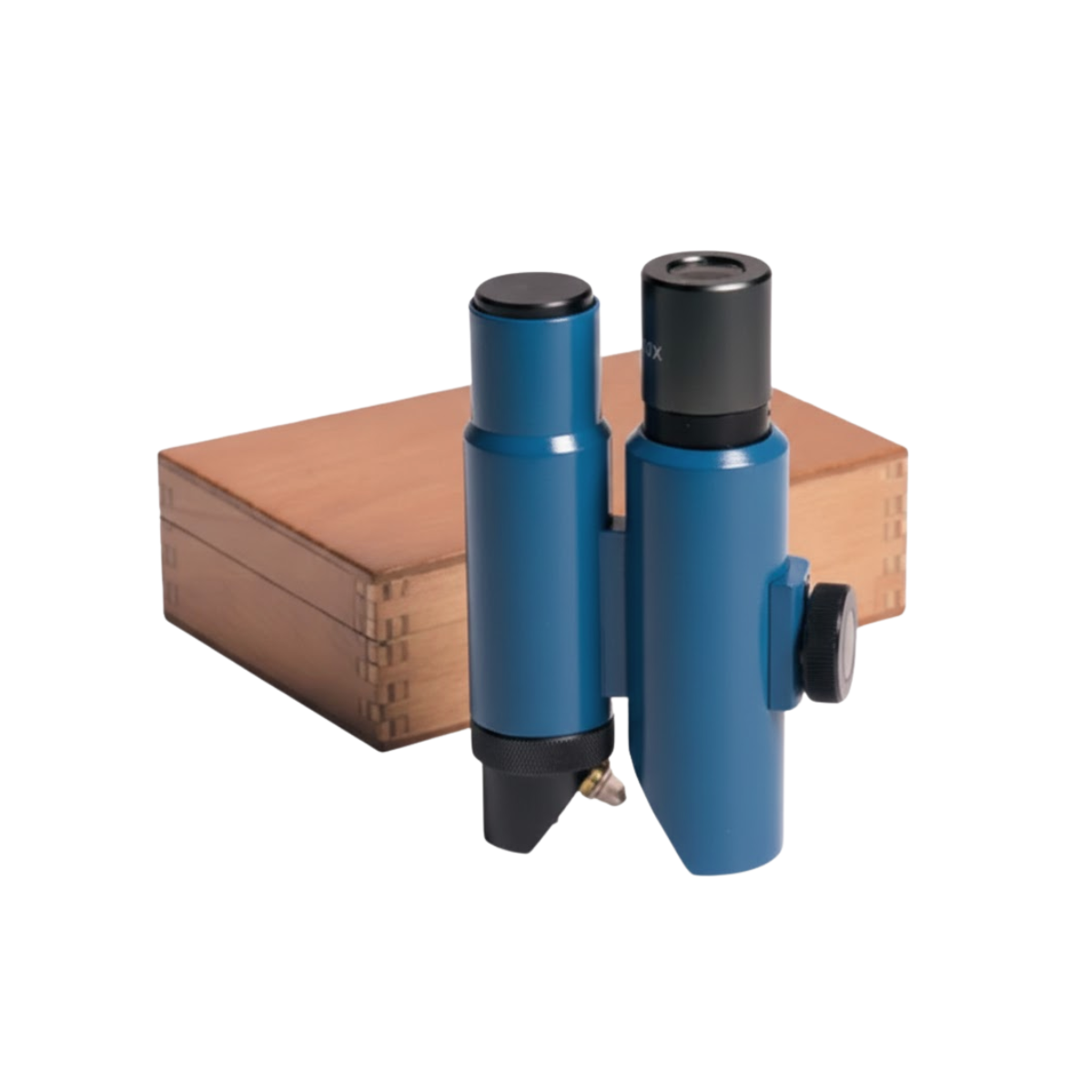

CRACK MICROSCOPE AZA1153
The AZA-LAB Crack Microscope (Model: AZA1153) is a high-accuracy inspection instrument engineered for measuring surface crack widths in concrete, masonry, metal, and other structural substrates. Compact, field-ready, and equipped with an internal measurement scale, it is widely used in civil engineering, construction QC, NDT inspections, forensic analysis, and structural health monitoring.Cracks serve as early warning indicators of structural distress—whether due to shrinkage, fatigue, environmental loading, or material degradation. The AZA1153 provides up to 40x magnification combined with a calibrated reticle, enabling direct measurement of cracks as fine as 0.02 mm, making it ideal for routine and advanced diagnostic work.The microscope is built with a rugged ABS housing, ensuring impact resistance during field use. Its ergonomic, handheld design allows stable placement and consistent focusing on rough surfaces. A built-in LED illumination system enhances visibility in low-light environments, ensuring reliable readings in tunnels, basements, and outdoor nighttime inspections.
Description
Key Features
-
High-precision crack measurement with internal etched reticle
-
40x magnification for clear visibility of hairline cracks
-
Measurement range: 0.02 mm to 2.0 mm
-
Integrated LED light for low-light or indoor inspections
-
Durable ABS body, portable and field-ready
-
No calibration required – factory aligned
-
Suitable for concrete, masonry, tiles, metal surfaces
-
Complies with ASTM C823 – Examination of Hardened Concrete
Technical Specifications
| Parameter | Value |
|---|---|
| Model No. | AZA1153 |
| Product Type | Portable Crack Microscope |
| Magnification | 40x (optional 30x/60x variants available) |
| Measuring Range | 0.02 mm – 2.00 mm |
| Scale Type | Built-in calibrated reticle |
| Light Source | Integrated LED, battery powered |
| Housing Material | ABS impact-resistant body |
| Applications | Crack monitoring on concrete, masonry, metals |
| Standard Compliance | ASTM C823 |
| Dimensions | Approx. 160 mm × 40 mm × 40 mm |
| Weight | Approx. 180 g |
Applications
-
Measuring hairline cracks in concrete beams, slabs, columns, pavements
-
Monitoring crack progression in masonry walls
-
Assessing structural fatigue in metals
-
Condition assessment during NDT and QC inspections
-
Forensic analysis of damaged structures
Available SKU
| Model No. | Description |
|---|---|
| AZA1153 | Portable Crack Microscope – 40x with LED & Reticle |
Frequently Asked Questions (FAQ)
Q1. Can the microscope be used outdoors?
Yes. The ABS housing and LED illumination make it suitable for outdoor field inspections.
Q2. What is the smallest crack width it can measure?
It can measure cracks as fine as 0.02 mm.
Q3. Does it require calibration?
No. The reticle is factory-aligned and does not require recalibration.
Q4. Is the LED light or battery replaceable?
The battery is easily replaceable. The LED has a long service life.
Q5. On which surfaces can it be used?
It is suitable for concrete, masonry, tiles, metals, and various rigid surfaces.
Additional information
| Product Type |
Portable Crack Microscope |
|---|---|
| Magnification |
40x (standard); optional 30x/60x variants |
| Measuring Range |
0.02 mm to 2 mm |
| Scale Type |
Built-in reticle (etched scale) |
