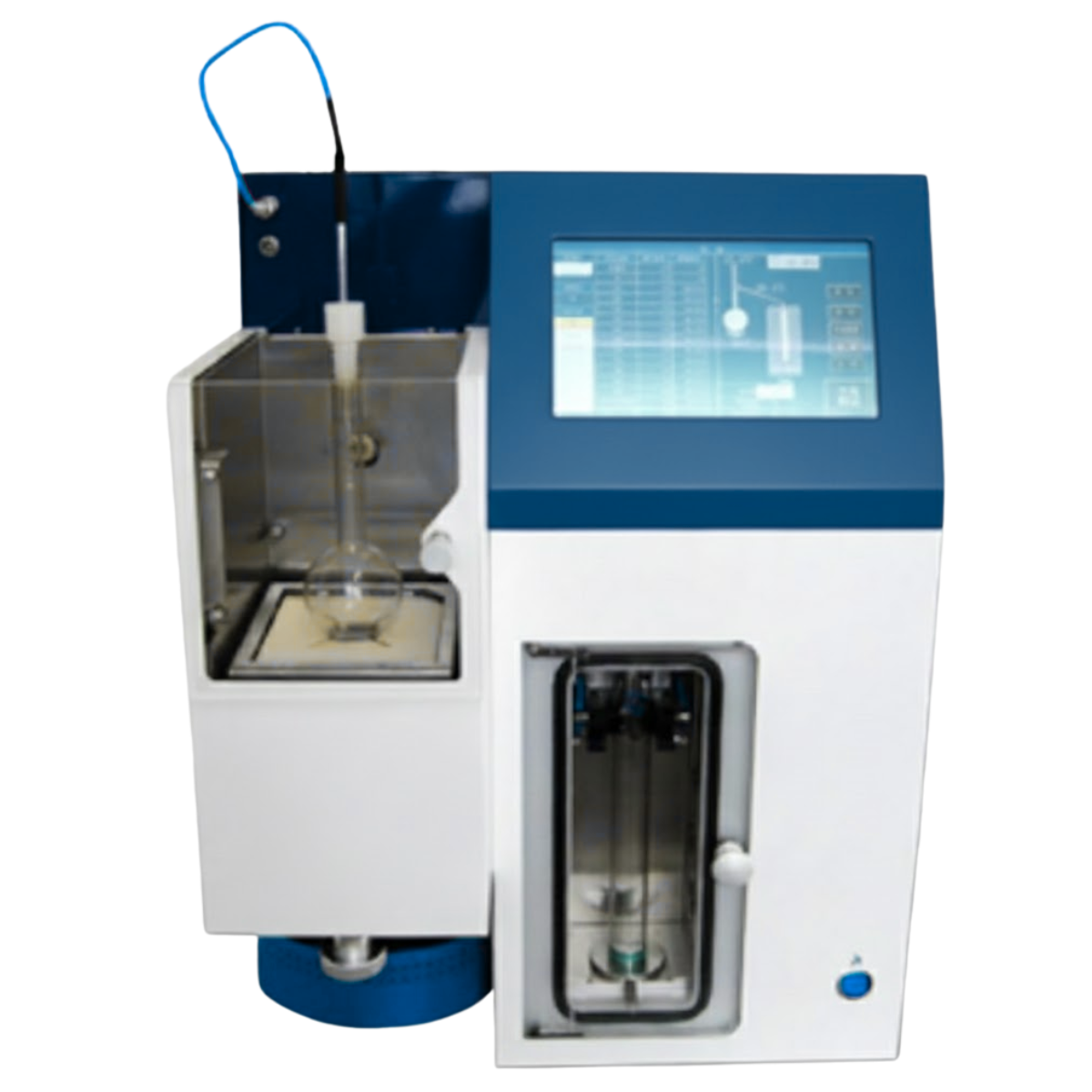

AUTOMATIC DISTILLATION APPARATUS AZA1341
The AZA1341 Automatic Distillation Apparatus from AZA LAB is a patented, fully automatic distillation system engineered for the precise determination of distillation characteristics of petroleum products at atmospheric pressure.
Designed to meet the stringent requirements of ASTM D86, ASTM D850, and ASTM D1078, the AZA1339 delivers exceptional accuracy, repeatability, and operational safety for routine and advanced petroleum testing. The system integrates advanced temperature control, high-precision liquid level tracking, and intelligent automatic correction algorithms to ensure reliable and reproducible results across a wide range of fuels and solvents.
With its intuitive 10.2-inch touch-screen interface, automated data processing, and comprehensive safety systems—including flame detection and nitrogen fire suppression—the AZA1339 is ideally suited for quality control laboratories, refineries, inspection agencies, and research institutions seeking a modern, compliant, and operator-friendly distillation solution.
Description
Standards & Compliance
-
ASTM D86 – Distillation of Petroleum Products at Atmospheric Pressure
-
ASTM D850 – Distillation of Industrial Aromatic Hydrocarbons
-
ASTM D1078 – Volatility of Petroleum Solvents
Key Features
-
Dual cooling system using compressor + semiconductor technology
-
Independent control of bath temperature and air chamber temperature
-
Large 10.2-inch touch-screen display for intuitive operation
-
Automatic detection and correction of ambient temperature and atmospheric pressure
-
Fully automatic judgment, calculation, correction, and recording of results
-
Imported high-precision liquid level tracking system (liquid level + lift)
-
Measuring cylinder resolution: 0.1 ml
-
Low-voltage electric heating furnace with ultra-fast thermal response
-
Automatic and stable control of condensation speed
-
Imported flame detection system for enhanced safety
-
High-accuracy PT100 glass temperature sensor (Germany) with multipoint calibration
-
Integrated automatic and manual nitrogen fire extinguishing system
Applications
-
Gasoline and automotive fuel testing
-
Aviation gasoline and jet/turbine fuel analysis
-
Diesel and marine fuel quality control
-
Biodiesel blends testing (up to B20)
-
Naphtha, kerosene, white spirits, and petroleum solvents
-
Refinery, inspection, and petroleum testing laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1341 |
| Power Supply | AC 220V ±10%, 50 Hz |
| Total Power | 2200 W |
| Bath Temperature Range | 0 – 60°C (±0.1°C) |
| Air Chamber Temperature | 10°C – Ambient (±0.5°C) |
| Steam Temperature Accuracy | ±0.1°C |
| Condensation Rate | 4 – 5 ml/min |
| Liquid Level Resolution | 0.1 ml |
| Safety System | Automatic & Manual Nitrogen Extinguishing |
| Operating Temperature | 5 – 40°C |
| Relative Humidity | ≤ 85% RH |
Operating Conditions
-
Laboratory bench installation
-
Vibration-free surface
-
Single-phase AC power supply
Supply & Support
-
Warranty: 12 months
-
After-Sales Support: Installation, calibration, and operator training
-
Software & Firmware: Continuous technical support
-
Packing: Export-grade wooden crate with shock protection
