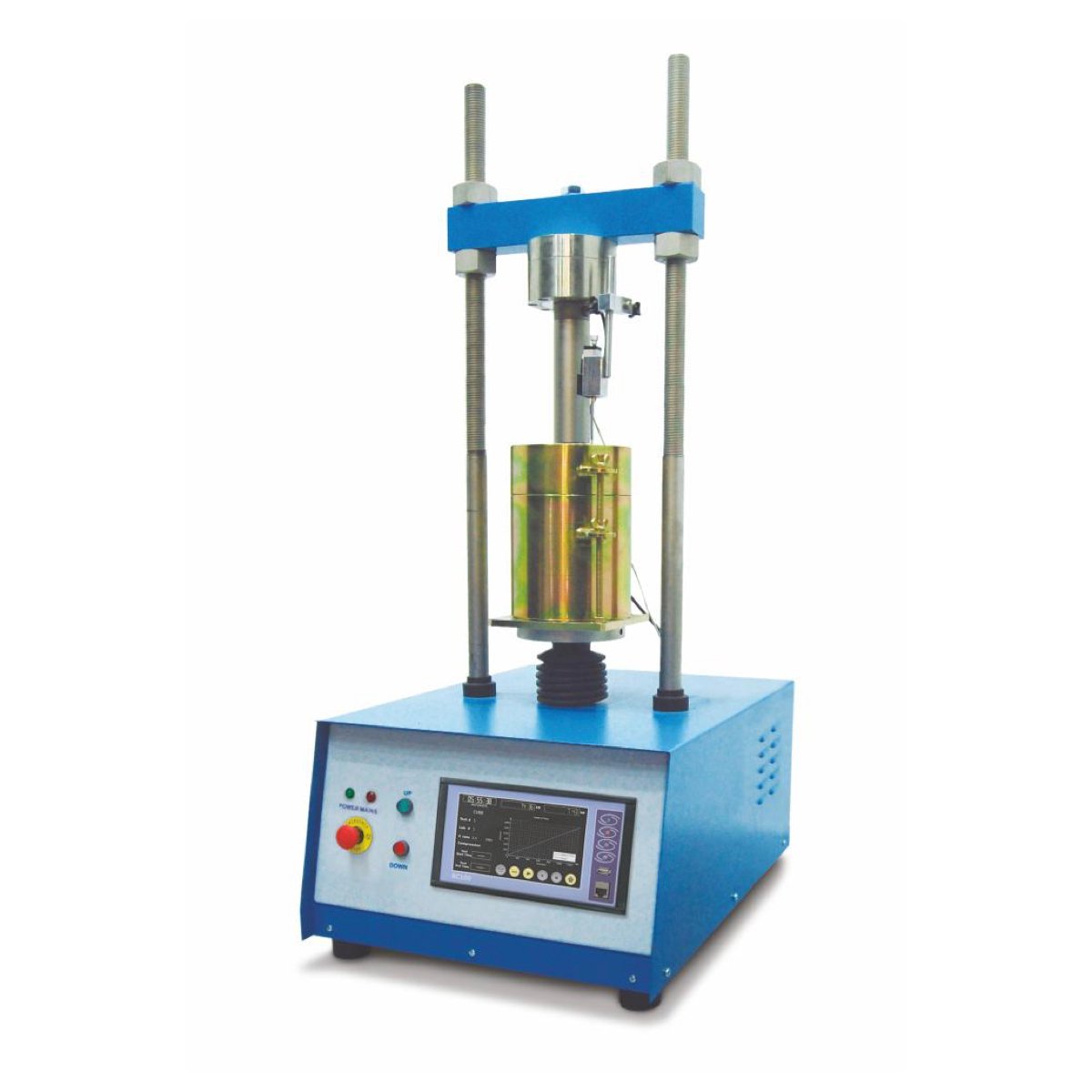

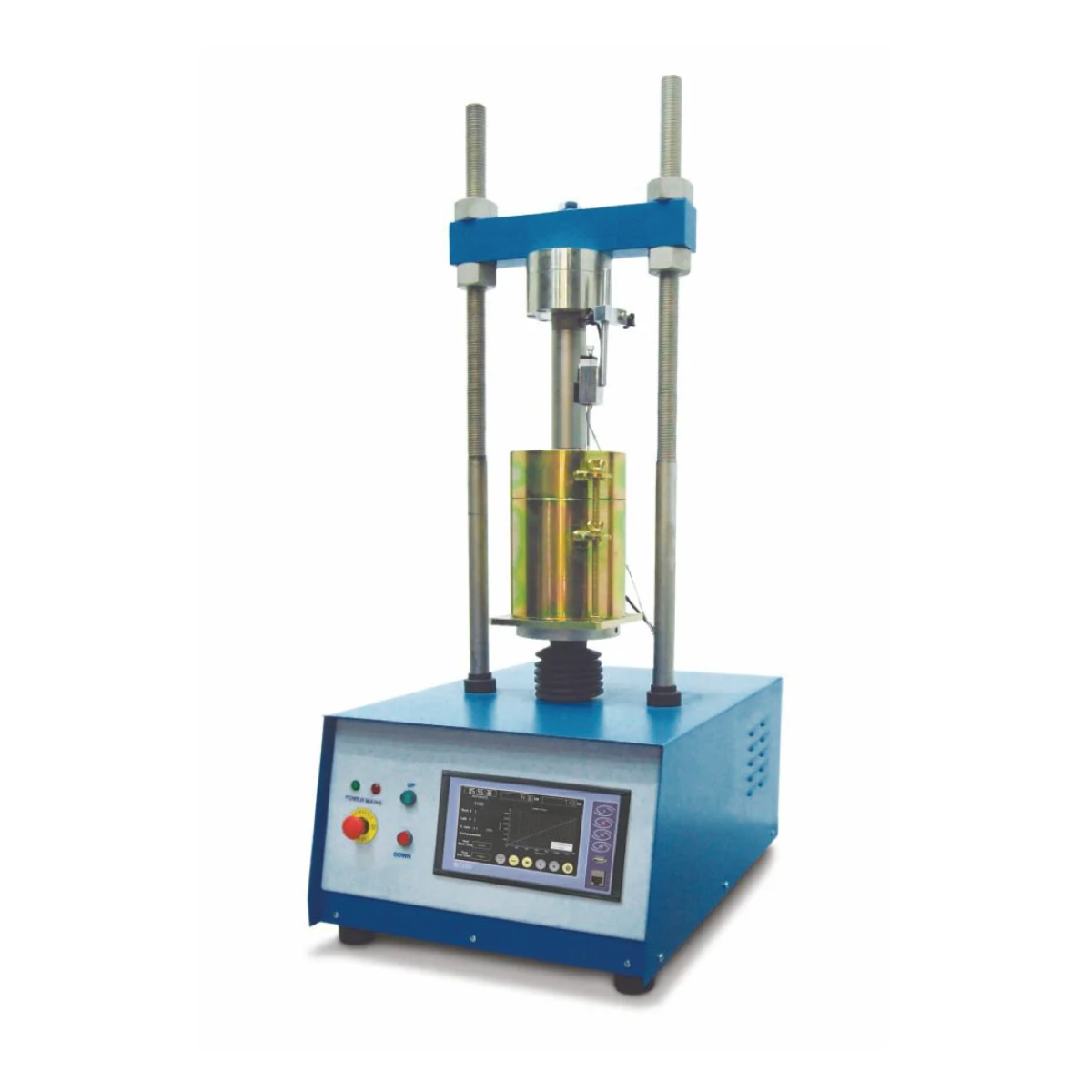

AZA 0913 AUTOMATIC CBR TEST APPARATUS

Description

AZA 0913 Automatic CBR Test Apparatus: Revolutionizing Soil Strength Analysis by Azalab

The Azalab AZA 0913 Automatic CBR Test Apparatus represents a significant advancement in geotechnical laboratory testing, offering an automated and highly precise solution for determining the California Bearing Ratio (CBR) of soils. The CBR test is an empirical penetration test crucial for evaluating the structural integrity of subgrade, sub-base, and base course layers, directly influencing the design thickness of flexible pavements for roads, highways, and airport runways. By automating the test procedure, the AZA 0913 eliminates operator variability, ensures consistent testing conditions, and significantly enhances the reliability and efficiency of results compared to traditional manual methods. This makes it an indispensable tool for modern geotechnical laboratories, highway authorities, and construction companies across India.

The Power of Automation in CBR Testing

Traditional manual CBR testing can be susceptible to several limitations:

• Inconsistent Penetration Rate: Maintaining a precise and constant penetration rate (1.25 mm/min) manually is challenging, leading to variations in results.
• Human Error in Data Recording: Manual recording of load vs. penetration data is prone to observational errors and can be tedious.
• Time-Consuming: The manual plotting of curves and calculations adds to the overall test duration.

The AZA 0913 Automatic CBR Test Apparatus addresses these challenges through its integrated automated system:

• Precise Control of Penetration Rate: A high-precision motorized loading frame ensures that the penetration piston advances at the exact, constant rate stipulated by international standards (1.25 mm/min). This uniformity is vital for comparable and accurate results.
• Automated Data Acquisition: Load cells and displacement transducers continuously capture real-time load and penetration data, eliminating manual errors and ensuring a dense dataset for analysis.
• Software-Driven Analysis: Dedicated, user-friendly software automatically records, processes, and displays the data. It plots the load-penetration curve, applies necessary corrections (e.g., tangent correction), and calculates the CBR values at specified penetrations (2.5 mm and 5.0 mm).
• Enhanced Reproducibility and Accuracy: By standardizing the testing process and minimizing human intervention, the automatic system delivers highly reproducible and accurate results, leading to greater confidence in pavement designs.
• Improved Efficiency: The automated process frees up laboratory technicians, allowing them to focus on sample preparation or other concurrent tasks, significantly increasing laboratory throughput.

Working Principle of the AZA 0913 Automatic CBR Test Apparatus

The operation of the AZA 0913 is streamlined and precise:

1. Sample Preparation: A soil specimen (compacted to a specified density and moisture content, or an undisturbed sample) is prepared within a standard CBR mould. The mould is placed on the base of the loading frame.
2. Sensor Setup: A high-resolution load cell is positioned to measure the force exerted on the penetration piston, and a precise displacement transducer (LVDT or similar) is mounted to measure the corresponding penetration depth of the piston into the soil.
3. Automated Penetration: The motorized loading frame is activated. It drives the penetration piston down into the soil sample at a constant, pre-set rate of 1.25 mm/min.
4. Real-time Data Capture: The load cell and displacement transducer continuously send electronic signals representing load and penetration to an integrated data acquisition system.
5. Software Analysis & Display: The data acquisition system interfaces with a computer running specialized Azalab software. The software records the data points, displays the load-penetration curve in real-time, stores the data, performs automatic calculations for CBR values at 2.5 mm and 5.0 mm penetration, applies corrections if necessary, and generates comprehensive test reports.

Key Features of the Azalab AZA 0913 Automatic CBR Test Apparatus

The AZA 0913 system is built with advanced components for superior performance:

• High-Precision Motorized Loading Frame: Robust, heavy-duty frame with a powerful motor and precision gear mechanism ensuring a constant and accurate penetration rate of 1.25 mm/min.
• High-Resolution Load Cell: Typically 50 kN or 100 kN capacity, providing accurate and continuous load measurement with high precision.
• Linear Displacement Transducer (LVDT/Potentiometer): High-resolution sensor (e.g., 25 mm travel, 0.001 mm resolution) for precise measurement of penetration depth.
• Advanced Data Acquisition System: Multi-channel data logger with high sampling rate to capture simultaneous load and displacement readings.
• User-Friendly Software: Comprehensive software package featuring:
  • Real-time graphical display of load-penetration curve.
  • Automatic calculation of CBR values at 2.5 mm and 5.0 mm.
  • Correction for initial concavity (tangent method) if required.
  • Data storage, retrieval, and export capabilities.
  • Customizable report generation with project details and test parameters.
• Compatibility: Designed to accommodate standard CBR moulds and accessories (surcharge weights, spacer disc, cutting collar).
• Safety Features: Includes overload protection and an emergency stop button for safe operation.
• Durable Construction: Built with high-quality materials for long-term reliability and stability in a laboratory environment.

Applications and Standards Compliance in the Indian Context: The Azalab AZA 0913 Automatic CBR Test Apparatus is invaluable for:

• Pavement Design: Fundamental for designing the thickness of flexible pavements for roads, highways, airports, and industrial areas.
• Quality Control: Verifying the compaction and strength of subgrade, sub-base, and base course materials during construction.
• Soil Stabilization: Evaluating the effectiveness of various soil stabilization techniques.
• Geotechnical Research: Conducting detailed studies on the load-deformation characteristics of soils.
• Material Characterization: For various civil engineering and earthwork projects.

The apparatus is engineered and manufactured to fully comply with leading national and international standards:

• IS 2720 (Part 16):1987 (Reaffirmed 2021): Indian Standard Methods of Test for Soils – Laboratory Determination of California Bearing Ratio.
• ASTM D1883: Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils.
• BS 1377-4: Methods of test for soils for civil engineering purposes – Compaction and CBR tests.

Azalab’s Commitment to Precision and Automation: Azalab is dedicated to providing cutting-edge geotechnical testing solutions that meet the evolving demands of the infrastructure sector. The AZA 0913 Automatic CBR Test Apparatus exemplifies our commitment to innovation, precision, and efficiency. By offering an automated, reliable, and compliant system, we empower engineers and researchers across India to obtain accurate soil strength data, leading to the design and construction of safer, more durable, and cost-effective pavements. Our equipment is built to the highest quality standards and is supported by comprehensive technical assistance and reliable after-sales service.

Specifications:

• Model: AZA 0913
• Product Type: Automatic California Bearing Ratio (CBR) Test Apparatus
• Application: Laboratory determination of CBR value for subgrade, sub-base, and base course materials.
• Loading Frame:
  • Type: Motorized, bench-top/floor-standing.
  • Capacity: Typically 50 kN (5000 kgf) or 100 kN (10000 kgf).
  • Penetration Speed: Constant 1.25 mm/minute (as per standards).
  • Motor: High-precision geared motor.
• Load Measurement:
  • Sensor: High-resolution Load Cell.
  • Capacity: Matching the loading frame (e.g., 50 kN or 100 kN).
  • Accuracy: High precision (e.g., better than ±0.5% of full scale).
• Displacement Measurement:
  • Sensor: Linear Displacement Transducer (LVDT or Potentiometer type).
  • Range: Typically 25 mm.
  • Resolution: High precision (e.g., 0.001 mm).
• Data Acquisition System:
  • Channels: Multi-channel (e.g., 2 channels for load and displacement).
  • Connectivity: USB or Ethernet interface to PC.
  • Sampling Rate: High enough for continuous, accurate data capture.
• Software:
  • Features: Real-time graphical display, automatic data logging, automatic CBR calculation, tangent correction application, customizable report generation (PDF, Excel), data export.
  • Operating System Compatibility: Windows OS.
• CBR Moulds & Accessories: Compatible with standard IS/ASTM CBR moulds (150 mm dia x 175 mm high), spacer disc, cutting collar, surcharge weights, and perforated base plate (sold separately).
• Safety Features: Overload protection, emergency stop switch.
• Power Supply: 230V AC, 50/60 Hz, Single Phase.
• Dimensions (Approx. L x W x H): Varies based on model and frame type.
• Weight (Approx.): Varies based on components.
• Standards Compliance: IS 2720 (Part 16):1987 (Reaffirmed 2021), ASTM D1883, BS 1377-4.
• Country of Origin: Made in India.

FREQUENTLY ASKED QUESTIONS (FAQ):

• Q: What is the primary advantage of an automatic CBR apparatus over a manual one?
  • A: Automation ensures a constant penetration rate, precise data acquisition (load and penetration), eliminates human error, and provides faster, more consistent, and reproducible results with automated calculations and reporting.
• Q: What type of soil samples can be tested with this apparatus?
  • A: It is used for both laboratory-compacted soil specimens and undisturbed soil samples within standard CBR moulds.
• Q: What specific data does the AZA 0913 system automatically record?
  • A: It continuously records load (force) and corresponding penetration (displacement) values throughout the test.
• Q: Does the software perform calculations and corrections?
  • A: Yes, the dedicated software automatically calculates CBR values at 2.5 mm and 5.0 mm penetration and can apply initial tangent corrections if needed.
• Q: What standards does this equipment comply with?
  • A: It complies with IS 2720 (Part 16), ASTM D1883, and BS 1377-4, ensuring globally accepted test results.
• Q: Is the apparatus easy to use for technicians?
  • A: Yes, the software is designed to be user-friendly with intuitive controls and real-time data display, simplifying the testing process.
• Q: What are the main components of the automated system?
  • A: It typically consists of a motorized loading frame, a load cell, a displacement transducer, a data acquisition unit, and specialized software running on a connected computer.
