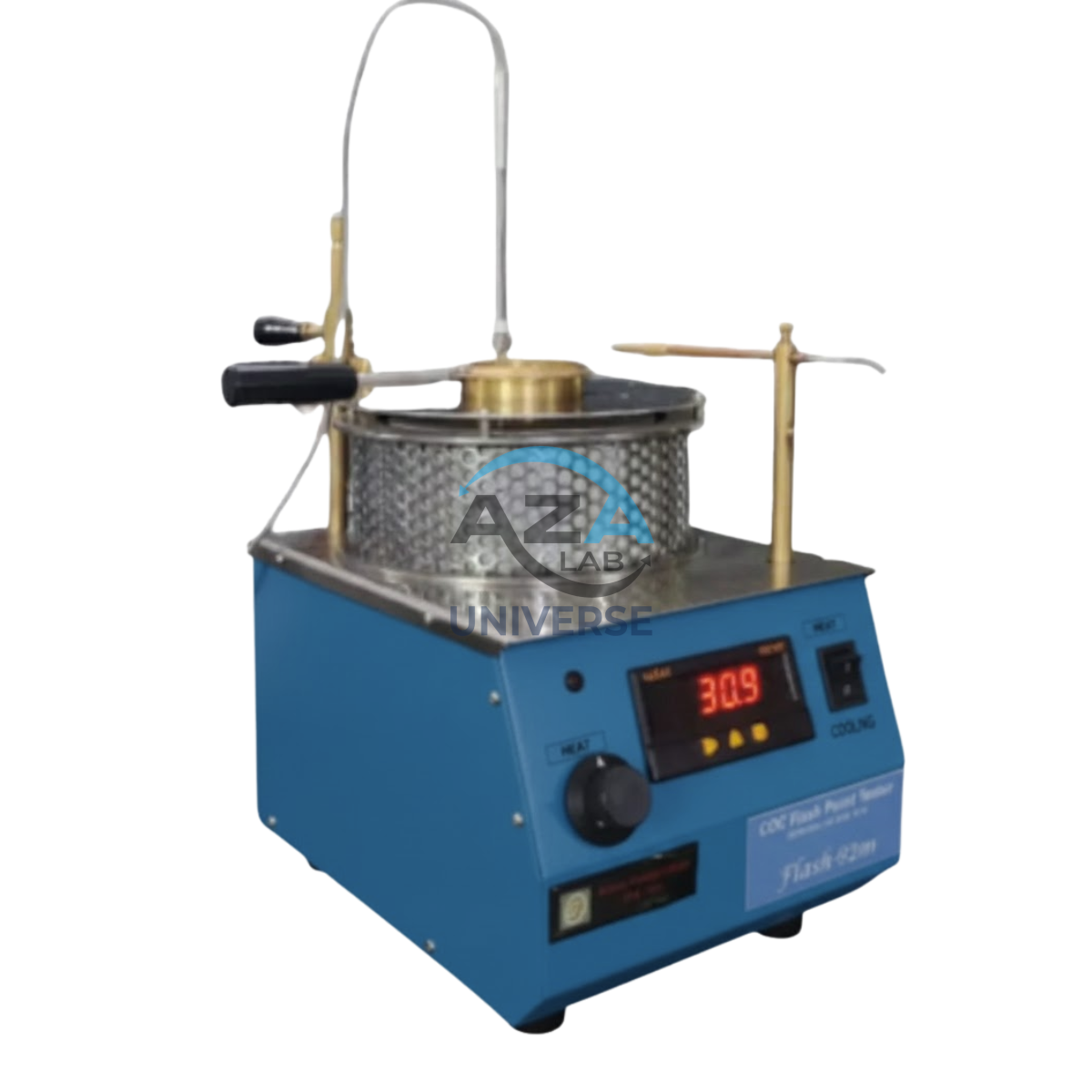

AZA LAB Classic Open Cup Flash Point Apparatus AZA1294
The AZA1294 Classic Open Cup Flash Point Apparatus from AZA LAB is a reliable and cost-effective laboratory instrument designed for the determination of flash point temperature of petroleum products and flammable liquids using the Cleveland Open Cup (COC) method, in full compliance with ASTM D92 and ISO 2592 standards.
This apparatus is widely used in petroleum testing laboratories, quality control facilities, educational institutions, and fuel safety assessment centers, where accurate flammability classification is essential.
Description
Purpose of Flash Point Testing
Flash point testing identifies the lowest temperature at which vapors from a liquid ignite momentarily when exposed to an ignition source. This critical parameter is used to:
-
Classify flammable and combustible liquids
-
Determine safe storage and transportation conditions
-
Evaluate fire and explosion hazards
-
Meet regulatory and insurance requirements
The open cup method provides conservative and realistic results by allowing vapors to disperse freely, closely simulating real-world spill and exposure conditions.
ASTM D92 Cleveland Open Cup Method
The AZA1294 employs the Cleveland Open Cup (COC) test method, recommended for petroleum products with higher flash points, such as:
-
Lubricating oils
-
Diesel fuels
-
Heavy oils
-
Biofuels
-
Transformer and insulating oils
The apparatus consists of a polished brass test cup placed on a controlled heating block. The temperature of the sample is increased at a standardized rate while a manually controlled test flame is passed over the sample surface at defined intervals until flash is observed.
Robust & User-Friendly Design
The AZA1294 features a classic, operator-friendly design that emphasizes accuracy, safety, and repeatability:
-
Thermostatically controlled heating unit for smooth temperature ramp
-
Clear visibility zone for easy flame observation
-
Manual flame applicator for controlled ignition
-
Thermometer port compatible with ASTM-certified thermometers
Its straightforward operation makes it particularly suitable for training laboratories and routine QC testing, where understanding the test process is as important as the result itself.
Why Choose AZA1294?
-
Fully compliant with ASTM D92 & ISO 2592
-
Accurate and repeatable flash point determination
-
Ideal for petroleum products, lubricants, and biofuels
-
Manual operation for hands-on control and learning
-
Durable construction with long service life
-
Cost-effective alternative to fully automated analyzers
This apparatus is trusted in oil refineries, fuel blending facilities, transportation safety labs, and academic institutions worldwide.
Key Features
-
Cleveland Open Cup flash point apparatus
-
ASTM D92 standard compliance
-
Polished brass test cup
-
Manual test flame ignition
-
Controlled and consistent heating rate
-
Suitable for high flash point petroleum products
-
Compact, bench-top laboratory design
-
Low maintenance and easy calibration
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1294 |
| Test Method | Cleveland Open Cup (ASTM D92, ISO 2592) |
| Temperature Range | Ambient to 400 °C |
| Heating Rate | 5–6 °C/min (standard compliant) |
| Test Cup Material | Polished Brass |
| Ignition Source | Manually controlled test flame |
| Thermometer Compatibility | ASTM E2251 glass thermometer |
| Power Supply | 230 V ±10%, 50/60 Hz |
| Dimensions | Approx. 300 × 200 × 220 mm |
| Application Areas | Petroleum labs, QC testing, education |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the AZA1294?
It is used to determine the flash point of petroleum products and flammable liquids using the Cleveland Open Cup method.
Q2: Why is the open cup method preferred for some products?
It allows free vapor exposure, offering conservative results that better represent real-world spill conditions.
Q3: Is the AZA1294 compliant with ASTM standards?
Yes, it is fully compliant with ASTM D92 and ISO 2592.
Q4: Can it be used for non-petroleum liquids?
Yes, it can be used for biodiesel, synthetic oils, and selected industrial solvents.
Q5: Is special training required?
Only basic laboratory training is needed. The manual design makes operation intuitive and educational
Model: AZA1294 – Classic Open Cup Flash Point Apparatus (ASTM D92)
Additional information
| Method Supported |
Open Cup (ASTM D92, ISO 2592) |
|---|---|
| Sample Cup |
Stainless steel, removable |
| Heating Rate |
Adjustable, typically 5–6°C per minute |
| Ignition Source |
Manual flame / Electric igniter (optional) |
You may also like…
3D Printer AZA1255
The AZA1255 AZALAB 3D Printer is a high-precision, versatile additive manufacturing system engineered for educational institutions, research laboratories, professional design studios, and industrial prototyping environments. Designed to deliver speed, accuracy, and repeatability, this advanced 3D printer is ideal for producing functional prototypes, detailed models, custom components, architectural parts, and educational aids.
Combining robust mechanical design with intelligent control software, the AZA1255 ensures consistent, high-quality output across a wide range of applications.
Abrasion Testing Machine for Glazed Tiles AZA1262
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1262) is a robust, high-performance laboratory instrument engineered for precise and high-speed abrasion resistance testing of glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is designed to ensure reliable evaluation of tile durability under simulated real-world wear conditions.
With the capability to test up to four specimens simultaneously, the AZA1262 significantly improves testing efficiency while maintaining exceptional accuracy and repeatability—making it ideal for tile manufacturers, certification laboratories, and quality control departments
ABS Braking System Training Board Simulator AZA1245
The AZA1245 AZALAB ABS Braking System Training Board Simulator is a fully functional automotive training platform designed to provide in-depth, hands-on understanding of Anti-lock Braking System (ABS) operation, diagnostics, and repair procedures. Built using real automobile components, this simulator enables students and technicians to study ABS structure, electronic control, hydraulic behavior, and fault diagnostics in a safe and controlled learning environment.
This training system is ideal for automotive training institutes, engineering colleges, technical schools, and service technician programs, supporting both instructional demonstrations and practical troubleshooting exercises.
Alternator Trainer AZA1247
The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.
This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.
Closed Cup Flash Point Tester AZA1280
The AZA1280 Closed Cup Flash Point Tester from AZA Lab is a high-performance, fully automated instrument designed for accurate determination of flash points of volatile and combustible liquids using the Tag Closed Cup (TCC) method, in full compliance with ASTM D56 standards.
This analyzer is specifically intended for liquids with flash points below 93°C (200°F) and low viscosity samples, making it an essential tool for petroleum laboratories, fuel testing facilities, quality control departments, and R&D centers requiring high precision at low and sub-zero temperatures.
Petroleum Product Distillation Tester AZA1284
The AZA1284 Manual Distillation Unit from AZA Lab is a high-precision, front-type petroleum distillation system engineered for accurate determination of distillation characteristics of petroleum products in accordance with ASTM D86 and GB/T 6536 test methods. Designed for laboratories that require reliable manual control with superior thermal stability, this unit delivers consistent, repeatable, and standards-compliant results.
With its dual-unit configuration, independently controlled constant-temperature baths, and continuously adjustable heating power, the AZA1284 offers exceptional flexibility and efficiency for routine quality control, inspection, and research applications.
Related products
Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)
- UU–CU–CD test modes for complete soil strength profiling
- Automated control of pressure, load, and drainage
- Compatible with clay, silt, sand, and mixed soils
- Integrated data acquisition and real-time graphing
- Meets ASTM D2850, D4767, BS1377, AASHTO standards
- Ideal for geotechnical, research, and academic use

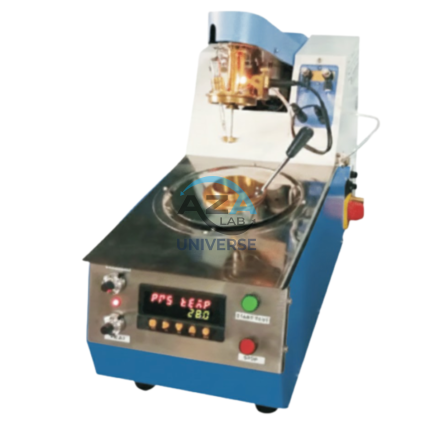

Flash Point D93 Abel Closed Cup Tester AZA1278
The AZA1278 Flash Point D93 Abel Closed Cup Tester from AZA Lab is a high-precision laboratory instrument designed for accurate determination of the closed cup flash point of petroleum products. It complies fully with ASTM D93 (Pensky-Martens Closed Cup) test methods, ensuring reliable, repeatable, and safety-critical measurements.
This instrument is widely used in petroleum laboratories, refineries, fuel testing centers, and quality control facilities to evaluate the flammability characteristics of fuels, lubricants, oils, and other petroleum fractions
Fully Automated Atmospheric Distillation Analyzer AZA1287
The AZA1287 Atmospheric Distillation Analyzer from AZA Lab is a fully automated, high-precision distillation testing system designed for petroleum laboratories that require ASTM D86-compliant determination of boiling range characteristics. Engineered for accuracy, repeatability, and high-throughput operation, the AZA1287 is ideal for testing gasoline, diesel, kerosene, jet fuel, light hydrocarbons, and other petroleum fractions.
Atmospheric distillation testing plays a critical role in evaluating fuel volatility, composition, and performance, directly influencing fuel quality, emissions compliance, and operational safety. The AZA1287 automates the complete distillation process—eliminating manual intervention, reducing operator error, and ensuring consistent, regulation-compliant results.

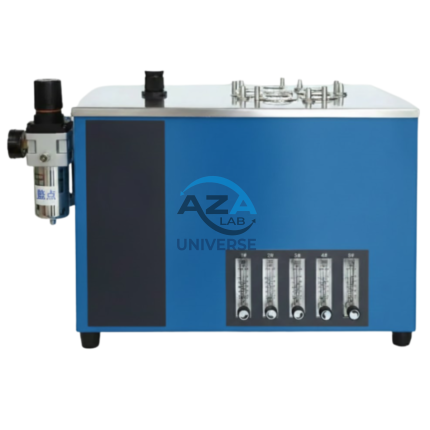

Gum Content Tester AZA1317
The AZA1317 Gum Content Tester from AZA Lab is a precision laboratory instrument designed to determine the existent gum content in aviation gasoline and motor gasoline. Existent gum testing is critical for evaluating fuel cleanliness, storage stability, and combustion performance, helping prevent injector fouling, valve deposits, and engine performance degradation.
Note: This instrument is not suitable for aviation turbine fuel testing.
With accurate temperature control, efficient evaporation, and multi-sample capability, the AZA1317 is ideal for fuel testing laboratories, refineries, inspection agencies, and quality control departments.

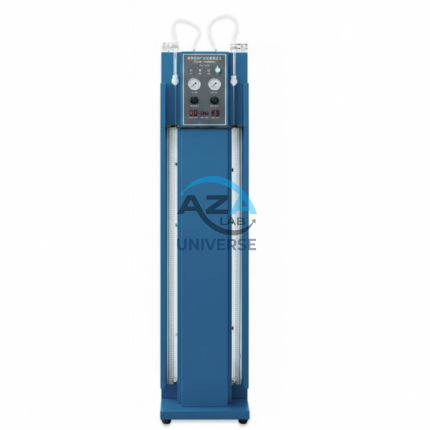

Liquid Petroleum Products Hydrocarbon Tester AZA1316
