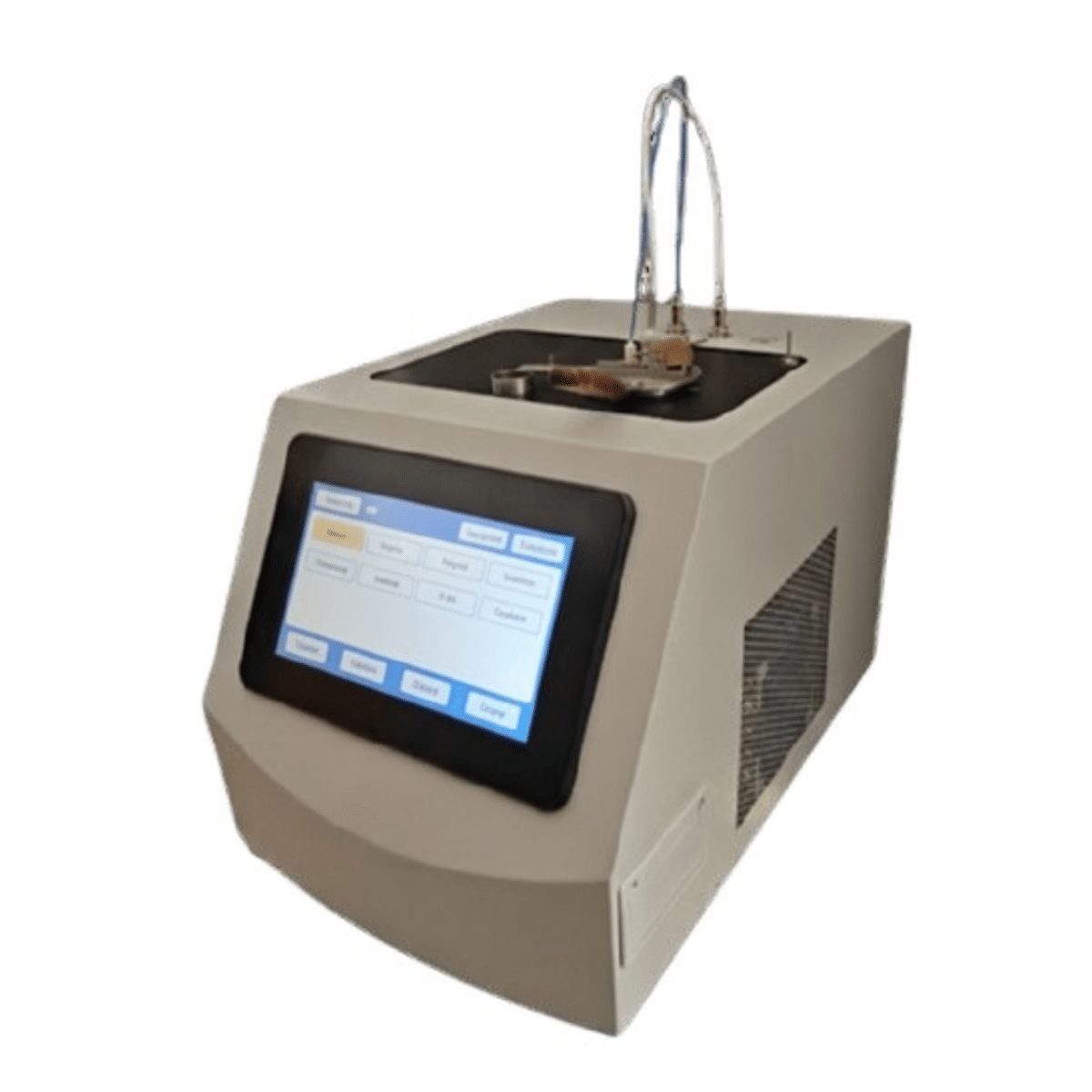

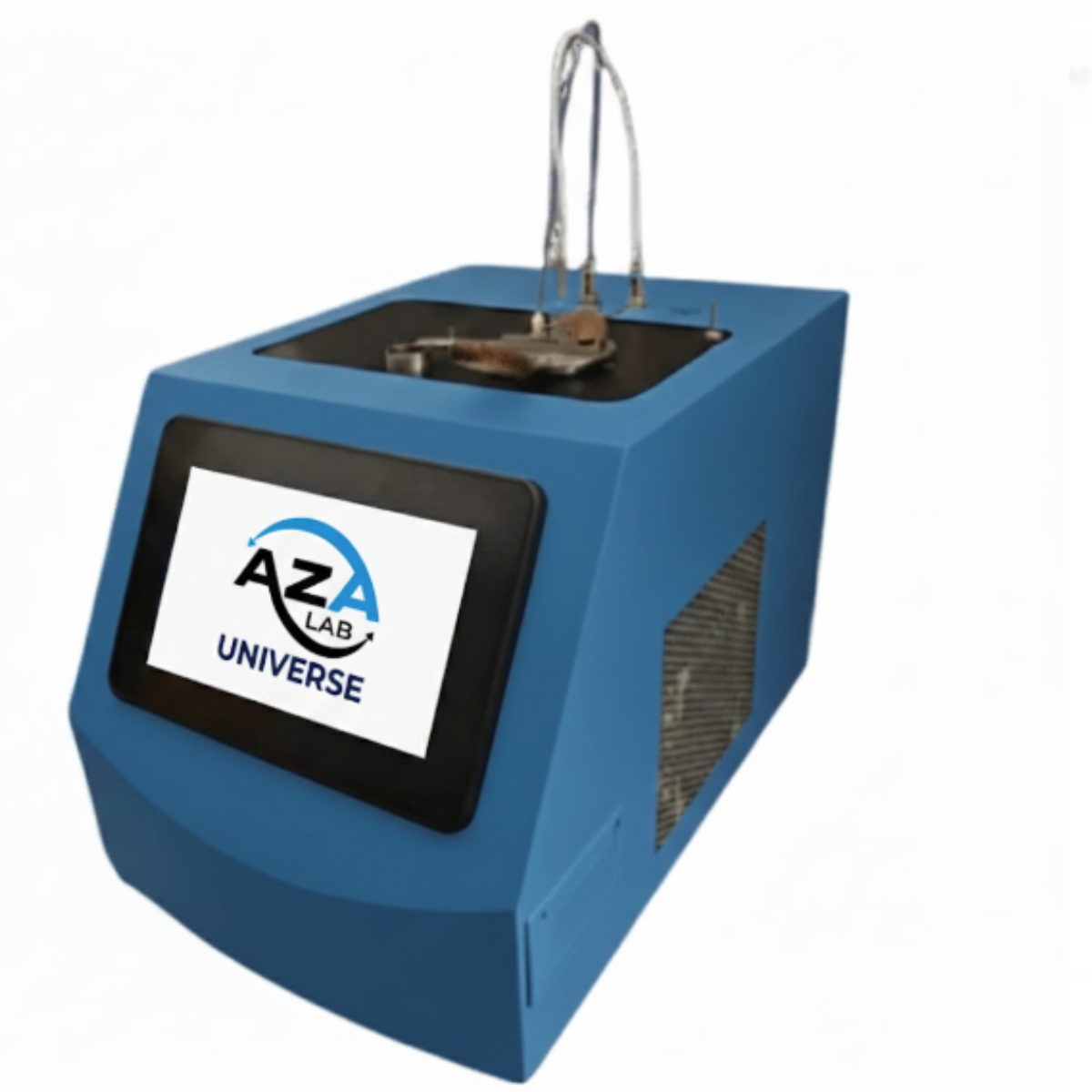

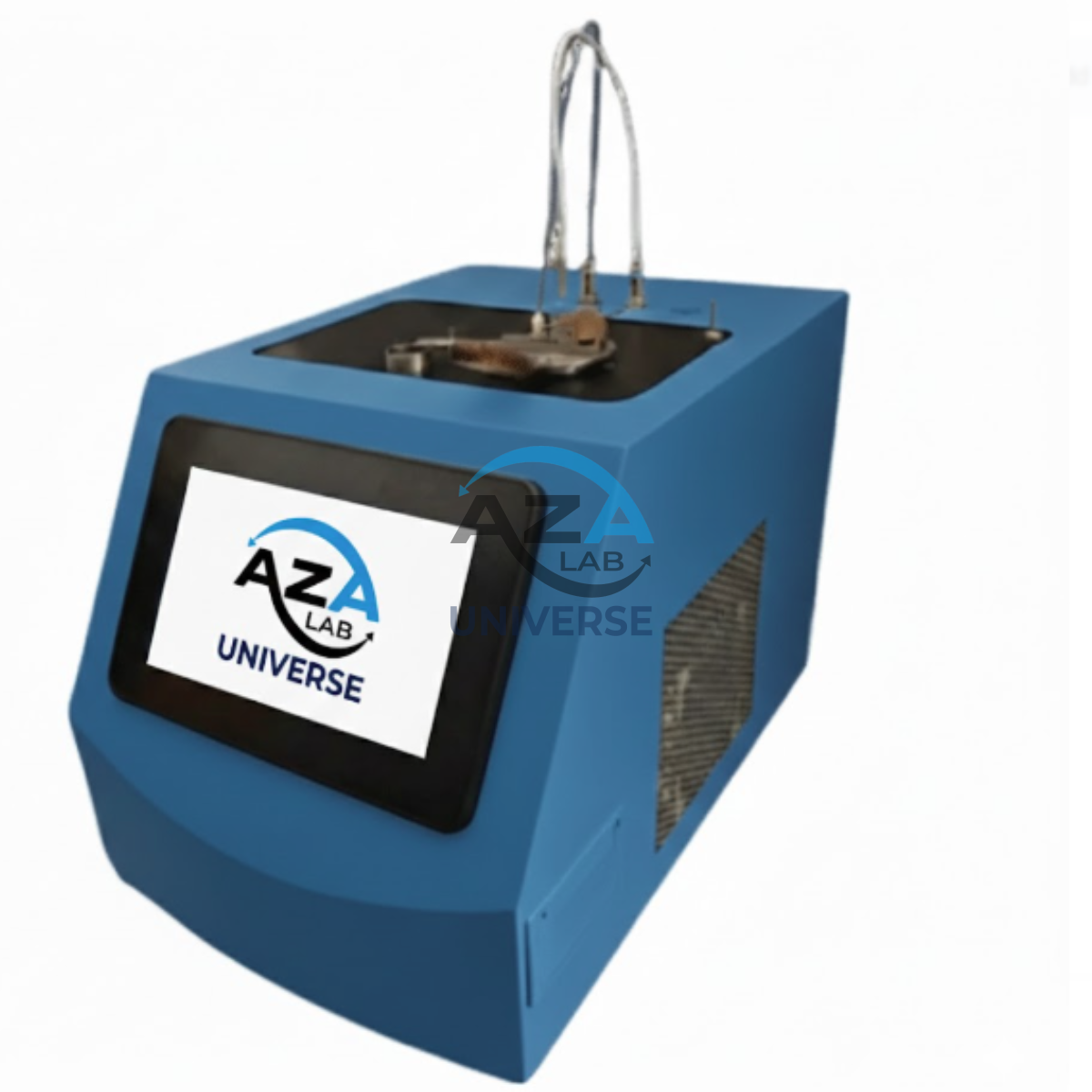

Closed Cup Flash Point Tester AZA-1280
The Closed Cup Flash Point Tester (Model: AZA-1280) from AZA Lab is designed in accordance with ASTM D56 Standard Test Method for Flash Point by Tag Closed Cup Tester. It accurately determines the flash point of liquids with viscosities below 5.5 cSt at 40°C (104°F) or below 9.5 cSt at 25°C (77°F), and flash points below 93°C (200°F), excluding cut-back asphalts, liquids forming surface films, or those containing suspended solids.
Equipped with a gas supply system using stainless steel piping for durability and stability, this highly automated instrument ensures precise, reliable, and reproducible results. The dual Danfoss compressors in the cooling system allow testing at temperatures as low as -50°C, providing exceptional performance for flash point determination.
Description
Key Features & Applications
-
Fast Refrigeration & Deep Cooling: Capable of cooling oil samples down to -50°C quickly.
-
Rapid Temperature Drop: Reaches -60°C from room temperature in approximately 30 minutes.
-
Adjustable Temperature Ramp: Options for 3°C/min or 1°C/min temperature rise rates.
-
Convenient Operation: Equipped with liquid level overflow and filling ports.
-
High-Precision Measurement: Glass PT100 sensor provides temperature readings equivalent to standard thermometers.
-
User-Friendly Interface: Touch screen operation with thermal printer and large data storage for thousands of test records.
-
Flexible Flash Point Detection: Supports unknown flash point detection for versatile testing.
-
Automatic Ion Ring System: Auto ON/OFF ignition ensures precise and safe flash point testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA-1280 |
| Rated Voltage | AC 220V ±10%, 50 Hz |
| Power | 1500 W |
| Operation | Touch LCD |
| Test Temperature Range | -40~70°C |
| Ignition Gas Source | Pipelined gas or LPG, pressure < 10 kPa |
| Printer | Thermal printer |
| Cooling Mode | Double compressor refrigeration |
| Ambient Requirements | Temperature: 10~40°C, Humidity ≤85% |
| Dimensions (L×W×H) | 560 × 600 × 660 mm |
| Net Weight | 45 kg |
Why Choose AZA-1280?
-
Rapid & Precise Testing: Fast cooling and accurate flash point measurement ensure efficient lab operations.
-
Automated & Safe: Ion ring system with auto ignition reduces risk and human error.
-
Versatile Applications: Ideal for various petroleum liquids and oils within specified viscosity and flash point ranges.
-
Data Management: Large storage capacity and built-in thermal printer for easy record keeping.
The AZA-1280 Closed Cup Flash Point Tester is the perfect solution for petroleum laboratories, QC departments, and research facilities, providing safe, rapid, and precise flash point testing for a wide range of liquid fuels and petroleum products.
Additional information
| Model |
ABEL Closed Cup Flash Point Tester |
|---|---|
| Test Method |
ASTM D93, ISO 2719 |
| Temperature Range |
30 °C to 400 °C |
| Accuracy |
±0.5 °C |
