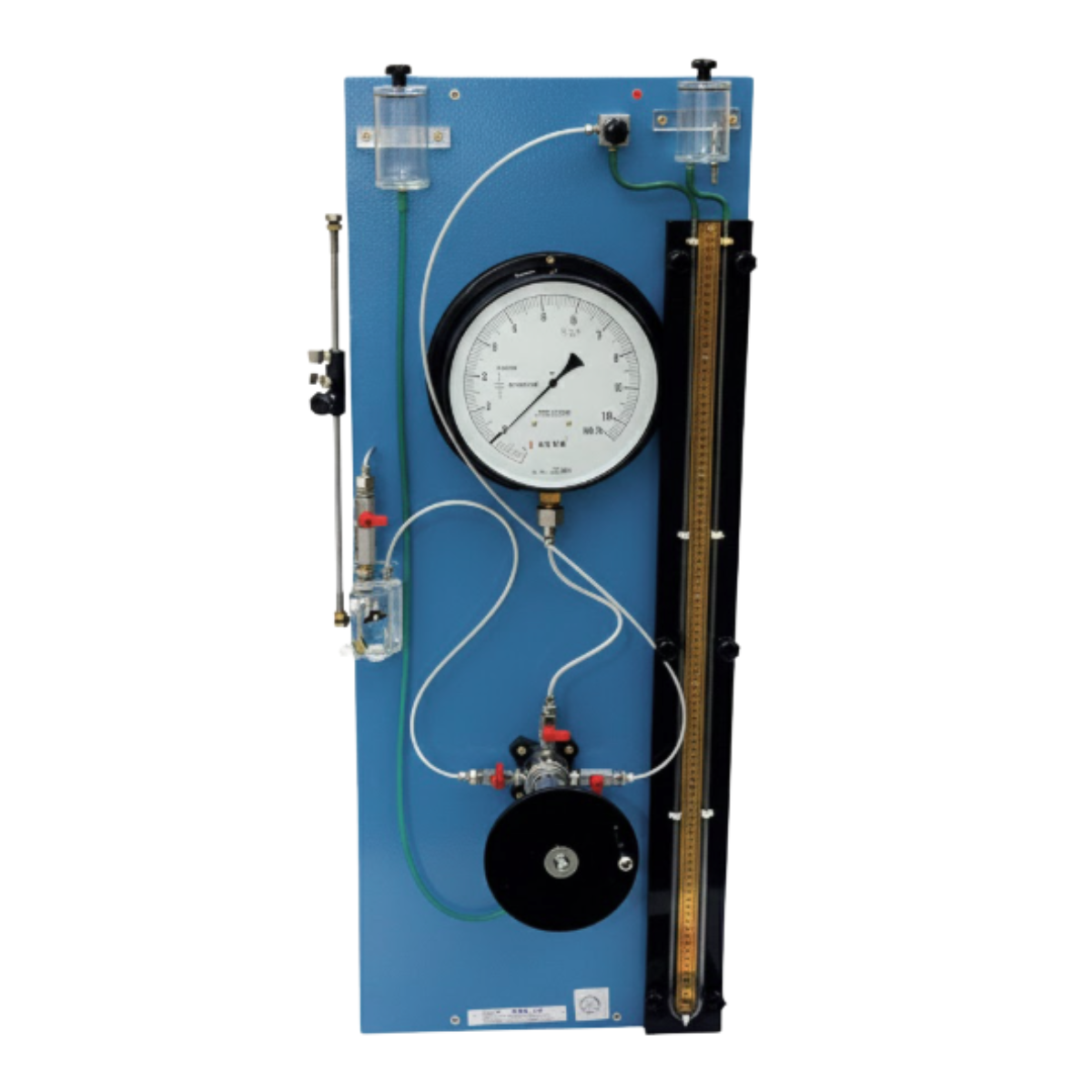

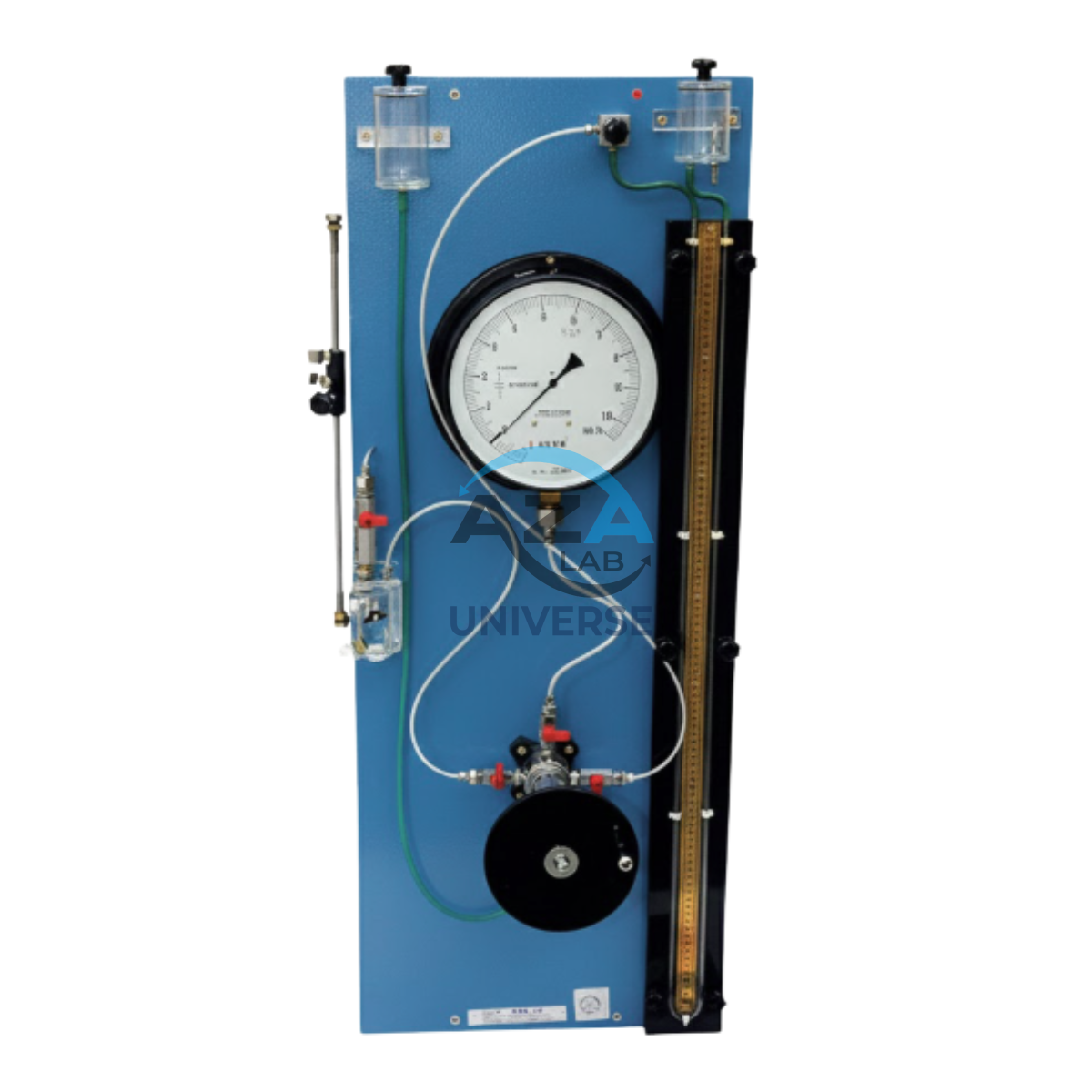

PORE PRESSURE APPARATUS 10 KG/CM² AZA0904

The AZA0904 Pore Pressure Apparatus from Azalab is a precision laboratory instrument designed for accurate measurement of pore water pressure in saturated soil specimens during advanced geotechnical testing. It is an essential accessory for Consolidated Undrained (CU) and Consolidated Drained (CD) triaxial shear tests, where correct interpretation of effective stress and soil stability depends directly on reliable pore pressure data.

Engineered for seamless integration with triaxial cells, the AZA0904 enables real-time monitoring of pore pressure generation and dissipation as axial and confining loads are applied. Its rugged construction, calibrated pressure gauge, and leak-proof valve system ensure dependable performance in routine laboratory testing as well as research-grade applications.

Enquiry on WhatsApp
Category:
Description

Description

Applications

The AZA0904 Pore Pressure Apparatus is widely used in:

  • CU and CD triaxial shear strength testing

  • Permeability testing of cohesive and fine-grained soils

  • Measurement of excess pore water pressure during shearing

  • Consolidation and effective stress studies

  • Academic and applied research in soil mechanics

It allows engineers to accurately assess pore pressure behavior, which directly influences shear strength evaluation, slope stability analysis, and settlement predictions.

Construction & Features

The apparatus is manufactured using high-quality, corrosion-resistant materials for long-term accuracy and durability. Standard features include:

  • Bourdon-type pressure gauge with 0–10 kg/cm² range

  • Transparent acrylic or polycarbonate water reservoir

  • De-airing valve and drain outlet for proper saturation control

  • Air inlet with control valve and pressure regulator

  • Quick-coupling outlets for direct connection to triaxial cells

  • Rigid base with anti-slip mounting for bench-top use

The transparent reservoir allows easy visual inspection for trapped air bubbles, ensuring correct saturation and reliable readings. An optional digital pressure transducer is available for connection to automated data acquisition and logging systems.

Standards & Compliance

The AZA0904 conforms to recognized international standards for soil testing:

  • ASTM D4767 – Consolidated Undrained Triaxial Compression Test

  • BS 1377 Part 7 – Triaxial Tests on Soils

  • IS 2720 Part 11 – Determination of Shear Strength Parameters

Key Benefits

  • Accurate pore pressure measurement up to 10 kg/cm²

  • Suitable for both manual and digital data acquisition systems

  • Leak-proof design with precision control valves

  • Easy integration with triaxial, permeability, and consolidation setups

  • Essential for effective stress evaluation in geotechnical design

Specifications – AZA0904 Pore Pressure Apparatus

Feature Specification
Pressure Range 0 – 10 kg/cm²
Pressure Gauge Bourdon Dial (Digital optional)
Reservoir Material Transparent Acrylic / Polycarbonate
Reservoir Capacity Approx. 250 – 500 ml
Connections Inlet, Outlet, Drain with Quick Couplers
Valves Air Release, Pressure Regulator, Drain
Maximum Operating Pressure 10 kg/cm²
Mounting Bench-top, Anti-Slip Base
Compatible Tests CU, CD, Permeability, Consolidation
Standards ASTM D4767, BS 1377 Part 7, IS 2720 Part 11
Application Laboratory soil pore pressure measurement

Frequently Asked Questions (FAQ)

Q1: What is the function of the AZA0904 in triaxial testing?
A1: It measures pore water pressure generated within a saturated soil specimen during shearing, which is essential for determining effective stress.

Q2: Can the AZA0904 be used for permeability testing?
A2: Yes, it is suitable for permeability and consolidation studies where pore pressure response is critical.

Q3: Is digital data logging supported?
A3: Yes, an optional digital pressure transducer allows integration with electronic data acquisition systems.

Q4: What pressure range does the apparatus support?
A4: The AZA0904 accurately measures pore pressures from 0 to 10 kg/cm².

Q5: How often should calibration be performed?
A5: Periodic calibration is recommended to maintain accuracy, particularly for research and high-precision testing.

Pore pressure measurement up to 10 kg/cm²
Essential for CU and CD triaxial shear tests
Supplied with Bourdon gauge, control valves, and transparent reservoir
Suitable for permeability and consolidation studies
Rugged, calibrated design for reliable geotechnical laboratory use

Additional information

Additional information

Pressure Range

0 – 10 kg/cm²
Pressure Gauge Type

Bourdon Dial or Digital (optional)
Reservoir Material

Transparent Acrylic or Polycarbonate
Reservoir Capacity

250 – 500 ml (approx.)

You may also like…

Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)

  • UU–CU–CD test modes for complete soil strength profiling
  • Automated control of pressure, load, and drainage
  • Compatible with clay, silt, sand, and mixed soils
  • Integrated data acquisition and real-time graphing
  • Meets ASTM D2850, D4767, BS1377, AASHTO standards
  • Ideal for geotechnical, research, and academic use
Read more
Quick view

Air Bag Trainer AZA1246

The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.

This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.

Read more
Quick view

Alternator Trainer AZA1247

The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.

This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.

Read more
Quick view

Arc Welding Machine AZA1234

The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.

With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.

Read more
Quick view

AutoDist‑86 Glass Distillation AZA1282

AutoDist-86 Glass Distillation Unit – AZA1282

The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.

Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.

Read more
Quick view

AutoFlash – Automated Abel Flash Point Analyzer AZA1277

The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.

Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.

Read more
Quick view

    Related products

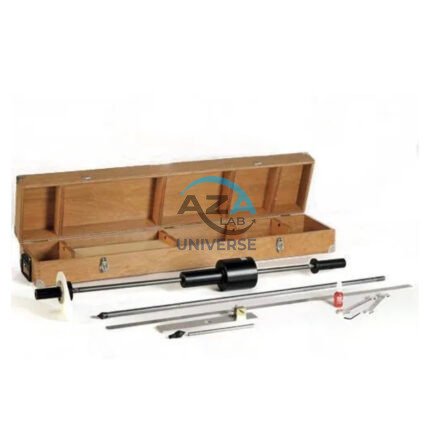

    Dynamic Cone Penetrometer AZA 0872 - In-Situ Soil Strength Test
