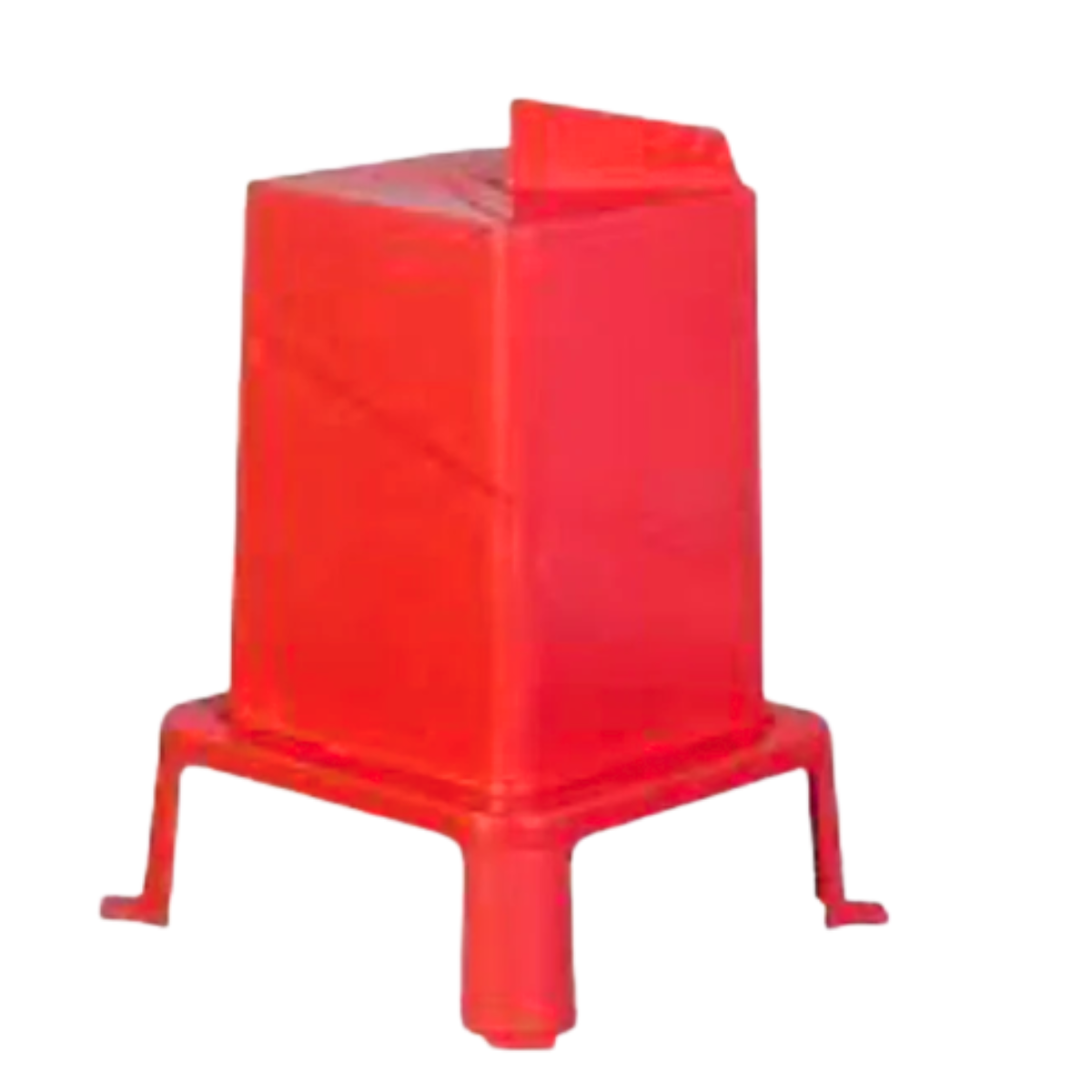

SQUARE HOLE FORM AZA1021
Precision Square Concrete Footing Mold for Posts & Structural Bases by Azalab
The AZA1021 Square Hole Form is a rigid, pre-engineered concrete mold designed for forming accurate square foundations for posts, pillars, fencing systems, signage, decks, and structural columns. Engineered for speed, precision, and consistency, this form is ideal for residential, commercial, and infrastructure projects where square geometry and sharp edges are structurally or aesthetically required.
Available from Azalab, the AZA1021 enables contractors, landscapers, and builders to pour concrete footings cleanly and efficiently while reducing labor time and material waste.
Description
Why Choose the AZA1021 Square Hole Form?
Traditional footing methods using timber shuttering or soil shaping often result in misalignment, uneven edges, and inconsistent dimensions. The AZA1021 eliminates these risks with a predefined square mold, ensuring uniformity and repeatability across installations.
Key Advantages
-
Perfect square geometry with sharp, clean edges
-
Consistent width and depth for structural accuracy
-
Faster setup compared to timber formwork
-
Reduced concrete wastage and rework
-
Smooth surface finish requiring minimal post-work
-
Reusable options for cost efficiency
Unlike round forms, the AZA1021 is specifically designed for square posts, columns, and base plates, ensuring proper load transfer and alignment.
Material & Structural Design
Azalab manufactures the AZA1021 using construction-grade materials suitable for demanding site conditions:
-
HDPE / ABS Plastic (Reusable models)
-
Fiber-reinforced cardboard (Single-use models)
Material Benefits
-
Weatherproof and UV-resistant
-
High rigidity with low weight
-
Smooth internal surfaces for easy de-molding
-
Resistant to moisture and site abrasion
-
Stackable and transport-friendly
-
Optional reinforcement slots for rebar positioning
Plastic models feature reinforced walls for repeated use, while fiberboard versions provide a cost-effective single-pour solution.
Typical Applications
The AZA1021 Square Hole Form is ideal for:
-
Fence posts and boundary structures
-
Structural columns and pillars
-
Deck, veranda, and pergola footings
-
Lighting poles and signboard bases
-
Solar panel ground-mount systems
-
Playground and outdoor equipment foundations
Available in multiple plan sizes and depths to match varying load and soil conditions.
Installation Procedure
-
Excavate a square pit to the required depth
-
Place the AZA1021 form into the cavity
-
Ensure the form is level and properly aligned
-
Insert reinforcement bars or post anchors if required
-
Pour ready-mix concrete evenly into the mold
-
Lightly vibrate to remove trapped air
-
Allow concrete to cure as per mix design and climate
-
Remove or dismantle the form after curing
For structural applications, reinforcement and curing should follow IS 456, ACI, or relevant local standards.
Technical Specifications
| Feature | Description |
|---|---|
| Model | AZA1021 |
| Material Options | HDPE / ABS Plastic / Fiberboard |
| Plan Sizes | 300 × 300 mm / 400 × 400 mm / 500 × 500 mm |
| Height Options | 450 mm / 900 mm / 1200 mm / 1500 mm |
| Surface Finish | Smooth internal faces |
| Application Areas | Posts, pillars, decks, signage, solar mounts |
| Reusability | Reusable (plastic) / Single-use (fiberboard) |
| Packaging | Flat-packed (collapsible) or rigid cube |
| UV & Water Resistance | Yes (plastic models) |
Frequently Asked Questions (FAQ)
Q1: Can the AZA1021 Square Hole Form be reused?
Yes. HDPE and ABS plastic versions are reusable across multiple pours. Fiberboard models are generally single-use.
Q2: Will concrete stick to the form?
No. The smooth internal surface ensures clean release after curing. Release agents may be used if required.
Q3: What sizes are available?
Standard sizes range from 300×300 mm to 500×500 mm, with depths up to 1500 mm. Custom sizes can be supplied on request.
Q4: Is it suitable for heavy-duty foundations?
Yes. When used with reinforcement bars and proper concrete mix design, it is suitable for heavy posts and structural columns.
Q5: Does it support vertical reinforcement alignment?
Yes. Selected models include slots or guides for securing vertical rebars or anchor bolts.
AZA1021 Square Hole Form – Key Highlights
-
Shapes perfect square concrete foundations
-
Ideal for posts, pillars, decks, and signage bases
-
Strong, weather-resistant, and reusable construction
-
Reduces labor time and improves dimensional accuracy
-
Available in multiple sizes and depths
-
Smooth finish and easy removal after curing
Additional information
| Material |
HDPE / ABS Plastic / Fiberboard |
|---|---|
| Size Options |
300x300mm, 400x400mm, 500x500mm |
| Height Options |
450mm, 900mm, 1200mm, 1500mm |
| Reusability |
Yes (plastic), No (fiberboard) |
