LEVELLING STAVES AZA1034

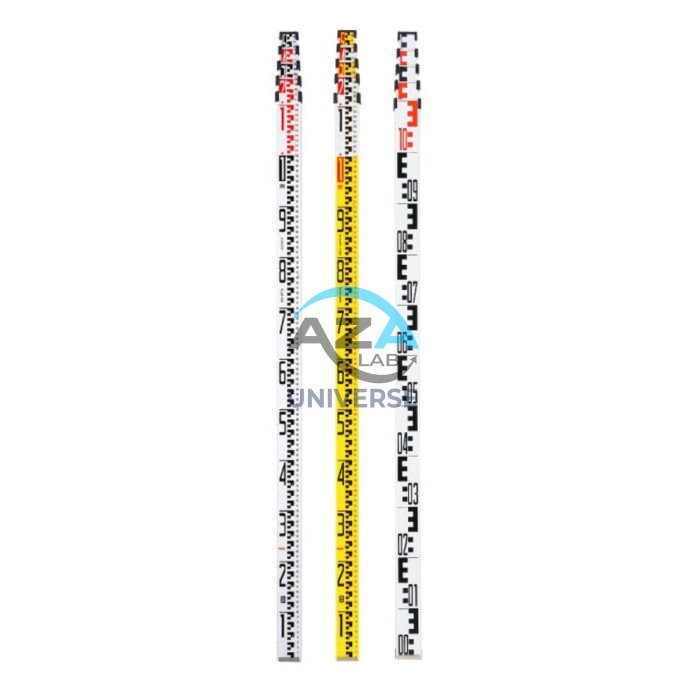

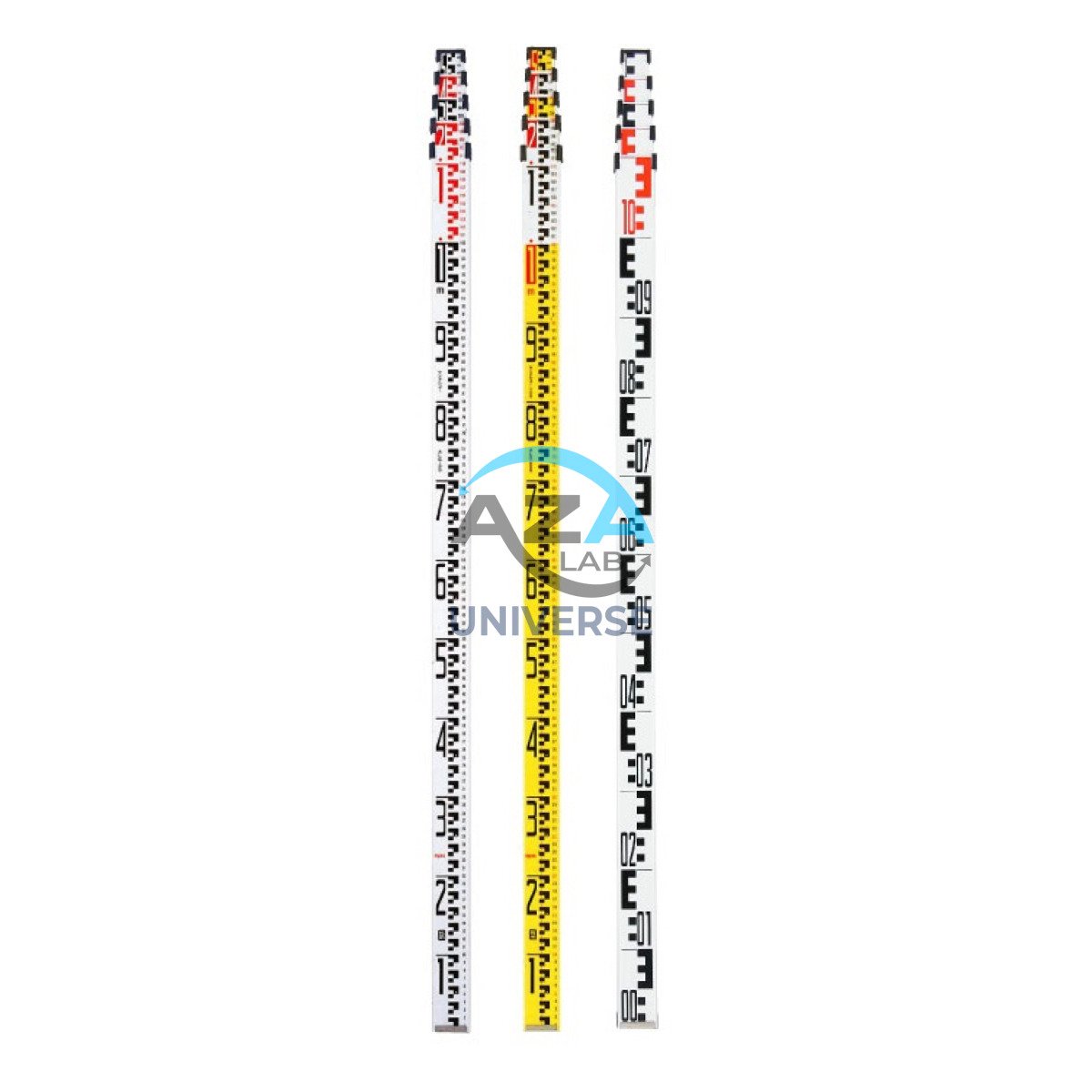

AZA1034 Levelling Staves (Survey Staff / Leveling Staff)
The AZA1034 Levelling Staff is an essential surveying accessory used in conjunction with dumpy levels, automatic levels, and digital levels to accurately measure height differences between ground points. Designed for reliability, visibility, and ease of handling, it is a critical tool for construction, civil engineering, and land surveying applications.
Accurate Elevation Measurement
Levelling staves provide a vertical reference that allows surveyors and engineers to determine elevation differences with precision. When viewed through an optical leveling instrument, the graduated scale on the AZA1034 enables clear and accurate readings, ensuring dependable height transfer across distances.
The staff is available with metric (cm/m) or imperial (ft/in) graduations, depending on project requirements.
Description
Lightweight, Durable Construction
Manufactured from high-quality aluminum or fiberglass, the AZA1034 combines low weight with excellent rigidity. This construction ensures easy handling in the field while maintaining durability under demanding site conditions.
The material resists corrosion, deformation, and wear, making it suitable for long-term outdoor use.
Telescopic Design for Portability
The AZA1034 features a telescopic, multi-section design that extends to 3 m, 4 m, or 5 m, depending on the selected model. When not in use, it collapses into a compact length, allowing for convenient transportation and storage.
Each section locks securely using snap or clamp locking mechanisms, ensuring stability and straightness during measurement.
High-Visibility Graduations
The staff is printed with bold, high-contrast graduations, commonly in E-style or bar-coded formats, making readings easy to observe through optical instruments even in bright sunlight or dusty conditions.
For digital surveying applications, bar-coded versions are available, allowing seamless compatibility with digital levels and automated data capture systems.
Built for Field Conditions
The AZA1034 is designed for rugged site use and includes:
-
Reinforced foot cap for ground contact protection
-
Durable end caps to prevent damage during transport
-
Weather-resistant, UV-stable printed scale for long-term readability
The staff can be operated by a single person, positioned vertically at survey points while readings are taken from a distance.
Typical Applications
The AZA1034 Levelling Staff is widely used in:
-
Civil and structural engineering projects
-
Building layout and foundation work
-
Road and drainage construction
-
Agricultural land mapping
-
Topographic and boundary surveys
It is suitable for both professional fieldwork and academic training.
Technical Specifications – AZA1034
| Feature | Specification |
|---|---|
| Material | Aluminum / Fiberglass |
| Length Options | 3 m / 4 m / 5 m (telescopic) |
| Graduations | Metric (cm/m) or Imperial (ft/in) |
| Section Lock | Snap lock / Clamp lock |
| Barcode Compatibility | Yes (select models) |
| Folded Length | Approx. 1.2 – 1.5 m |
| Weight | Approx. 1.2 – 2.5 kg |
| Finish | UV-resistant, weatherproof printed scale |
Key Features & Benefits
-
High-visibility staff for precise elevation measurements
-
Telescopic design for easy transport and storage
-
Compatible with dumpy, automatic, and digital levels
-
Metric and imperial graduation options
-
Lightweight yet rugged construction
-
Lockable sections for stable readings
-
Weather-resistant finish for outdoor performance
Frequently Asked Questions (FAQ)
Q1: What is the primary function of a levelling staff?
It is used to measure elevation differences between points when paired with a leveling instrument.
Q2: Is AZA1034 compatible with automatic and dumpy levels?
Yes. It is compatible with all standard optical and digital leveling instruments.
Q3: Are metric and imperial scales available?
Yes. The staff is available in both metric and imperial graduation formats.
Q4: Can it be used in wet or muddy conditions?
Yes. The materials and printed scale are weather-resistant and easy to clean.
Q5: Do you offer bar-coded staffs for digital levels?
Yes. Selected AZA1034 models are available with bar-coded scales.
Additional information
| Material |
Aluminum / Fiberglass |
|---|---|
| Length Options |
3 m, 4 m, 5 m (telescopic) |
| Graduations |
Metric (cm/m) or Imperial (ft/in) |
| Section Lock |
Snap/Clamp locking |
Related products
ALUMINUM TRIPOD AZA1037
AZA1037 Aluminum Tripod (Surveying & Construction Instrument Stand)
The AZA1037 Aluminum Tripod from Azalab is a high-precision, field-ready instrument stand engineered to provide maximum stability, portability, and durability for professional surveying and construction applications. It serves as a reliable mounting platform for auto levels, total stations, theodolites, rotary lasers, and mapping instruments, ensuring accurate measurements in demanding site conditions.
Lightweight & Corrosion-Resistant Construction
Manufactured from high-grade anodized aluminum alloy, the AZA1037 tripod offers an optimal balance between strength and weight. The corrosion-resistant finish makes it suitable for prolonged outdoor use, including dusty construction sites, uneven terrain, and damp environments, without compromising structural integrity or performance.
Despite its robust construction, the tripod remains lightweight, allowing easy handling and transportation between job locations.
AUTOMATIC LEVEL AZA1031
AZA1031 Automatic Level (Auto Level / Optical Level)
The AZA1031 Automatic Level is a precision optical leveling instrument engineered for accurate elevation measurement in surveying, construction layout, and civil engineering projects. Designed for durability and long-term accuracy, it delivers consistent performance in demanding outdoor environments while remaining simple and efficient to operate.
Reliable Self-Leveling Performance
At the core of the AZA1031 is a magnetic damping compensator that automatically corrects minor tilts and vibrations. This self-leveling mechanism ensures a stable horizontal line of sight without continuous manual adjustment, significantly reducing setup time and operator error.
Once roughly leveled using the circular bubble vial, the internal compensator completes the leveling process automatically, making the instrument ideal for long-distance and repetitive leveling tasks.
ELECTRONIC THEODOLITE AZA1027
Precision Redefined for Field Surveying
The AZA1027 is an essential instrument for topographic surveys, construction layout, and structural alignment. Equipped with high-resolution angle encoders, it significantly reduces reading errors and ensures consistent measurement accuracy.
An integrated optical plummet and dual-axis compensator allow reliable operation even on uneven terrain. With angular accuracy ranging from ±2″ to ±5″ seconds (model dependent), the AZA1027 is ideal for projects requiring tight tolerances such as bridges, tunnels, and high-rise structures.
GEOLOGICAL HAMMER AZA1041
The Geological Hammer AZA1041 from Azalab is a robust, professional-grade field tool designed for rock sampling, mineral identification, fossil extraction, and geological exploration. It is an essential instrument for geologists, earth science students, archaeologists, mining professionals, and fossil enthusiasts, offering exceptional strength, balance, and reliability in demanding field conditions.
Engineered for rugged outdoor use, the hammer features a forged one-piece, heat-treated high-carbon steel head, ensuring superior impact resistance, long service life, and safety during repeated strikes. Unlike welded or cast alternatives, the forged construction prevents head separation and deformation, even when used on hard igneous or metamorphic rocks.
LASER DISTANCE METER AZA1030
AZA1030 Laser Distance Meter
The AZA1030 Laser Distance Meter is a compact, high-precision digital measuring instrument designed for fast, accurate, and efficient distance measurement across construction, interior design, surveying, and real estate applications. Replacing conventional tape measures, the AZA1030 delivers instant results at the push of a button while significantly reducing manual errors and site time.
Fast & Accurate Digital Measurement
Powered by advanced laser diode technology, the AZA1030 provides measurement accuracy up to ±1.5 mm, with model-dependent measuring ranges extending up to 100 meters. It supports multiple measuring functions, enabling professionals to capture complex dimensions quickly and reliably.
Measurement capabilities include:
-
Single and continuous distance measurement
-
Area and volume calculation
-
Indirect height and distance measurement (Pythagorean mode)
-
Minimum / maximum tracking
This makes AZA1030 ideal for layout planning, verification, and space assessment.
PRISMATIC COMPASS AZA1043

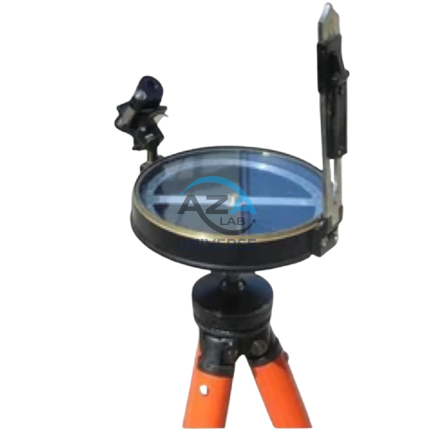

The Prismatic Compass AZA1043 from Azalab is a professional-grade navigation and surveying instrument designed for land surveying, geological exploration, mapping, and field navigation. Built for accuracy, durability, and ease of use, this compass is widely relied upon by surveyors, geologists, civil engineers, military personnel, students, and outdoor professionals operating in diverse and challenging environments.
