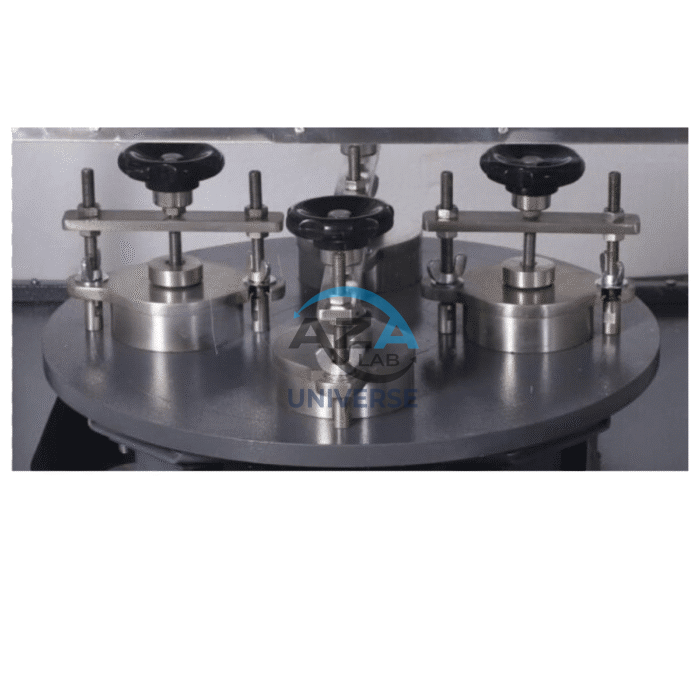

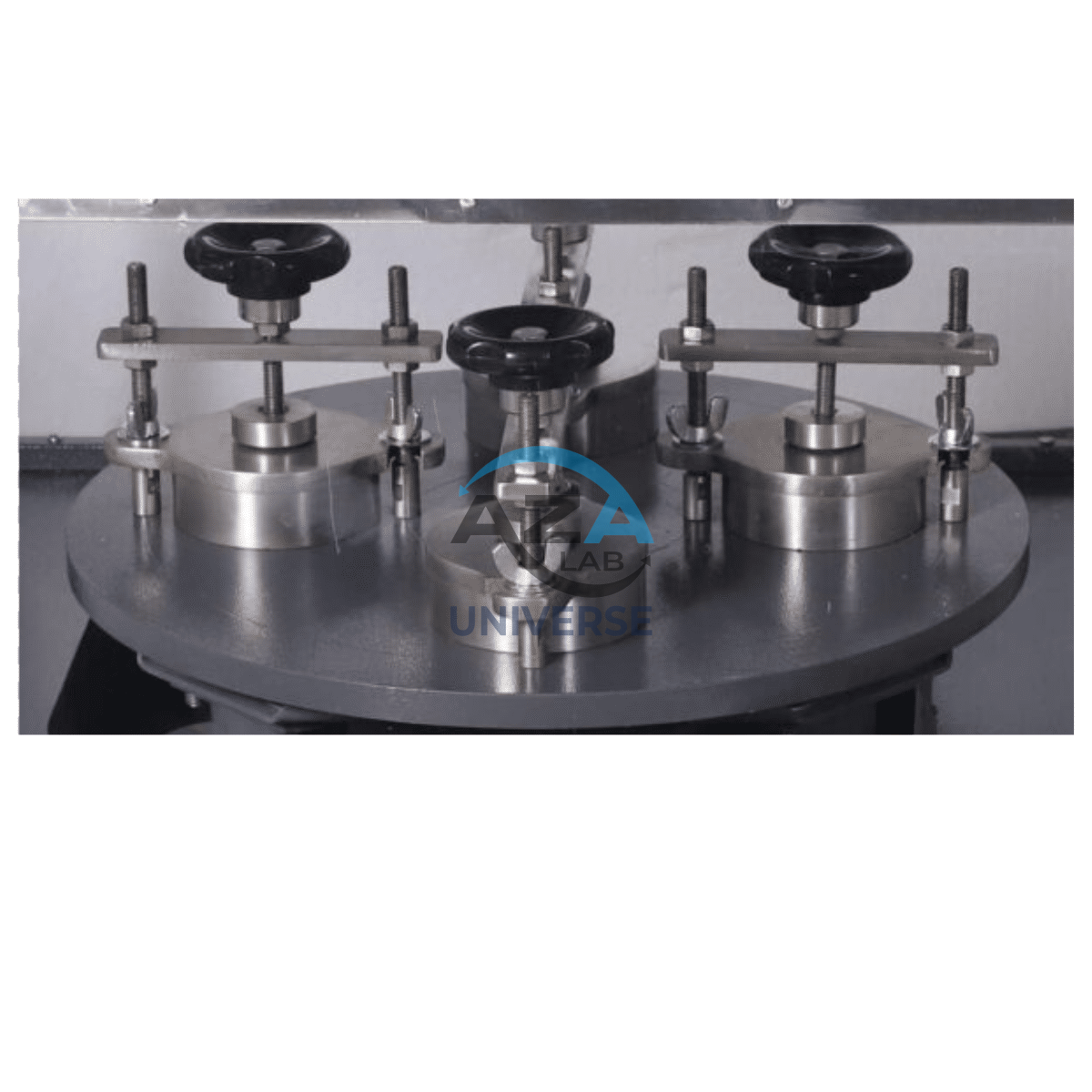

Test Specimen Holder for Surface Abrasion Machine – For Glazed Tiles AZA1264
The AZA1264 Test Specimen Holder is a precision-engineered accessory designed specifically for surface abrasion testing of glazed ceramic tiles in accordance with BIS 13630 (Part-11) and EN ISO 10545-7. It ensures secure positioning of the test specimen and consistent containment of abrasive materials during the abrasion resistance test, contributing to accurate, repeatable, and standard-compliant results.
This holder is an essential component in ceramic tile testing laboratories, quality control departments, certification agencies, and research institutions, where standardized abrasion testing is mandatory for product validation and compliance.
Description
Purpose & Function
During surface abrasion testing, it is critical that the test tile remains firmly secured and that the abrasive load is uniformly contained over the test area. The AZA1264 specimen holder fulfills this requirement through a robust mechanical design incorporating rubber-lined circular rings and dual-purpose holding plates.
The plates act simultaneously as specimen holders and containers for abrasive loads, ensuring controlled abrasion action without specimen movement. The system is fitted with studs on either side to hold the specimen container securely in position, while a black tightening knob allows quick, firm locking of the assembly.
Key Features
-
Fully compliant with BIS 13630 (Part-11) and EN ISO 10545-7
-
Designed exclusively for glazed ceramic tile abrasion testing
-
Rubber-lined circular rings for secure and vibration-free specimen holding
-
Dual-purpose holding plates that also function as abrasive containers
-
Studs on both sides for firm positioning of the specimen container
-
Black tightening knob for easy and secure locking
-
Heavy-duty construction for repeated laboratory use
-
Ensures uniform load application and repeatable test results
Applications
-
Surface abrasion testing of glazed ceramic tiles
-
Quality control and batch verification in tile manufacturing
-
BIS and ISO compliance testing
-
Certification and third-party laboratory testing
-
Research and development in ceramic materials
Standards Compliance
The AZA1264 Test Specimen Holder is designed to comply with:
-
BIS 13630 (Part-11) – Determination of surface abrasion resistance of glazed tiles
-
EN ISO 10545-7 – Ceramic tiles: Determination of surface abrasion resistance
Compliance ensures acceptance of test results for regulatory, certification, and audit purposes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1264 |
| Application | Surface abrasion testing of glazed ceramic tiles |
| Compliance Standards | BIS 13630 (Part-11), EN ISO 10545-7 |
| Holding Mechanism | Rubber-lined circular rings |
| Plate Function | Specimen holder and abrasive container |
| Locking System | Side studs with black tightening knob |
| Construction | Heavy-duty laboratory-grade materials |
| Optional Accessories | Steel balls (1, 2, 3 & 5 mm diameter) – extra cost |
Components Supplied
-
Rubber-lined circular rings
-
Holding plates with cover
-
Studs for securing specimen container
-
Black tightening knob
-
User reference documentation
Note:
Steel balls of 1 mm, 2 mm, 3 mm, and 5 mm diameter required for abrasion testing are not included and must be procured separately at additional cost.
Key Advantages
-
Secure Specimen Holding – Prevents movement during abrasion cycles
-
Accurate Load Containment – Ensures uniform abrasion action
-
Standard-Compliant Design – Meets BIS and ISO test requirements
-
Easy Handling – Quick assembly and tightening mechanism
-
Durable Construction – Suitable for repeated and long-term lab use
Frequently Asked Questions (FAQ)
Q1: Is this holder mandatory for ISO 10545-7 testing?
Yes. A standard-compliant specimen holder is essential to ensure valid and repeatable abrasion test results.
Q2: Are steel balls supplied with the holder?
No. Steel balls of 1, 2, 3, and 5 mm diameter must be purchased separately.
Q3: Can the holder be used with different abrasion testing machines?
Yes. It is compatible with standard surface abrasion testing setups used in ceramic tile laboratories.
Q4: Does the rubber lining affect test results?
No. The rubber lining only stabilizes the specimen and does not interfere with the abrasion process.
Q5: Is the holder suitable for continuous laboratory use?
Yes. It is built with durable materials for long-term and repeated testing.
Why Choose AZA1264 from AZA LAB / Azalab?
-
Purpose-built for BIS & ISO ceramic tile testing
-
Ensures repeatable, audit-ready abrasion test results
-
Robust, user-friendly design
-
Proven acceptance in tile QC and certification labs
-
Backed by AZA LAB technical support and service
