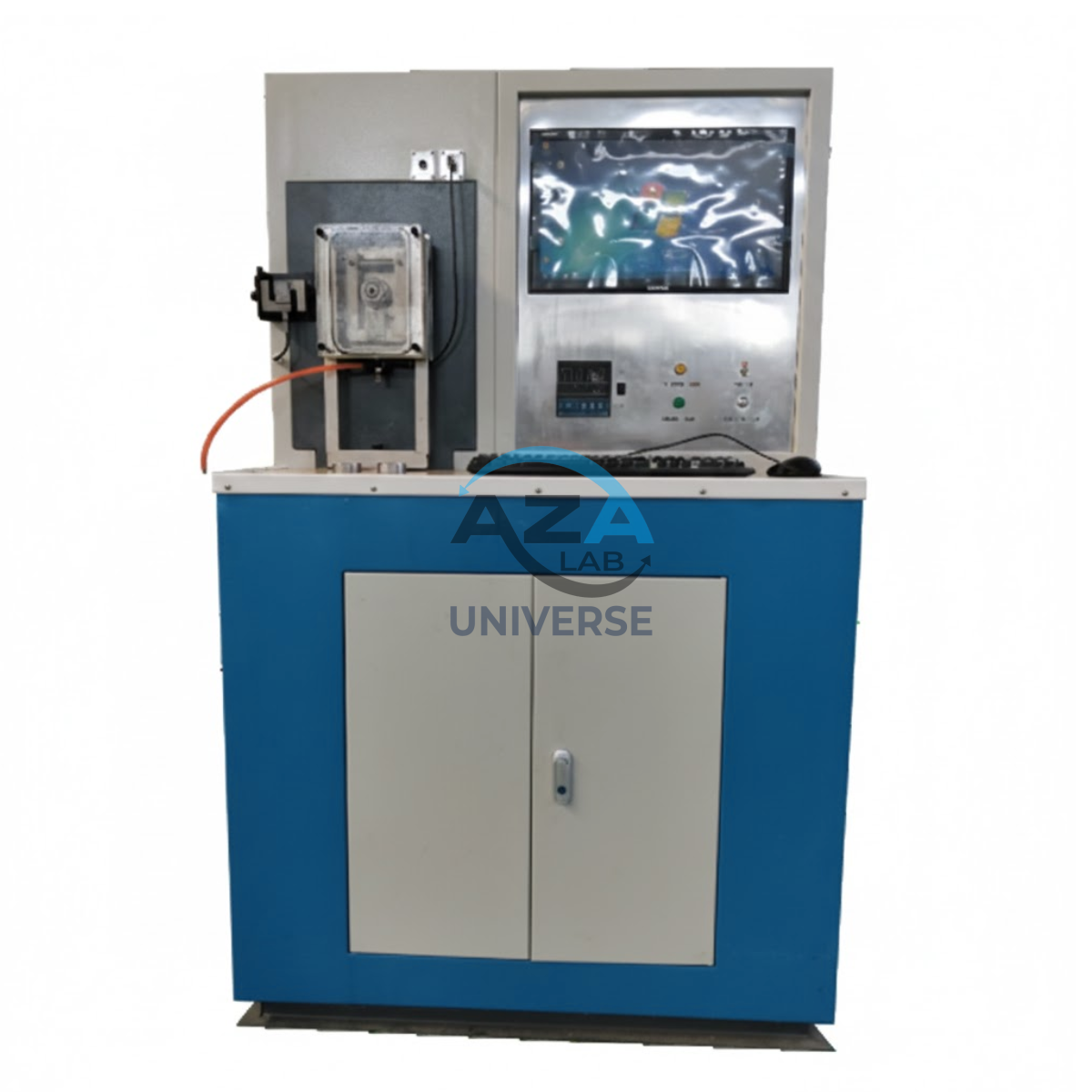

Timken Load Tester AZA1330
The AZA1330 Timken Load Tester from AZA LAB is a high-precision instrument designed to evaluate the load-carrying capacity and extreme-pressure (EP) properties of lubricants and greases. The equipment conforms to ASTM D2782 (for lubricating fluids) and ASTM D2509 (for lubricating greases) test methods, collectively known as the Timken Method.
This method is widely recognized in tribology and lubricant testing for determining the ability of a lubricant or grease to withstand heavy loads and prevent wear under boundary lubrication conditions. The test results provide a reliable indication of a lubricant’s anti-wear and extreme pressure performance.
Description
Principle of Operation
The Timken Load Tester operates by pressing a rotating steel test ring against a stationary steel test block under a progressively increasing load. The test continues until scuffing, seizure, or scoring occurs.
The applied load at the failure point determines the Timken OK Load, which quantifies the EP performance of the tested lubricant.
This method is suitable for both lubricating oils and greases containing extreme-pressure additives, and is used globally by lubricant formulators, R&D centers, and QA/QC laboratories.
Equipment Composition
The AZA1330 Timken Load Tester is composed of:
- Servo Motor (1.5 kW, 0–1500 rpm) with precise digital control
- Servo Speed Regulating System for smooth acceleration
- Digital Speed Indicator with 7-digit display
- Electronic Time Relay for test duration control
- PID Temperature Controller for accurate heat management
- Force Application Device (up to 5000 N)
- Lubrication and Heating System
- Electrical Control Box with protection and diagnostics
- Sample Holder, Test Block, and Accessories Kit
Key Features & Advantages
- Fully compliant with ASTM D2782 and ASTM D2509 standards
• Measures load-carrying capacity of lubricants and greases precisely
• Equipped with servo-driven system for variable-speed control (0–3000 rpm)
• Temperature control up to 300°C with ±2% accuracy
• Digital monitoring of speed, time, temperature, and load
• Rugged steel construction ensures stability during testing
• Designed for long-term laboratory and industrial use
• Low vibration and high repeatability of test results
• Easy to operate, maintain, and calibrate
Working Conditions
| Parameter | Condition |
| Ambient Temperature | 10 – 35°C |
| Relative Humidity | ≤ 80% |
| Environmental Requirements | No vibration, no corrosive media, no strong magnetic field |
| Power Supply Fluctuation | ±10% of rated voltage |
| Installation | Must be placed horizontally on a solid base |
Technical Specifications
| Parameter | Specification |
| Model | AZA1330 |
| Maximum Test Force | 5000 N |
| Accuracy of Test Force | ±1% |
| Maximum Friction Force | 300 N |
| Accuracy of Friction Force | ±2% |
| Spindle Speed Range | 100 – 3000 rpm |
| Spindle Speed Error | ±2% |
| Spindle Speed Display Range | 0 – 9,999,999 |
| Time Display Range | 0 – 9999 s or min |
| Test Temperature Range | Ambient to 300°C |
| Temperature Control Accuracy | ±2% |
| Drive Motor | 1.5 kW Servo Motor (0–1500 rpm) |
| Power Requirement | AC 220V, 50Hz |
| Dimensions (L × W × H) | 1000 × 700 × 1470 mm |
| Weight | 700 kg |
Applications
The AZA1330 Timken Load Tester is used extensively for:
• Evaluation of extreme-pressure (EP) additives in lubricants
• Quality control testing of greases, transmission oils, and hydraulic fluids
• Research & development in lubricant formulation
• Performance comparison between different EP lubricants
• Certification testing in industrial oil and automotive lubricant labs
Benefits
- Accurate determination of Timken OK Load
• Helps predict lubricant performance under heavy mechanical loads
• Reproducible results under standardized test conditions
• Facilitates additive optimization in formulation research
• Reduces risk of equipment wear and failure in field applications
Supply and Service Details
| Parameter | Details |
| Supply Capacity | 30 Sets per Month |
| Warranty | 12 Months |
| After-Sales Support | Calibration, Installation & On-site Training Available |
| Packaging | Export-Grade Wooden Crate with Shock-Absorbing Protection |
The AZA1330 Timken Load Tester by AZA LAB is a robust and accurate instrument engineered to assess the load-carrying and EP properties of lubricants and greases in accordance with ASTM D2782 and D2509 standards. With its servo-controlled speed system, digital precision, and stable construction, this apparatus provides reliable, repeatable, and industry-compliant test results, making it an essential tool for tribology laboratories and lubricant manufacturers worldwide.
