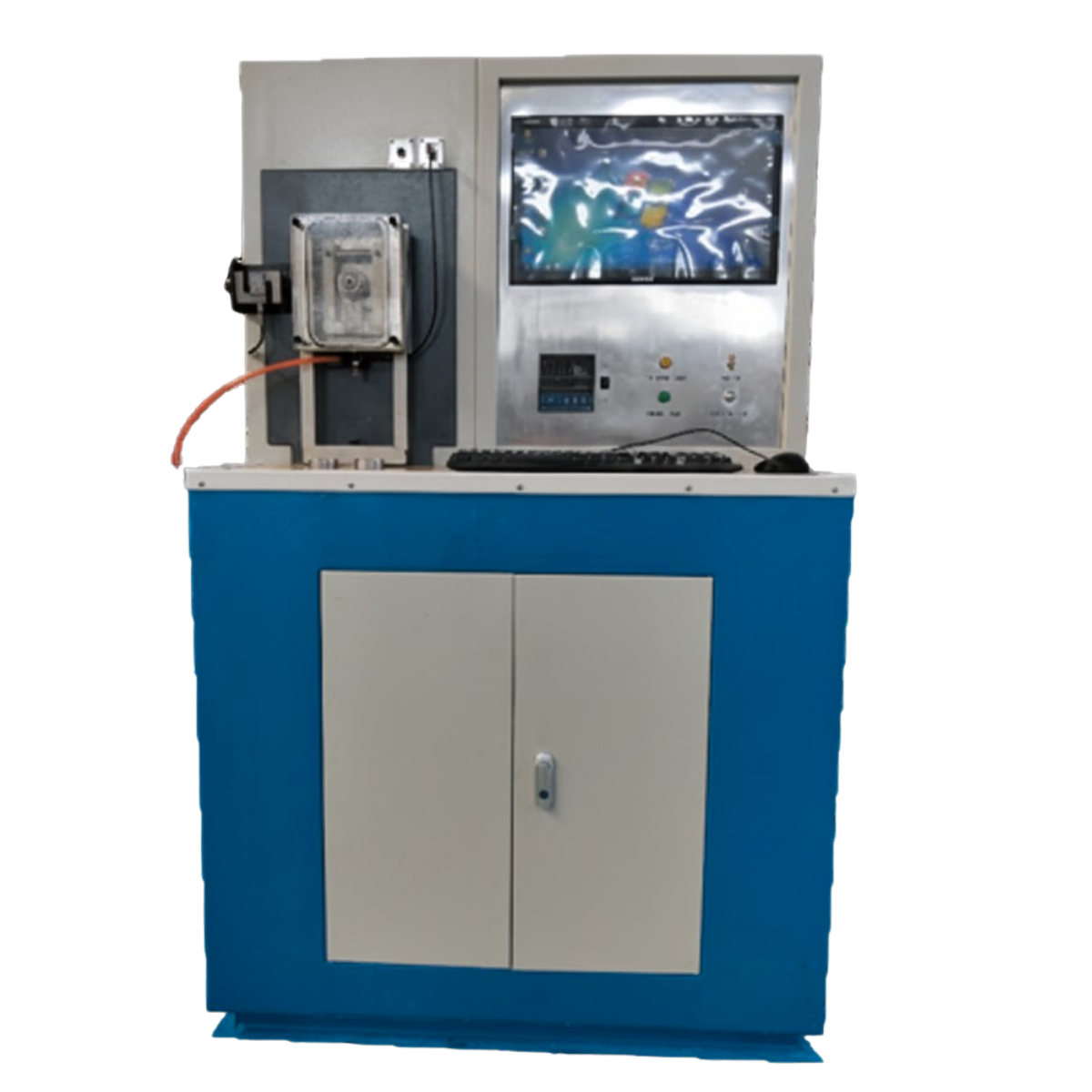

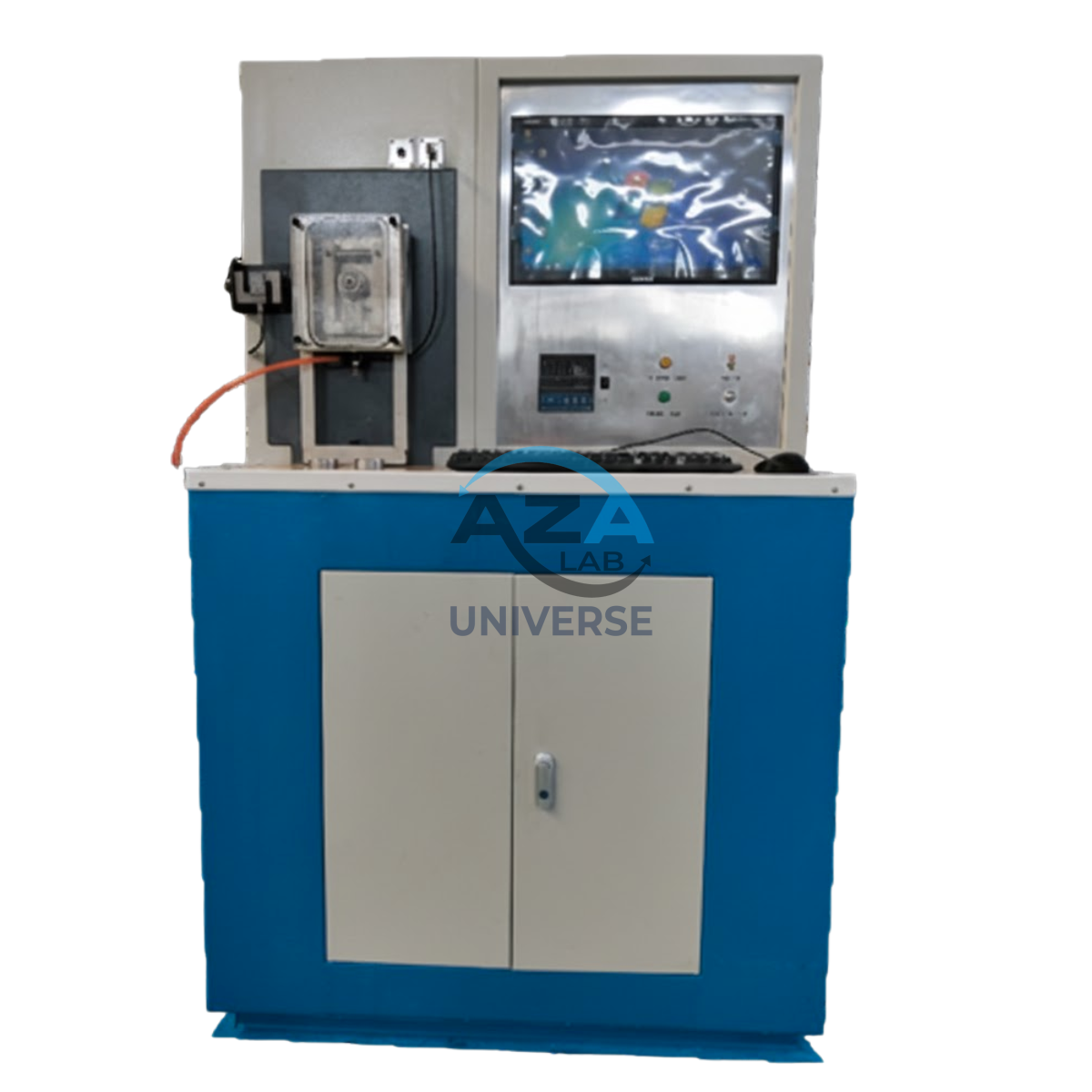

TIMKEN LOAD TESTER AZA1330A
The AZA1330A Timken Load Tester is one of the most widely recognized and reliable instruments used for evaluating the load-carrying capacity and extreme-pressure (EP) characteristics of lubricants and greases.
This tester accurately determines the ability of lubricating oils and greases containing extreme-pressure additives to withstand increasing loads without failure or seizure.
It is designed in accordance with the following international standards:
-
ASTM D2509-93 – Standard Test Method for Measurement of Load-Carrying Capacity of Lubricating Grease (Timken Method)
-
ASTM D2782-94 – Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Fluids (Timken Method)
The AZA1330A provides highly stable operation, precise measurement, and user-friendly functionality, making it an ideal choice for laboratories, R&D centers, and lubricant manufacturers.
Description
Working Principle
The instrument functions on the principle of a rotating steel test ring that is in contact with a stationary steel test block under controlled loading conditions.
Lubricant is applied to the contact area, and as the load is gradually increased, the point at which the lubricant film fails and metal-to-metal contact occurs is observed. This allows precise determination of the lubricant’s extreme-pressure resistance and wear protection performance.
Working Conditions
- Operates effectively at room temperature within 10°C–35°C, with relative humidity ≤ 80%.
- Should be installed in an environment free from vibration, corrosive gases, and strong magnetic interference.
- Power supply fluctuations should not exceed ±10% of the rated voltage.
- Must be installed horizontally on a stable and solid foundation for accurate results.
Technical Parameters
- Maximum Test Force: 5000 N
- Test Force Accuracy: ±1%
- Maximum Friction Force: 300 N
- Friction Force Accuracy: ±2%
- Spindle Speed Range: 100 – 3000 r/min
- Spindle Speed Error: ±2%
- Spindle Speed Display Range: 0 – 9,999,999
- Time Display Range: 0 – 9999 s or min
- Test Temperature Range: Ambient to 300°C
- Temperature Control Accuracy: ±2%
- Overall Dimensions (L×W×H): 1000 × 700 × 1470 mm
- Weight: 700 kg
Key Features
- Fully compliant with ASTM D2509-93 and ASTM D2782-94 standards
- Evaluates both lubricating fluids and greases with EP additives
- Precision control of test load, friction, and temperature
- Digital speed and time display for real-time monitoring
- Temperature control system with accuracy up to ±2%
- Rugged structure ensuring minimal vibration and stable performance
- Easy-to-operate interface for consistent testing and repeatable results
- High reliability and long service life suitable for industrial and research use
Applications
The AZA1330A Timken Load Tester is widely used for:
- Determining the load-carrying capacity of greases and lubricants
- Measuring extreme-pressure properties of lubricating fluids
- Comparative testing of EP additives in formulation research
- Quality control in lubricant manufacturing units
- Tribological studies in universities and technical laboratories
- Evaluation of gear oils, bearing greases, and turbine oils
Advantages
- Accurate and repeatable test results
- Compact design with durable structure
- Simple installation and operation
- Cost-effective with low maintenance requirements
- Digital indicators for enhanced accuracy
- Meets international testing standards
- Reliable for long-term laboratory use
Power Supply and Installation Requirements
- Power Supply: AC 220V ±10%, 50Hz
- Installation Area: Should be kept level and vibration-free
- Environment: Clean, dry, and dust-free with proper ventilation
The AZA1330A Timken Load Tester from AZA LAB offers a dependable, accurate, and standardized solution for evaluating the load-carrying and extreme-pressure performance of lubricants and greases.
Engineered for precision and durability, the AZA1330A combines robust mechanical construction with advanced control electronics, ensuring repeatable results that comply with global testing standards. It is a perfect choice for lubricant manufacturers, research laboratories, and quality assurance departments seeking reliable EP testing capabilities.
Related products
APPARATUS FOR SULFUR CONTENT IN LPG AZA1300A
Apparatus for Sulfur Content in LPG – AZA1300A
The AZA1300A Apparatus for Sulfur Content in LPG from Azalab is a high-performance analytical system designed for the accurate determination of total volatile sulfur in gaseous hydrocarbons and liquefied petroleum gases (LPG). Developed in strict accordance with ASTM D6667, this advanced instrument utilizes the Ultraviolet Fluorescence (UVF) detection method, delivering exceptional sensitivity, stability, and repeatability across a wide concentration range.
The AZA1300A is purpose-built for refineries, petrochemical plants, natural gas processing units, inspection laboratories, and quality assurance facilities, where precise sulfur measurement is critical for product quality, regulatory compliance, and environmental safety
AUOTFLASH AUTOMATED ABEL FLASH POINT ANALYZER AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
AUTOMATED CLEVELAND OPEN CUP FLASH & FIRE POINT ANALYZER AZA1276
The AutoFlash1276 (Model: AZA1276) from AZA Lab is a fully automated, microcontroller-based Cleveland Open Cup (COC) Flash and Fire Point Analyzer designed for high-temperature petroleum testing applications. Engineered for accuracy, safety, and regulatory compliance, the AZA1276 delivers reliable flash and fire point determination for materials with flash points above 79 °C up to 400 °C.
Complying with ASTM D92, ISO 2592, IS 1448 (Part 69), and IP 36, this advanced analyzer is ideal for laboratories and industrial environments where repeatability, operator safety, and international acceptance are critical.
CLEVELAND OPEN CUP (D92) FLASH & FIRE POINT TESTER AZA1291
The Cleveland Open Cup Flash Point Tester AZA1291 from AZA Lab is a precision-engineered analytical instrument designed for accurate determination of flash point and fire point of petroleum products in full compliance with ASTM D92 and GB/T 3536-2008 standards. Built for reliability, safety, and intelligent operation, the AZA1291 is ideal for petroleum laboratories, refineries, inspection agencies, and quality control departments requiring repeatable and standards-compliant results.
The analyzer is suitable for samples with flash points ranging from 79°C to 400°C, covering a broad spectrum of petroleum products such as lubricating oils, transformer oils, diesel, heating oils, base oils, waxes, and other high-flash-point materials.
CLEVELAND OPEN-CUP FLASH & FIRE POINT TESTER AZA1292
The Cleveland Open Cup Flash Point Tester AZA1292 from AZA Lab is a reliable and precision-engineered laboratory instrument designed for determining the flash point and fire point of petroleum products in strict accordance with ASTM D92 and GB/T 3536-2008 standards. Engineered for accuracy, safety, and operational simplicity, the AZA1292 is an ideal solution for petroleum laboratories, refineries, inspection agencies, and quality control departments.
The instrument is suitable for testing petroleum products with flash points in the range of 79°C to 400°C, excluding fuel oils, and delivers consistent, repeatable, and standards-compliant results.
PROGRAMMABLE FULLY-AUTOMATED CLEVELAND OPEN-CUP FLASH & FIRE POINT ANALYZER AZA1290
The AZA Lab Programmable Fully-Automated Cleveland Open-Cup Flash & Fire Point Analyzer AZA1290 is a high-precision petroleum testing instrument designed for fully automated determination of flash and fire points of petroleum products, lubricants, oils, bituminous materials, and combustible liquids in accordance with ASTM D92 and ISO 2592 standards.
Engineered for modern petroleum laboratories, the AZA1290 combines intelligent automation, advanced safety systems, precision temperature control, and comprehensive data management to deliver highly repeatable and operator-independent test results.
The system automates the complete testing cycle including heating control, ignition application, flash detection, fire point detection, result recording, and emergency shutdown, significantly improving laboratory efficiency, testing consistency, and operational safety.

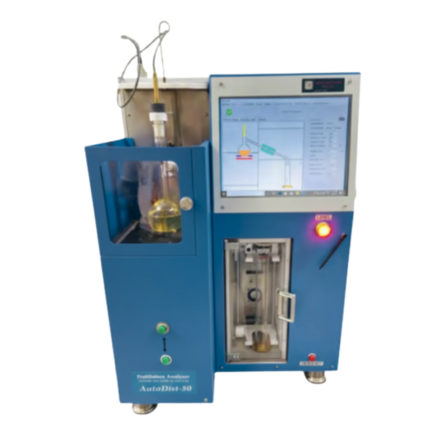

SEMI-AUTOMATED ATMOSPHERIC DISTILLATION ANALYZER AZA1285
