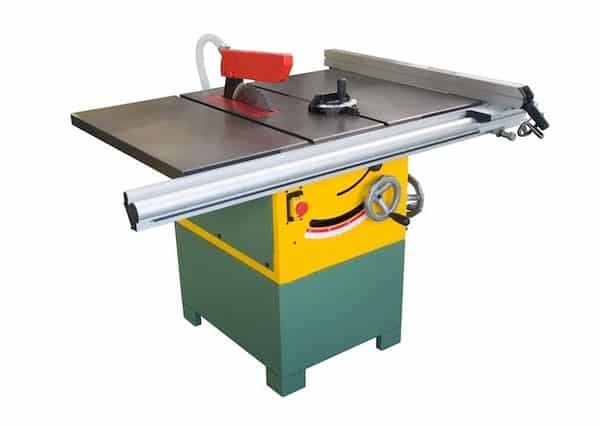

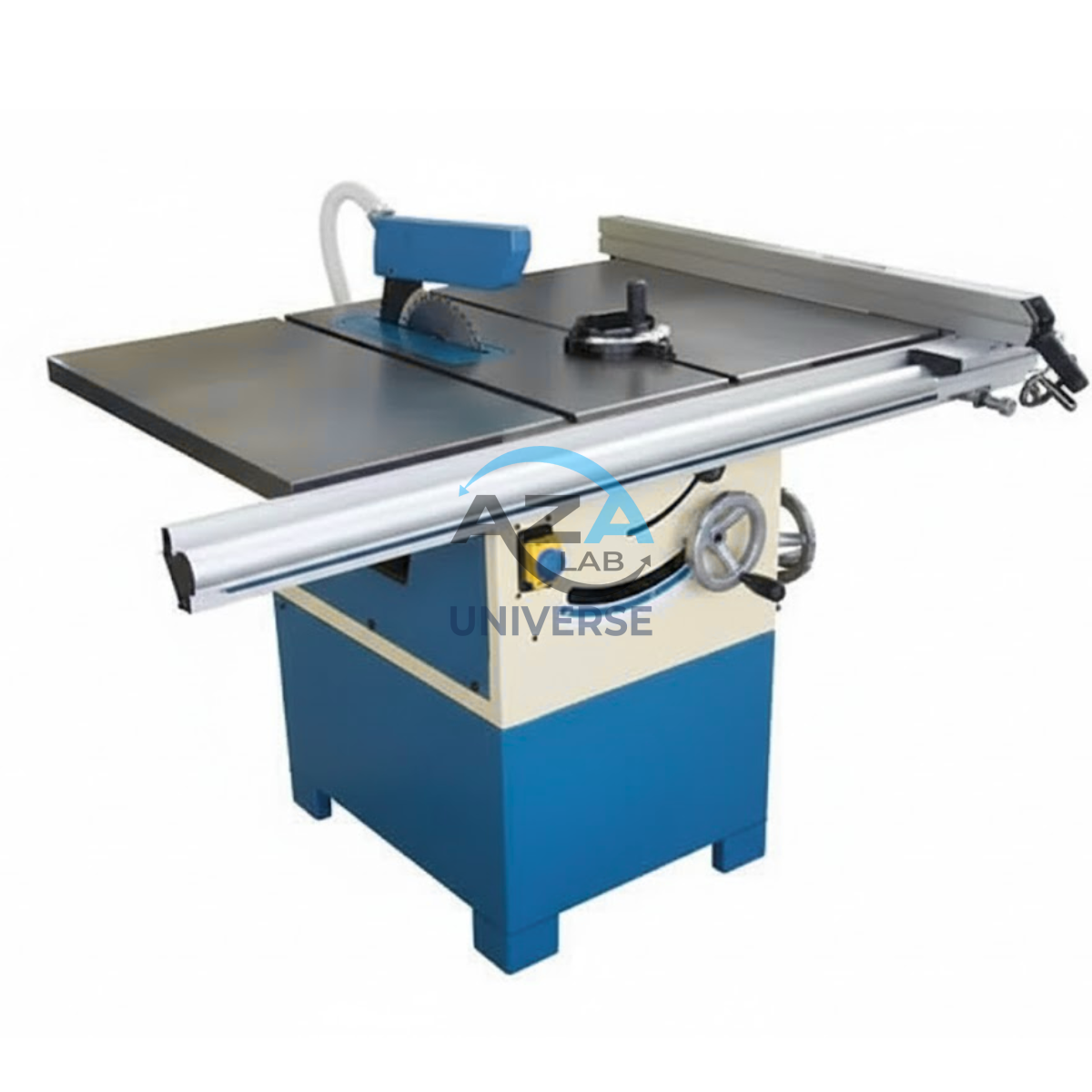

WOOD WORKING CIRCULAR & RADIAL SAW AZA1214
The AZA LAB Wood Working Circular & Radial Saw AZA1214Â is a powerful, heavy-duty woodworking machine engineered for precision cutting, versatility, and long-term durability. Designed for professional workshops and production units, this machine combines a high-speed circular saw with a radial sliding mechanism, making it suitable for straight, cross, and angled cutting operations.
Powered by a 3 HP motor running at 1440 RPM, the AZA1214 delivers consistent torque and smooth cutting performance even in demanding applications. The tilting arbour mechanism (up to 45°) enables accurate bevel and angular cuts, while the large fixed and sliding tables provide excellent workpiece support and control.
Description
Key Benefits
-
Ideal for professional woodworking workshops and furniture units
-
Suitable for straight, cross, and angular cutting operations
-
High stability and precision due to rigid construction
-
Smooth sliding action for repeatable accuracy
-
Enhanced safety and cleanliness with dust collection provision
Technical Specifications
| Specification | Details |
|---|---|
| Model No. | AZA1214 |
| Machine Type | Wood Working Circular & Radial Saw |
| Max. Circular Saw Diameter × Bore | 355 × 25.4 mm (14″ × 1″) |
| Max. Depth of Cut | 114 mm (4½″) |
| Arbour Tilt Degree | 45° |
| Work Table Size | 915 × 785 mm (36″ × 31″) |
| Sliding Table Size | 710 × 400 mm (28″ × 15¾″) |
| Sliding Table Movement | 1000 mm (39″) |
| Dust Collection Port Diameter | 100 mm (4″) |
| Circular Saw Speed | 4000 RPM |
| Power Required | 3 HP / 1440 RPM |
| Approx. Machine Weight | 425 kg |
Applications
-
Furniture manufacturing
-
Panel cutting and sizing
-
Door and frame production
-
Carpentry and joinery workshops
-
Wood fabrication units
Why Choose AZA1214?
-
Powerful and reliable 3 HP performance
-
Tilting arbour for versatile cutting angles
-
Large working area with smooth sliding table
-
Heavy, vibration-free industrial build
-
Trusted AZA LAB quality and engineering
