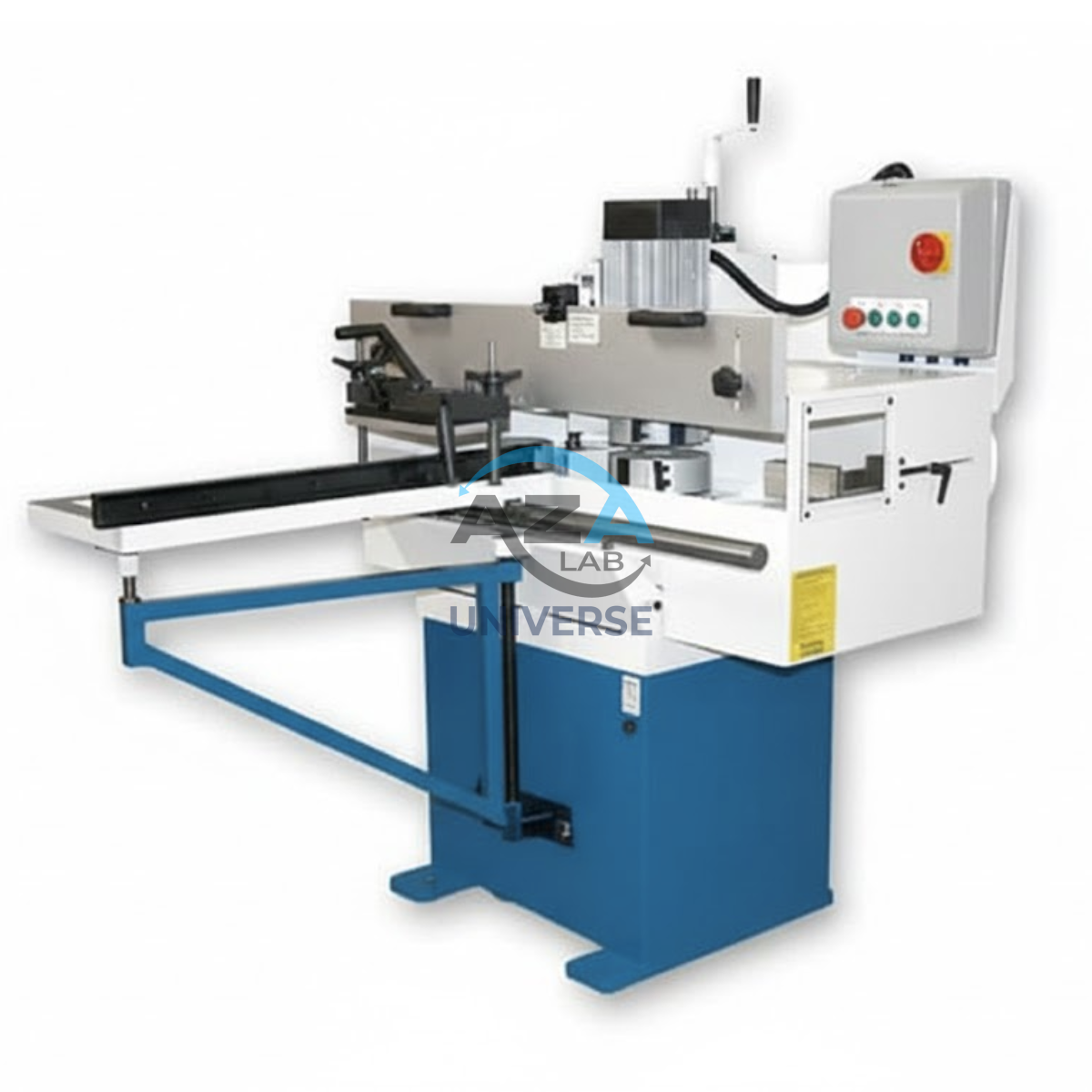

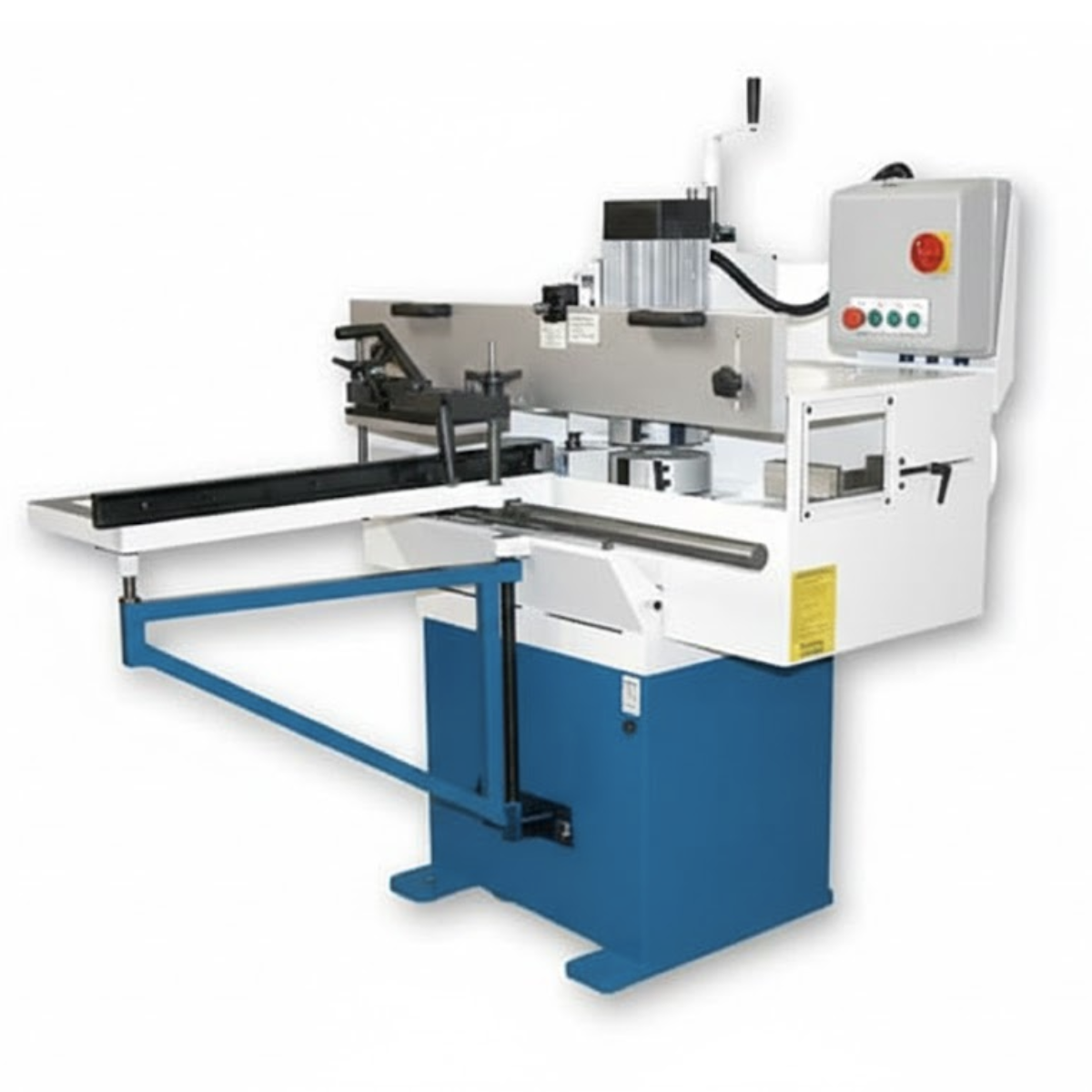

WOOD WORKING MORTISER & TENONING MACHINE AZA1215
The AZA LAB Wood Working Mortiser – Tenoning Machine AZA1215 is a high-performance, industrial-grade woodworking solution engineered for producing accurate mortise and tenon joints with superior strength and consistency. Designed for professional workshops and furniture manufacturing units, this machine combines power, precision, and operational flexibility in a robust construction.
Equipped with dual 3-phase electric motors—a 2 HP motor for tenoning operations and a 1 HP motor for circular saw functions, both running at 2800 RPM—the AZA1215 delivers efficient cutting performance and smooth operation across a wide range of woodworking applications.
Description
Key Benefits
-
Produces strong, accurate mortise and tenon joints
-
Dual motors for smooth, uninterrupted performance
-
Suitable for furniture, doors, frames, and joinery work
-
High precision with adjustable cutter alignment
-
Reliable A Z A LAB engineering for professional workshops
Technical Specifications
| Specification | Details |
|---|---|
| Model No. | AZA1215 |
| Machine Type | Wood Working Mortiser – Tenoning Machine |
| Table Size | 740 × 470 mm (29″ × 18½″) |
| Table Movement | 800 mm (32″) |
| Max. Tenon Length | 150 mm (6″) |
| Max. Workpiece Width | 200 mm (8″) |
| Top Cutter Horizontal Adjustment | 25 mm (1″) |
| Max. Circular Saw Diameter | 254 mm (10″) |
| Max. Depth of Cut – Circular Saw | 50 mm (2″) |
| Dust Collection Port Diameter | 100 mm (4″) |
| Tenoning Motor Power | 2 HP / 2800 RPM (3-Phase) |
| Circular Saw Motor Power | 1 HP / 2800 RPM (3-Phase) |
Standard Accessories
-
Two carbide cutter blocks
-
Miter gauge
-
Saw guard
-
Comprehensive toolkit
-
Operation & maintenance manual
Applications
-
Furniture manufacturing
-
Cabinet and door production
-
Joinery and carpentry workshops
-
Frame and panel fabrication
-
Industrial woodworking units
Why Choose AZA1215?
-
Dual-motor design for superior versatility
-
Accurate and repeatable joint production
-
Heavy-duty build for industrial reliability
-
Safe, clean, and efficient operation
-
Trusted A Z A LAB quality and performance
