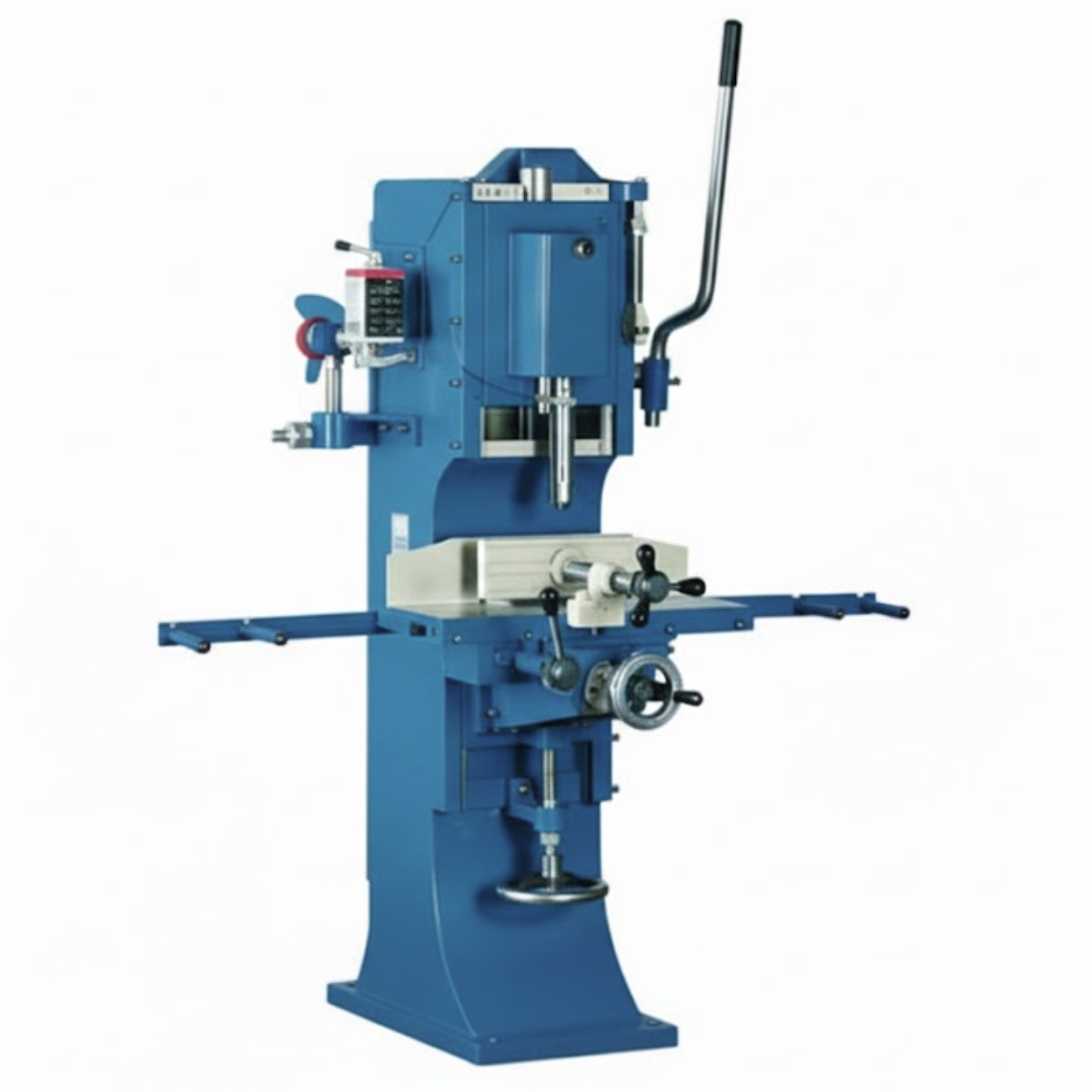

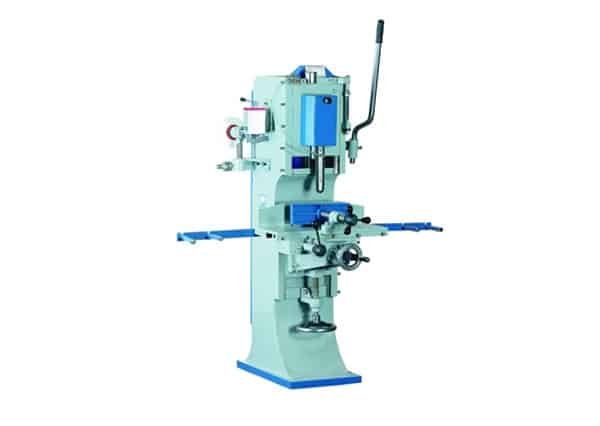

Wood Working Chain N Chisel Mortiser Machine AZA1222
The AZA LAB Wood Working Chain N Chisel Mortiser Machine AZA1222 is a powerful and versatile woodworking machine designed for professional mortising applications. Equipped with a robust 2 HP electric motor running at 1440 RPM, this machine delivers consistent performance for demanding workshop environments.
What sets the AZA1222 apart is its dual mortising capability, supporting both chain mortising and chisel mortising in a single machine. This flexibility allows woodworkers to produce precise, clean, and deep mortises across a wide range of wooden components, including doors, frames, and structural members.
With a rigid construction, generously sized work table, and smooth longitudinal movement, the AZA1222 ensures accuracy, safety, and ease of operation. Additional features such as a reverse/forward switch, lubrication system, and built-in grinding arrangement further enhance productivity and machine life.
Description
Key Features
Powerful 2 HP Motor
High-performance electric motor (2 HP, 1440 RPM) ensures smooth and efficient mortising operations.
Dual Mortising Capability
Supports both chain mortiser and chisel mortiser functions for maximum versatility.
Deep Cutting Capacity
-
Chain mortising depth up to 140 mm
-
Chisel mortising depth up to 90 mm
Spacious & Adjustable Work Table
Large table with 45° tilt capability allows precise positioning for complex mortising tasks.
Smooth Longitudinal Movement
305 mm head/table travel ensures controlled and accurate machining.
Efficient Lubrication & Maintenance
Oil bowl for chain lubrication and integrated grinding wheel with V-belt fitting for tool upkeep.
Operator-Friendly Design
Reverse/forward switch, supplied toolkit, and detailed operation manual for ease of use.
Key Benefits
-
Ideal for professional woodworking workshops
-
Combines chain and chisel mortising in one machine
-
Handles doors, frames, and large workpieces with ease
-
Delivers clean, accurate, and repeatable mortises
-
Durable design ensures long service life and low maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Model No. | AZA1222 |
| Machine Type | Wood Working Chain N Chisel Mortiser |
| Table Size | 455 × 150 mm (18″ × 6″) |
| Max. Height of Workpiece on Table | 254 mm (10″) |
| Max. Height of Door / Frame | 1000 mm (39″) |
| Max. Depth of Cut – Chain Mortiser | 140 mm (5½″) |
| Max. Depth of Cut – Chisel Mortiser | 90 mm (3½″) |
| Longitudinal Movement (Head/Table) | 305 mm (12″) |
| Table Tilt | 45° |
| Dust Collection Port Diameter | 100 mm (4″) |
| Air Pressure Required | 5 – 7 kg/cm² |
| Electric Motor | 2 HP / 1440 RPM |
| Optional Motor | 1.5 HP, 1-Phase (at extra cost) |
Standard Accessories
-
½″ Chain set
-
Grinding wheel with V-belt fitting
-
Lubrication oil bowl
-
Toolkit
-
Operation & maintenance manual
Applications
-
Door and frame mortising
-
Furniture manufacturing
-
Joinery workshops
-
Carpentry and wood fabrication units
Why Choose AZA1222?
-
Dual-function mortising in one robust machine
-
Powerful motor for continuous professional use
-
Precision-engineered for clean and accurate cuts
-
Trusted AZA LAB build quality
