Showing 385–396 of 497 results

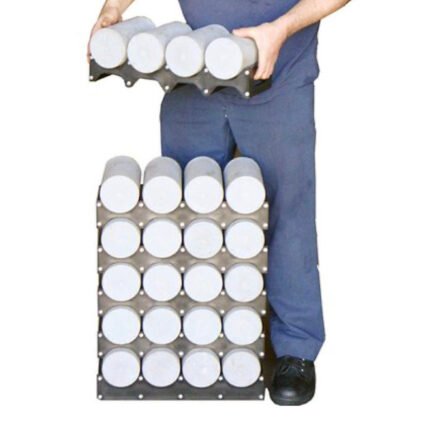

AZA 1157 CONCRETE CURING RACKS
These durable racks are manufactured from plastic compounds and recycled materials to resist moisture, abrasion, chemical and temperature variations. Each rack has built-in handles, making them easy to carry and safely stacked 12 tiers (58") high. The racks unique open frame design allows water vapor to flow through and saturate the surface of each individual cylinder, and also separates and prevents cylinder surfaces from touching each other for improved temperature control.
Each rack holds 4 pieces 100 x 200 mm cylinders and is 17-5/8" wide x 6- 3/8" deep. The weight of one rack with 4 cylinders is approximately 17 KG. One base rack is required for each stack

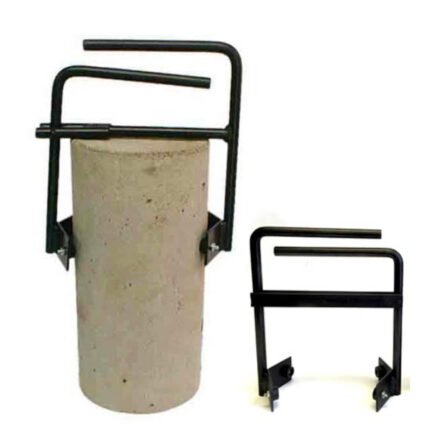

AZA 1158 CUBE AND CYLINDER LIFTING HANDLE
AZA 1159 TEST CYLINDER CARRYING CASE

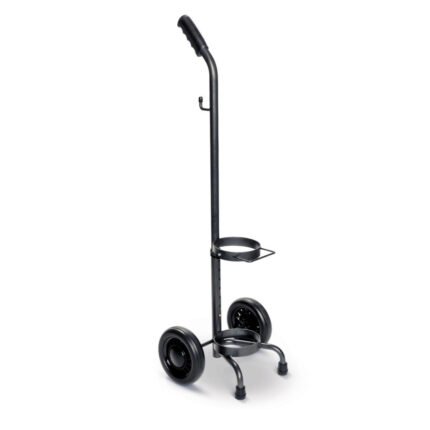

AZA 1160 CYLINDER CARRIER
AZA 1161 GROUT SAMPLE BOX
This grout sample box is an alternative method that follows the guidelines to ASTM C-1019 / UBC 21-18 and will save you money, time, labor, and space. Engineered-slotted corrugation retains moisture while simulating cmu absorption rate. Each box produces 4 specimens, 3 6.25 mm x 81.5 mm x 162.5 mm. Shipped 25 boxes per carton.

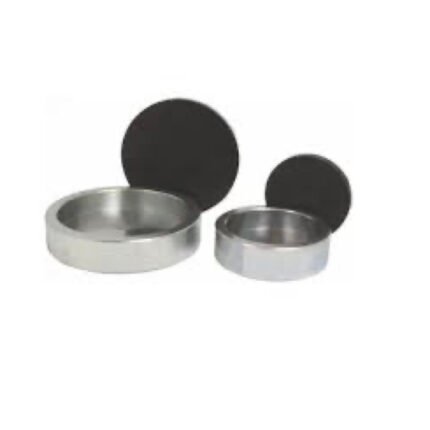

AZA 1162 CONCRETE: PAD CAPS AND RETAINER RINGS
Pad-cap retainer rings hold neoprene pads that fit onto the ends of concrete test cylinders. Made from plated high-alloy steel to resist rust and deformation fatigue. Bearing surfaces machine-planed to within 0.002". Supplied two per set. Neoprene pad inserts are made from a tough elastomeric material that evens out and fills irregularities in the ends of concrete cylinders to assure even distribution of test loads for consistent results.

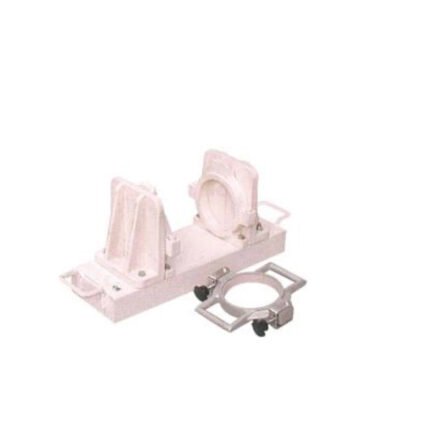

AZA 1163 CAPPING SET (HORIZONTAL)
IS: 516 1959, BS 1881-120, ASTM C31, C 617
Specification:
The set comprises of a cylinder capper, a cylinder carrier and a ladle. The cylinder capper consists of a base on which two accurately machined plates are mounted vertically. One plate is firmly fixed and the other one is adjustable horizontally. Two plates are provided with holders for holding the cylinder in position. The holder are split and the bottom half of each holder is fixed firmly and the top half of each is removable and bolted down to the lower half. On the upper parts of the vertical plates 'V' s are provided for pouring the capping compound. Two spacers are also provided. Complete with cylinder carrier and ladle for molten compound.
AZA 1163 A For 150 mm dia. x 300 mm length cylinders
AZA 1163 B For 100 mm dia. x 200 mm length cylinders
AZA 1164 CAPPING SET (VERTICAL)
IS:516 1959, BS1881-120
For capping compression cylinder specimens. This apparatus can be used
both in the laboratory and in the field. The specimens capped in this
apparatus have plane parallel faces.
Specification:
Mould for cylinders 150 mm dia. x 300 mm long, 100 mm x 200 mm
Consists of a base with an upright. The upright serves as a guide for
positioning the capping plate and cylinder. The 19mm thick capping plate is machined accurately. There is a recess in the plate for keeping the molten capping compound and to position cylinder. Complete with cylinder carrier and ladle

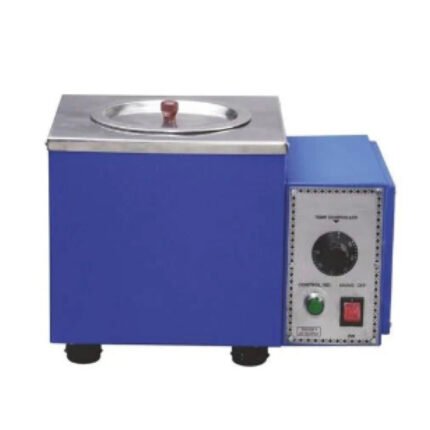

AZA 1165 MELTING POT

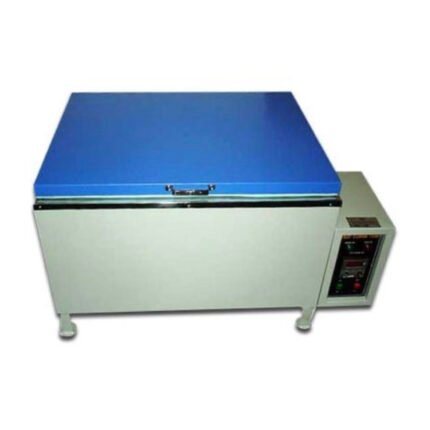

AZA 1166 CURING TANK
- AZA 1166: Precision concrete curing tank for lab use
- Temperature Controlled: Thermostat for consistent water temp
- Large Capacity: Holds multiple 150mm concrete cube specimens
- Ideal for Labs: Conforms to IS, ASTM, and BS testing standards
- Durable Build: Insulated tank with corrosion-resistant interior
AZA 1167 POKER VIBRATOR (WITH VIBRATING TABLE)
EN 12390–2; ASTM C31, C192; AASHTO T23, T126
Ø 22 mm hand-held, 220-240 V 50-60 hz
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products
