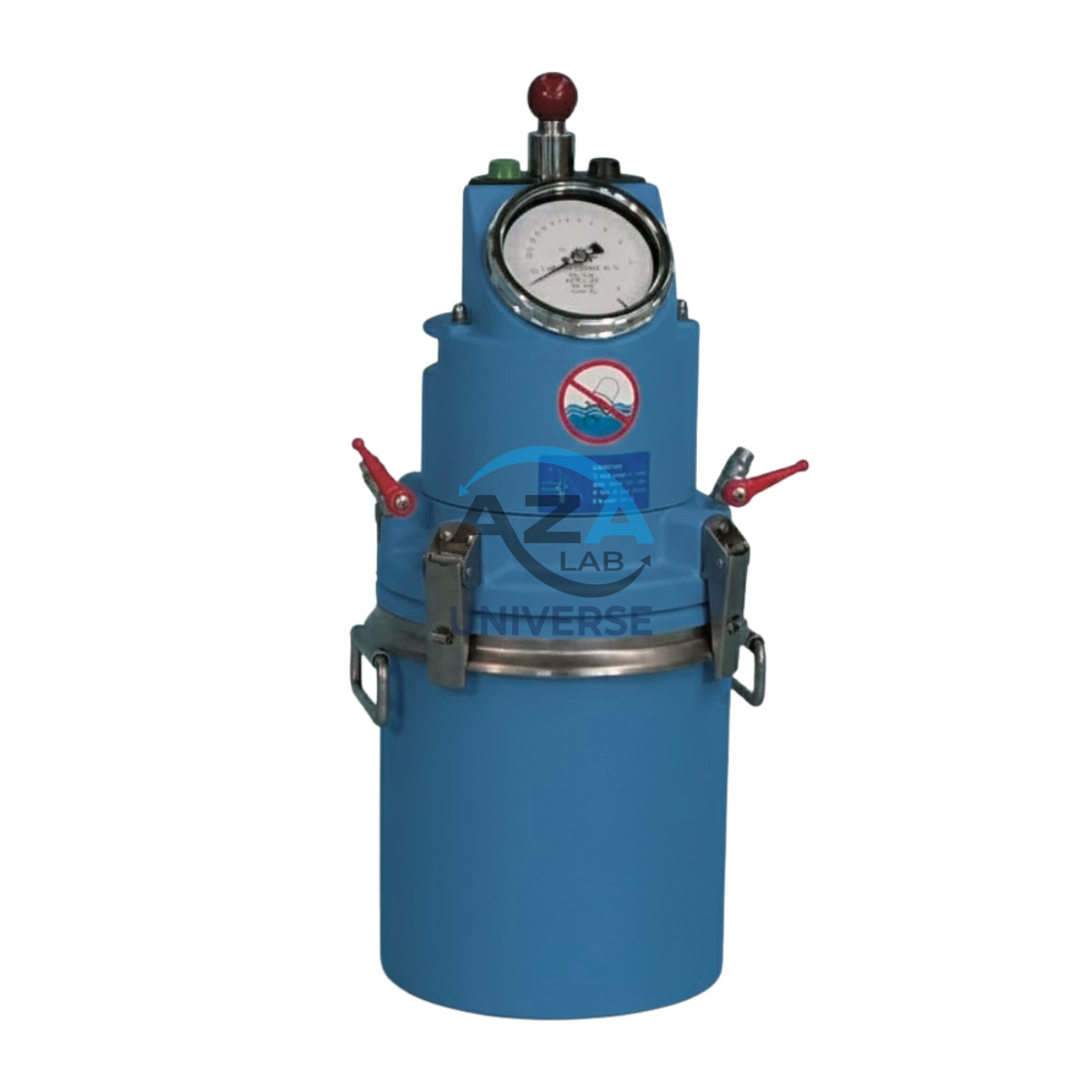

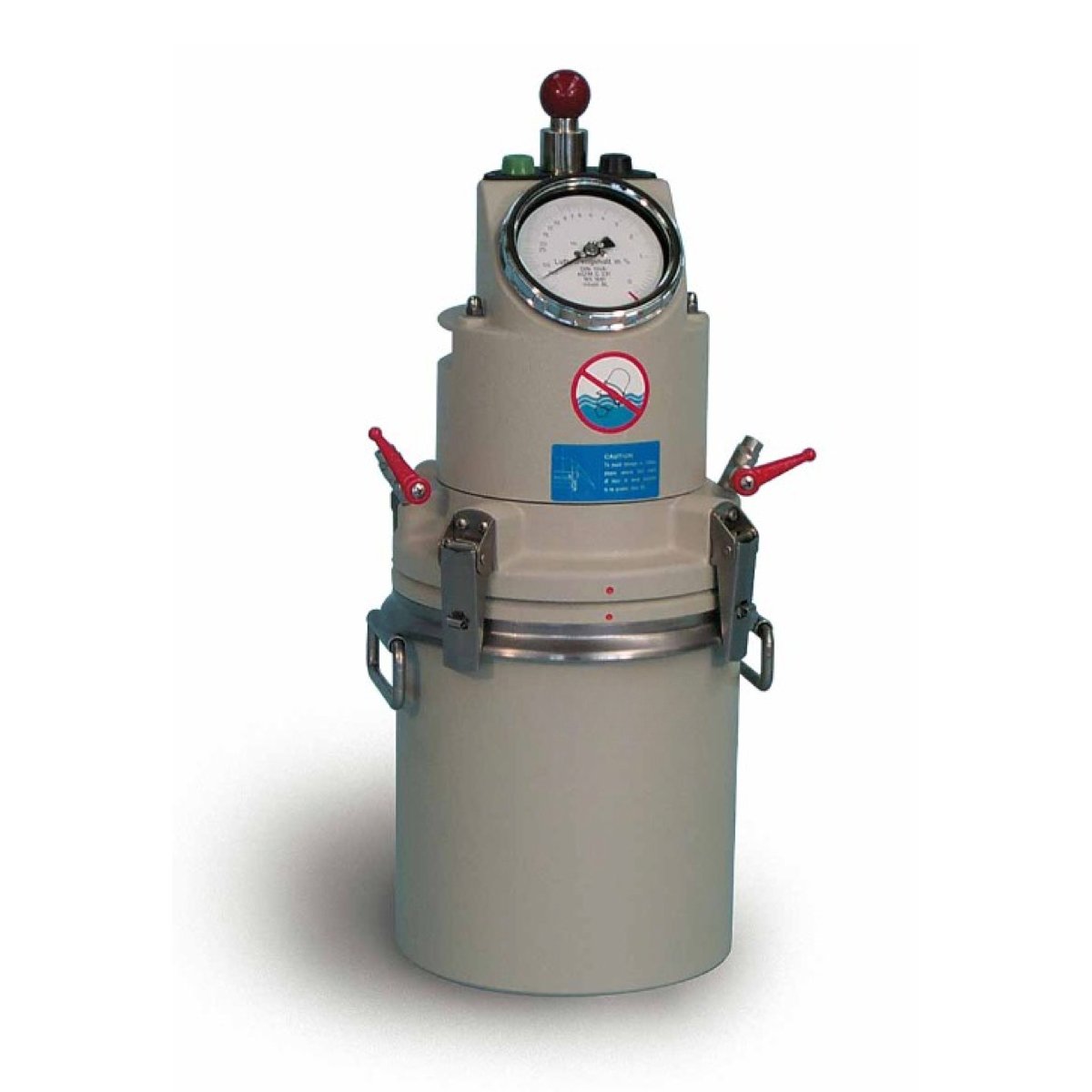

B TYPE AIR ENTRAINMENT METER AZA1145
For Accurate Air Content Measurement in Fresh Concrete
The AZA1145 B-Type Air Entrainment Meter is a durable, lab-grade instrument designed to determine the percentage of entrained air in freshly mixed concrete using the pressure method. Air entrainment is a critical parameter for ensuring workability, longevity, and freeze-thaw resistance of concrete—especially for structures exposed to harsh environmental conditions.
Applications
Widely used across the concrete testing sector, the AZA1145 is ideal for:
- Civil construction quality-control laboratories
- Cement and concrete R&D departments
- Ready-mix concrete testing facilities
- Engineering colleges and training institutes
- Material testing and QA/QC divisions
Why Air Entrainment Testing Is Important
Entrained air improves:
- Workability of fresh concrete
- Durability in freeze–thaw conditions
- Resistance to scaling, cracking, and surface deterioration
Accurate measurement ensures compliance with mix design specifications, verifies performance of air-entraining agents, and supports high-quality concrete production.
With AZA1145, labs can confidently:
- Confirm mix design compliance
- Validate field concrete quality
- Optimize concrete mixes for extreme environments
Description
Design & Construction
The AZA1145 is built for long-term, heavy-duty laboratory use. Its precision-engineered body ensures airtight operation and consistent readings.
Instrument Consists of:
-
Pressure chamber (high-strength aluminum or stainless steel)
-
Measuring bowl (~7 liters)
-
Calibrated precision pressure gauge
-
Manual air pump
-
Air-release valves and fittings
-
Airtight lid assembly
Key Features
-
Model: AZA1145
-
Type: B-Type Air Entrainment Meter (Pressure Method)
-
Capacity: Approx. 7 liters
-
Material: Cast aluminum / stainless steel
-
Gauge Range: 0–10% air content
-
Durability: Corrosion-resistant, robust construction
-
Operation: Manual pumping with precision seals
-
Accessories Included:
-
Tamping rod
-
Strike-off bar
-
Calibration vessel
-
Carrying case
-
Testing Procedure (Overview)
-
Fill the measuring bowl with fresh concrete in layers.
-
Compact using the tamping rod.
-
Seal the lid assembly securely.
-
Pump air to pressurize the chamber.
-
Observe gauge to determine air content percentage.
-
Release pressure and clean equipment for next use.
Standards Compliance
The AZA1145 meets major international testing standards:
-
IS 1199 – Methods of Sampling and Testing Concrete
-
ASTM C231 – Air Content of Freshly Mixed Concrete by Pressure Method
-
ACI 301 – Specifications for Structural Concrete
This ensures accurate and globally acceptable test results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1145 |
| Product Name | B-Type Air Entrainment Meter |
| Capacity | ~7 Liters |
| Operation Method | Pressure (B-Type) |
| Material | Cast Aluminum / Stainless Steel |
| Gauge Range | 0–10% |
| Standards Followed | IS 1199, ASTM C231 |
| Accessories Included | Tamping Rod, Strike-Off Bar, Case |
| Application | Air content test in fresh concrete |
Frequently Asked Questions (FAQ)
Q1. What does a B-Type Air Entrainment Meter measure?
It measures entrained air percentage in freshly mixed concrete using the pressure method.
Q2. How accurate is the AZA1145?
It provides high-precision readings, calibrated as per ASTM C231 requirements.
Q3. What is the capacity of the bowl?
Approximately 7 liters, suitable for standard concrete testing.
Q4. Is the equipment durable?
Yes. It is built from corrosion-resistant metals, ensuring long service life.
Q5. Can this be used for academic training?
Yes. It is suitable for engineering labs and educational institutions.
Additional information
| Model |
AZA 1145 |
|---|---|
| Product Name |
B Type Air Entrainment Meter |
| Capacity |
7 Liters |
| Accessories Included |
Tamping rod, Strike-off bar, Carrying case |
| Application |
Air content test in freshly mixed concrete |
