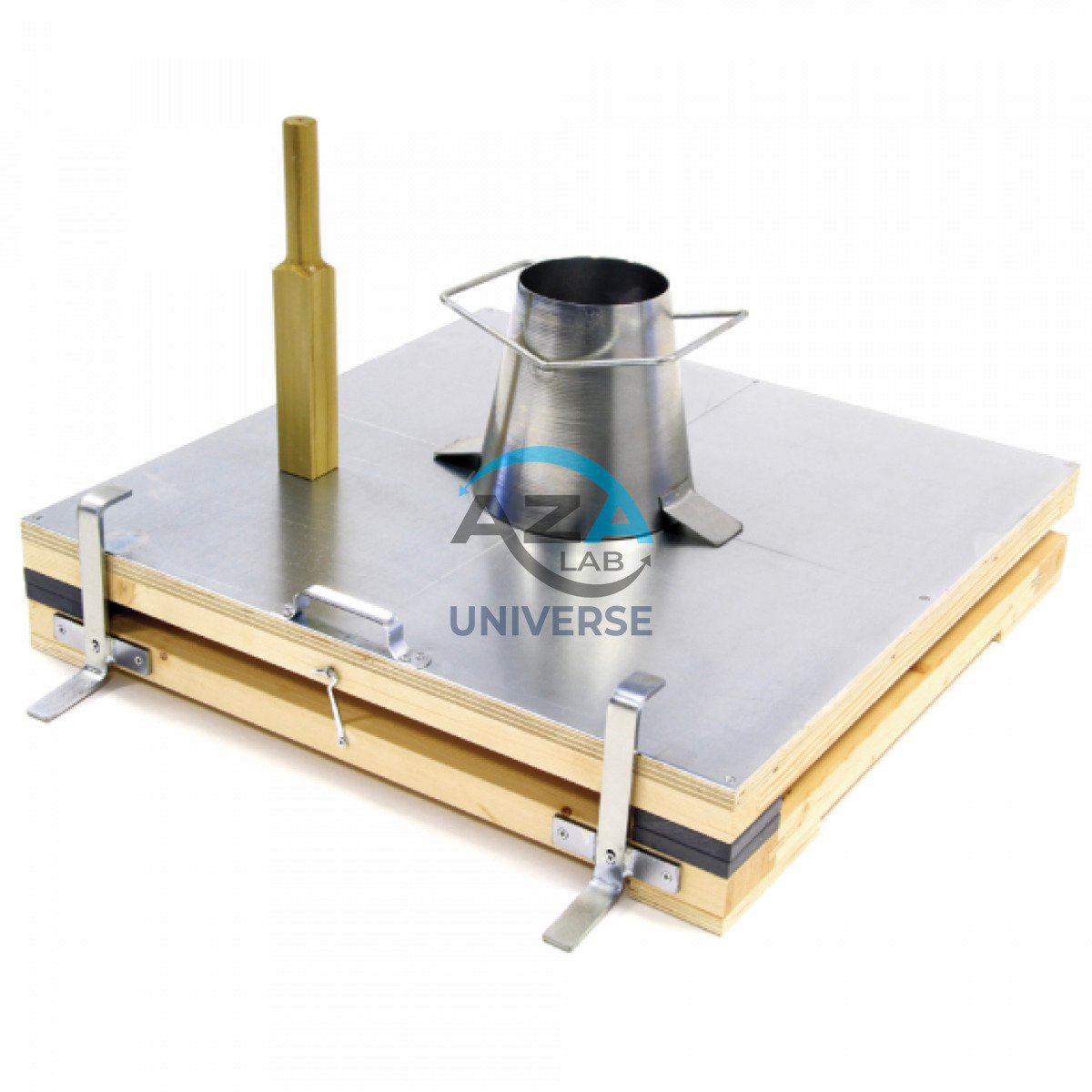

CONCRETE FLOW TABLE TEST SET AZA1110

AZA1110 Concrete Flow Table Test Set is a precision-engineered laboratory apparatus designed to determine the workability, consistency, and flow characteristics of fresh concrete. It is especially suitable for Self-Compacting Concrete (SCC), precast concrete, and high-consistency mixes where the traditional slump test is not effective.

This test set works by allowing a freshly mixed concrete sample to spread under controlled, repeated vertical jolts of a mechanically calibrated table. The final spread diameter of the concrete is measured to assess its flowability and uniformity.

Built with a rigid, precisely machined table surface, the AZA1110 ensures repeatable and reliable results. Its heavy-duty construction allows long-term use in demanding laboratory environments while remaining easy to clean, store, and maintain.

The apparatus complies with major international standards including IS 1199, ASTM C1437, and BS EN 12350-5, making it suitable for both domestic and international testing requirements.

Enquiry on WhatsApp
Category:
Description

Description

Key Features

  • Designed for accurate workability testing of fresh concrete

  • Ideal for SCC and high-flow concrete mixes

  • Smooth, precisely machined flow table surface

  • Measures spread diameter after standard vertical jolts

  • Supplied with cone mould and tamping rod

  • Durable construction for long service life

  • Easy to clean, handle, and store in lab environments

  • Complies with IS 1199, ASTM C1437, and BS EN 12350-5

Applications

  • Concrete quality control laboratories

  • SCC production and testing facilities

  • Precast concrete plants

  • Civil engineering and construction research institutes

  • Academic and training laboratories

Specifications

Specification Details
Model AZA1110
Type Concrete Flow Table Test Set
Table Diameter 762 mm (approx. 30 in)
Table Drop Height 12.5 mm ± 0.5 mm
Table Material Cast iron / Powder-coated steel
Mould Type Conical mould (Top: 130 mm, Bottom: 200 mm)
Standards IS 1199, ASTM C1437, BS EN 12350-5
Included Accessories Flow table, cone mould, tamping rod
Approx. Weight 30–35 kg

AZA1110 Concrete Flow Table Test Set is a robust, standards-compliant apparatus for measuring the workability and flow of highly workable concrete, ideal for SCC and precast concrete applications.

Additional information

Additional information

Model

AZA 1110
Type

Concrete Flow Table Test Set
Table Diameter

762 mm (approx. 30 inches)
Application

Fresh concrete workability test
Accessories Included

Flow table, cone mould, tamping rod
Weight

Approx. 30–35 kg
